OptiNID

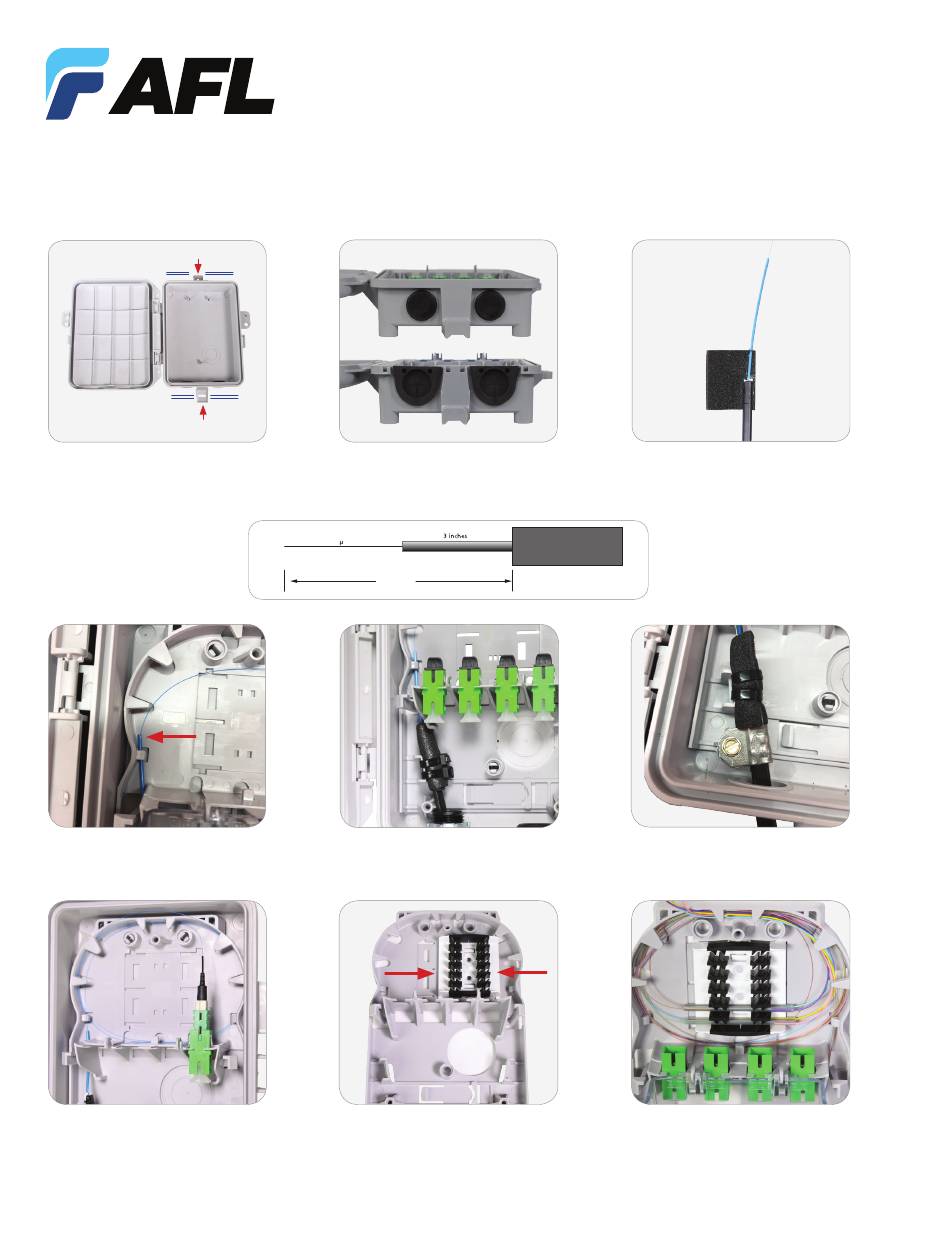

Duo Quick Start Installation Instructions
®
Screw here
Strap
Strap
Screw here
Mounting locations
Screw and Strap
Proper placement of drop
buffer tube
Field-installable connector
installed on drop cable
www.AFLglobal.com
Two types of grommets
Circular and U grommets
250/900 m
Buffer Tube
25 inches
Secure drop cable with
compression connector
Slide removable splice chip to
disengage or engage into base
1
Drop Cable Preparation with half-piece
of foam tape. See Scales below.
Drop Cable
Secure drop cable with clip
and grommet
Populated splice chip
single, mass or splitter
©2019, AFL, all rights reserved. INS-01007, Revision A, 8.22.19
Specifications are subject to change without notice.
Splice
11 inches
(min.)
Advertisement
Related Manuals for AFL OptiNID Duo
Summary of Contents for AFL OptiNID Duo
- Page 1 Field-installable connector Slide removable splice chip to Populated splice chip installed on drop cable disengage or engage into base single, mass or splitter ©2019, AFL, all rights reserved. INS-01007, Revision A, 8.22.19 www.AFLglobal.com Specifications are subject to change without notice.
- Page 2 Install with metal clips in demarcation chamber. Slide Ground into place to engage Close and Secure NID Optional screw QR code for additional information into base ©2019, AFL, all rights reserved. INS-01007, Revision A, 8.22.19 www.AFLglobal.com Specifications are subject to change without notice.
