Vestil ATS-6-56 Owner's Manual

Vestil Manufacturing Corporation
2999 North Wayne St., Angola, IN 46703
Ph: 260-665-7586 • Fax: 260-665-1339
E-mail: sales@vestil.com
Website: www.vestil.com
Contents
Receiving Instructions .......................................... 1
Warranty ............................................................... 1
Specification Chart ............................................... 1
RECEIVING INSTRUCTIONS
Every unit is thoroughly tested and inspected prior to
shipment. However, it is possible that the unit may incur damage
during transit. If damage is noticed when unloading, make a note
of it on the BILL OF LADING. Remove all packing and strapping
material, then inspect the unit again for damage. IF DAMAGE IS
EVIDENT, FILE A CLAIM WITH THE CARRIER
IMMEDIATELY!
WARRANTY
This product is warranted for 90 DAYS from date of purchase to
be free of manufacturing defects in material and workmanship.
This warranty does not cover normal wear of parts or
damage resulting from any of the following: negligent use or
misuse of the product, a use or application contrary to
installation instructions, or the disassembly, repair or alteration
by any person prior to authorization from a factory
representative.
SPECIFICATIONS
(for Drawing on Back)
Model Number
Number of Steps
ATS-4-56 7
ATS-5-56 8
ATS-6-56 10
ATS-7-56 12
ATS-8-56 13
ATS-9-56 15
ATS-10-56 16
ATS-4-68 6
ATS-5-68 7
ATS-6-68 9
ATS-7-68 10
ATS-8-68 11
ATS-9-68 13
ATS-10-68 14
Height Length Step Height
(A) (B)
48" 36-5/8"
60" 44-11/16"
72" 52-13/16"
84" 60-7/8"
96" 69"
108" 77-1/16"
120" 85-3/16"
48" 26"
60" 30-13/16"
72" 35-11/16"
84" 40-9/16"
96" 45-3/8"
108" 50-1/4"
120" 55-1/16"
Revised 0107
A company dedicated to solving ergonomic
and material handling problems since 1955.
OWNER'S
MANUAL

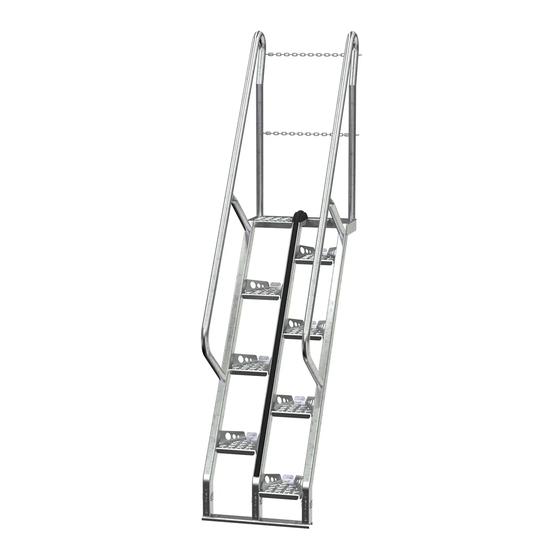

ALTERNATING-TREAD STAIR • Series ATS
Specification Drawing ........................................... 2
Assembly/Installation Instructions ......................... 3
ALTERNATING-TREAD STAIR
Series ATS
Angle
(C) (D) Height (E)
6-7/8" 56°
7-1/2" 56°
7-3/16" 56°
7" 56°
7-3/8" 56°
7-3/16" 56°
7-1/2" 56°
6-7/8" 68° 10-13/16"
7-1/2" 68° 10-13/16"
7-3/16" 68° 10-13/16"
7" 68° 10-13/16"
7-3/8" 68° 10-13/16"
7-3/16" 68° 10-13/16"
7-1/2" 68° 10-13/16"
Handrail Usable Step
Length (F)
17-3/16" 9-1/4"
17-3/16" 10-1/8"
17-3/16" 9-11/16"
17-3/16" 9-7/16"
17-3/16" 9-15/16"
17-3/16" 9-11/16"
17-3/16" 10-1/8"
5-9/16"
6-1/16"
5-13/16"
5-11/16"
5-15/16"
5-13/16"
6-1/16"
E
N
G
L
I
S
H
E
S
P
A
N
O
L
Bottom Handrail
Height (G)
27-1/2"
27-1/2" F
27-1/2"
R
27-1/2"
A
27-1/2"
N
27-1/2"
Ç
27-1/2"
A
34"
I
34"
S
34"
34"
34"
34"
34"
