Summary of Contents for HANNL Micro Autom

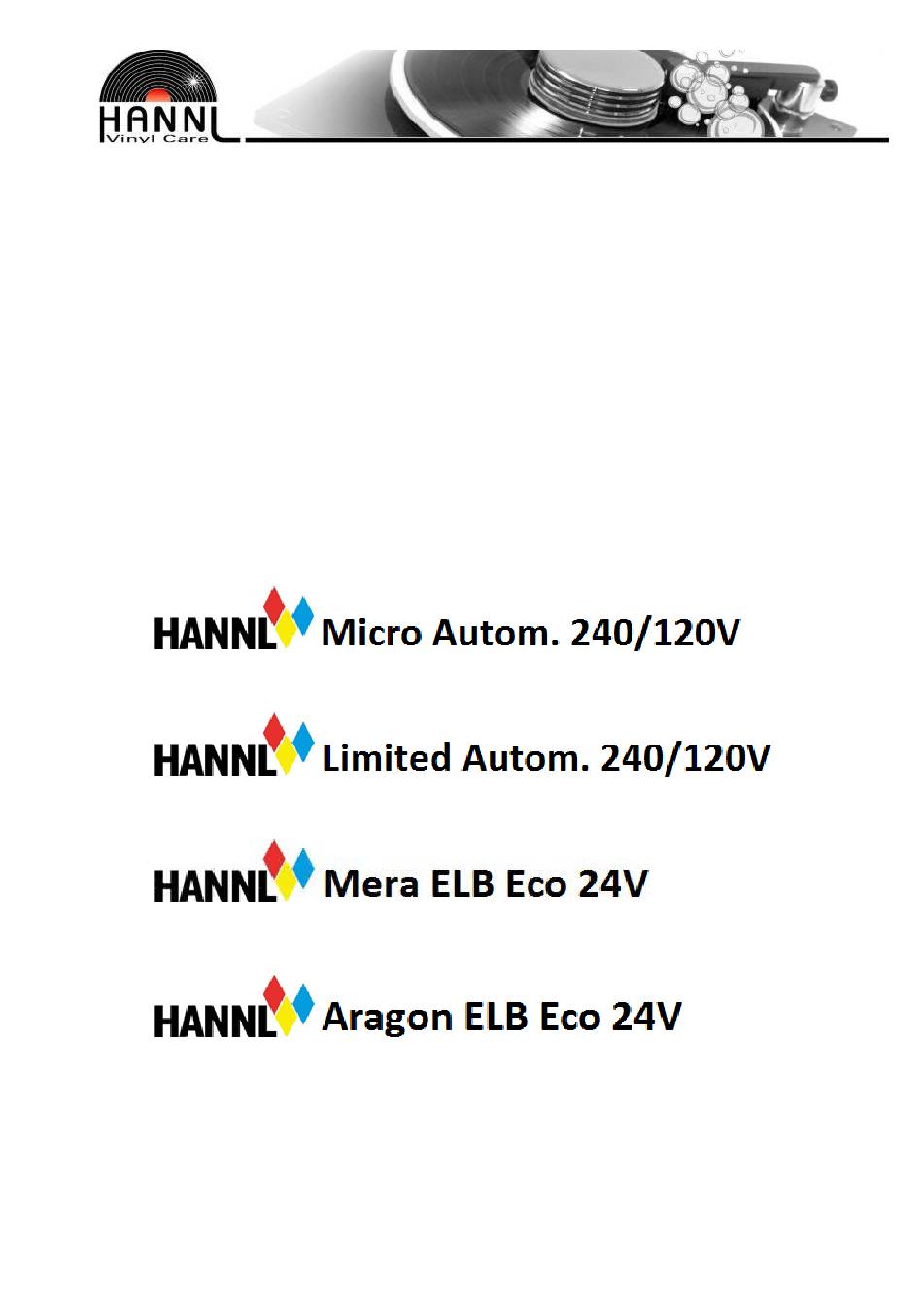

- Page 1 Manual Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de...
- Page 2 Welcome! Dear customer, We are pleased that you have decided to purchase a record cleaning machine from Hannl – Vinyl Care and would like to congratulate you on this choice. Please read the enclosed instruction manual carefully and make sure that you understood everything before installing and using the device.
-
Page 3: X Micro Fiber Cloth
1 x Apply-Bottle 2 x of 1 Ltr X 2000 and 1 Ltr. VI3 C detergent. 1 x Micro Fiber Cloth Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de... - Page 4 1 x Doublebrush Head 1 x extraction arm 1 x Roundbrush 1 x Puck with label seal (black, plastic covered) 1 x Apply-Bottle Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de...
- Page 5 Limited Autom. 24V DC Vinyl cleaning machine Information for the new features: • The Limited Autom. 24V DC have now a big 24V DC powerpack with integrated fan to take out the heat. • The handling and the optic is the same quality. •...
- Page 6 • In the program „VACUUM“ the machine changes the direction of the plate after 1 ½ rounds. • In the program „PLATE“ the machine changes the direction of the plate after 5 rounds. For questions and problems we are very glad to help you, please contact us under hannl@hannl-systems.de...
-
Page 7: Table Of Contents
Cleaning procedure Maintenance and care Adjustment of brushing roller 7.6.1 Scope of delivery of fixing tools 7.6.2 Disassembly of brushing roller 7.6.3 Alignment of adapter Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de... - Page 8 17. The detergent must not spill on sensitive surfaces. 18. Do not fill more tan 0.4 litres of the cleaning fluid into the tank. Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de...
- Page 9 20. The record must not be laid on or removed during ongoing operation 2. Delivery and packaging The Hannl record cleaner comes in a specifically designed packaging. At first it is advisable to check if there are recognisable external transport damages. In case of any damages please give us written notice within 3 days! Please check the completeness of the scope of delivery as well.
-
Page 10: Front View, Operative Elements Incl
The programme selection switch allows you to select between „LEFT“, „LIQUID“, „RIGHT“, „VACUUM“, ,,AUTO-R”. Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de... -
Page 11: Status Display
This process can be manually interrupted by pressing the button „SPEED/LIQUID“. By turning the „SPEED/LIQUID“ button you can adapt the suction levels according your requirements. (Recommended are 6-7 bars on the “STATUS DISPLAY”) Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de... -
Page 12: Adjustable Stand
Unevenness can be corrected by readjusting the stand. Screw out the stand feet until a secure footing is achieved. On delivery the stand feet are turned entirely inwards. Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de... -
Page 13: Suction Arm
It is recommended to wash the brush arm under flowing water and wipe off any moisture with the supplied microfiber cloth after the cleaning procedure. Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de... -
Page 14: Round Brush
5.6. „TURNTABLE“: The record lies on the coated turntable with a removable rubber underlay, which you can wash under running water once it is dirty. Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de... - Page 15 Information for the new features: The Hannl Mera ELB Eco 24V DC as upgrade from a Limited Autom. 24V DC or from a rebuilding of a Mera ELB Eco 24V DC have a new controlling which makes it possible to have more control for the customer about the machine.
- Page 16 Set the speed of the Turntable in Vacuum mode: • In the program „VACUUM“ you can now set the speed of the turntable in the program „VACUUM“. Until now it was only possible to set the speed of the turntable in the program „LEFT“...
- Page 17 4 Put the tube back under the machine where it was before. Dispose the waste and never reuse it. Also make sure not to incorporate this liquid. Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de...
-
Page 18: Roundbrush
Already assembled with the ELB and B devices. Do not replace the normal brush with the rotary brush. The rotayry brush is not required for cleaning all discs. Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de... - Page 19 The time required for the operation depends on how dirty the disc is. Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de...
- Page 20 We recommend using the rotary brush inconjunction with our specially developed non foamimg cleaning fluid : VI3C You may also use our X 2000 dilutedone-to-one.Cleaning performance will not be impaired and foam is not generated. Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de...
- Page 21 There is a rubber cover inside the socket which can be removed to access the Philips screw which holds the socket in place. Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de...
- Page 22 8. Important information about cleaning fluids when used with Hannl Vinyl Care record cleaning machines Cleaning fluids we recommend for use with Hannl record cleaning machines are: X2000 or Vi3C. Both liquids are developed specifically to prevent foaming, coagulating and fungi formation. Using our products prevents damage otherwise possible with fluids containing non-approved chemicals.
- Page 23 Low Voltage Directive 73/23/EEC EMV Directive 89/363/EEC Applied harmonised standards: EN ISO 12100-1/2 EN 60204 EN 1050 EN 294 EN 349 Place, Date __________________________ manufacturer __________________________ management Hannl Reinigungssysteme Beyenburgerstrasse 21 42899 Remscheid. Telefon +492191/842 976 ; Telefax +492191/842 977 ; E-Mail info@vinylcare.de...
