Little Tikes Discover & Learn Activity Center Manual

Little Tikes Little Tikes
® ®
Discover & Learn Activity Center Discover & Learn Activity Center
ADULT ASSEMBLY AND SUPERVISION REQUIRED.
ADULT BATTERY INSTALLATION REQUIRED.
Watch the train chug around the track
with fun sounds and sights to see as
baby rocks and explores.
Illustrations are for reference only. Styles may vary from actual contents.
BATTERY INSTALLATION
Prior to playing, an adult must install fresh
alkaline batteries (not included). Here‛s
how:
1. Using a Phillips screwdriver (not included)
remove the screw and battery
compartment cover from the top of the
Train Engine.
2. Insert three (3) AAA alkaline batteries
making sure the (+) and (-) ends face the
proper direction as indicated inside the
battery compartment.
3. Replace the compartment cover and
tighten the screw.

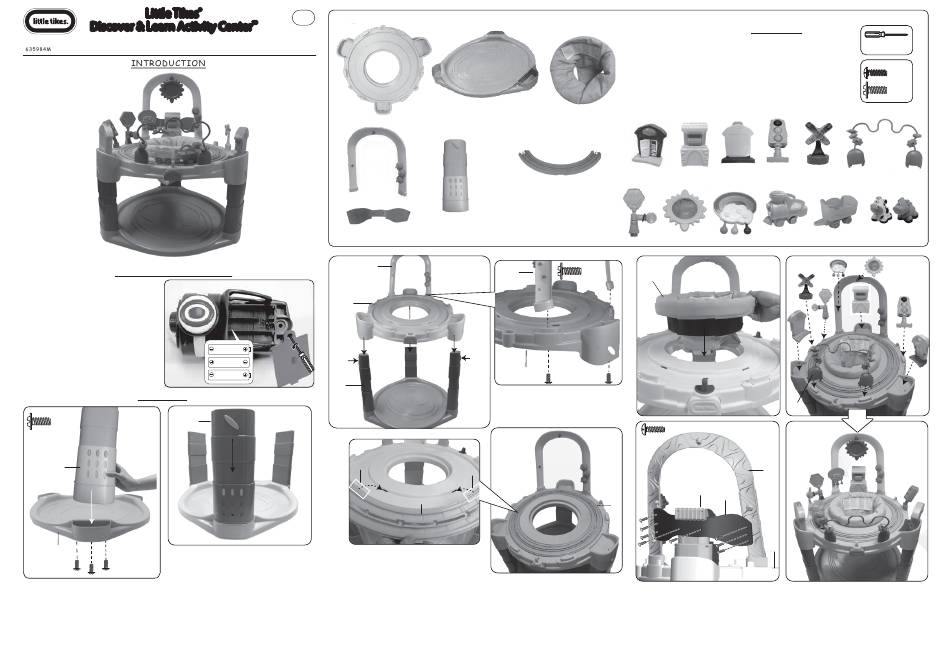

ASSEMBLY
Fig. 1
E
S2 x 9
E
B
1. Insert the Leg (E) with Extensions into the openings on the Base (B) and secure each with 3
screws (S2). (Fig. 1)
NOTE: There are three positions on the Activity Center for different heights. (Fig. 2) As the
child grows, move the Legs to a higher set of openings on the Leg with Extensions. ALWAYS
remove the child before adjusting to the next height.
2. Press the buttons inward, while firmly pressing down on the Legs to adjust the height. Check
that the buttons fit securely in the openings prior to use. (Fig. 2)
ENG
™ ™
A.
AGES 6-36 MONTHS
D.
T.
D
A
1.5V AAA / LR03
oval
1.5V AAA / LR03
buttons
1.5V AAA / LR03
E
Fig. 2
tab
1
2
3
3. Place the Arch (D) on the Tabletop (A) and secure with 2 screws (S2). (Fig. 3)
Place the Tabletop on the Legs and press down firmly until the 3 oval buttons fit securely in
the openings. (Fig. 3)
4. Connect all 3 Train Tracks (F). Then, snap the tabs into place onto the Tabletop as shown.
(Fig. 4)
B. C.
E. F.
Fig. 3
S2 x 2
D
oval
buttons
A
Fig. 4
tab
F
CONTENTS
A. 1 Tabletop G. 1 Barn
N. 1 Mirror Sun
B. 1 Base H. 1 Train Station
O. 1 Rainbow
C. 1 Seat I. 1 Bell House
P. 1 Train Engine
D. 1 Arch J. 1 Traffic Light
Q. 1 Train Car
E. 3 Legs with Extensions K. 1 Windmill
R. 2 Farm Animals
F. 3 Train Track Pieces L. 1 Activity Bar
S1. 8 Screws
M. 1 Stop Sign
S2. 11 Screws
T. Support Bar
H. I.
G.
J.
M. N. O. P.
Fig. 5
C
S1 x 8
Fig. 7
D
H
T
F
A
5. Insert the Seat (C) into the opening in the center of the Tabletop. (Fig. 5)
NOTE: When the child‛s feet touch the base of the unit, it will rock as the child moves or bounces.
6. Continue adding accessory pieces around the Tabletop and on the Arch. (Fig. 6)
7. Fasten the Support Bar (T) behind the Train Station (H) and Arch by securing with 8 screws (S1).
(Fig. 7)
(Not included)
S1 x 8
S2 x 11
K. L.
Q. R.
O
N
Fig. 6
K
M
J
H
I
G
L
