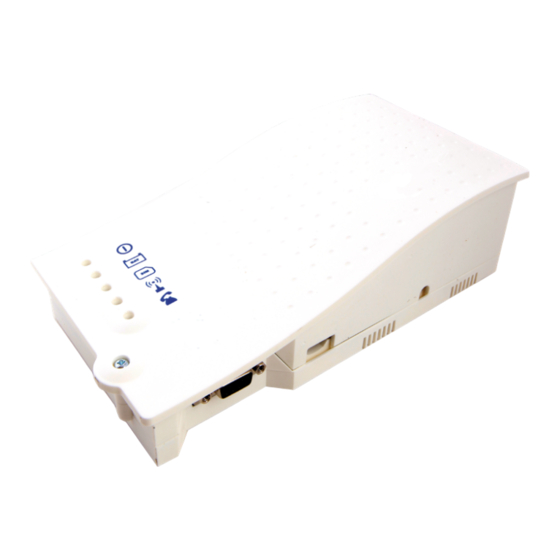

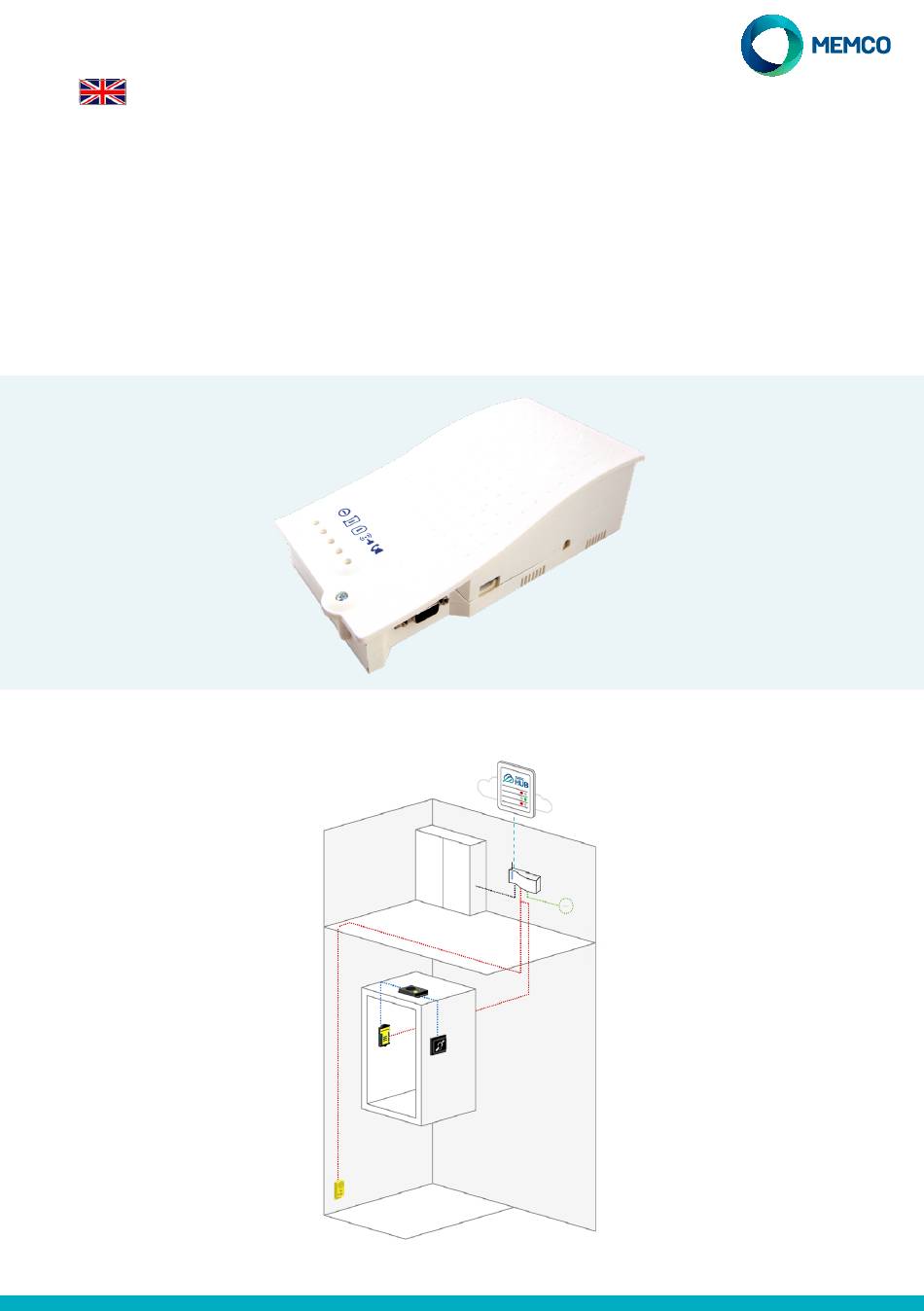

- Page 1 Digital Communication Platform Installation Guide MC-2CM10-100-F-20-000 MC-2CM10-100-F-40-000 MC-3CM10-100-F-20-000 MC-3CM10-100-F-40-000 Typical DCP System Architecture...
- Page 2 DCP CONNECTIONS To access the dipswitches and connections open the DCP case by unfastening the front screw (PZ1) and removing the lid. fig. 1 fig. 2 Connector Connector Description Terminal Signal Antenna +12V Battery SIM Card Power Supply CAN L CAN BUS CAN H +Vin...
- Page 3 Connect the power supply, 230VAC to J6 The DCP can be connected to a Memcom or a Memco Digital Audio Unit (DAU). Memcom When connecting a Memcom+ use the analogue phone line connection from J1A or J9.
- Page 4 Digital Audio Unit When connecting a Digital Audio Unit (DAU) connect the unit or the CAN Bus Splitter to J8 using a 4-core cable (2 wires for power and 2 for communication) If only connecting 1 device to the DCP (e.g. DAU) set SW4 to ON If connecting 2 devices to the DCP (e.g.
-
Page 5: Led Indicators
LED INDICATORS The DCP has five indicator LEDs that constantly report the device status. The indicators will be either red, amber or green. Each indicator will be fully on, fully off or flashing. On start-up, you should see the following within 60s: fig. -
Page 6: Sms Commands
PROGRAMMING OF DCP The DCP can be configured remotely via the Avire Hub or via SMS. 1) THE AVIRE HUB All settings can be configured remotely via the Avire Hub The link to the Avire Hub is hub.avire-global.com Please contact your local sales office for access to the Avire Hub. - Page 7 SIM CARD SETTINGS AVIRE SIM CARDS Avire SIM cards come preconfigured to be used with our products immediately after plugging them in. You will need to know the CCID number to add this information to the Avire Hub. CCID Number (middle number on the SIM card) To retrieve the CCID number by SMS Pin1234 P005? NON AVIRE SIM CARDS...
- Page 8 System Architectures Triphony Unit Universal Power PIT Phone Display Digital Audio Unit Induction Loop CAN Bus Splitter Lift car system architecture with DCP, DAU, TOC Triphony Unit, Inductive Loop...
- Page 9 Two lift car system architecture with DCP, Two lift cars with DCP, UPS, CANBus Splitter, DAU, TOC and BOC Triphony Units TOC Triphony Unit, DAU, PIT Phone. Four lift cars with DCP, UPS, CANBus Splitters, DAU, Triphony Units TOC, PIT Phones Note: There is a maxiumum of two CANBus Splitters per DCP.
- Page 10 European Directive of 27 January 2003 regarding the restriction of use of hazardous substances in electric and electronic appliances. Avire Ltd Unit 1, The Switchback 01628 540100 Gardner Road 01628 621 947 Maidenhead sales.uk@avire-global. Berkshire Memco is a brand of Avire SL6 7RJ, UK www.avire-global.com...
