Code 3 C3900 Installation And Operation Instructions page 3

920-0669-00 Rev. B

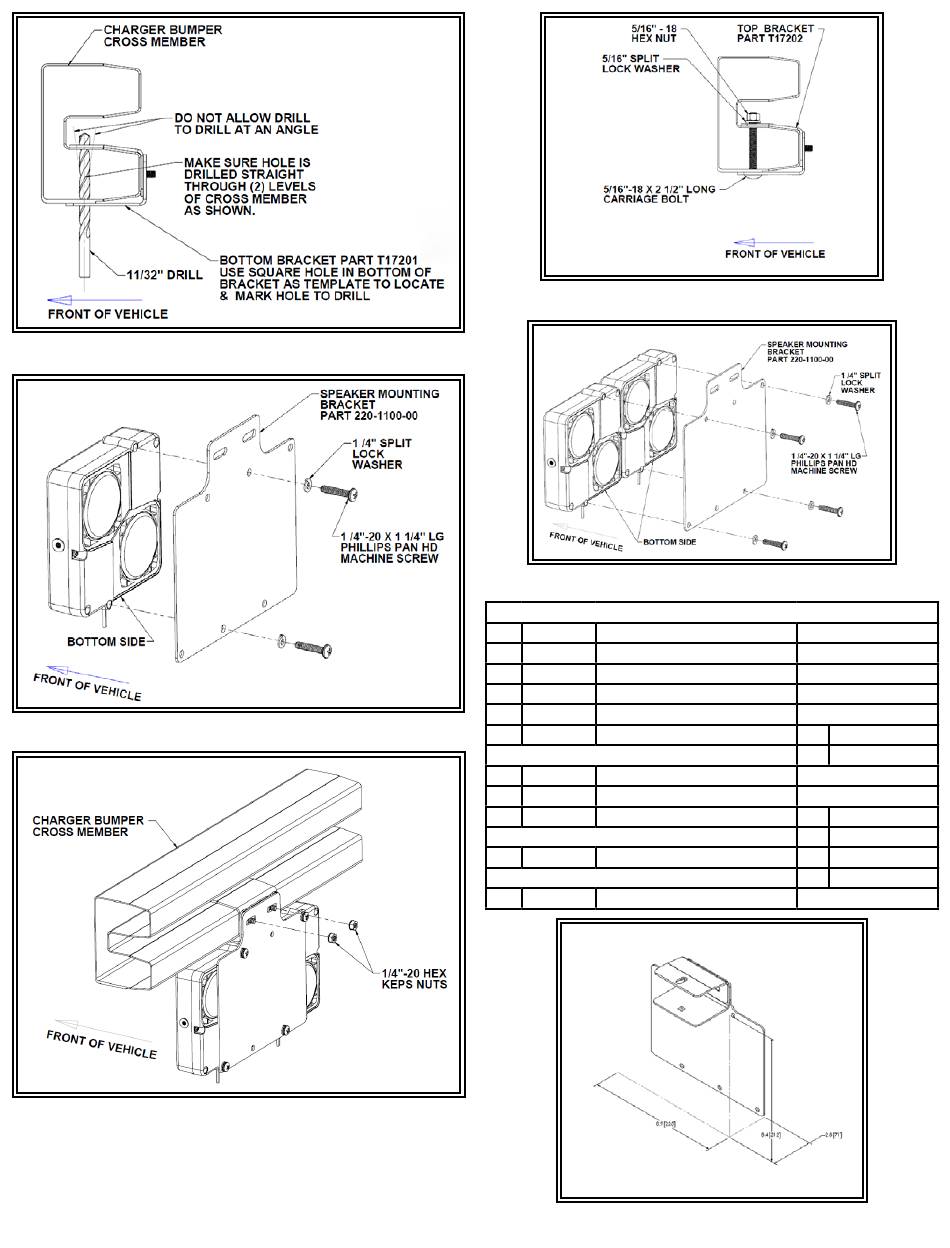

Figure 3
Figure 5
Figure 7
Item Part # Description
1 T17201 Bottom Cross Member Mounting Bracket
2 T17202 Top Cross Member Mounting Bracket
3 T00244 5/16"-18 Hex Nut
4 T00245 5/16 Split Lock Washer
5 140-1533-00 100 Watt Slim Speaker
6 220-1100-00 Speaker Mounting Bracket/Plate
7 T15105 1/4"-20 Hex Keps Nut
8 T03745 1/4" Split Lock Washer
9 326-0126-00 1/4"-20 x 1 1/4" Phillips Pan Head MS
10 T06716 5/16"-18 x 2 1/2" Carriage Bolt
Figure 4
Figure 6
Parts List
Qty.
1
1
1
1
2 Dual Speaker
1 Single Speaker
1
1
4 Dual Speaker
2 Single Speaker
4 Dual Speaker
2 Single Speaker
1
Figure 8
Page 3 of 4
