Signtex Moonlite LED MHE Series Installation Instructions & User Manual

Moonlite LED
™
Emergency & Security Light
Installation Instructions & Users Manual

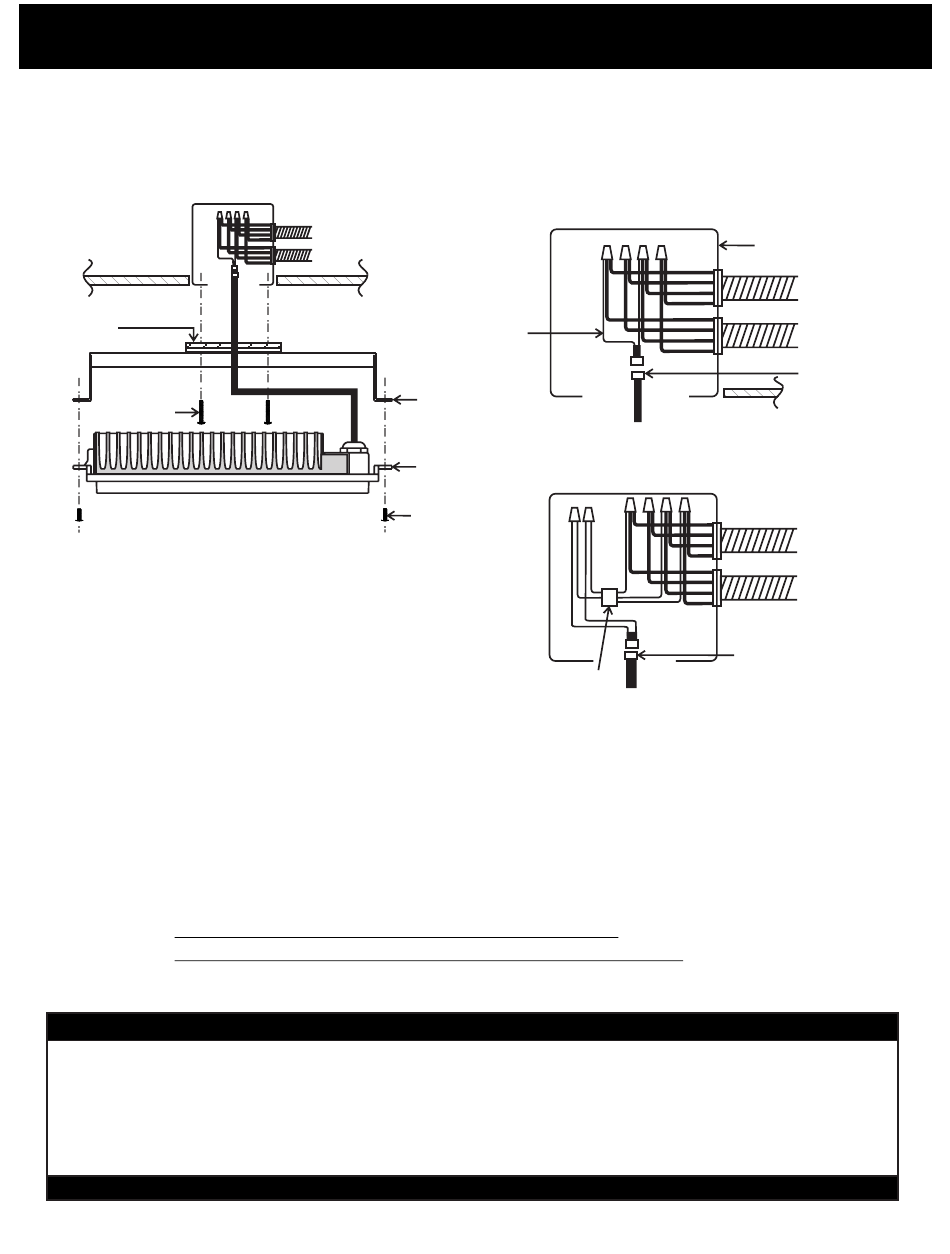

SURFACE BRACKET TOP MOUNT RECESSED J-BOX

Fig. 1
CEILING
GASKET
(2) 8-32 X 1"
COLOR KEYS
24V TERMINALS FROM BATTERY PANEL
B= BLACK:COMMON: 12/24 VDC NEG -
Y= YELLOW: EXITS/CVRE: 12/24 VDC POS +
R= RED: EMERGENCY: 24VDC POS +
BL= BLUE: NORMAL ON LIGHTING (NOL): 24 VDC POS +
24V INPUT TO MHE LAMP ASSEMBLY
R = RED: 24VDC POS+
B = BLACK: COMMON 24VDC NEG-
1. See Fig 1 and wiring details for EM Lighting Only, and Normal On Lighting Option. Identify mount position and install
4" x 4" J-Box. Route 24VDC wiring IN/OUT as shown and connect pigtail (supplied) with lamp plug. Connect Pigtail
RED +24V power input circuit and Pigtail RED -24V wire to COMMON NEGATIVE -24V power input circuit with
standard wire nuts.
2. Remove Lamp Assembly from bracket, place gasket in position on bracket canopy plate and route lamp plug through
gasket. Install (2) #8-32 screws and secure bracket in position. Ensure that gasket is in place correctly and tighten screws
evenly.
3. Connect lamp plug from Lamp Assembly and push connector and extra wire cable through gasket into J-Box. Install (4)
Hex Hd SST screws to secure Lamp Assembly into bracket.
CHECK CONNECTIONS BEFORE SUPPLYING POWER :
REVERSE POLARITY WILL PERMANENTLY DAMAGE FIXTURE
4. Supply 24VDC power from central battery or normal on/security power system to check lamp operation.
IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Disconnect AC power before servicing.
2. Refer to wiring diagram for proper connections.
3. All servicing should be performed by qualified personnel.
4. Consult your local building code for approved wiring and
installation.
5. Do not use this equipment for other than intended use.
6. Do not let power cords touch hot surfaces.
PIGTAIL
(SUPPLIED)
BRACKET
LAMP ASSBY
(2) 8-32 X 3/8"
HEX HD SST
7. Mount and secure the fixture at a location and height
to avoid ready access and tampering by unauthorized
persons.
8. The use of accessory equipment is not recommended by
the manufacturer and may cause an unsafe condition.
9. Suitable for wet locations. See product label for temperature
limitations.
SAVE THESE INSTRUCTIONS
EM Lighting Only
B
Y
R
BL
B
Y
R
BL
B R
Normal On Lighting Option
B
Y
R
BL
B
Y
B B
R
R
BL
R
B
R
B
PIGTAIL WITH
SPLITTER
(SUPPLIED)
Wet Location
Series MHE-RE
REV 8.17.04
J BOX
4" X 4"
24 VDC INPUT
CIRCUIT
24 VDC OUTPUT
CIRCUIT
LAMP PLUG
(SUPPLIED)
24 VDC INPUT
CIRCUIT
24 VDC OUTPUT
CIRCUIT
LAMP PLUG
(SUPPLIED)
