A&E Systems TRAVEL-AWN 5000 Operating Instructions

A&E Systems Inc.
TO OPEN

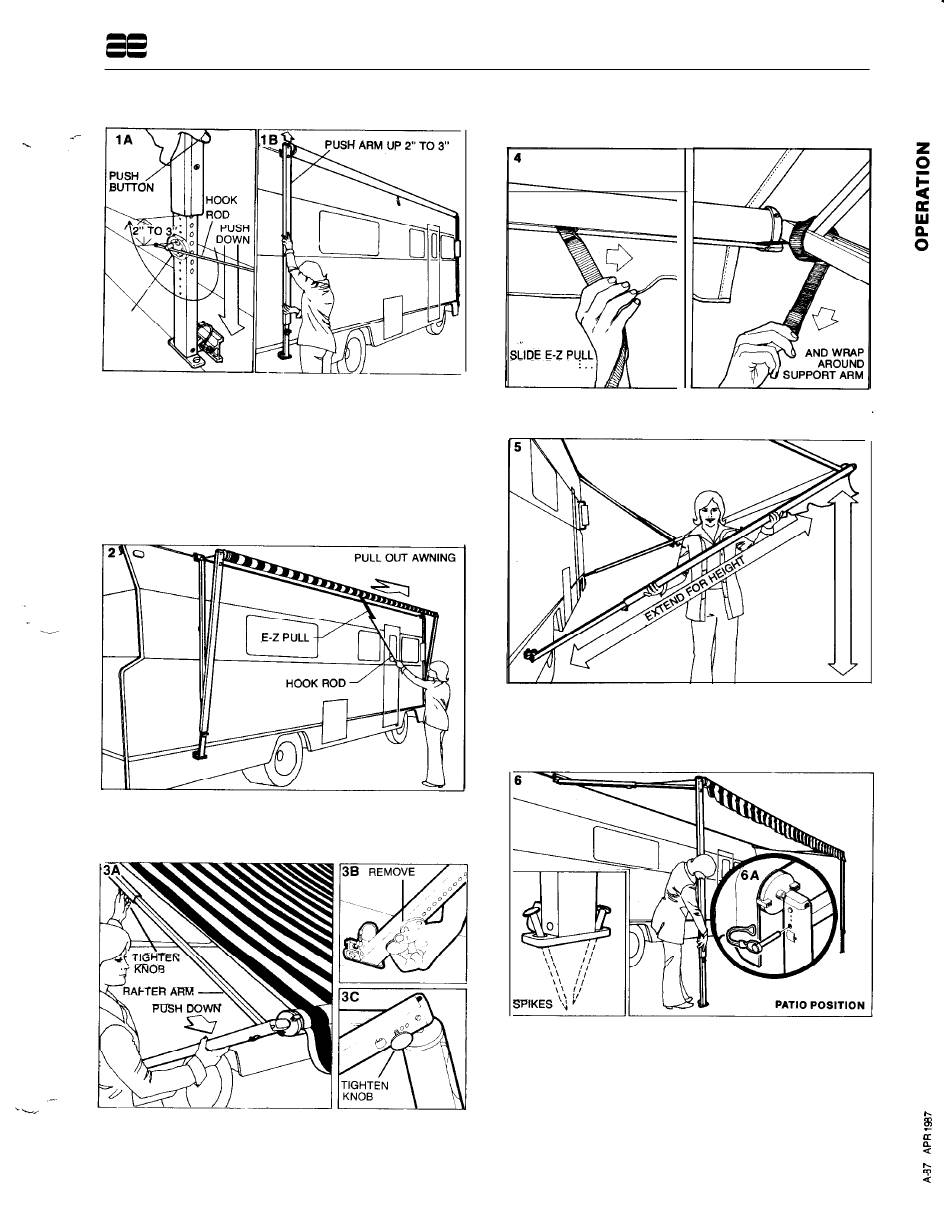

1. Insert the Hook Rod between the two Lugs of the Lift Cam
as shown in Fig. 1A. Depress the Push Button with one hand
and rotate the Lift Cam by pushing down on the Hook Rod
with the other hand. When the Lift Cam is turned 180,
release the Push Button and let the Button catch a punched
hole in the side of the Adjustable Arm. The Support Arm is
now unlocked. Repeat this step on the other side. If desired,
the Support Arm may be unlocked without using the Lift Cam
(Fig. 1B)
NOTE: Lubricate the Push Button when it becomes
sticky.
2. Pull down on the E-Z Pull and extend Awning Fabric
all the way out.
NOTE: If the E-Z Pull cannot be reached, use the Hook
Rod provided.
3. Keeping the Awning from rolling back, move to a side
and slide the Rafter Arm up the Support Arm until it snaps
into place at the top of the Support Arm.
Push Support Arm down and tighten the Knob on Rafter
Arm to hold Fabric stretched. (Fig. 3A)
3100 Segerstrom, Santa Ana, California 92704 U.S.A.
Telephone: (714) 540-6444. TWX: 910-595-2577
For the Airstream, Argosy, Silver Streak and the Park
Models only, remove the Knob found at the bottom of the
Support Arm (Fig. 3B) and secure it into the hole at the top of
the Support Arm. (Fig. 3C) Repeat Step on the other side.
TO ONE SIDE
J
4. Put E-Z Pull out of way by sliding it over to a side and wra
ping it around the Main Support Arm or the Roller Tube.
5. To raise Awning, grasp Main Support Arm, depress
Side Button, and slide Arm up. When desired height is
reached, release Side Button and allow it to snap into a
punched hole.
Extend the other Support Arm to the same height.
6. For extended stays and where ground conditions per-
mit, the Patio Position allows easier access and more
usable space.
Pull out the Safety Spring Pin and detach Support Arm
from the Bottom Mounting Bracket. Set the Arm down on
the ground vertically and adjust height. Pound in the
spikes provided.
top of support arm to secure support and rafter together.
(Fig. 6A.)
I-7
TRAVEL-AWN 5000
Insert lower mounting bracket Spring-Pin into hole near
160106-001-A87
P
