Summary of Contents for AURATON RT

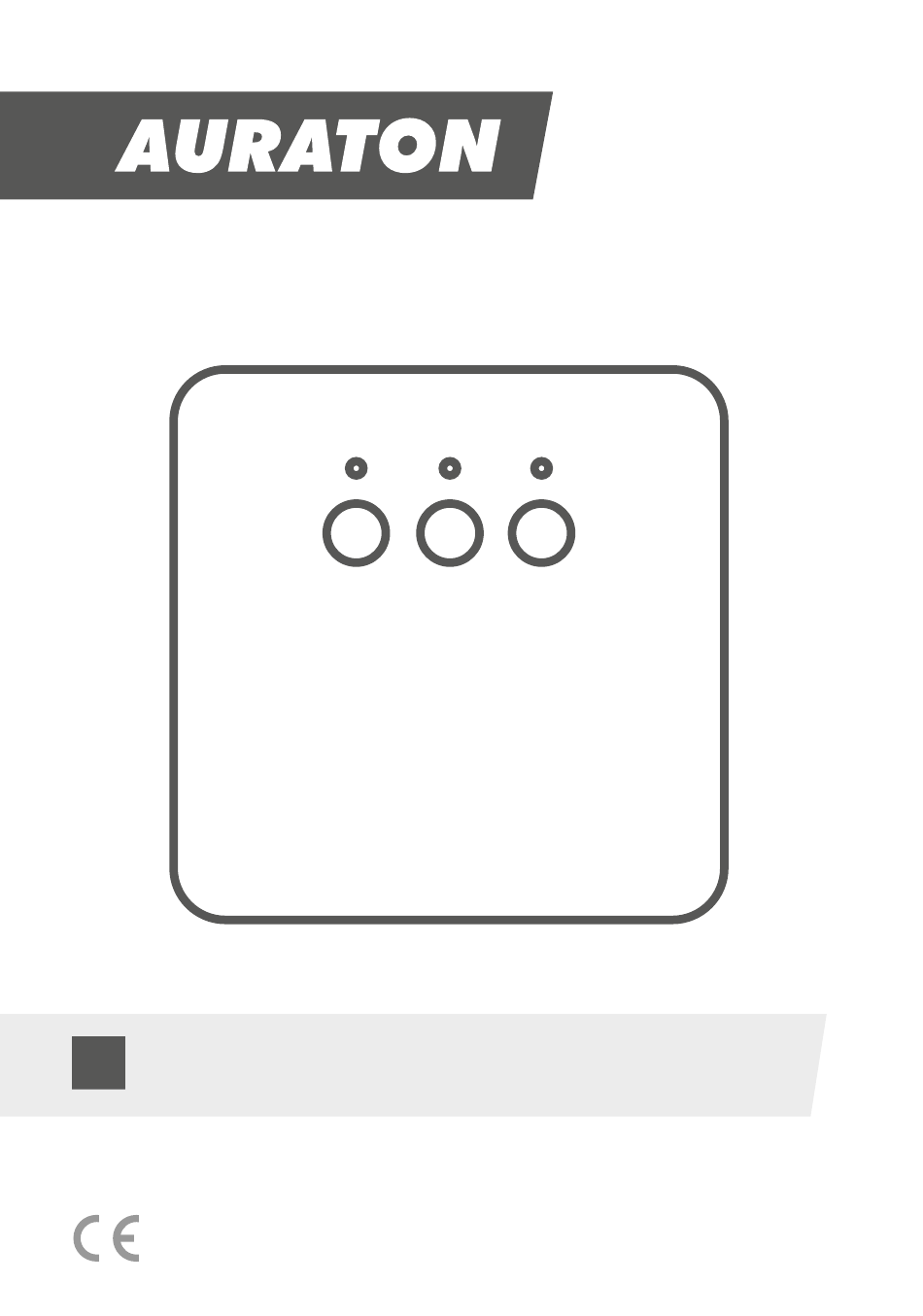

- Page 1 O W N E R ’ S M A N U A L w ww . au raton . pl...
- Page 2 AURATON RT Operation under the load of up to 16A/10A The AURATON RT receiver is equipped with a relay capable of operating with the load of up to 16A/10A. Its low-sparking technique of switching mains voltage contributes to the low wear of relay contacts.
- Page 3 The LED light’s red – the output device is on (the contacts COM and NO are closed). The LED flashes green – the RT receiver awaits the device to be paired (chapter: “Pairing the AURATON R25 RT wireless regulator and the RT receiver”).
- Page 4 If devices with higher power are connected, the cables should be replaced with ones of appropriate cross-sections. NOTE: When installing an AURATON RT receiver, make sure that the power supply is switched off. The receiver should be installed by a professional.
- Page 5 (5 mm). 4. Put the wall plugs in the drilled holes. 5. Fasten the AURATON RT receiver to the wall using screws so that the receiver is well fastened. NOTE: If the wall is wooden, there is no need to use wall plugs. In such a case, drill two holes 2.7 mm in diameter instead of 5 mm, and screw the screws directly into the wood.
- Page 6 ) - a single sound signal is emitted - on the AURATON RT receiver and by holding it pressed for at least 3 s until the LED diode starts blinking with green light (double sound signal) - then the button must be released.
- Page 7 NOTE: If the power supply of the AURATON RT receiver is switched off and then switched on after the RESET, the receiver automatically goes into the “pairing” mode for 120 seconds.
- Page 8 AURATON RT AURATON R25 RT AURATON T-2 AURATON H-1 Receiver connected Wireless Wireless thermometer Window handle to the heating device temperature regulator (sold separately) (sold separately) A simplified schematic of connecting the AURATON RT receiver with the heating device heating device...
- Page 9 R25 RT regulator. B) The remote setpoint – if the T-2 thermometer is additionally paired with the RT receiver, the AURATON R25 RT regulator retains the capability of temperature setting, however its control is performed with the paired T-2 thermometer only.
- Page 10 AURATON W-1 window position sensor paired, therefore the relay is controlled by the paired AURATON R25 RT regulator and/or the AURATON T-2 thermometer. When at least one H-1 handle is paired with the RT receiver, the relay is controlled in the following manner: A) The window is closed or trickle-ventilated (micro-ventilation).
-
Page 11: Special Situations
RT receiver automatically maintains the last memorised setpoint from the AURATON R25 RT regulator and also signals an error. • When you have only the H-1 handles and the T-2 thermometer paired with the RT receiver without the AURATON R25 RT regulator, the RT receiver maintains a constant, factory-defined temperature of 20°C. - Page 12 The AURATON RT receiver connection schematics CONTROL HEATING ~230V AC DEVICE e.g. a gas furnace ELECTRIC HEATING DEVICE MAX ~230V 16A PROTECTIVE...
-
Page 13: Technical Specifications
Technical specifications Working mode control: resistive 16 A Maximum load: inductive / capacitive 10 A AURATON RT power supply: 230V AC, 50Hz AURATON RT radio frequency: 868 MHz in a typical building, with standard construction AURATON RT operation range: of walls - approx. 30 m;... - Page 15 A template for drilling holes for fastening the AURATON RT receiver (1:1 scale)
- Page 16 20190408...
