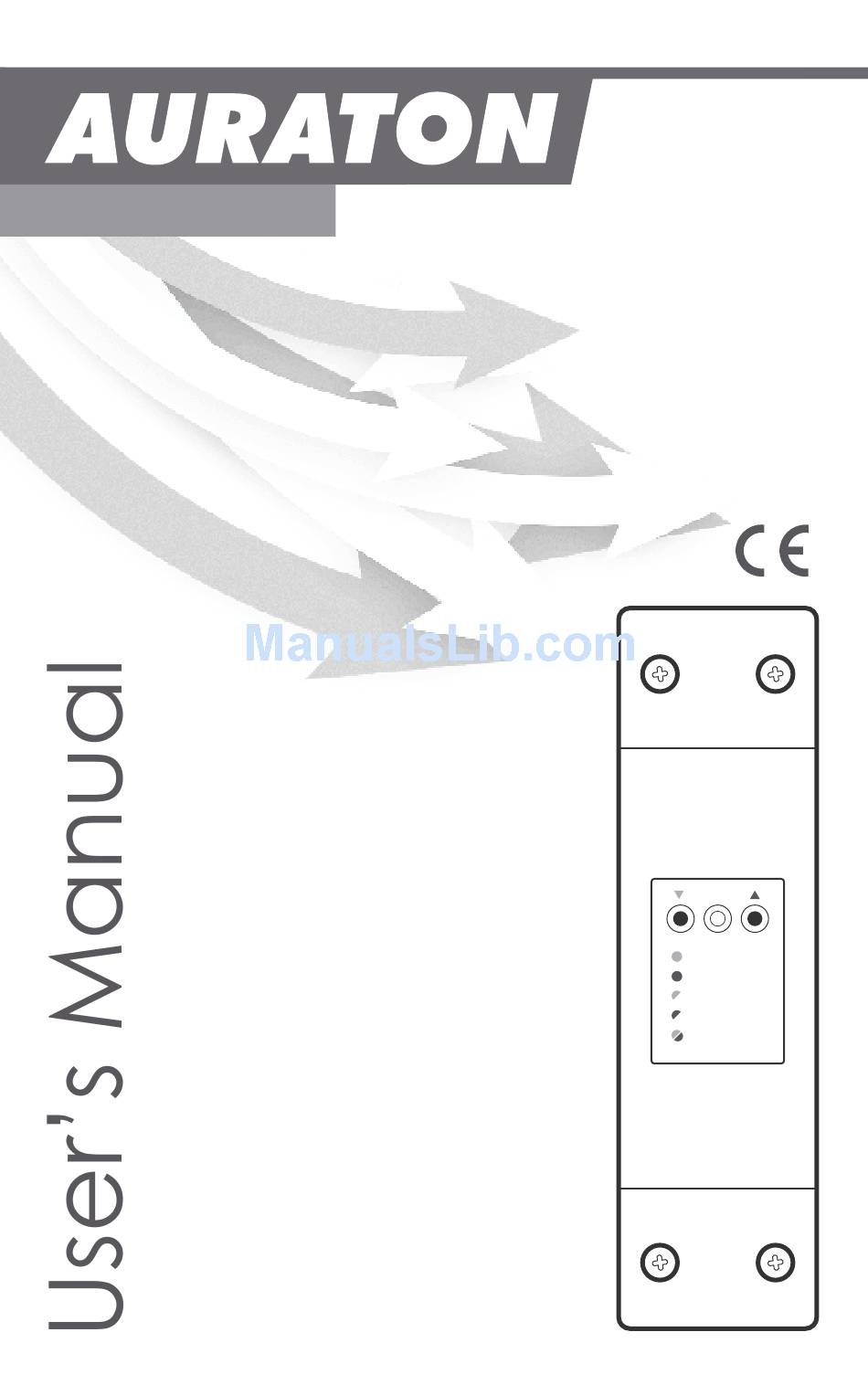

- Page 1 ALARM RESET...

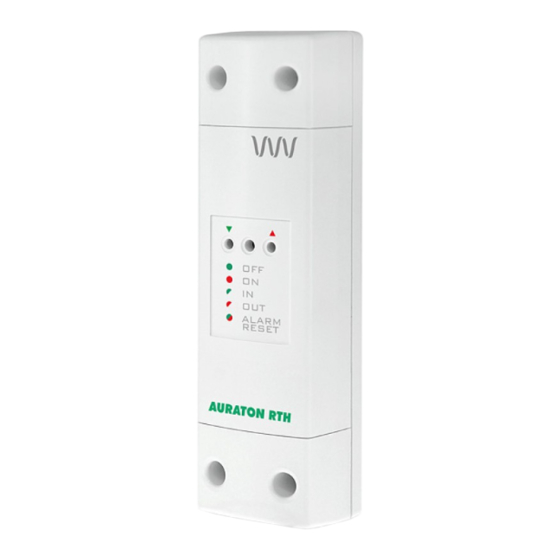

- Page 2 The AURATON RTH receiver is equipped with a unique algorithm of ON- OFF cycles analysis. The whole heating cycle from the last 24h is saved in the memory of the RTH receiver. In the case of loss of communication with the temperature controller and/or the T-2 thermometer, the RTH receiver will automatically perform the remembered cycle of activations / shutdowns from the last 24h.
- Page 3 The LED flashes red – the RTH receiver awaits the device to be deregistered. The LED flashes alternating red and green: ALARM - the RTH receiver has lost connection with one of the paired devices. RESET - receiver deregisters all previously paired devices.
- Page 4 It is recommended that the installation is performed by a qualified specialist. 1. Take off protective covers from the lower and upper part of the AURATON RTH receiver. protective cover 2. Take off cable tie clamps from the lower and upper part of the AURATON RTH receiver.
- Page 5 3) In marked places, drill holes of a diameter corresponding to the bundled wall plugs (5 mm). 4) Insert wall plugs into the drilled holes. 5) Screw in the RTH receiver to the wall with screws, making sure they hold thereceiver securely. hole for fastening...
- Page 6 First start-up of RTH receiver The first connection of the RTH receiver to the supply network will result in the receiver going into the "association" mode for 120 seconds. It is signalled by LED diode flashing with a green light.(see chapter: "Associating device with RTH receiver"...
- Page 7 Signing out device from RTH receiver 1. Signing out the device from the RTH receiver is initiated by pressing the right sign out button (red triangle - ) on the receiver and pressing it for at least 2 sec, until the LED diode starts flashing with a red light, then we release the button.
- Page 8 AURATON RTH After switching on the power supply the transmitter of the RTH AURATON the receiver is always activated until it receives information from associated devices. Cooperation of receiver with AURATON T-1 regulator and/or...
- Page 9 "baby room" will always have a temperature of 22°C regardless of the temperature fluctuations that occur in the kitchen. C) factory setting (20°C) - If with the RTH receiver we associate only the T-2 thermometer it is not possible to manually set the temperature and the RTH receiver will maintain the factory setting of 20°C.
- Page 10 When we open the window with an associated H-1 handle for longer than 30 sec, the transmitter in the RTH AURATON receiver will be turned off and the heating device will also turn off. If all assigned windows once again will...
- Page 11 T-1 controller and the T-2 thermometer A) Air-conditioning controlling. In order for the RTH receiver to be able to control air-conditioning: it cannot be the associated with any T-1 controller or T-2 thermometer, it must be associated with at least one H-1 handle or window position...
- Page 12 If all windows with an associated H-1 handle or window position sensor once again will be in a position other than open or ajar, the RTH receiver after time not shorter than 90 seconds from deactivating the transmitter once again will activate the transmitter and the air-conditioning device.
- Page 13 H-1 handle, the temperature of 17°C will be maintained. If any window with associated H-1 handle will be opened the RTH receiver will turn off the heating device, but it will activate it again if the temperature falls below 7°C.
- Page 14 ź ON-OFF cycle analysis. The whole heating cycle from the last 24h is saved in the memory of the RTH receiver. In the case of loss of communication with the T-1 controller and/or the T-2 thermometer, the RTH receiver will automatically perform the remembered ON/OFF cycle from the last 24h.
-
Page 15: Technical Specifications
Verification of operation condition: LED diode Maximum load current ~16A 250 VAC for transmitter contacts: RTH power supply: 230 VAC, 50 Hz Radio frequency: 868 MHz Range of operation in a typical building, with a standard with wireless devices: structure of walls - ca. - Page 16 www.auraton.pl...
