INSTALLATION

STEP 1: HANGING THE FAN

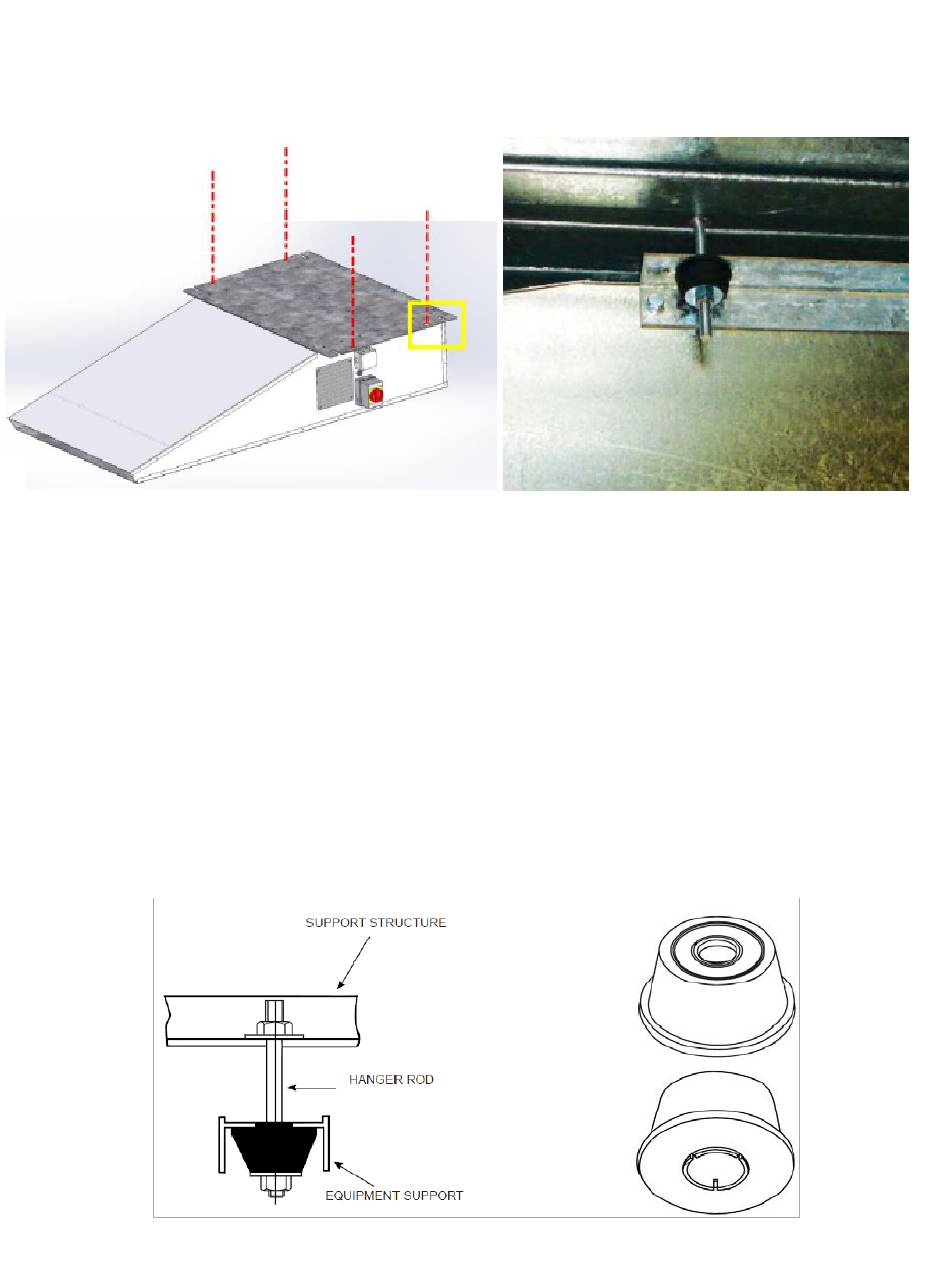

Mounting Points are illustrated in Red. Two sets of holes are provided on the unit, one is a 13mm hole to be used for
mounting directly via hanger rods or bolts, and the other is a 25mm Hole to support the fan with anti-vibration mounts
(close up of yellow box Illustrated on the right).
STANDARD INSTALLATION METHOD
For standard installation, use an 8mm Lag bolts directly to the mounting points.
SOUND SENSATIVE INSTALLATION
For sound sensitive installations, such as the first level under a residential complex, additional anti-vibration mounts are
available.
For anti-vibration mounts, the following parts are required:
Front Mounting Points: 2 X Embelton RHE1-Green
Rear Mounting Points: 2 X Embelton RHE1-Blue
