FM radio reception
D300800AHM
How vehicle audio works
AM and FM radio signals are broadcast
from transmitter towers located around
your city. They are intercepted by the
radio antenna on your vehicle. This signal
is then received by the radio and sent to
your vehicle speakers.
When a strong radio signal has reached
your vehicle, the precise engineering of
your audio system ensures the best pos-
sible quality reproduction. However, in
some cases the signal coming to your
vehicle may not be strong and clear. This
can be due to factors such as the dis-
tance from the radio station, closeness of
other strong radio stations or the pres-
ence of buildings, bridges or other large
obstructions in the area.
JBM001
Features of your vehicle
AM radio reception
AM broadcasts can be received at
greater distances than FM broadcasts.
This is because AM radio waves are
transmitted at low frequencies. These
long, low frequency radio waves can fol-
low the curvature of the earth rather than
travelling straight out into the atmos-
phere. In addition, they curve around
obstructions so that they can provide bet-
ter signal coverage.
JBM002
4 1
Advertisement
Related Manuals for Hyundai PA710MDLSB
Summary of Contents for Hyundai PA710MDLSB
- Page 1 Features of your vehicle When a strong radio signal has reached FM radio reception AM radio reception your vehicle, the precise engineering of your audio system ensures the best pos- sible quality reproduction. However, in some cases the signal coming to your vehicle may not be strong and clear.
- Page 2 Features of your vehicle FM radio station JBM003 JBM004 JBM005 FM broadcasts are transmitted at high • Fading - As your vehicle moves away • Station Swapping - As a FM signal from the radio station, the signal will weakens, another more powerful sig- frequencies and do not bend to follow the weaken and sound will begin to fade.
- Page 3 Features of your vehicle Satellite radio reception • If you are driving on a mountain road NOTE: where is the signal blocked by moun- You may experience difficulties in receiv- There may be other unforeseen cir- tains. ing XM™ satellite radio signals in the fol- cumstances leading to reception prob- lowing situations.
- Page 4 Features of your vehicle Using a cellular phone or a two-way Care of disc • Keep CDs in their cases after use to radio protect them from scratches or dirt. • If the temperature inside the car is too When a cellular phone is used inside the •...

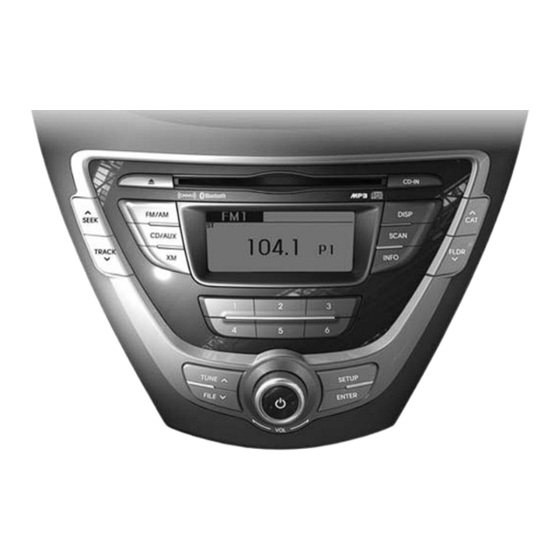

- Page 5 Features of your vehicle ■ ■ CD Player : PA710MD ❋There will be no ® logo if the Bluetooth feature is not supported. MD_USA_RADIO...
- Page 6 Features of your vehicle 3. PRESET Buttons • Press buttons less than 0.8 seconds to play the station saved in each button. • Press buttons more than 0.8 seconds or longer to save the cur- rent station to the respective button MD_USA_RADIO with a beep.
- Page 7 Features of your vehicle • MAIN • MEDIA • P.BASS (PowerBass) Select this item to enter the Scroll and Select default display of MP3 play infor- This function creates virtual sound SDVC setup. mation. “Folder/File” or “Artist/Title” can effects and allows adjustments to the be selected.
- Page 8 Features of your vehicle TREBLE Control To increase the TREBLE, rotate the knob clockwise, while to decrease the TRE- BLE, rotate the knob counterclockwise. FADER Control Turn the control knob clockwise to empha- size rear speaker sound (front speaker sound will be attenuated). When the con- trol knob is turned counterclockwise, front speaker sound will be emphasized (rear speaker sound will be attenuated).
- Page 9 Features of your vehicle Button (REPEAT) Press this button for less than 0.8 seconds to activate 'RPT' mode and more than 0.8 5. CD Eject Button seconds to activate 'FLD RPT' mode. • Press button to eject the CD. • RPT : Only a track (file) is repeatedly This button works regardless of ignition played back.
- Page 10 Features of your vehicle NOTE: FLDR • Press button to move to parent Order of playing files (folders) : folder of the current folder and display 1. Song playing order : sequen- the first song in the folder. tially. FLDR Press buttons to move...
- Page 11 Features of your vehicle 2. Folder playing order : ❋ If no song file is contained in the folder, that folder is not displayed. 4 11...
- Page 12 Features of your vehicle (Continued) (Continued) CAUTION IN USING • An encrypted MP3 PLAYER is not • If you disconnect the external USB USB DEVICE recognizable. device during playback in USB • To use an external USB device, mode, the external USB device can •...
- Page 13 Features of your vehicle (Continued) (Continued) • If the USB device is divided by • Please avoid using USB memory logical drives, only the music files products which can be used as on the highest-priority drive are key chains or cellular phone recognized by car audio.
-
Page 14: Using Usb Device
Features of your vehicle Button (REPEAT) • Press this button for less than 0.8 sec- onds to repeat current song. • Press this button for 0.8 seconds or longer to repeat all songs in current folder. • To cancel REPEAT, press this button MD_USA_USB again. - Page 15 Features of your vehicle MD_USA_USB 8. Search Button Press the TUNE button to display the songs next to the currently played song. press the button to display the FILE songs before to the currently played song. ENTER Button Press the ENTER button to play the setlect song.
- Page 16 DEVICE the system can be switched to AUX • Some iPod models might not sup- • The Hyundai iPod Power Cable is mode even without iPod device port the communication protocol needed in order to operate iPod and may cause noise. Disconnect and the files will not be played.
-
Page 17: Using Ipod
Features of your vehicle Button (CATEGORY) • Press the button for less than SEEK 0.8 seconds to move to the next track. Moves to the upper category from cur- rently played category of the iPod. Press the button for 0.8 seconds or To move to (play) the category (song) longer to play the song in forward direc- displayed, MENU... - Page 18 Features of your vehicle MD_USA_iPod 7. Search Button Press the TUNE button to display the songs next to the currently played song. press the button to display the FILE songs before to the currently played song. ENTER Button Press the ENTER button to play the setlect song.
- Page 19 Features of your vehicle SEEK Button TRACK • Push button for less than 0.8 second to select previous channel. TRACK • Push button for 0.8 second or longer to continuously move to previ- ous channel. MD_USA_XM • Push button for less than 0.8 SEEK SCAN Button...
- Page 20 Features of your vehicle • In the Category List Mode, press these buttons to navigate category list. • Press button to select the low- ENTER est channel in highlighted category. • If channel is selected by selecting cat- egory "CATEGORY" Icon is displayed at the top of the screen.
- Page 21 Features of your vehicle (continued) CAUTION IN USING • Do not place the phone near or ® BLUETOOTH CELLULAR inside metallic objects, otherwise PHONE ® communications with Bluetooth • Do not use a cellular phone or system or cellular service sta- ®...
-
Page 22: Bluetooth ® Phone Operation
® Bluetooth SIG, Inc. and any use of in a short range, low-powered devices such marks by Hyundai is under like hands-free, stereo headset, steering license. A Bluetooth enabled cell remote control, etc. For more informa- ®... - Page 23 Features of your vehicle ■ Voice Recognition Activation • At any time if you say “help”, the system ✽ ✽ Tip will announce what commands are • The voice recognition engine contained ■ Voice Operation ® available. in the Bluetooth System can be acti- To get the best performance out of the vated in the following conditions:...
- Page 24 Features of your vehicle ■ ■ Information Display Phone Setup 3) Select desired item by rotating the TUNE FILE buttons, then push ® All Bluetooth -related operations can be <Active Call> the knob. performed by voice command or by man- ual operation.
- Page 25 Features of your vehicle ✽ ✽ Tip phone, please see your phone’s - Not use to short name or similar to User’s Guide for instructions. voice command. Press button. ➅ ® NOTE: Bluetooth system will repeat the name you stated. Beep~♪...
- Page 26 ➀ ➀ Select “SELECT” in PHONE menu, then Select “DELETE” in PHONE menu, vehicles are HYUNDAI MOTORS some select desired phone from the list. then select desired phone from the list. ® phones may not handle Bluetooth devices of that name correctly.
- Page 27 Features of your vehicle ✽ ✽ NOTICE ■ Phone Book (In-Vehicle) • Changing Priority When several phones are paired to the • Adding Entry - The system can recognize single digits audio system, the system attempts to from zero to nine. Numbers that are Phone numbers and voice tags can be connect following order when the ten or greater cannot be recognized.
- Page 28 Features of your vehicle • Adding Entry by Phone • Deleting Name • Direct Calling ➀ ➀ Press button. The registered names can be deleted. Press button. ➁ ➁ Say "Phonebook". Sat the following command. ➂ ➀ Say "Add Entry" after prompt. Press button.
- Page 29 Features of your vehicle ■ ■ • Dialing by Number Receiving a Phone Call Talking on the Phone A phone call can be made by dialing the When receiving a phone call, a ringtone When talking on the phone, “Active Call” spoken numbers.
- Page 30 Features of your vehicle ® streaming enabled, for example; device, press Yes. If you do not wish for ■ Bluetooth Audio Music Streaming ➟ ➟ ➟ automatic download, press No. i.e : Menu Filemanager Music ® The audio system supports Bluetooth ➟...
-
Page 31: Key Matrix
Features of your vehicle ■ Key matrix Class Connected Paired H/P Disconnected Incoming Call Outgoing Call 2nd Call Active Call Empty Normal mode BT SETUP menu 2nd call 2nd Call Not Paired Not Connecting Accept Call 1st Call:waiting 2nd Call:waiting SHORT 2nd Call:active 1st Call:active...
