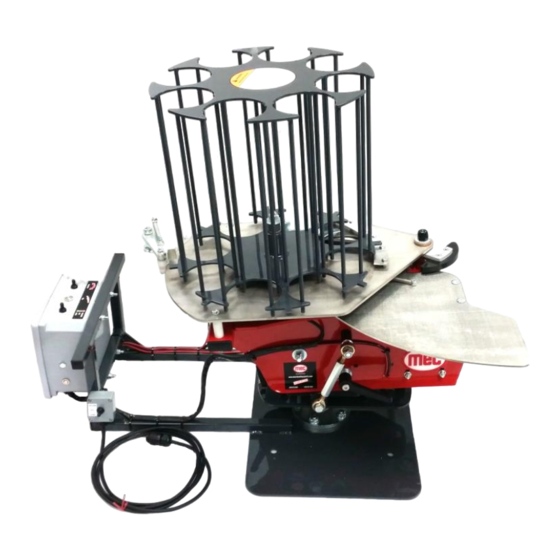

Mec 300E ATA Owner's Manual

Clay target machines
Hide thumbs

Advertisement

Quick Links

Download this manual
PLEASE READ AND FULLY UNDERSTAND THE INSTRUCTIONS PRIOR TO SETTING OR
TUNING THE MACHINE.
CAUTION: ANY MEC CLAY TARGET MACHINE MUST BE IN THE DISARMED STATE WITH THE
BATTERY DISCONNECTED PRIOR TO MAKING ANY ADJUSTMENTS, LOADING THE CLAY
TARGETS OR TRANSPORTATION OF MACHINE.
Step 1 – Securely set the machine in the trap house. See below for the correct way to install the
MEC machine into the trap house.
DAMAGE TO MACHINE CAN OCCOUR!!!
DO NOT CONNECT THE POWER.

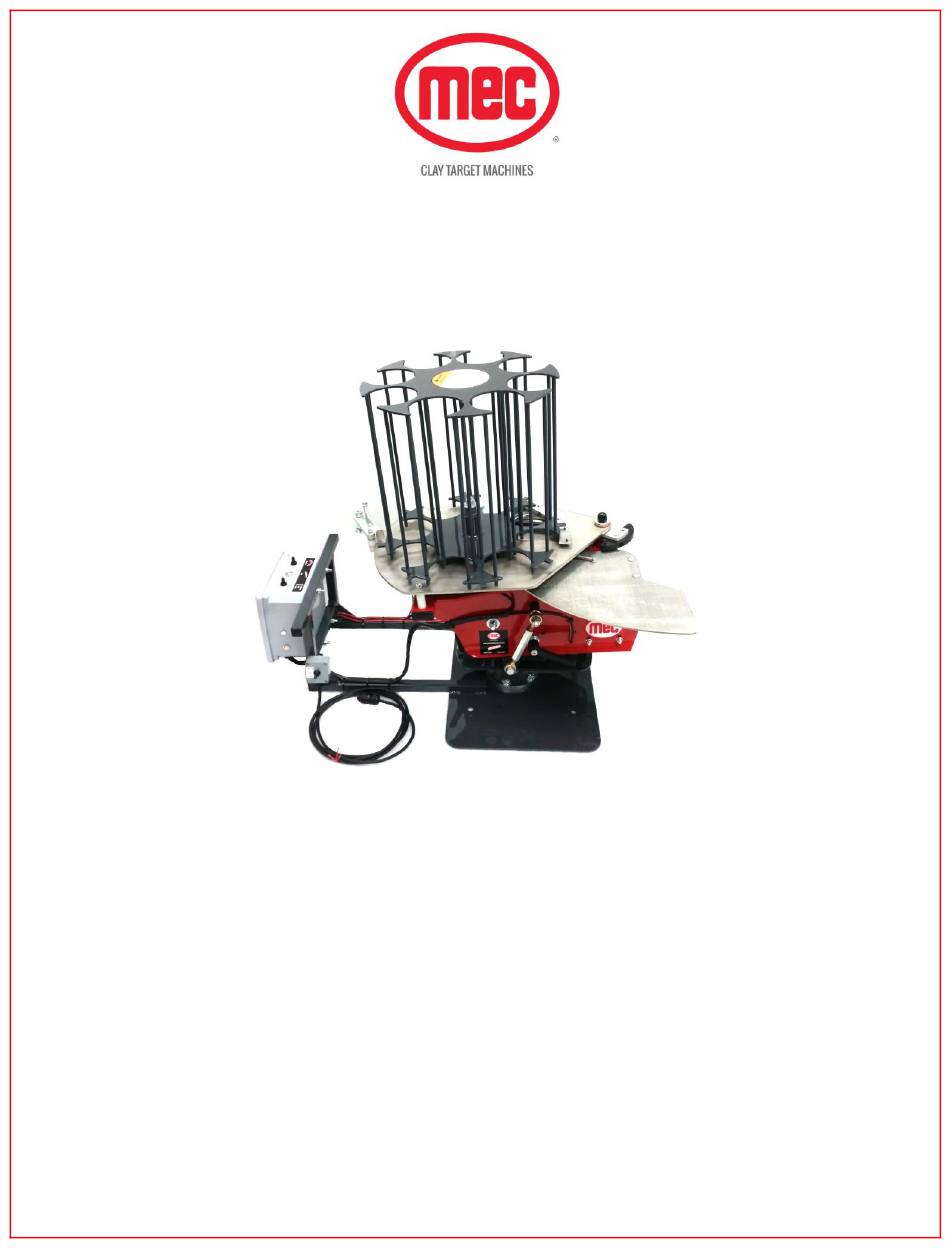

Page 1
OWNERS MANUAL
FOR MEC 300E ATA
IF NOT FASTENED SECURELY, SERIOUS INJURY AND/OR
Ensure that the machine is in the
DISARMED/SAFE
position.
Version 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the 300E ATA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mec 300E ATA

Summary of Contents for Mec 300E ATA

  • Page 1 PLEASE READ AND FULLY UNDERSTAND THE INSTRUCTIONS PRIOR TO SETTING OR TUNING THE MACHINE. CAUTION: ANY MEC CLAY TARGET MACHINE MUST BE IN THE DISARMED STATE WITH THE BATTERY DISCONNECTED PRIOR TO MAKING ANY ADJUSTMENTS, LOADING THE CLAY TARGETS OR TRANSPORTATION OF MACHINE.
  • Page 2 Step 2 – In most cases, your machine has been supplied to you ready to fire. If so, please proceed to Step-3. If your machine is supplied in a box without its carousel (shown below) fitted, you will need to attach it to the machine. Simply slide the carousel weldment onto the top plate shaft. If no grease is present, please add a little bit to the shaft.
  • Page 3 Photos below show adjustment with carousel fitted, but you can remove the carousel to make adjustment easier if preferred. ** ALL MEC MACHINES ARE SET UP USING THE WHITE FLYER STANDARD TARGETS. ADJUSTMENTS NEED TO BE MADE WHEN USING OTHER BRANDS...
  • Page 4 UNDERSTANDING THE CONTROL BOX ROTATION DISARM FIRE BUTTON REMOTE DISARM SOCKET MAIN BREAKER OSC. BREAKER Page 4 Version 2...
  • Page 5 Rotation Toggle Switch – Pushing the switch downward will turn the oscillation motor on. Note that the oscillation motor will randomly start/stop when the machine is in operation. This prevents shooters from being able to predict the direction of the next target. Pushing the toggle switch upward allows you to nudge the oscillation motor which pivots the machine from one side to the other enabling you to check the angle of the clays flight.
  • Page 6 ADJUSTING THE ELEVATION OF THE MACHINE Step 8 – Adjust the machine elevation by loosening lever on the side of the machine as shown below. Extending the turnbuckle will tilt the machine backwards to the desired angle. Once the correct angle is achieved, RETIGHTEN the lever. NOTE: you may need to use a ¾” wrench to make this adjustment.
  • Page 7 ADJUSTING THE TILT/ANGLE OF THE MACHINE Step 9 – Adjust the machines tilt by loosening the lever on the rear side (Photo #1) of the upright of the machine as shown below. Tilt the machine to the desired angle by adjusting the turnbuckle. (Photo #2) Adding tilt allows the machine to throw a flat target with no curl.
  • Page 8 CENTERING THE FIELD Step 10 – Set the bolt in the center of the rotation gear box shaft as shown in Photo #1 below. To center the field, fire a clay and see if the clay comes out of the center of the trap house and travels straight away down the center of the field.
  • Page 9 Page 9 Version 2...
  • Page 10 Step 15 – You can adjust the distance that the clay is thrown by extending the spring. This is achieved by winding tension on or off the main spring using a ¾” wrench or the optional ¾” extended socked which can be attached to an impact drive. This should be done with the machine in the disarmed/safe condition for small adjustments.
  • Page 11 Step 19 – Press the fire button on the pull cord or wireless release. This will cause the machine to fire a clay target and then reset to the firing position. Pressing the fire button again will do the same as above.
  • Page 12 FAULT FINDING MECHANICAL CAUTION: ANY MEC MACHINE MUST BE IN THE DISARMED STATE WITH THE BATTERY DISCONNECTED PRIOR TO MAKING ANY ADJUSTMENTS, LOADING WITH CLAYS OR TRANSPORTING 1. The Machine breaks clays - Check loading cycle first: Check that clay in the carousel is intact, not chipped or cracked. If in doubt, remove suspect clays and refill with ones known to be intact.
  • Page 13 Check throwing cycle next: Check that the bolt holding the arm to its clamp block is tight. Check arm for chunks missing from the black arm rubber or any other physical damage to the arm. If damage has occurred the black arm rubber should be replaced. Check for damage to the throwing plate, in case it has been dented, bent or burred.
  • Page 14 3. Carousel does not rotate. Check the following: The Carousel pusher arm is not jammed with broken clays or dirt. The pusher return spring is broken or missing. With the pusher arm withdrawn, the carousel should be free to rotate with a small amount of friction. This is adjusted by tightening or loosening of the lock nut on top of the carousels shaft.
  • Page 15 FAULT FINDING ELECTRICAL CAUTION: ANY MEC MACHINE MUST BE IN THE DISARMED STATE WITH THE BATTERY DISCONNECTED PRIOR TO MAKING ANY ADJUSTMENTS, LOADING WITH CLAYS OR TRANSPORTING 1. Machine does not Arm Check: Battery is charged and that connections are tight.
  • Page 16 Check the above items. (c) If your machine has a Gray Arm / Dis-arm box. Make sure the wires inside are in good shape, free of corrosion and not pinched on the bottom of the box. Green to White would by-pass the switch and arm the machine.
  • Page 17 CORRECT POSITION OF MACHINE BASE IN TRAP HOUSE Page 17 Version 2...

  • Page 18: Customer Service

    For any questions regarding setup or use of any MEC Clay Target Machines, please give us a call or you can visit us on our website for video footage showing how setup and adjustments are made.
