OWNERS MANUAL
FOR MEC MODEL 300E/400E CHANDELLE
CAUTION: ANY MEC CLAY TARGET MACHINE MUST BE IN THE
DISARMED STATE WITH THE BATTERY DISCONNECTED PRIOR TO
MAKING ANY ADJUSTMENTS, LOADING THE CLAY TARGETS OR
TRANSPORTATION OF MACHINE.
Step 1 – Securely set the machine on level ground, either on the optional T Cart
with hardware supplied or a pallet. If using a pallet, please make sure that it is
fastened with clamps to keep machine from tipping.
IF NOT FASTENED
SECURELY, SERIOUS INJURY OR DAMAGE TO MACHINE CAN OCCOUR!!!
DO NOT CONNECT THE BATTERY. Ensure that the machine is in the
DISARMED/SAFE
position.
Step 2 – In most cases, your machine has been supplied to you ready to fire. If
so, please proceed to Step 3. If your machine is supplied in a box without its

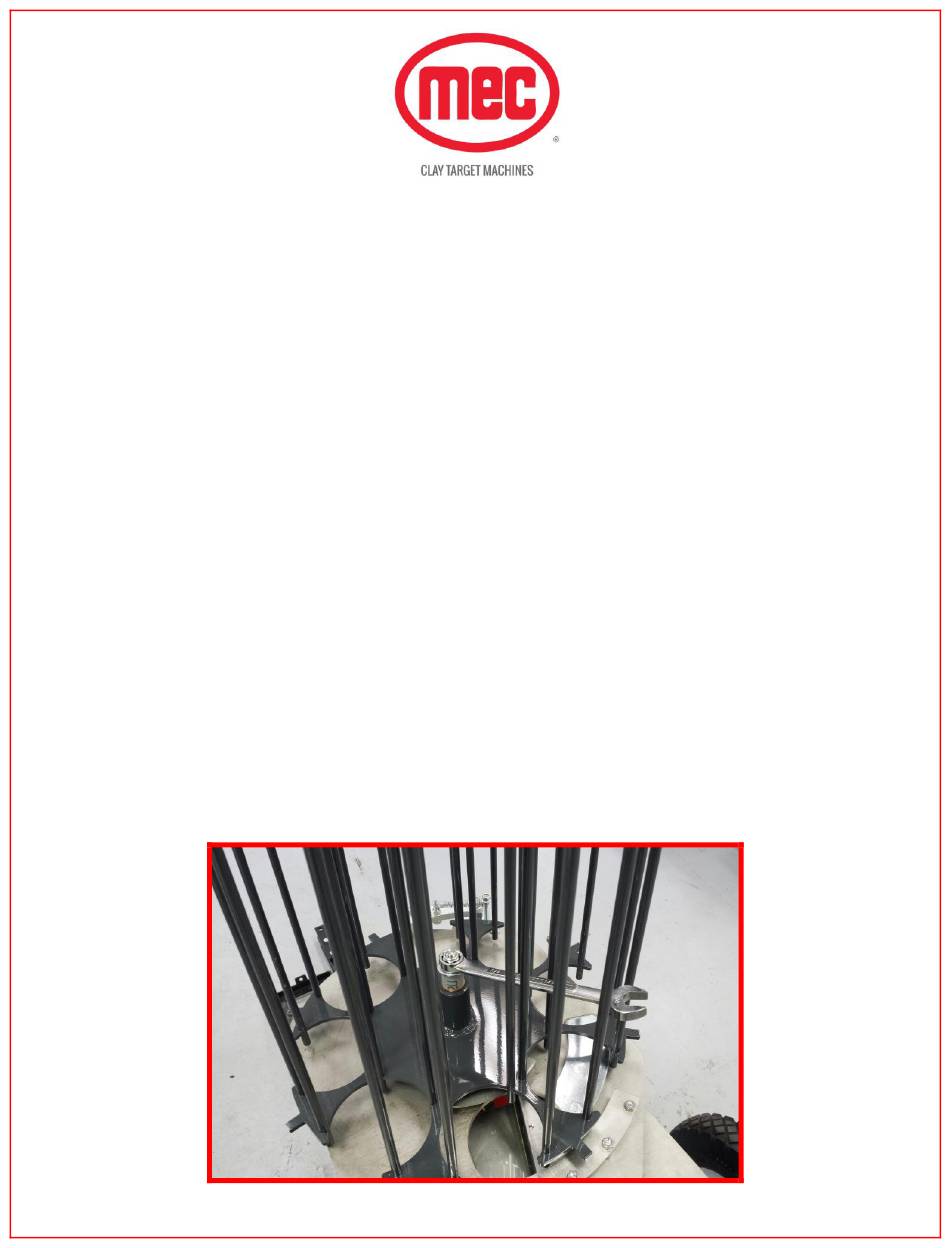

carousel (shown below) fitted, you will need to attach it to the machine. Simply
slide the carousel weldment onto the top plate shaft. If no grease is present,
please add a little bit to the shaft. You may have to spin/rotate the carousel for it
to slide on. Next, place the gray plastic collar over the shaft and onto the flange
bearing in the carousel. Now place the ¾" washer and nut onto the threads and
tighten. Do not over tighten. You want a little bit of resistance there, but not too
much. You shouldn't be able to spin the carousel with one finger.
Page 1
Version 3
Advertisement
Related Manuals for Mec 300E
Summary of Contents for Mec 300E
- Page 1 OWNERS MANUAL FOR MEC MODEL 300E/400E CHANDELLE CAUTION: ANY MEC CLAY TARGET MACHINE MUST BE IN THE DISARMED STATE WITH THE BATTERY DISCONNECTED PRIOR TO MAKING ANY ADJUSTMENTS, LOADING THE CLAY TARGETS OR TRANSPORTATION OF MACHINE. Step 1 – Securely set the machine on level ground, either on the optional T Cart with hardware supplied or a pallet.
- Page 2 Step 3 – Your machine has been set at the factory for White Flyer clays. Clay sizes may vary between manufactures. You may need to check the height / clearance of the knife-edges by placing a clay in the carousel. Rotate the carousel so that the clay starts to pass underneath the inner and outer knife separator blades.
- Page 3 Please note that on all MEC Chandelle machines a Rabbit Plate will need to be fitted to the Throwing Plate to allow Rabbit targets to be thrown. FITTING THE RABBIT PLATE Before attempting to work on the machine, please ensure that the machine is in DISARMED/SAFE position and that the battery is disconnected.
- Page 4 RABBIT PLATE Step 3 – With the Rabbit Plate removed, it now needs to be attached to the front side of the Throwing Plate as shown in the photo below. Simply hold the plate straight to the throwing plate and push the front rail to the full open position. Slide plate on and release the front.
- Page 5 Step 5 – Once your tilt has been adjusted it is CRITICAL that the MEC Handle is rotated out of the way of the throwing arm as shown in the photo below. DANGER - This is the view from the front of the machine.
- Page 6 Step 7 - Un-wind the two locknuts enough so that when a Rabbit clay is loaded the deflector supports it and holds the clay against the throwing plate as shown below. Step 8 – Fill the machine with targets and set the tilt and elevation before reconnecting the battery.
- Page 7 Step 11 – Standing at arm’s length behind the machine, press the ARM/OFF/DISARM toggle switch to ARM. The machine will load a clay and come to the armed position. The machine is now ready to fire and must be treated with extreme caution.
- Page 8 Your machine is now operating smoothly and ready for use. It is critical that you never load or make adjustment to the machine unless it is disarmed and the battery disconnected. While in storage, the machine must be left in the disarmed state and the battery disconnected.
- Page 9 FAULT FINDING MECHANICAL CAUTION: ANY MEC MACHINE MUST BE IN THE DISARMED STATE WITH THE BATTERY DISCONNECTED PRIOR TO MAKING ANY ADJUSTMENTS, LOADING WITH CLAYS OR TRANSPORTING 1. The Machine breaks clays - Check loading cycle first: Check that clay in the carousel is intact, not chipped or cracked. If in doubt, remove suspect clays and refill with ones known to be intact.
- Page 10 Check throwing cycle next: Check that the bolt holding the arm to its clamp block is tight. Check arm for chunks missing from the black arm rubber or any other physical damage to the arm. If damage has occurred the black arm rubber should be replaced. Check for damage to the throwing plate, in case it has been dented, bent or burred.
- Page 11 Rear Pusher nylon for the carousel should be deep into the cut out on the Top Plate (100 e, 200e, 300e. 306xp). If your machine is a 400e or 408xp then the rear pusher will be on the radius of the top plate. If this is not the case, then the clamp on the rear pusher shaft should be adjusted accordingly.
- Page 12 FAULT FINDING ELECTRICAL CAUTION: ANY MEC MACHINE MUST BE IN THE DISARMED STATE WITH THE BATTERY DISCONNECTED PRIOR TO MAKING ANY ADJUSTMENTS, LOADING WITH CLAYS OR TRANSPORTING 1. Machine does not Arm Check: Battery is charged and that connections are tight.
- Page 13 Check the above items. (c) If your machine has a Gray Arm / Dis-arm box. Make sure the wires inside are in good shape, free of corrosion and not pinched on the bottom of the box. Green to White would by-pass the switch and arm the machine. This would indicate a faulty switch. 3.
-
Page 14: Customer Service
Website: www.mecinc.com Thanks for choosing MEC! Every machine is hand set and tested prior to leaving our shop to ensure quality. We take pride in our products, so you can have a better experience in the field. Your patronage is very much appreciated!
