HERA ER1 LED Installation And Operating Instructions

Installation and Operating Instructions
Model: ER1/ES1 LED
"CAUTION" To reduce the risk of fire, electric shock, or injury to persons: Follow all Safety
Instructions. Important: No Minimum distance must be maintained between the LED luminaire
and flammable materials!

Installation Instructions: Recess Mounting the LED Spotlight.

1. Drill a 2-1/8" diameter hole at least 5/8" deep.
2. Remove twist lock décor-ring with glass lens from the spot by using
a counter-clock wise twisting motion.
3. Fasten spot into hole with the friction tabs or by using the three
short screws provided. Tighten screws just enough to secure
fixture with no warping.
4. Install twist lock décor-ring with glass lens onto the spot.
5. Verify that the transformer is not connected to any power source.
Connect the spot to the transformer.

Installation Instructions: Surface Mounting the LED Spotlight.

1. Remove twist lock décor-ring with glass lens from the spot by using
a counter-clock wise twisting motion.
2. Fasten spot and distance-ring using the three long screws provided.
Tighten screws just enough to secure fixture with no warping.
3. Install twist lock décor-ring with glass lens onto the spot.
4. Verify that the transformer is not connected to any power source.
Connect the spot to the transformer.
Note: The low voltage portable cabinet light may be installed
inside or under a kitchen cabinet or other built in furniture when:
• The low voltage class 2 transformer is located outside the cabinet
and is not concealed.
• The line voltage transformer power supply cord is not concealed or run through openings in the
cabinet, walls, ceilings, or floors. This requirement does not apply to the wiring between the
cabinet light and the transformer.

Installation Instructions: 2, 3 and 5 light LED Spotlight Set.

1. Make sure transformer is unplugged.
2. Recess or surface mount the set of LED spots as described
above.
3. Connect the 79" cable from each spot to the terminal block of
the transformer. For the 5 light set, an expansion terminal block
will be needed to allow connection of all 5 spotlights.
4. Plug in the transformer to the outlet. Failure to connect power
to the spotlights in this order may cause damage to the LED.
Note: The total length of any run from the transformer to the
spotlight should not exceed 16 feet.

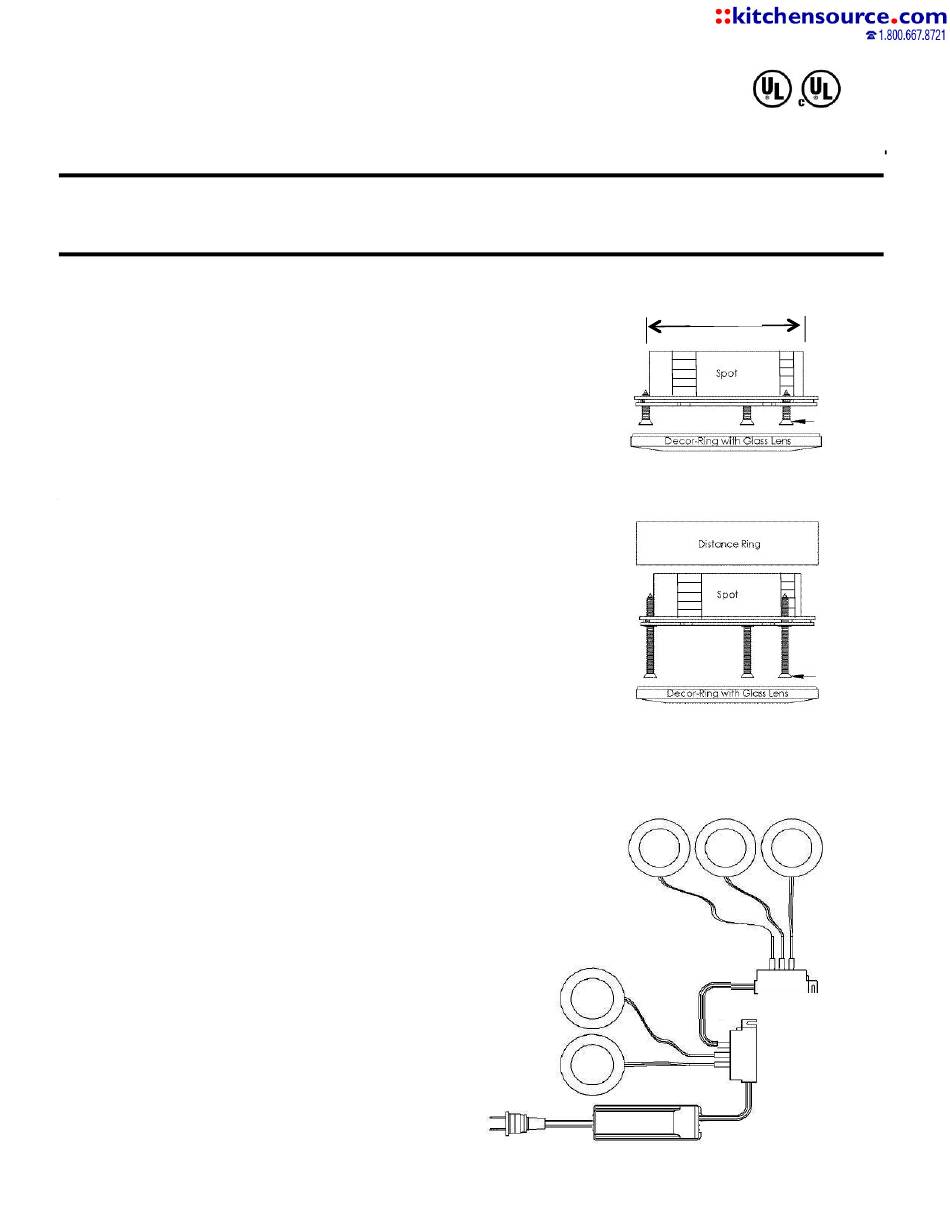

Hera
®
12Vac/dc LED Portable Cabinet Light
To Outlet
2 1/8"
5 Light set
connection
diagram
Expansion TB
Standard TB for
2 or 3 spots
Transformer
Short
Screws
Long
Screws
