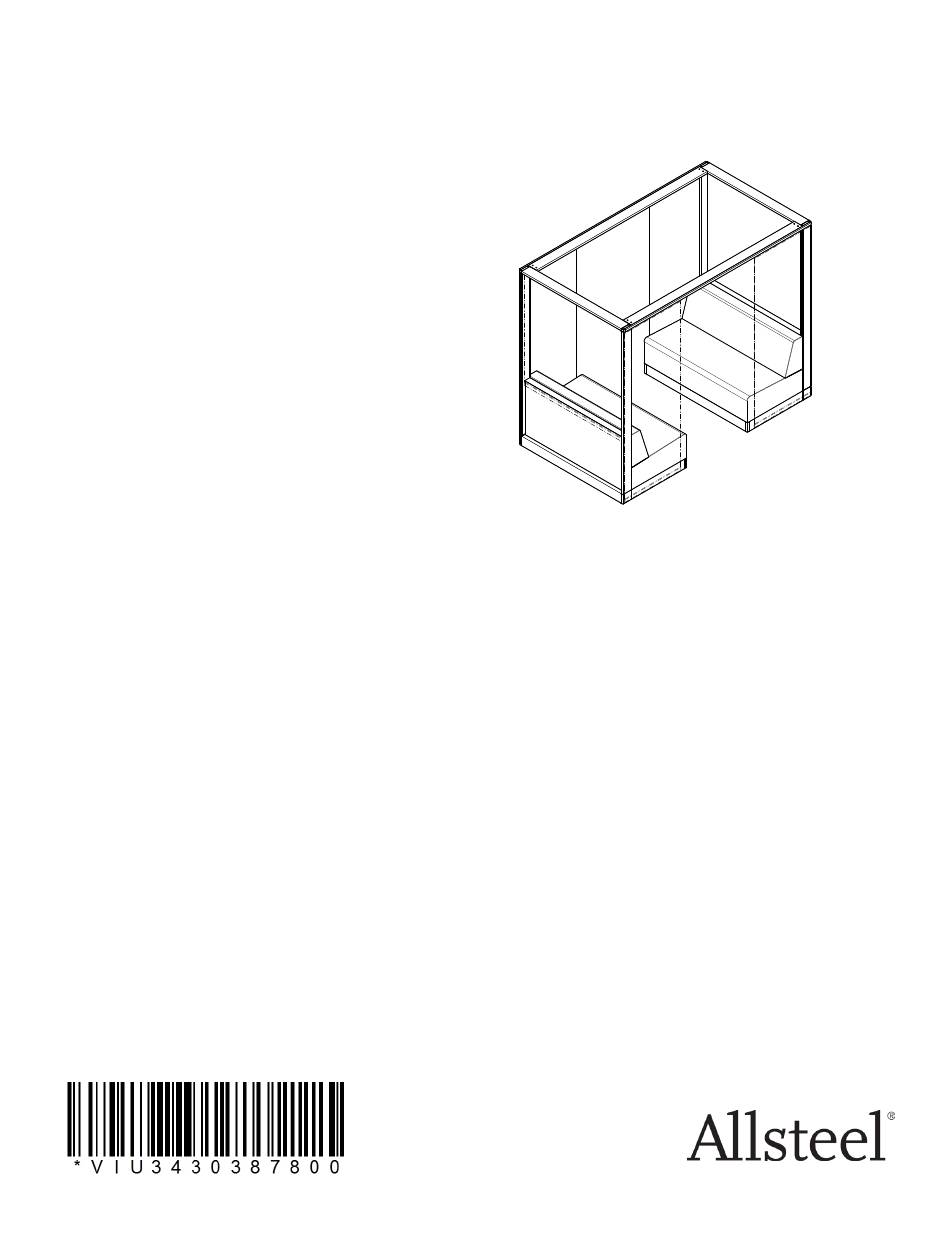

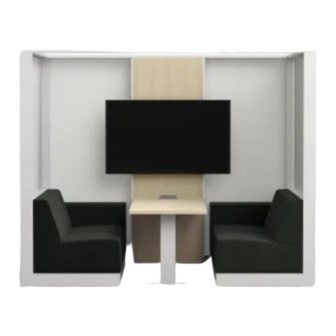

Gather Again - Clubhouse
Installation Instructions
Index
Kit of Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Typical Configurations . . . . . . . . . . . . . . . . . . 5
Plinth Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Vertical Assembly . . . . . . . . . . . . . . . . . . . . . 9
Middle Horizontal Assembly . . . . . . . . . . . . 10
Top Horizontal Assembly . . . . . . . . . . . . . . . 12
Backboard Assembly . . . . . . . . . . . . . . . . . . 14
Front Board Assembly . . . . . . . . . . . . . . . . . 15
Overhead Bracket Assembly . . . . . . . . . . . . 19
Media Wall Assembly . . . . . . . . . . . . . . . . . 20
Media Wall Leveling . . . . . . . . . . . . . . . . . . 21
Overhead Assembly . . . . . . . . . . . . . . . . . . 22
Scrim Assembly . . . . . . . . . . . . . . . . . . . . . . 24
Table Assembly . . . . . . . . . . . . . . . . . . . . . . 26
Leveling Unit . . . . . . . . . . . . . . . . . . . . . . . . 28
Media Wall Covers . . . . . . . . . . . . . . . . . . . 29
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Pour des instructions en francias, appelar le 800-822-7653
3430387800
Para instrucciones en enspanol, llame al 800-822-7653
Advertisement
Table of Contents
Related Manuals for Allsteel Gather Again Clubhouse
Summary of Contents for Allsteel Gather Again Clubhouse
-
Page 1: Table Of Contents
Gather Again - Clubhouse Installation Instructions Index Kit of Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Fasteners . -
Page 2: Kit Of Parts
Clubhouse Installation Packet W A R N I N G Failure to install product as instructed, use of hardware other than that which is provided, or failure to comply with instructions can result in product failure, personal injury, or property damage. Illustration 1a: Kit of Parts TOP CORNER Plinth... - Page 3 Clubhouse Installation Packet Illustration 1a: Kit of Parts ELECTRICAL COVER LH ELECTRICAL COVER RH FRONT BOARD MEDIA WALL TABLE DOUBLE SEAT SINGLE SEAT TABLE LEG TABLE LEG FOOT RIGHT HAND LEFT HAND CONSOLE STORAGE DOUBLE SEAT CONSOLE WITH ARM REST Tools Required: 4’...
-
Page 4: Fasteners
Clubhouse Installation Packet Illustration 1b: Fasteners 6500033800 3500153500 0500055500 0500252000 0500057400 19917-4647-36 3500153600 3500153200 3500005000 3500081400 3500023100 0500105100 Page 4 of 33 3430387800... -
Page 5: Typical Configurations
Clubhouse Installation Packet Illustration 1c: Typical Configurations GA56HSE GA56MSE GA70HCOLHP GA70HMCL GA70HSTHL 3430387800 Page 5 of 33... - Page 6 Clubhouse Installation Packet Illustration 1c: Typical Configurations GA70MCOLHP GA70MMCL GA70MSTHL GA84HMW GA84HSE Page 6 of 33 3430387800...
- Page 7 Clubhouse Installation Packet GA84MMW GA84HSTHL (Overhead) GA84MSTHL GA84MSE CAUTION !!! When moving fully assembled unit it is recommended to detach overhead beams in order to prevent damage. 3430387800 Page 7 of 33...
-
Page 8: Plinth Setup
Clubhouse Installation Packet Illustration 2: Plinth Setup Position and Level; No Assembly Step 1 - Use 4’ level to level each plinth with respect to the ground and each other. For units that will be powered, adjust height between floor and plinth to allow clearance for cords. 3-4' BETWEEN WALL AND UNIT APPROXIMATELY... -
Page 9: Vertical Assembly
Clubhouse Installation Packet Illustration 3a: Vertical Extrusion Assembly Step 1 - Rotate plinths 90 degrees upward to install vertical extrusions using (2) 1/4-20 X 5” phillip head bolts (B) per extrusion. Repeating this for each plinth. Installation alignment holes 3430387800 Page 9 of 33... -
Page 10: Middle Horizontal Assembly
Clubhouse Installation Packet Illustration 3b: Corner Bracket Assembly Step 1 - Attach 2 corner brackets to vertical extrusions and plinth with (6) 1/4-20 X 0.750” self-tapping screws (A) for each bracket. Repeating this step for second plinth. Do not fully tighten screws until after installation of gap filler bracket in later step. - Page 11 Clubhouse Installation Packet Illustration 4: Middle Horizontal Assembly Step 1 - Rotate the frame assembly back up 90 degrees. Step 2 - Match profile orientation of middle horizontal to engraving on verticals. Step 3- Align the hole pattern of the top corner bracket and vertical. Install through corner brackets using (3) 1/4-20 x 0.750”...
-
Page 12: Top Horizontal Assembly
Clubhouse Installation Packet Illustration 5: Top Horizontal and Screen Assembly Note: Screens can be wrinkled with rough handling. Take care during installation by leaving the screens rolled until installation is complete (masking or painter’s tape can be used). Step 1 - Unroll screen 3-6” and insert rod into screen loop. Step 2 - Install the screen/rod assembly through track in top horizontal. - Page 13 Clubhouse Installation Packet Illustration 6: Assemble Top Horizontal to Assembly Step 1 - Insert the top horizontal screen assembly into the verticals. Make sure the “IN” engraving is facing to the inside to ensure proper orientaion. Step 2 - Attach the top horizontal with (2) 1/4-20 x 1.750” flat head painted screws (G) per casting. Repeat steps 1-2 for second assembly .
-
Page 14: Backboard Assembly
Clubhouse Installation Packet Illustration 7a: Back Board Assembly Step1 - Insert the bottom of the back board (with the fabric facing out) into the slot on the plinth and rotate into place . Step 2 - Center board left/ right between verticals. Repeat steps 1-2 for second assembly . -
Page 15: Front Board Assembly
Clubhouse Installation Packet Illustration 7a : Back Board Assembly Step 3 - Attach the top of the back board to the middle extrusion with (5) #8-3/8 type AB phillips pan head screws (C) . Illustration 7b: Gap Filler Assembly 3430387800 Page 15 of 33... - Page 16 Clubhouse Installation Packet Illustration 7b: Gap Filler Assembly Step 1 - Install gap filler by inserting it between corner brackets and vertical with flange facing inwards until the Middle horizontal should be flush gap filler rests on the backboard. with vertical (step 2) . Step 2 - Once the gap filler is in postion ensure the middle horizontal is flush with verticals and tighten down all...
- Page 17 Clubhouse Installation Packet Illustration 7b : Gap Filler Assembly to Backboard Step 5 - Allow screen to fully unroll, and insert weighted bar through bottom loop . Illustration 7c: Front Board Assembly (If required) Step 1 - Determine where front board needs to be positioned . (Front boards are required when consoles will be installed.
- Page 18 Clubhouse Installation Packet Illustration 7c: Front Board Assembly (If required) Step 3 - Slide the front board up under middle extrusion until flush. Step 4 - Secure front board to backboard with (4) #8- 3/8 type AB phillips pan head screw (C) . Repeat for other side .
-
Page 19: Overhead Bracket Assembly
Clubhouse Installation Packet Illustration 8a : Overhead Bracket Assembly Step 1 - Attach overhead bracket to top horizontals with (2) 1/4-20 x 0.750” self-tapping screws (A) per bracket. Number of brackets and bracket orientation are dependent on height of unit and number of overheads, and bracket location is marked by pilot holes and ‘IN’... -
Page 20: Media Wall Assembly
Clubhouse Installation Packet Illustration 8b: Media Wall Assembly (If applicable) If Clubhouse configuration does not include a media wall skip to illustration 8c. Step 1 - Lay media wall on protected surface with steel tile facing up. This is the back of the media wall. Step 2 - Remove the steel tile by pulling it vertically until clips disengage. -
Page 21: Media Wall Leveling
Clubhouse Installation Packet Illustration 8b: Media Wall Assembly Continued Step 4 - Insert the overhead assembly from step 3 into the top of the media wall making sure the scrim holes and engravings on the overhead face toward the back of the wall . Step 5 - Attach overhead assembly to the media wall with (4) 1/4-20 x 0.750”... -
Page 22: Overhead Assembly
Clubhouse Installation Packet Illustration 8c : Overhead Assembly Note: On tall typicals, screws will install from top; on mid-height typicals screws will install from underside. Mid height orientation Step 1 - Assemble the overheads to each frame assembly by sliding the overhead over each overhead bracket and attaching with (2) 1/4- 20 x 0.750”... -
Page 23: Seating, Console And Storage Assembly
Clubhouse Installation Packet Illustration 9: Seating, Console and Storage Assembly Step 1 - Add components in specified setup by setting front edge in and rotating down into place. 3430387800 Page 23 of 33... -
Page 24: Scrim Assembly
Clubhouse Installation Packet Illustration 10: Scrim Assembly Step 1 - Install (5) #8-32 shoulder screw (H) into the holes along the overhead using a 3/32” allen. (Repeat for each overhead that receives a scrim.) Step 2 - Attach the scrim extrusion to the overhead using the keyhole slots in the extrusion to slide and lock into place. - Page 25 Clubhouse Installation Packet Illustration 10: Scrim Assembly Continued Step 4 - Slide the scrim assembly into the scrim extrusion Step 5 - Install scrim end cap at each end of the scrim until it is flush with end of extrusion. extrusion.
- Page 26 Clubhouse Installation Packet Illustration 11: Table Assembly Step 1 - Attach the bottom leg plate to the leg with (4) 3/4” flat head screw (E). Step 2 - Turn worksurface upside down on protected surface and attach table leg using the pilot hole pattern for orientation and (5) #12-8 pan head wood screws (J) and (2) #10 x 1”...
- Page 27 Clubhouse Installation Packet Illustration 11: Table Assembly Step 5 - Postion the table into the unit (with the leg facing out) until table is resting on the table bracket and flush with media wall. Step 6 - Attach table to bracket from the underside of the unit with (5) #12- 8 pan head wood screws (J) .
-
Page 28: Leveling Unit
Clubhouse Installation Packet Illustration 12: Leveling Unit Step 1 - Level and square unit to optimize product appearance. Note: Lack of squareness may cause screen to hang unevenly. Step 2 - If applicable, slide media wall trim vertically to reduce gap between media wall trim and overhead extrusion. CAUTION !!! When moving fully assembled unit it is recommended to detach overhead beams in order to prevent damage. -
Page 29: Media Wall Covers
Clubhouse Installation Packet Illustration 13: Media Wall Covers Step 1 - Slide the left and right electrical covers down along the sides of the media wall until brackets are flush with bottom of plinths . Note: The media wall covers are handed left Right and right. -
Page 30: Electrical
Clubhouse Installation Packet Illustration 14a: Console Electrical (If applicable) Step 1 - Install console outlet box into the console grommet hole, feeding attached conduit through console to power source. Note: If screens and scrims have been installed, roll screens and scrims back up to protect during electrical installation . - Page 31 Clubhouse Installation Packet Illustration 14b: Media Wall Electrical (If applicable) Step 1 - Remove back panel of media wall and RH/LH electrical covers . Step 2 - If using hardwired solution, assemble conduit support and support bracket to electrical box with (4) #10-16 x 1/2” type B phillips head screws (L).
- Page 32 Clubhouse Installation Packet Illustration 14b: Media Wall Electrical (If applicable) Hardwired Two-outlet electrical box Step 4 - Attach two-outlet electrical box to back side of media wall upper panel using velcro or provided attachment . Step 5 - Connect two-outlet electrical box to table electrical box and route final cord out through bottom of media wall to building power source.
- Page 33 Clubhouse Installation Packet Illustration 14b: Media Wall Electrical (If applicable) Standard New York Standard Note: Attach New York infeed box to inside surface of plinth. Step 6 - Re-assemble media wall back tile (Ill . 8b) and electrical covers (Ill .13) . 3430387800 Page 33 of 33...
