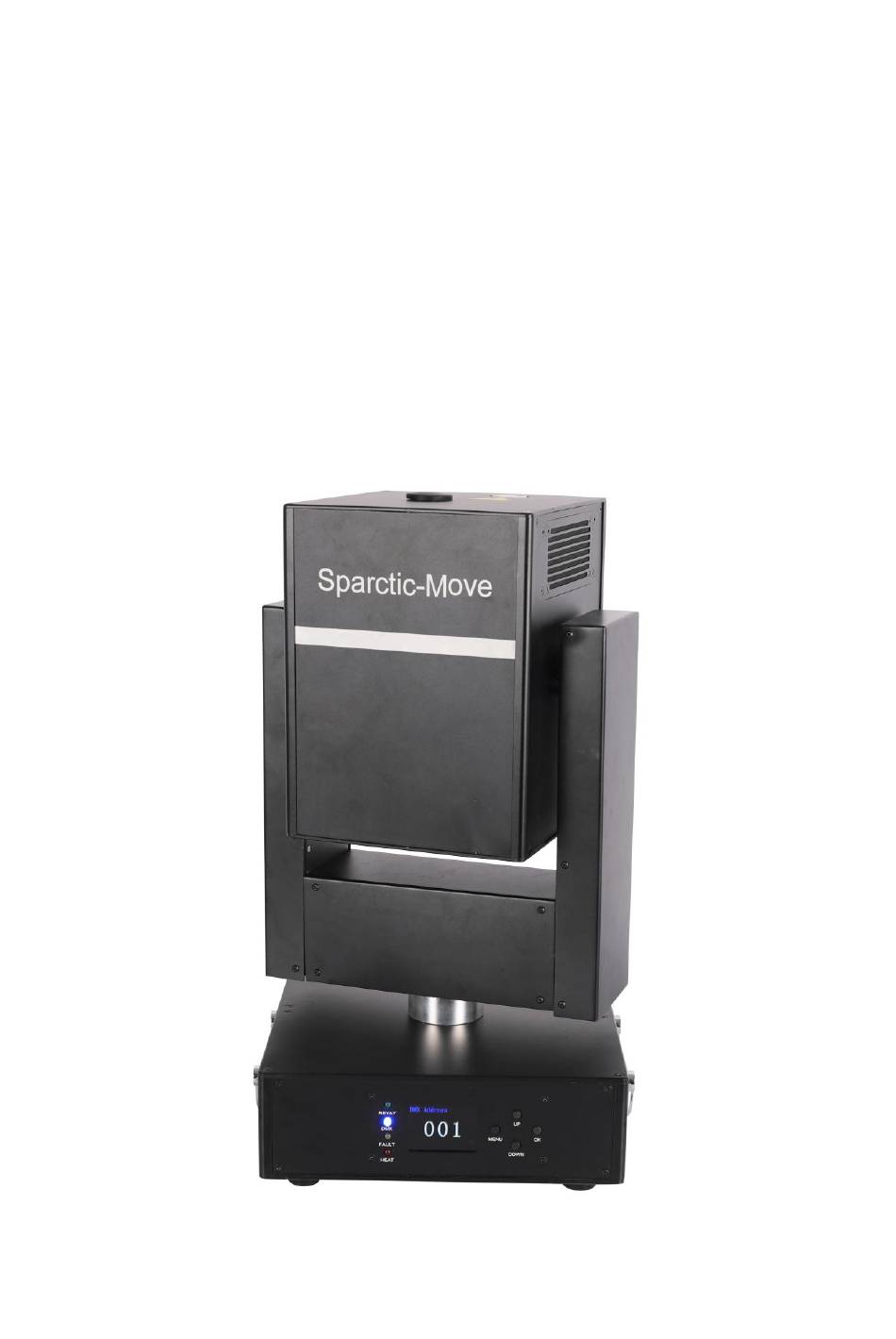

- Page 1 Moving head spark machine User Manual - 1 -...
- Page 2 Safety Warnings and Cautions The sign is to remind users of paying attention to risk and security. Please note that the machines are not meant to be a continuous duration effect. The maximum running time is 30 second and can be repeated but should not be done to overheat the machine. Eye Protection Eye protection warning sign is to remind you of protecting the eyes during the machine operation.
-
Page 3: Security Considerations
accumulation granulates.If it does, please clean out by inverting the machine to clean out port. Security Considerations: 1. Unauthorized repair is prohibited, or else it may cause serious accident. 2. Keep spark machine dry and do NOT use in rain or snow. 3. - Page 4 Parameter(machine): Working Height: 1-5 meters Working Temperature: -10℃-50℃ Heating Power: 750w 6.8A (110V version) 750w 3.4A (220V version) Fuse: 110V/10A, 220V/6A Control: Net Weight: 11.8kg Dimensions: 265*265*480mm Max connections: 6 pieces Warranty: 1 year Package: Carton box Flight case(2 in 1) Flight case(4 in 1) ...
-
Page 5: Dmx 512 Operation
DMX 512 Operation: 1) International standard control signal: DMX 512 2) The device uses five channels Channel 1: control preheat and emergency stop Channel 2: control spark height Channel 3: X-axis rotation Channel 4: Y-axis rotation Channel 5: speed adjustment 3) Spark height, X/Y axis rotating direction and speed can be adjustable 4) Overheating can be intelligently protected and shows error code 5) The digital display of the cold spark machine shows that F1-F5 corresponds to the... - Page 6 DMX(blue): flash: dmx signal, light off: signal disconnected FAULT(yellow): reminder error HEAT(red): heating lights MENU: menu UP: choose above DOWN: choose below OK: confirm 1. Address adjustment: MENU-- DMX Address Setup --OK --UP/DOWN 2. Temperature adjustment: MENU-- Temperature Setup --OK -- UP/DOWN (Temperature range: 580-650 degree, presetting: 620 degree) - 6 -...
- Page 7 3. X-axis direction: MENU-- X Reverse Setup-- OK --UP/DOWN (ON: clockwise direction, OFF: anticlockwise direction) 4. Y-axis direction: MENU -- Y Reverse Setup -- OK --UP/DOWN (ON: clockwise direction, OFF: anticlockwise direction) - 7 -...
- Page 8 MENU -- Screen Saver Setup -- OK -- UP/DOWN Screen Saver Setup: DMX512 signal control: When using the DMX512 control mode, the signals between devices are connected in parallel. So it is best to use twisted-pair shielded cables when connecting multiple devices. Each device is connected via the DMX signal socket (cassette) INPUT and OUTPUT on the device.
-
Page 9: Dmx Channel List
DMX Channel List The 1st channel: Functions: Display 0-10 Pre-heat OFF 11-220 E-stop 221-239 Clear powder 240-255 Pre-heat ON 0-500 The 2nd channel: Functions: 0-15 Pre-heat OFF 16-63 working height 1 64-111 working height 2 112-159 working height 3 160-207 working height 4 208-255... - Page 10 Note: When the FAULT light is on, please restart the machine until FAULT light is off. Consumables: 1) If the consumables are accidentally ignited, they can only be covered with sand, and the air is isolated until it is extinguished. Do not use water. 2) Consumables should be kept in a dry and sealed environment to prevent moisture.
- Page 11 Warning: 1. Do not shoot more than 30 seconds each time. If the continuous shooting time is too long, the internal temperature will rise sharply and cause permanent damage. After a single long-time shooting, the machines should have a short pause to cool down.
