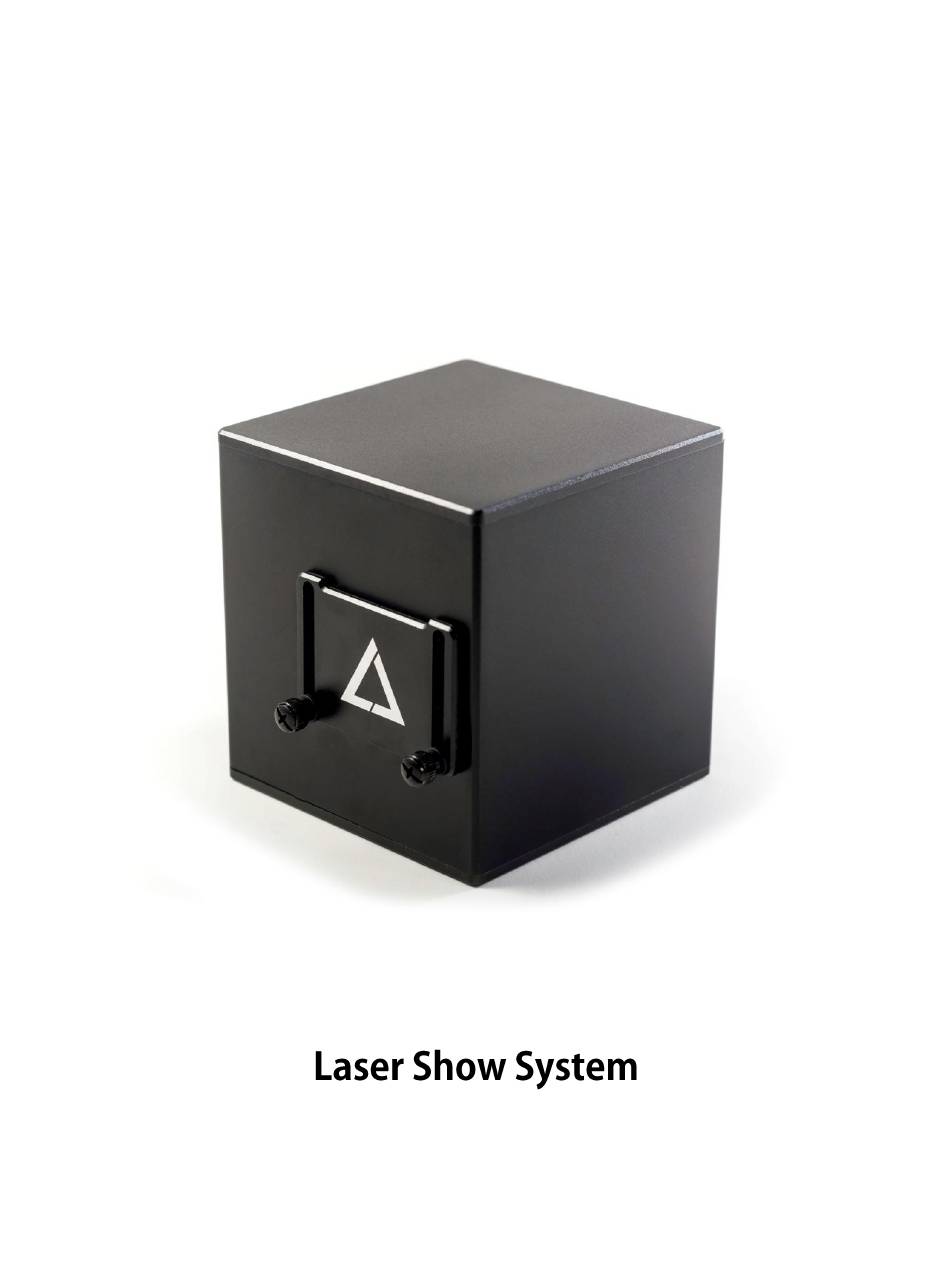

Laser show system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LC-1000
Owner's Manual and User Guide
Magnum Lighting strongly recommends keeping this manual with your new laser
projector at all times as a field reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Magnum Lighting LC-1000

Summary of Contents for Magnum Lighting LC-1000

  • Page 1 LC-1000 Owner’s Manual and User Guide Magnum Lighting strongly recommends keeping this manual with your new laser projector at all times as a field reference.
  • Page 2 Laser Safety Officer (LSO). If you have any questions about any of the content of this manual or the safe operation of your new laser projector, please do not hesitate to contact Magnum Lighting directly.

  • Page 3: Table Of Contents

    Content 1. Introduction 2. LC-1000 Parts Diagram 3. Technical Specifications 4. Product Labeling and Placement 5. Safety Guidelines and Proper Usage 6. Setup Guide 7. Charging Guide 8. Troubleshooting 9. Limitation of Liability 10. Manufacturer’s Warranty...
  • Page 4 The LC- 1000 features over 100 built-in visualizers and a library of music laser shows. The LC-1000 combines a portable laser projector, music visualizer and laser show software. Just connect a Mac, PC, or Android device and that’s it. With it’s compact size, bring the party everywhere with you.

  • Page 5: Lc-1000 Parts Diagram

    5. Power Switch LED indicator - shows if the LC-1000 is powered On/Off 6. Micro USB Port - Provides connection and control of the LC-1000 via a PC/Mac/Android device. The laser will turn off if it is disconnected.

  • Page 7: Technical Specifications

    3. Technical Specifications:  LASER PRODUCT CLASS: Class 4 Laser  RED: 637nm 150mw  GREEN: 520nm 100mw  BLUE: 450nm <700mw  EMISSION TYPE: CW  BEAM DIAMETER: 4mm  BEAM DIVERGENCE: 1.0mRad  SCAN ANGLE (MECHANICAL): +/- 20 degrees ...

  • Page 8: Product Labeling And Placement

    4. Product Labeling and Placement 1. Laser Aperture 2. Hazard Warning Symbol 3. Explanatory Label Placement 4. Manufacturer’s Identification 5. Certification...

  • Page 9: Safety Guidelines And Proper Usage

    5. Safety Guidelines and Proper Usage 1. No scheduled maintenance necessary to keep the product in compliance. Simply keep the laser free from dust or other contaminates that could cloud or dirty the laser aperture. Cleaning the aperture window is the ONLY maintenance allowed and must be performed with the unit powered down and locked off.
  • Page 10 11. DO NOT USE the laser device if you suspect that it contains a defect of any kind either from manufacturing, damage, general wear or has a broken manufacturer’s seal. Contact Magnum Lighting to return the unit to the factory for service and/or maintenance immediately.
  • Page 11 18. For all venues you must designate safe and restricted areas of the venue where persons are or are not allowed to be respectively. The “safe areas” should not be subject to any laser radiation either directly or indirectly. By protocol, there must be at least a 3 meter buffer between safe and restricted areas on all sides.

  • Page 12: Setup Guide

    6. Setup Guide What you need: - LC-1000 home laser system - USB Micro cable - An approved US FDA variance prior to use of the laser. - View the online laser safety and operators training prior to powering on the laser.
  • Page 13 2. Place appropriate compliant ANSI area warning sign(s) in and around the lasershow venue especially areas accessible to the audience.
  • Page 14 Use the on/off switch to power the LC-1000 laser projector. Turn the Key Control to the run position to enable laser operations. 4. Connect the LC-1000 to your Mac, PC or Android device via USB cable. 5. Download and install the app from “www.magnumlighting.com/LC-1000”.
  • Page 15 If you get an error with OSX security preferences, locate the app in Finder, right- click on the app file and choose “Open” to allow the app to run. 6. Run LaserOS installer and follow instructions carefully. You will need to accept the License Agreement to use the app.
  • Page 16 7. The LaserOS app will detect if the LC-1000 is connected. It can then be turned on or off from the power menu in the top left corner of the app. Pressing the ESC key will also turn off the laser.

  • Page 17: Charging Guide

    2. Connect the power cable to the charging port (Power DC Input), the LED light will illuminate red to indicate that it is charging. 3. When the battery charge indicator turns green, it means the LC-1000 is fully charged and you can disconnect the power cable.

  • Page 18: Troubleshooting

    8. Troubleshooting Here are a few simple solutions to common difficulties to try out first to get you up and running quickly. If you are having any difficulty with your laser projector, please feel free to contact us online, any time, at support@magnumlighting.com. PROBLEM SUGGESTED SOLUTION The product doesn’t switch on.

  • Page 19: Limitation Of Liability

    NOTICE: All products sold by Magnum Lighting may not be used to violate the privacy rights of others. In no way shall Magnum Lighting or its or any of its subsidiaries or affiliates be held responsible for inappropriate use of its products.

  • Page 20: Manufacturer's Warranty

    10. Manufacturer’s Warranty The LC-1000 comes with a standard 12 Month Manufacturer’s Warranty. Our warranty guarantees your laser projector to be free from defects in manufacture and workmanship. All defective products will be replaced or repaired subject to the full discretion of Magnum Lighting.
