User Manual

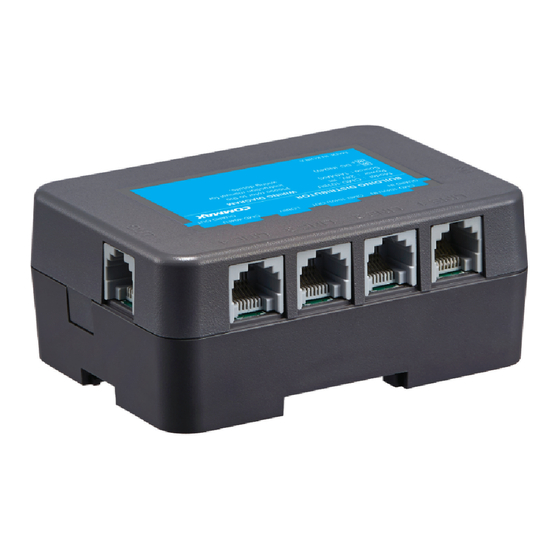

Building distributor CMD-101BU
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
www.safemag.ru
www.safemag.ru
Advertisement
Related Manuals for Commax CMD-101BU
Summary of Contents for Commax CMD-101BU
- Page 1 User Manual Building distributor CMD-101BU • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product.
-
Page 2: Table Of Contents
www.safemag.ru Contents 1. Introduction ...............2 2. Important Safeguard ............3 3. Product Concept and Features .........4 4. The wiring................6 5. Set the mode of building distributor........9 6. Specification..............13 www.safemag.ru... -
Page 3: Introduction
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguard
www.safemag.ru 2. Important Safeguards ▲ Damage Requiring Service : This equipment from the power source and source and refer servicing to qualified service per- sonnel under the following conditions ⓐ when the power is damaged. ⓑ if liquid has been spoiled or objects have hallen into the unit ⓒ... -
Page 5: Product Concept And Features
Modum systme monitor with lobby and guard. ● CMD-101BU is limited to the following devices that can be connected to interlock Lobby phone : Export-oriented type LOBBY (Gate View , Multi panel) Guard phone : Gate view guard phone (CDS-4GS) &... - Page 6 (CDS-2AG) Porter : It wire AP-3SG(PORTER only). The porter must wire with guard phone & use it. - Wire with "GUARD IN" OF NEXT building distributor CMD-101BU in "GUARD OUT" of CMD-101BU. - Floor distributor (CMD-404FU) by 40ea must be used within a maximum distance 300m from main entrance / CCTV .
-
Page 7: The Wiring
- Separate power must be connected to CMD-101BU.(DC24V / 1A or higher) - Each CMD-101BU must be installed to be supplied with the power (DC24V/1A) basi- cally 4. The wiring www.safemag.ru... - Page 8 ● Main entrance / CCTV Building distributor(CMD-101BU) CMD-404FU FLOOR) CMD-404FU(2 FLOOR) ... MODUM VIDEO PHONE www.safemag.ru...
- Page 9 www.safemag.ru : UTP CABLE [CAT.5e] - MAX 300m www.safemag.ru...
-
Page 10: Set The Mode Of Building Distributor
www.safemag.ru 5. Set the mode of building distributor - Using up the back of the product, DIP switch (8 channels) when you set the mode of building distributor. ● The function of each switch NO. ❶ CCTV detection and master settings A. - Page 11 www.safemag.ru B. When Modum system is installed in the first building with turning on NO2 switch, the building number of building distributor is set as common entrance number if you call monitor and guard station from lobby phone. After this, you should put back twice. We use it when installing several sets of building distributor in one building.
- Page 12 www.safemag.ru NO. ❻ If the builiding distributor is extended to several sets in a building, 7/8 number line has been set up when the Switch 6 is made on. NO. ❼ If the builiding distributor is extended to several sets in a building, 9/10number line has been set up when the Switch 7 is made on.
- Page 13 www.safemag.ru www.safemag.ru...
-
Page 14: Specification
CCTV selector(CMD-104VU) 5 lines (polarity), Guard 4 lines (polarity) (RJ45 CAT5e Patch Cable) Voltage DC 24V / 1A (MAX) 1. Modum system building distributor (CMD-101BU) Floor distributor Wiring Sequence Wiring Sequence(CMD-404FU) IN (Input) 2. Main entrance/Guard/CMD-104VU Modum system building distributor (CMD-101BU) From main entrance/CCTV to monitor is 300m. - Page 15 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com PM99101BU010 Printed In Korea / 2014.10.105 www.safemag.ru...
