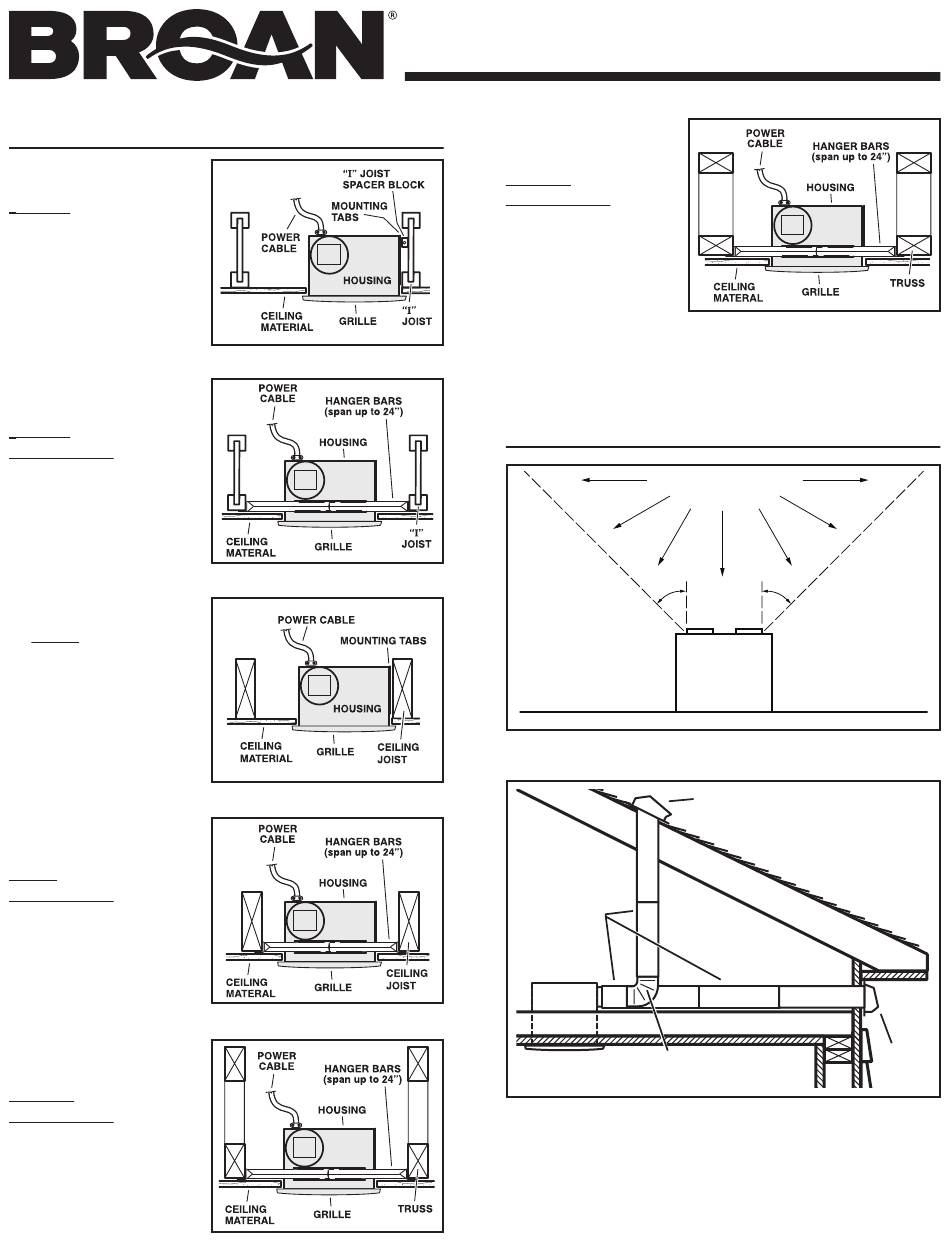

TYPICAL INSTALLATIONS

Housing mounted to
I-joists.
Housing mounted
anywhere between
I-joists using
hanger bars.
Housing mounted
to joists.
Housing mounted
anywhere between
joists using
hanger bars.
Housing mounted
anywhere between
trusses using
hanger bars.
Housing mounted
anywhere between
trusses using
hanger bars.

PLAN THE INSTALLATION

Do not install above or
o
45
6-IN. ROUND
*
DUCT
6-IN. ROUND
*
Purchase
ELBOW
separately
The unit will operate most quietly and effi ciently when located
where the shortest possible duct run and minimum number of
elbows will be needed.
Use a roof cap or wall cap that has a built-in damper to reduce
backdrafts.
Plan to supply the unit with proper line voltage and appropriate
power cable.
MODEL QTXE080C
inside this area.
45 o
Cooking
Equipment
Floor
*
ROOF CAP
*
Page 2
WALL
*
CAP
