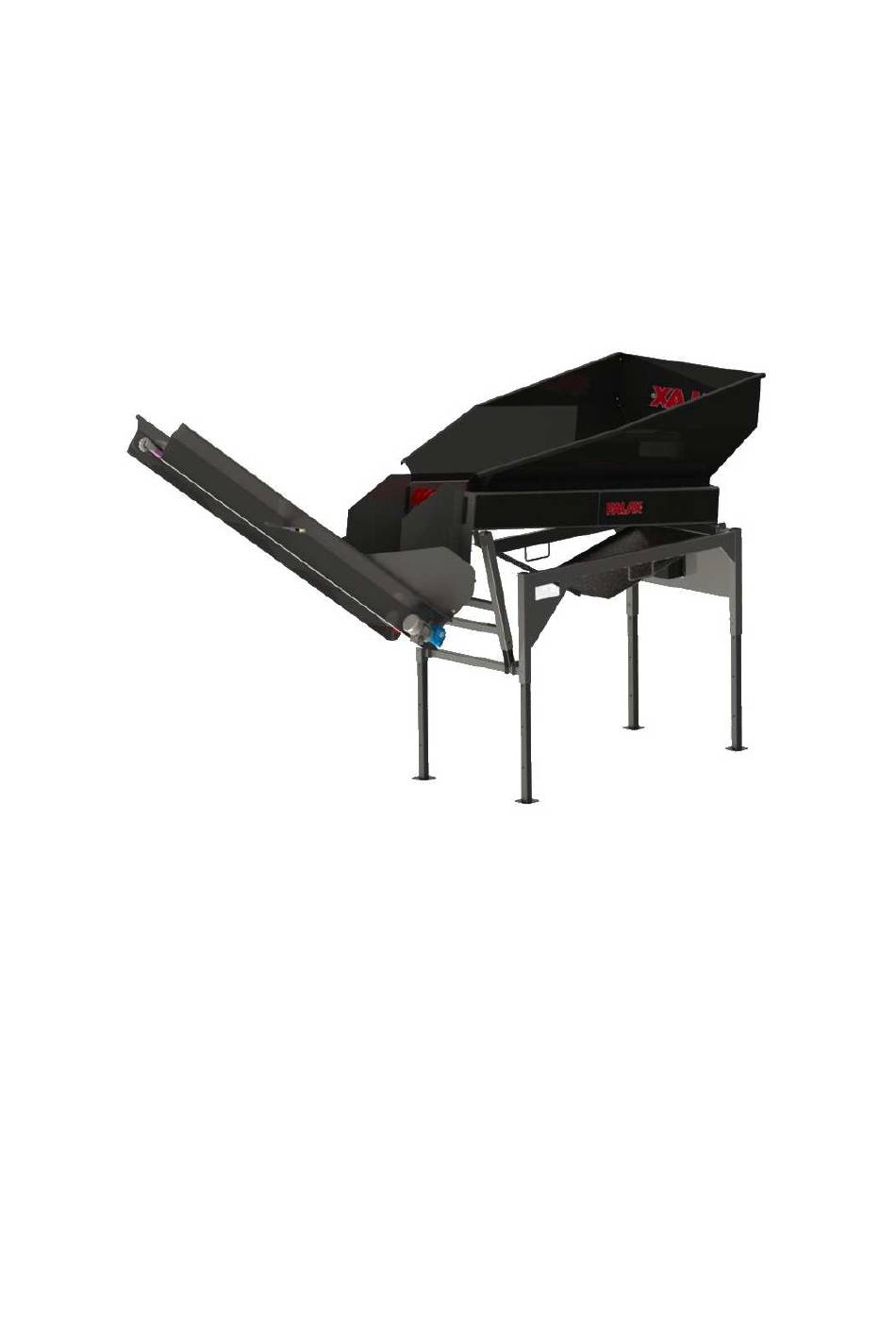

- Page 1 User manual Spare parts manual Palax Roller SERIAL NUMBER _______________________ YEAR OF MANUFACTURE _______________________ Palax Lahdentie 9 FI-61400 Ylistaro, FINLAND Tel. +358 6 4745100 Fax. +358 6 4740790 www.palax.fi...
-
Page 3: Table Of Contents
Operating conditions ......................7 1.8. Guarantee terms ........................7 Assembling the machine ......................8 2.1. Roller with divider......................... 8 2.2. Roller with conveyor ......................9 2.3. Log guides ..........................10 Operating the Roller ........................11 3.1. Hydraulic drive ........................11 3.2. -
Page 4: Basic Information And Responsibilities
Additional information on our company’s products is available on our website at www.palax.fi. NOTE! Always keep this manual in the immediate vicinity of the machine. -
Page 5: Eu Declaration Of Conformity
Ylistaron Terästakomo Oy www.palax.fi Lahdentie 9 FI-61400 Ylistaro Finland +358 6 474 5100 Person responsible for the technical file: Kai Koskela, kai.koskela@palax.fi Product: Firewood cleaner and extended conveyor, Accessory for Palax firewood processors. Drive: Electric motor / Hydraulic motor Model markings:... -
Page 6: Purpose Of Use
Always use work gloves. Do not wear loose or hanging clothing. Before use Set up the Roller and the conveyor in the operating position before turning on the machine. Ensure that no unauthorised persons are in the working area. Operate the machine on a sufficiently solid and even surface. -
Page 7: Operator's Responsibilities
Danger! Stay clear of moving parts. 1.6. Operator’s responsibilities The Roller may be used only for cleaning firewood as an accessory to a Palax firewood processor or when loaded using a loader. All of the Roller’s safety devices are necessary for ensuring a sufficient level of safety. -
Page 8: Assembling The Machine
2. Assembling the machine Figure 1. Use a forklift with long forks to lift the Roller from the bottom of the frame to the desired operating height (Frame width 1,120 mm). Lock the legs into position using screws inserted through the hollow sections (1.) The Roller’s angle (C) can be adjusted by adjusting the length of adjustment bar B. -
Page 9: Roller With Conveyor
Attach the conveyor locking lever to its support from point (Figure 4.) B Figure 5. Attach the wire loop to screw A (Figure 5.). Thread the wire through the conveyor and behind the rollers through pipe B (Figure 5.). Thread the wire through roller C (Figure 5.) to winch D (Figure 5.). -
Page 10: Log Guides
2.3. Log guides Figure 6. Attach the lower log guide on top of the conveyor using three M10 hex screws (Figure 6.). Attach angle plates A to the frame using M10 hex screws. Attach side guides B and C to the angle plates. Make sure that the folded parts are facing outwards. -
Page 11: Operating The Roller
If this happens, turn the switch to the 0 position and reset the thermal relay by pressing the R button. When loading with a front loader, it is crucial that the Roller is only loaded with small amounts of firewood at a time. Loading the Roller with a large amount of firewood at once will reduce screening efficiency and may clog up the output conveyor. - Page 12 once will reduce screening efficiency and may clog up the output conveyor.
-
Page 13: Maintenance Procedures
4. Maintenance procedures Figure 6. Lubricate the collar step bearings of the roller shafts (1) approximately every 100 operating hours. Lubricate the roller chains (2) approximately every 100 operating hours. -
Page 14: Spare Parts
5. Spare parts Ordering instructions 1. Find the figure that includes the part you need. 2. Check the part number from the figure. 3. Use the figure number and part number to find the order number in the parts list. 4. - Page 16 Osa/ Item Order Nimitys Description Kpl/ Part Tasakiila Parallel key K2604030 Holkki Bushing L2601271 Vaihteen alusta Motor mount plate K8722010 Väliakseli Adapter shaft Vaihdemoottori Gear motor...
- Page 18 Osa/ Item Order Nimitys Description Kpl/ Part 8711000 Rulla Roller 8713000 Pääty Gable K8710060 Ketjupyörä Sprocket Rullaketju Chain 8714000 Ketjupyörä Sprocket K8713030 Holkki Bushing 8712000 Kylki Side of the frame Rullaketju Chain UCFC207 Laippalaakeri Bearing unit L8710040 Suoja Cover Plate L8713011 Päätylevy...
- Page 20 Osa/ Item Order Nimitys Description Kpl/ Part 8717000 Akseli Shaft 8716000 Nostokehikko Adjustment frame K8710030 Putkipalkki Square tube L8710020 Roskapelti chip guide 8718000 Akseli Shaft 8715000 Runko Frame 8719000 Jalka...
- Page 22 Osa/ Item Order Nimitys Description Kpl/ Part L8720010 Laita Sideboard L8710050 Takalaita Tailboard L8721010 Laita Sideboard L8722030 Suoja Cover plate L8722040 Suoja Cover plate L8710060 Kiinnike Mount piece L8710082 Sivupelti Side plate L8710071 Takalevy Back plate L8710081 Sivupelti 2 Side plate 2...
- Page 25 31932 Slope Divider accessory 31933 Handle Divider accessory 31934 Lug Divider accessory Conveyor 31935 Roller cage accessory Conveyor 14392 Roller wheel (inc. bearing) accessory Conveyor 10060 Bearing 6201 2RS accessory Conveyor 31936 Conveyor support accessory Conveyor 11197 Winch Goliath 6AF...
- Page 26 14392 Roller wheel (inc. bearing) Conveyor 10060 Bearing 6201 2RS Conveyor 31939 Mounting clip Conveyor 31940 Swivel beam Conveyor 32387 Conveyor chain Conveyor 11655 Cleat Conveyor 11376 Cleat fastening 14 Conveyor 11199 Locking piece Conveyor 31927 Electric motor 0.55 kW 1500B14A...
