Summary of Contents for Palax TR

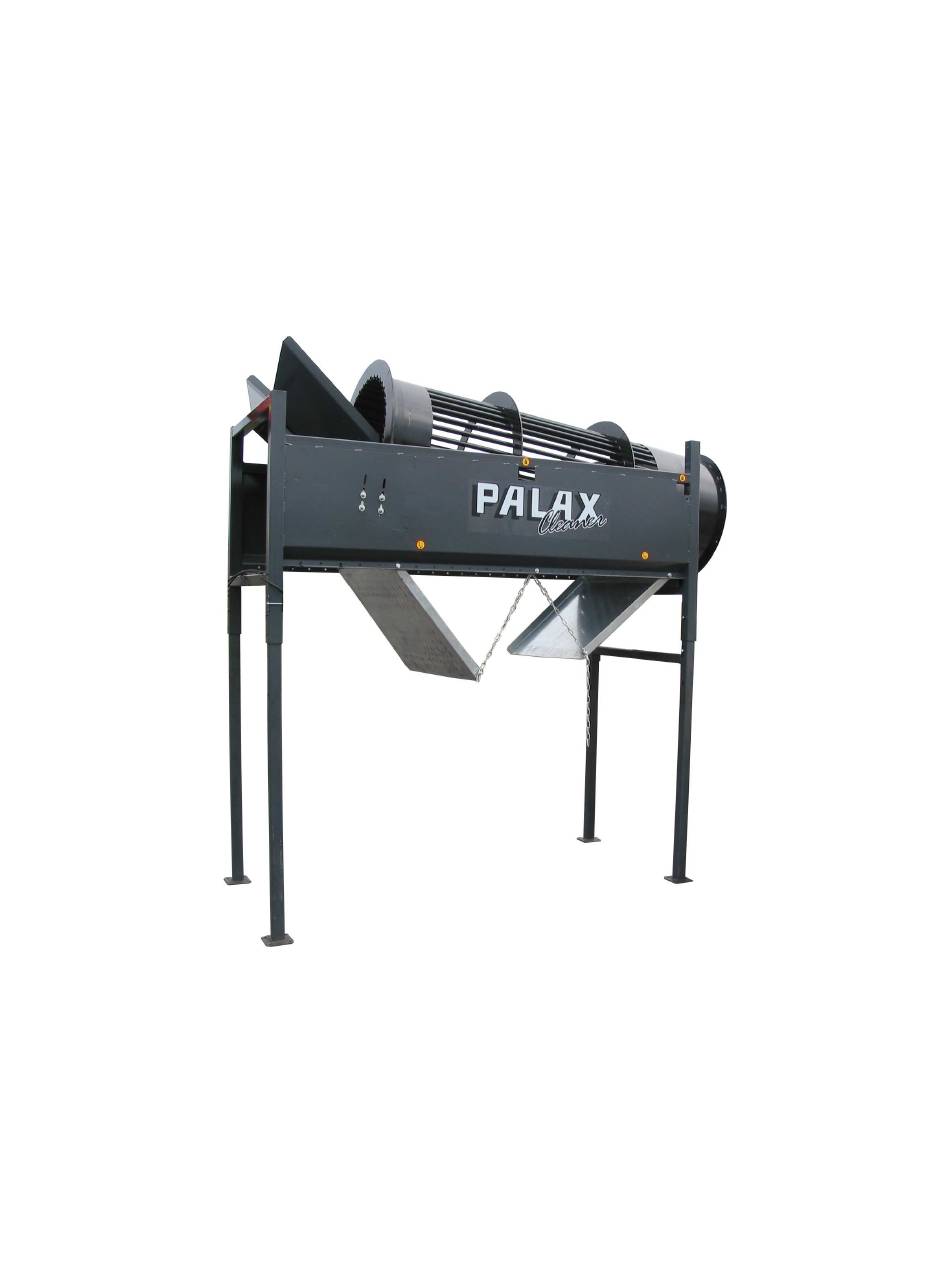

- Page 1 Instruction manual Spare parts catalogue Palax Cleaner PALAX Lahdentie 9 FI-61400 Ylistaro, FINLAND Tel. +358 6 4745100 Fax. +358 6 4740790...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Basic specifications and responsibilities .................. 3 1.1. Foreword .......................... 3 1.2. EU Declaration of Conformity ..................4 1.3. Intended use of the machine....................5 1.4. Warning signs ........................5 1.5. Safety instructions......................5 1.6. Responsibilities of the operator ..................6 1.7. -
Page 3: Basic Specifications And Responsibilities
The operator is also obliged to gain familiarity with the operating controls of the machine and the emergency stop mechanism. For more information about our products, please visit our website at www.palax.fi. NOTE! Keep this manual with the machine at all times. -
Page 4: Eu Declaration Of Conformity
+358 6 474 5100 The person in charge of Technical Construction File: Jarkko Panu Product: Debris drum and extension conveyor, An optional accessory for Palax firewood processors. Powered by: Tractor P.T.O. or electric motor Models: Powered by tractor equipped with own hydraulic system... -
Page 5: Intended Use Of The Machine
1.5. Safety instructions General regulations and restrictions The machine is only intended for cleaning firewood in combination with the Palax firewood processor. The danger zone around the debris drum and the conveyor is 5 metres to the sides and to the rear. -
Page 6: Responsibilities Of The Operator
1.6. Responsibilities of the operator The drum may exclusively be used for cleaning firewood as an optional accessory for the Palax firewood processor. All the safety-related devices of the drum are necessary to ensure a sufficient level of safety. It is the responsibility of the operator of the drum to ensure before starting the work that all the safety-related devices are in perfect order and the drum has been serviced in a due manner. -
Page 7: Setting Up The Unit For The Operation
2. Setting up the unit for the operation Fig. 1. Lift the debris drum to the desired operating height by lifting with long forklift forks under the frame. (width of the frame 1,120 mm). The angle of the debris drum can be changed by altering the height difference of the legs A and B (Fig. -
Page 8: Debris Drum With Conveyor
Fix the hexagon bolts A (Fig. 2) to the same holes for the height adjustment of the legs. 2.2. Debris drum with conveyor Fig. 3. Fix the conveyor bearer to the debris drum using hexagon bolts A and B, as illustrated in Fig. 3. Fix the hexagon bolts A (Fig. -
Page 9: Using The Debris Drum
Fig. 5. Fix the wire loop to the bolt A (Fig. 5). Thread the wire through the pipe B located behind the rollers on the conveyor (Fig. 5). Thread the wire via the roller C (Fig. 5) to the winch D (Fig. 5). 3. -
Page 10: Lubricating The Wheel Shafts
4.1. Lubricating the wheel shafts Fig. 6. The rotation of the debris drum is supported by five rubber wheels. The shafts A (Fig. 6) of these wheels must be lubricated regularly. 4.2. Tightening the V-belts Fig. 7. The V-belts are tightened by tightening the bolt A (Fig. 7). 5. - Page 11 3. Look up the ordering code referred to by the picture and part number. 4. When placing your order, always mention: ordering code, denomination of the item, serial number and year of manufacture of the machine. Parts list Pict Order Part Item Note.
- Page 12 10596 Bearing 6205 2RS Conveyor 11004 Spring 5.5x30x340 Conveyor 31938 Conveyor Conveyor 14392 Roller wheel (incl. bearing) Conveyor 10060 Bearing 6201 2RS Conveyor 31939 Fixing hook Conveyor 31940 Swing beam Conveyor 31730 Conveyor chains + flights Conveyor 31731 Flight Conveyor 11376 Flight clamp 14 Conveyor...
