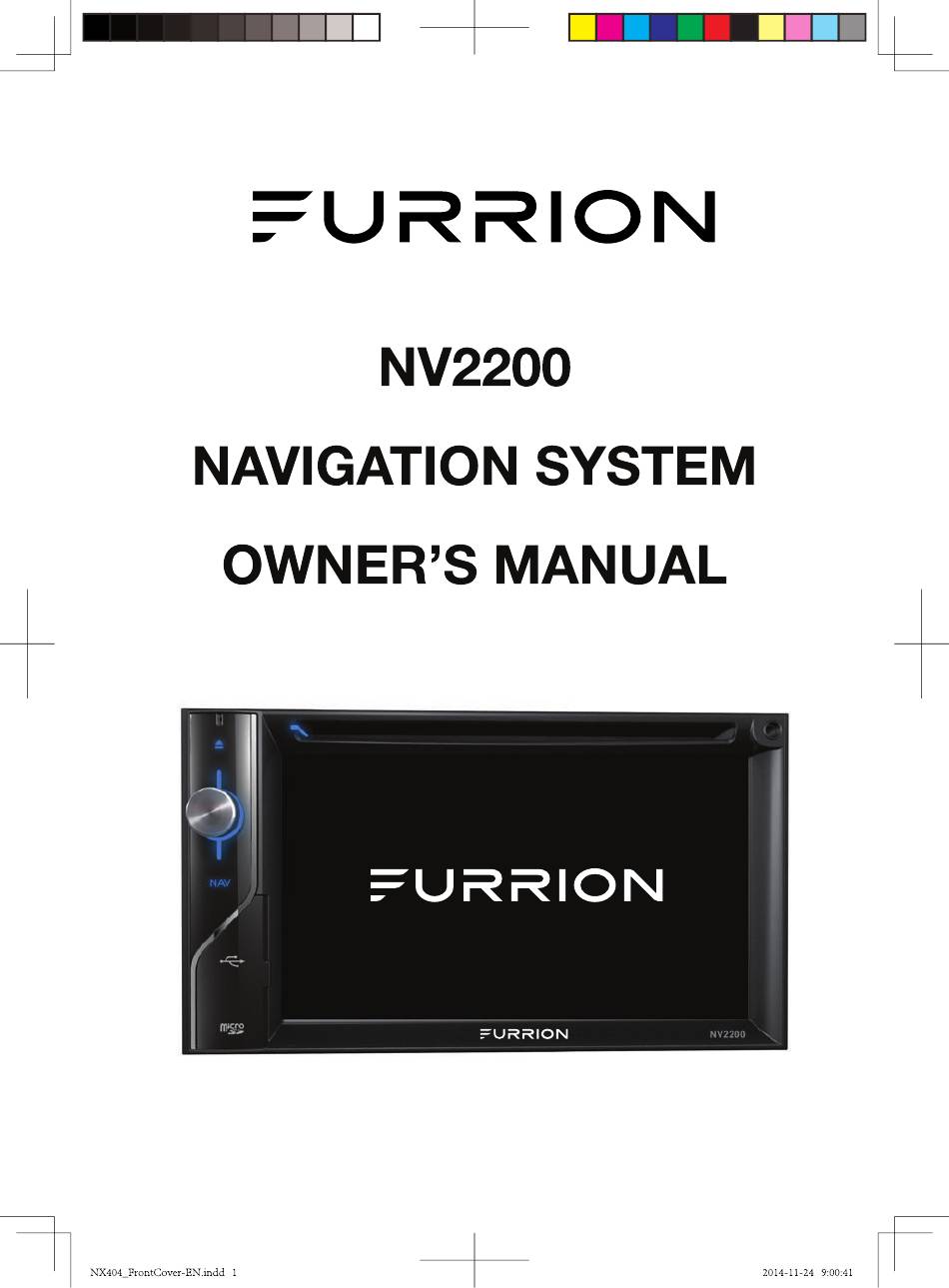

Furrion NV2200 Owner's Manual
  1. Manuals
  2. Brands
  3. Furrion Manuals
  4. GPS
  5. NV2200
  6. Owner's manual
Furrion NV2200 Owner's Manual

Furrion NV2200 Owner's Manual

Navigation system
Hide thumbs Also See for NV2200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV2200 and is the answer not in the manual?

Questions and answers

Related Manuals for Furrion NV2200

Summary of Contents for Furrion NV2200

  • Page 2: Table Of Contents

    Contents 1. PRECAUTIONS ..........................2. FEATURES ............................. Disc (DVD/CD/VCD) ........................Radio (AM/FM) ..........................Bluetooth ............................USB ..............................CHASSIS ............................GENERAL ............................NAVIGATION ..........................CAMERA ............................INSTALLATION AND USAGE REQUIREMENTS ..............3. OPERATIONAL PANEL ......................FUNCTIONS OF BUTTONS ......................4. REMOTE CONTROL ........................
  • Page 3 Bluetooth Telephone Settings ..................Registering Your Cellular Phone (Pairing) ................. Select the Cellular Phone ....................Obtain Phone Book Data ....................Telephone Operations ...................... 14. RADIO OPERATIONS ....................15. AUX ..........................16. CAMERA INPUT OPERATIONS ................... 17. SETUP OPERATIONS ....................General Setup Menu ......................Video Setup Menu ......................

  • Page 4: Precautions

    WELCOME Thank you for purchasing this Furrion® NV2200. Before operating your new appliance, please read these instructions carefully. This instruction manual contains information for safe use, installation and maintenance of the appliance. Please keep this instruction manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury.

  • Page 5: Features

    2. FEATURES Disc (DVD/CD/VCD) • 12 cm disc type supported: DVD-Video, DVD±R/RW, CD-DA, CD-R, and CD-RW. • Support audio format: MP3, Kodak Photo CD, AAC, WMA, M4A. • ID3 tag compatible. • 16Mbit electronic shockproof: 3 seconds DVD video / 10 seconds CD audio. • Break-point memory function. • All area code supported. • Functions on DVD: play, pause, stop, previous chapter, next chapter, fast forward, fast backward, subtitle selection, audio selection, A-B repeat, scene selection. • Functions on CD: play, pause, previous track, next track, random play, repeat play, track selection. • Functions on VCD: play, pause, previous chapter, next chapter, fast forward, fast backward, subtitle selection, audio selection, aspect ratio selection, A-B repeat. • Support picture format: JPEG. • Functions on picture: picture selection, automatic play, pause, previous picture, next picture. • Support video format: MPEG 1 / 2 / 4, AVI, FLV, DAT, VOB, OGM, ASF (support maximum resolution 720p). • Functions on video: video selection, play, pause, previous video, next video and aspect ratio selection. Radio (AM/FM) • USA/Europe/Latin America/Asia Frequency Spacing. • 30 station presets (18FM / 12AM).

  • Page 6: Usb

    • Pre Amplifier Control. NAVIGATION • Only insert the Furrion map SD to use navigation function. For more information or to purchase maps, please visit: www.furrion.com/maps. • Latest map guarantee (limited time only – within 30 days of initial activation).

  • Page 7: Camera

    CAMERA • When camera and signal wire is connected and operated properly, CAMERA mode will be activated automatically when there is signal. • Image Display of Automatic Car Reversing Function in Shutdown Mode. INSTALLATION AND USAGE REQUIREMENTS • Operation temperature: -20 to +70 degree Celsius. • Storage temperature: -30 to +80 degree Celsius. • Operation voltage: 10.5 – 16.0V DC, negative ground. • Fuse: 15-amps. • Standby current: ACC OFF ≤5mA. • DIN chassis dimensions: 178mm x 153mm x 100mm. 8226M-FU_Usermanual_.indd 6 2014-11-24 11:57:32...

  • Page 8: Functions Of Buttons

    4. REMOTE CONTROL REMOTE CONTROL FUNCTIONS 1- [POWER] Button 4- [MODE] Button Press this button to power on when the unit is power Press this button to switch between sources. off. 5- [0 - 9] Buttons Press this button more than 1 second to power off Use in the key pad screen to select the radio.

  • Page 9: Operational Panel

    3.OPERATIONAL PANEL [MICROPHONE] [AUX IN] [POWER/VOL] [NAVI] [IR] [RESET] [USB] [Cover] MICRO SD SLOT FUNCTIONS OF BUTTONS [MICROPHONE] [IR] SENSOR [ ] EJECT [MICRO SD SLOT] [POWER / VOL] KNOB [NAVI] BUTTON [AUX IN] [USB] PORT [RESET] BUTTON 8226M-FU_Usermanual_.indd 7 2014-11-24 11:57:32...
  • Page 10 7- [VOL-] Button • Press to select the next lower chapter number in DVD video mode. • Decrease volume. • Press to select the next lower track in CD, USB 8- [OSD] Button Video, USB Audio mode. • Touch button on DVD Player mode screen, playback 21- [ ] Button status is displayed on screen.

  • Page 11: Wheel Key Study

    5. WHEEL KEY STUDY 1 - Restudy 1.Touch the [Setup] button on the Main Menu. 2 - Mode 1 2.Touch the [Others] button. The below menu is 3 - Mode 2 displayed. 4 - Source 5 - Previous 6 - Volume + 7 - End a call 8 - Mute 9 - Next 10 - Volume -...

  • Page 12: Main Menu

    6.MAIN MENU 1 - Radio --- Touch the button to display the Radio mode. 2 - AUX1 --- Touch the button to display the AUX1 mode. 3 - USB Audio --- Touch the button to display the USB Audio mode. 4 - Disc Audio --- Touch the button to display the Disc Audio mode.

  • Page 13: Disc Video Player Operations

    7. DISC VIDEO PLAYER OPERATIONS DVD SYSTEM SETUP 1 - Previous Chapter / Fast Backward button Note: If the setup operation is made in the middle of DVD 2 - Play / Pause video play, the disc will re-start from the beginning. 3 - Next Chapter / Fast Forward button 4 - Subtitle switching button WATCH A DISC...

  • Page 14: Title Menu

    Search 1. In the DVD Video menu, touch [ ] button during playback. 1. In the DVD Video menu, touch [ ] button. The keypad screen appears with the chapter/title • Depending on the disc, the title menu may not be number input mode.

  • Page 15: Video Files Playback

    5 - Switch next available subtitle When the power is turned on and when the disc is changed to a new one, the subtitle set as factory 6 - Repeat button default is selected. If that subtitle has not been 7 - Direct chapter or title searching button recorded on disc, the subtitle is on the...
  • Page 16 • Each time you touch the button, you can switch among audio languages. • It may take time to switch among audios. Depending on the video files, switching may be impossible. Subtitle Switch • For video files with two or more subtitles, you can switch among the subtitles during playback. 1. Touch the [ ] button to select a subtitle during playback.

  • Page 17: Disc Audio Player Operation

    8. DISC AUDIO PLA YER OPERA TION WATCH A DISC / EJECT A DISC 16 - Direct searching button 17 - Close option menu button Please refer to DISC VIDEO PLA YER OPERA TIONS – WATCH A DISC and EJECT A DISC. CD PLA YER MENU OPERA TION CD PLA YER MODE SCREEN You can select the button displayed in the CD Player...
  • Page 18 1. Always add a file extension “.MP3” or “.mp3” to • [ ] button will switch to [ ] button. an MP3 file, and “.WMA” or “.wma” to a WMA file by • The function will scan all tracks orderly in current using single byte letters. If you add a file extension folder once. After scan stopped playback will other than specified or forget to add these file continue. extension, the file cannot be played. In addition, if you Track Number Search use upper case and lower case letters (capital and small letters) mixed for file extensions, normal play This operation allows searching using the track may not be possible. numbers recorded on the CDs. 2. Files other than MP3 / WMA data cannot be played. 1.

  • Page 19: Mp3 / Wma Playback Menu

    MP3 / WMA Playback Menu 1. Repeat Playback While playing MP3 / WMA touch [ ] button can switch between Repeat Folder, Repeat All and Repeat Track. 2. Folder Touch the title of folder, play list will show folders in the selected folder. 3.

  • Page 20: Audio Setup

    9. AUDIO SETUP 1. Touch [Setup] button on the Main Menu screen. 4 - Treble: Choose the desired treble from -14 to 14 The Setup Menu screen will be displayed. (only in User mode). 2. Touch [Audio] button. 5 - Middle: Choose the desired middle from -14 to 14 (only in User mode). 3. Touch [EQ] button. 6 - Bass: Choose the desired middle from -14 to 14 (only in User mode). 7 - Subwoofer: Choose the desired loudness from -20 to 20. 8 - Scroll Down: Scroll down to bottom part of EQ Setup menu. 9 - Band / General: Choose between band or general settings (only in User mode).

  • Page 21: Usb Audio Operations

    10. USB AUDIO OPERA TIONS Notes on Using USB Memory Device 12 11 10 General notes When a USB Memory Device contains no • supported files, the file list displays nothing. Notes on the Audio files • This system can play the MP3 / WMA stored in the USB memory.
  • Page 22 3. Touch the desired track title button. The Touch [ ] button again to r e sume playback. corresponding track will start playback. Previous / Next File Switch Scan the Tracks Touch [ ] or [ ] button during playback to play 1.

  • Page 23: Usb Video Operations

    11. USB VIDEO OPERA TIONS This system can play USB video (MP4, 3GP etc.) stored in an USB memory which is r ecognized as “USB Mass Storage Class device”. Y ou can use your USB memory as an video device by simply copying desired video into it.

  • Page 24: Play Picture Files In Usb Memory

    • Touch [ ] button to starts playback from the beginning of the next track. 12 11 10 • Touch [ ] button to starts playback from the beginning of the curr e nt track; when this button is touched again within about 5 seconds, playback starts from the beginning of pr e vious track.
  • Page 25 PLAY PICTURE FILES IN USB MEMORY Magnify / Minify Picture Touch [ ] or [ ] button during playback to magnify In USB Video mode touch the folder with picture or minify current picture. for example [ ] in below case. •...

  • Page 26: Bluetooth Audio Player Operations

    12. BLUETOOTH AUDIO PLAYER OPERATIONS Some Bluetooth cellular phones have audio features, and some portable audio players support the Bluetooth feature. These devices will be called as “Bluetooth audio players” in this manual. This system can play audio data stored in a Bluetooth audio player. Note: •...

  • Page 27: Selecting The Bluetooth Audio Player

    2. Touch the [ ] button to confirm delete. Selecting Bluetooth Audio Player To change the current Bluetooth audio player to the other device which is already registered, perform the following operation. 1. Touch the device button to [ ] display the Device Select screen.

  • Page 28: Bluetooth Telephone Operations

    13. BLUETOOTH TELEPHONE OPERATIONS When the connection with your Bluetooth-enabled 3. When you finish confirming the Bluetooth cellular phone is established, the following functions information, touch the [ ] button to return to the are available on this system. previous screen. •...

  • Page 29: Registering Your Cellular Phone (Pairing)

    Registering Your Cellular Phone When the pairing operation completes, the registered cellular phone is set as the current (Pairing) telephone, and the display returns to the Telephone screen. You can register up to 5 cellular phones. The registering method is as same as “Register The •...
  • Page 30 • When the call is touch the [ ] button to hang up. Making a Call Using the History The system will memorize the Dialed/Received calls record data in the memory. You can it and use it to make a call from this system. 1.

  • Page 31: Radio Operations

    14. RADIO OPERATIONS Listen to the Radio 1. Band button 2. Current Channel indicator 1. Touch the [Radio] button on the Main Menu display. The Radio mode screen is displayed. 3. DX/Local indicator 4. System time 5. Signal Strength indicator 6.
  • Page 32 Auto Store The Auto Store is a function for storing up to 6 stations that are automatically searched in sequence. If the number of receivable stations cannot reach to 6, the previous stored stations remains. 1. Touch the [FM1 / FM2 / FM3 / AM1 / AM2] button to select the desired band (AM or FM).

  • Page 33: Aux

    Note: If the reverse cable is connected correctly to the vehicle or Furrion Multiplexer, the system goes to camera mode automatically when the reverse signal or left/right signal (only for Furrion Multiplexer) is turned on.

  • Page 34: Setup Operations

    17. SETUP OPERATIONS Touch the [Setup] button on the Main Menu screen. Brightness: Set Brightness value from 0 to 20. The Setup menu screen will be displayed. Color: Set Color value from 0 to 20. Contrast: Set Contrast value from 0 to 20. General Setup Menu Saturation: Set Saturation value from 0 to 20.
  • Page 35 Change Language: Set the Language for Menu. Wheel Key Study: Refer to “Wheel Key Study” section. Calibration: Select the screen calibration Yes or No. Factory Default: Select to load factory default or not. 8226M-FU_Usermanual_.indd 34 2014-11-24 11:57:44...

  • Page 36: Replace Remote Control Batteries

    18. REPLACE REMOTE CONTROL BATTERIES 1. Press the retention tab and pull out the battery tray and remove the old battery. 2. Insert the new CR2025 battery and slide the battery tray back in the remote control the same direction that you removed it. Please ensure the tray is inserted in the correct direction.

  • Page 37: Troubleshooting Guide

    19. TROUBLESHOOTING GUIDE GENERAL Problem Cause Solution Unit will not power on. Radio fuse blown. Install new fuse with correct rating. Car battery fuse blown Install new fuse with correct rating Illegal operation. Press the RESET button. No/Low audio output. Improper audio output Check wiring and connect.

  • Page 38: Tuner

    TUNER Problem Cause Solution Weak station searching. Auto antenna not properly Connect the auto antenna connected. cable properly. REG function is activated. Turn REG function off. The adapter with antenna Connect the antenna power power supply is not connected supply adapter properly. The AF function is not Activate the AF function.

  • Page 39: Specifications

    Note: Distortion: 0.3% Specifications and design are subject to change without Video System: NTSC/PAL notice for further improvement. Audio/Video Input FCC ID: 2ABH3-NV2200 Audio Input Voltage: 650mv<= V RMS Changes or modifications not expressly approved by the party responsible for compliance could void the Video Input Voltage: 1.0V p-p@75 Ohm user’s authority to operate the equipment. Audio Input Sensitivity (at 2V Output)
  • Page 40 Furrion Ltd. NV2200 Model: NV2200 Rating: DC12V Manufacturer: Furrion Ltd. Address: Units 1603-05, 16/F., Pacific Plaza, 410 Des Voeux Road West, Sai Wan, Hong Kong This product complies with US DHHS Standard 21CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24, 2007 as a Class I Laser Product. Made in China 8226M-FU_Usermanual_.indd 39...

  • Page 41: Wire Connection Guide

    21. WIRE CONNECTION GUIDE Note: • Before installing, be sure to disconnect the negative cable of the car battery. Refer to page 41 CAMERA AUDIO USB-4P FEMALE GPS Antenna LINE-OUTL LINE-OUTR VIDEO 8226M-FU_Usermanual_.indd 40 2014-11-24 11:57:46...
  • Page 42 BLUE AUTO ANTENNA IGNITION SWITCH BLUE/WHITE AMPLIFIER TURN-ON CORD ORANGE ILLUMINATION PURPLE/BLACK REAR RIGHT - SPEAKER BROWN/BLACK WHEEL KEY 1 PURPLE REAR RIGHT + SPEAKER BROWN WHEEL KEY 2 / TEL MUTE GREY/BLACK FRONT RIGHT - SPEAKER YELLOW MEMORY B+ GREY FRONT RIGHT + SPEAKER BLACK...
