3.0 Installation

The ManHandler Hoist/Winch is equipped with a built-in bracket for attachment to approved
anchorage systems and devices, such as the Miller DuraHoist™ Confined Space System and
Miller Tripods, Quad Pods, Davit Systems, Wall Mounts, etc.
To install the ManHandler Hoist/Winch, simply align the holes on the built-in mounting bracket
with the holes on the mounting device being used (i.e., tripod or other approved anchorage) and
insert the push pins completely through the bracket (see Fig. 1 & 2).
The ManHandler Hoist/Winch must be inspected before each use as described in section 4.1
Inspection and Operation of this manual.
SWIVEL SNAP HOOK
MOUNTING BRACKET
WARNING:
capabilities is recommended.
www.actoolsupply.com
Us er In str uc tio n s - E ng l i s h

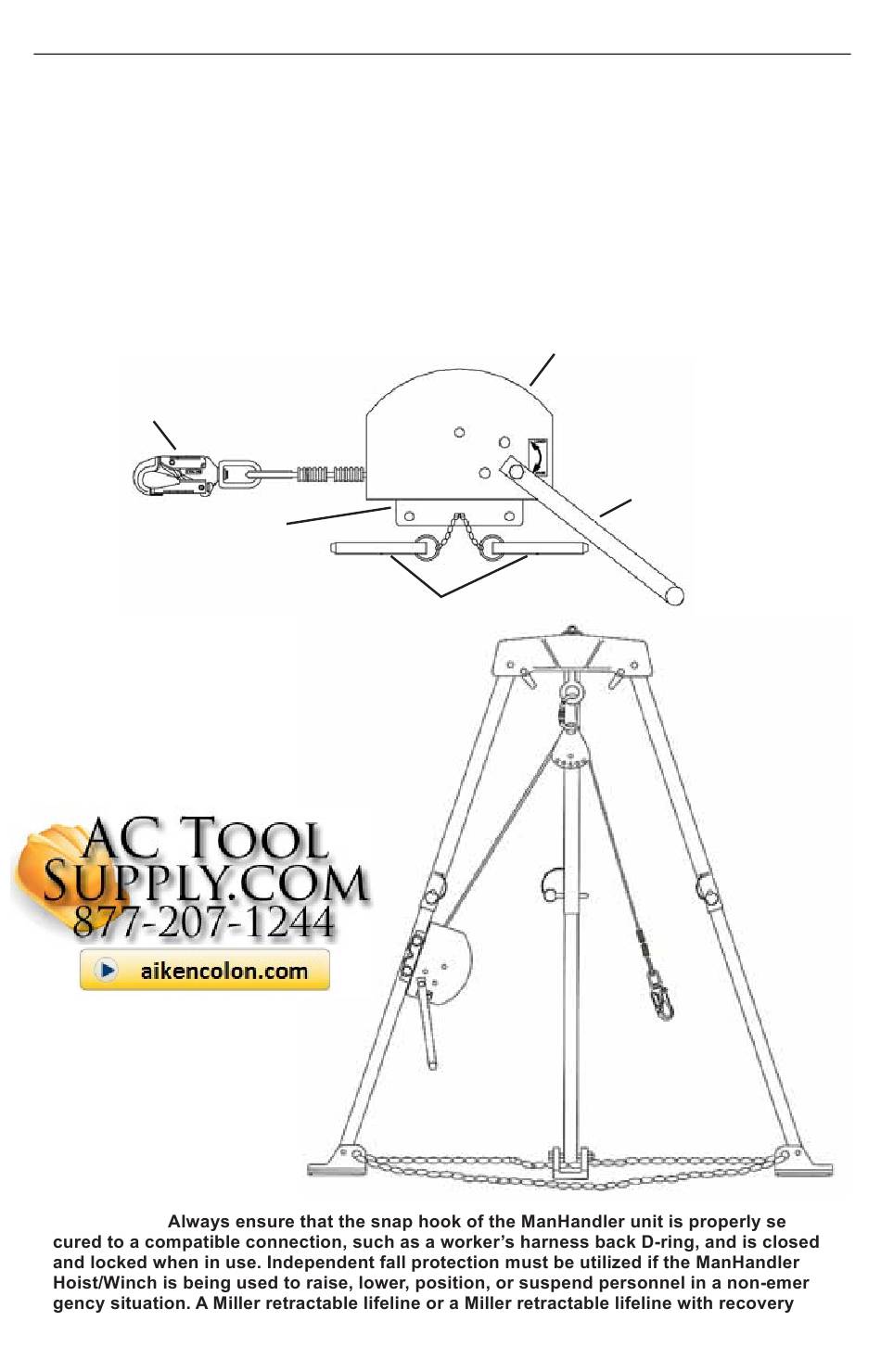

Fig. 1
PUSH PINS
Fig. 2
MILLER MANHANDLER
MOUNTED TO
MILLER TRIPOD
www.actoolsupply.com
HOUSING
5
CRANK HANDLE
TYPICAL
INSTALLATION
-
-
