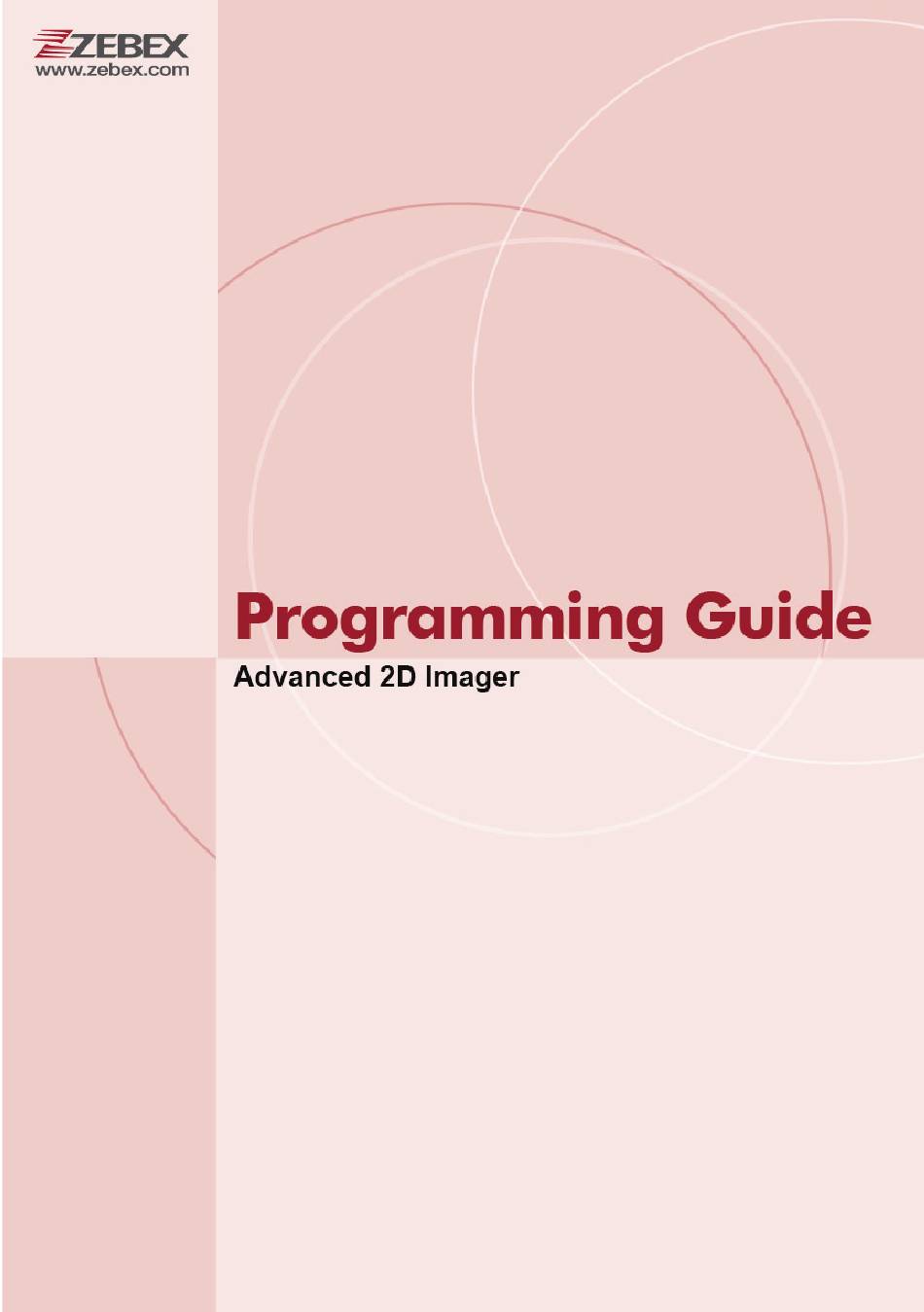

Zebex Z-6172 Programming Manual

Advanced 2d imager
Hide thumbs Also See for Z-6172:
Table of Contents

Advertisement

Quick Links

Download this manual
GLLS
1
Advanced Handheld High-Speed Laser Scanner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-6172 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zebex Z-6172

Summary of Contents for Zebex Z-6172

  • Page 1 GLLS Advanced Handheld High-Speed Laser Scanner...
  • Page 3 ROGRAMMING UIDE Revision History Changes to the original manual are listed below: Version Date Description of Version 2015/03/03 Initial release 2015/04/15 Added Cap Locks function 2015/05/07 Corrected barcode for the letter D 2015/6/11 Updated interface mode 2015/7/16 Added Spanish keyboard setting 2016/7/12 Changed default and descriptions in scan modes Advanced 2D Imager...

  • Page 4: General Handling Precautions

    ROGRAMMING UIDE Important Notice No warranty of any kind is made in regard to this material, including, but not limited to, implied warranties of merchantability or fitness for any particular purpose. We are not liable for any errors contained herein nor for incidental or consequential damages in connection with furnishing, performance or use of this material.

  • Page 5: Table Of Contents

    ROGRAMMING UIDE Table of Contents Important Notice........................ii General Handling Precautions................ii Guidance for Printing ...................ii Settings and Programming ...................1 Programming Options ..................1 Default Factory Device Settings................1 Interface Mode......................2 Interface Switch....................2 Spanish Keyboard....................3 Baud Rate ......................4 Word Format: Parity, Data bits, Stop bits .............6 User Preferences ......................8 System Settings ....................8 Beeper-Good Read ....................9...
  • Page 6 ROGRAMMING UIDE Code 32 Pharmaceutical ..................28 Code 39 Message Length ...................29 Trioptic .......................29 Interleaved 2 of 5 .......................30 Interleaved 2 of 5 Enable/Disable ..............30 Interleaved 2 of 5 Check Characters..............31 Interleaved 2 of 5 Message Length ..............31 NEC 25........................32 NEC 25 Enable/Disable..................32 NEC 25 Check Characters ...................33 Straight 2 of 5 Industrial.....................34 Straight 2 of 5 Industrial Enable/Disable............34...
  • Page 7 ROGRAMMING UIDE EAN/JAN-13......................52 EAN/JAN-13 Check Digit..................52 EAN/JAN-13 2 Check Digit Addenda..............53 EAN/JAN-13 5 Check Digit Addenda..............53 EAN/JAN-13 Addenda Required .................54 EAN/JAN-13 Addenda Separator ................54 IBSN Translate ....................55 EAN-8 .........................55 EAN-8 Check Digit ....................56 EAN-8 Check Digit Addenda ................56 EAN-8 2 Check Digit Addenda ................57 EAN-8 5 Check Digit Addenda ................57 EAN-8 Addenda Required...................58 EAN-8 Addenda Separator .................58...
  • Page 8 ROGRAMMING UIDE QR Code ......................78 QR Code Message Length...................78 Maintenance ......................79 Troubleshoot ......................79 Appendix A.........................80 Standard Default Parameters ................80 Appendix B .........................84 Code ID Table .....................84 Appendix C .........................85 Sample Barcodes....................85 Appendix D.........................88 Numeric Barcodes ....................88 Save ........................91 Discard........................91 Appendix E .........................92 Full ASCII Table ....................92 Advanced 2D Imager...

  • Page 9: Settings And Programming

    ROGRAMMING UIDE Settings and Programming Scan selected barcodes in this manual to affect setup and programming of your handheld 2D Imager. Decoding options and interface protocols can be tailored to a specific application. Setup parameters are stored in non-volatile memory in the scanner and are retained even when power is off.

  • Page 10: Interface Mode

    Interface Mode Interface Switch Your imaging barcode scanner supports USB virtual COM, USB-HID and RS232. The USB cable supports both USB virtual COM and USB-HID modes. Please install the driver before using USB Virtual COM.  To use USB Virtual COM for the first time, scan the USB Virtual COM barcode below then install the driver.

  • Page 11: Spanish Keyboard

    ROGRAMMING UIDE Spanish Keyboard Enable Spanish keyboard layout in USB HID interface. Please scan all 3 barcodes below to complete the setting. Enable Spanish keyboard Code 128 Code Page: Binary Code 39 Code Page: Binary Advanced 2D Imager...

  • Page 12: Baud Rate

    Baud Rate Baud rate is the number of bits of data transmitted per second. Set the imager's baud rate to match the baud rate setting of the host device. Otherwise, data may not reach the host device or may reach it in distorted form. 1200BPS 2400BPS 4800BPS...
  • Page 13 ROGRAMMING UIDE 57600BPS 115200BPS (Default) Advanced 2D Imager...

  • Page 14: Word Format: Parity, Data Bits, Stop Bits

    Word Format: Parity, Data bits, Stop bits A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements. Parity: checks character bit patterns for validity; Data bits: sets the word length; Stop bits: sets the stop bits. None,7,1 None,7,2 None,8,1...
  • Page 15 ROGRAMMING UIDE Even 8,1 Odd 7, 1 Odd 7, 2 Odd 8, 1 Advanced 2D Imager...

  • Page 16: User Preferences

    User Preferences System Settings Scan this barcode to return all parameters to the default values. Set All Defaults Scan this barcode to enable AUX Scanner. Aux Scanner Enable Scan this barcode to show scanner version. Show Version Advanced 2D Imager...

  • Page 17: Beeper-Good Read

    ROGRAMMING UIDE Beeper-Good Read To enable or disable beeper, scan the following barcodes. Beeper Volume-Good Read To select a beeper volume, scan the Low Volume, Medium Volume, or High Volume barcode. Low Volume Medium Volume High Volume Advanced 2D Imager...

  • Page 18: Beep During Good Decode

    Beep During Good Decode Scan a barcode below to select the duration of the beep signal after a good decode. Normal Short LED Illumination To enable or disable LED illumination, scan the following barcodes. (Default) Advanced 2D Imager...

  • Page 19: Led-Good Read

    ROGRAMMING UIDE LED-Good Read To enable or disable LED indicator after a good read, scan the following barcodes. (Default) Number Of Beep-Good Read Scan a barcode below to select the number of the beep signal to sound after a good decode.
  • Page 20 Advanced 2D Imager...

  • Page 21: Good Read Delay

    ROGRAMMING UIDE Good Read Delay Scan a barcode below to set the minimum amount of time before the imager can read another barcode after a good read. No Delay 200ms (Default) 500ms 2000ms *Specified *To set your own length for the good read delay, scan the “Specified” barcode, then set the delay by scanning digits from the Appendix, then scan “Save”.

  • Page 22: Same Code Delay

    Same Code Delay Scan a barcode below to set the minimum amount of time before the imager can read the same barcode a second time. No Delay 500ms (Default) 2000ms Advanced 2D Imager...

  • Page 23: Scan Mode

    ROGRAMMING UIDE Scan Mode Scan a barcode below to set the imager to trigger manually or continue scanning until a barcode has been read. Trigger Mode (Default for handheld scanner) Auto Scan Mode (Default for hands-free scanner) Manual Mode Timeout To a set timeout for the imager’s trigger when using Manual Trigger, scan the following “Timeout”...

  • Page 24: Centering Windows

    Centering Windows To change the field of view of your imager, scan “On” to enable the feature, and then scan one of the following barcodes to change the top, bottom, left, or right of the centering window. (Default) Left of centering window 40% Right of centering window 60% Top of centering window 40% Bottom of centering window 60%...

  • Page 25: Ship Image

    ROGRAMMING UIDE Ship Image To ship the image stored in the imager memory, scan the follow barcode. JPG/BMP No Read Enable this function to transmit a No Read message when a code can not be read. (Default) Image Reverse Enable this function to allow the imager to read barcodes that are inverted. (Default) Advanced 2D Imager...

  • Page 26: Data Redundant

    Data Redundant This function sets the imager to read the barcode multiple times before accepting data. Data Redundant Check = Off (Default) Data Redundant Check = 1 Data Redundant Check = 2 Data Redundant Check = 3 Advanced 2D Imager...

  • Page 27: Data Editing

    ROGRAMMING UIDE Data Editing Prefix / Suffix Prefix and Suffix are additional characters that can be sent before and after the scanned data. Prefix Suffix To set up Prefix/Suffix: Prefix Set Up Flow Ex. If we wish to add “3” as prefix for all barcode type, then follow procedure as below, Scanning [prefix] to enter setup.

  • Page 28: Suffix Set Up Flow

    Suffix Set Up Flow Ex. If we wish to add “36” as suffix for all barcode type, then follow procedure as below, Scanning [suffix] to enter setup. Then we select barcode by scanning code ID of all barcode which is [9] [9], then we scan [3] [3] as 3 of ASCII HEX and [3] [6] as 6. Before we save, we scan command to setup terminator.

  • Page 29: Data Format

    ROGRAMMING UIDE Data Format To change the output format, scan the following barcodes. Data followed by <Enter> (Default) No message after data Data followed by <Enter> + new line Data followed by new line Data followed by TAB Advanced 2D Imager...

  • Page 30: Cap Locks

    Cap Locks To change the capital lock preferences, scan the following barcodes. Cap Locks On Cap Locks Off Advanced 2D Imager...

  • Page 31: Symbologies

    ROGRAMMING UIDE Symbologies Introduction This chapter describes symbology features and provides the programming barcodes for selecting these features. The device is shipped with the settings shown in the Symbology Default Table. If the default values suit requirements, programming is not necessary. There are two ways to change a parameter value: ...

  • Page 32: Codabar

    Codabar Codabar Enable/Disable To set Codabar to its default settings, scan Default; to enable or disable Codabar, scan On or Off. Default (Default) Codabar Stop/Start Characters Stop/Start Characters set the leading and trailing ends of the barcode. Don’t Transmit (Default) Transmit Advanced 2D Imager...

  • Page 33: Codabar Check Characters

    ROGRAMMING UIDE Codabar Check Characters Scan a barcode below to set the Codabar check character preferences. No Check Character (Default) Validate But Don’t Transmit Validate And Transmit Codabar Message Length Please see Message Length on setting the message length. Maximum (Default: 60) Minimum (Default: 4)

  • Page 34: Code 39

    Code 39 Code 39 Enable/Disable To set Code 39 to its default settings, scan Default; to enable or disable Code 39, scan On or Off. Default (Default) Code 39 Full ASCII Conversion Code 39 Full ASCII is a variant of Code 39 which pairs characters to encode the full ASCII character set.

  • Page 35: Code 39 Append

    ROGRAMMING UIDE Code 39 Append To set the imager to append Code 39 data before transmitting to the host, scan the appropriate barcode below. (Default) Code 39 Check Characters Scan a barcode below to set the Code 39 check character preferences. No Check Character (Default) Validate But Don’t Transmit...

  • Page 36: Code 39 Start/Stop Characters

    Code 39 Start/Stop Characters Start/Stop Characters set the leading and trailing ends of the barcode. Transmit Don’t Transmit (Default) Code 32 Pharmaceutical To enable/ disable Code 39 Pharmaceutical, scan the appropriate barcode below. (Default) Advanced 2D Imager...

  • Page 37: Code 39 Message Length

    ROGRAMMING UIDE Code 39 Message Length Please see Message Length on setting the message length. Minimum (Default: 0) Maximum (Default: 48) Trioptic To enable/ disable Trioptic code, scan the appropriate barcode below. (Default) Advanced 2D Imager...

  • Page 38: Interleaved 2 Of 5

    Interleaved 2 of 5 Interleaved 2 of 5 Enable/Disable To set Interleaved 2 of 5 to its default settings, scan Default; to enable or disable Interleaved 2 of 5, scan On or Off. Default (Default) Advanced 2D Imager...

  • Page 39: Interleaved 2 Of 5 Check Characters

    ROGRAMMING UIDE Interleaved 2 of 5 Check Characters Scan a barcode below to set the Interleaved 2 of 5 check character preferences. No Check Character (Default) Validate But Don’t Transmit Validate And Transmit Interleaved 2 of 5 Message Length Please see Message Length on setting the message length.

  • Page 40: Nec 25

    NEC 25 NEC 25 Enable/Disable To set NEC 25 to its default settings, scan Default; to enable or disable NEC 25, scan On or Off. Default (Default) Advanced 2D Imager...

  • Page 41: Nec 25 Check Characters

    ROGRAMMING UIDE NEC 25 Check Characters Scan a barcode below to set the NEC 25 check character preferences. No Check Character (Default) Validate But Don’t Transmit Validate And Transmit Advanced 2D Imager...

  • Page 42: Straight 2 Of 5 Industrial

    Straight 2 of 5 Industrial Straight 2 of 5 Industrial Enable/Disable To set Straight 2 of 5 Industrial to its default settings, scan Default; to enable or disable Straight 2 of 5 Industrial, scan On or Off. Default (Default) Straight 2 of 5 Message Length Please see Message Length on setting the message length.

  • Page 43: Matrix 2 Of 5

    ROGRAMMING UIDE Matrix 2 of 5 Matrix 2 of 5 Enable/Disable To set Matrix 2 of 5 to its default settings, scan Default; to enable or disable Matrix 2 of 5, scan On or Off. Default (Default) Matrix 2 of 5 Message Length Please see Message Length on setting the message length.

  • Page 44: Code 11

    Code 11 Code 11 Enable/Disable To set Code 11 to its default settings, scan Default; to enable or disable Code 11, scan On or Off. Default (Default) Code 11 Check Characters Scan a barcode below to set the Code 11 check character preferences. 2 Check Digit (Default) 1 Check Digit...

  • Page 45: Code 11 Message Length

    ROGRAMMING UIDE Code 11 Message Length Please see Message Length on setting the message length. Minimum (Default: 4) Maximum (Default: 80) Advanced 2D Imager...

  • Page 46: Code 128

    Code 128 Code 128 Enable/Disable To set Code 128 to its default settings, scan Default; to enable or disable Code 128, scan On or Off. Default (Default) Code 128 Message Length Please see Message Length on setting the message length. Maximum (Default: 80) Minimum...

  • Page 47: Code 93

    ROGRAMMING UIDE Code 93 Code 93 Enable/Disable To set Code 93 to its default settings, scan Default; to enable or disable Code 93, scan On or Off. Default (Default) Code 93 Message Length Please see Message Length on setting the message length. Maximum (Default: 80) Minimum...

  • Page 48: Msi

    MSI Enable/Disable To set MSI to its default settings, scan Default; to enable or disable MSI, scan On or Off. Default (Default) MSI Check Characters Scan a barcode below to set the MSI check character preferences. Validate Type 10, Transmit Validate Type 10, Don’t Transmit (Default) Advanced 2D Imager...

  • Page 49: Msi Message Length

    ROGRAMMING UIDE MSI Message Length Please see Message Length on setting the message length. Minimum (Default: 4) Maximum (Default: 48) Advanced 2D Imager...

  • Page 50: Telepen

    Telepen Telepen Enable/Disable To set Telepen to its default settings, scan Default; to enable or disable Telepen, scan On or Off. Default (Default) Telepen Output Scan a barcode below to set the Telepen Output preferences. Original Output AIM Output (Default) Advanced 2D Imager...

  • Page 51: Telepen Message Length

    ROGRAMMING UIDE Telepen Message Length Please see Message Length on setting the message length. Minimum (Default: 1) Maximum (Default: 60) Advanced 2D Imager...

  • Page 52: Upc/Ean/Jan

    UPC/EAN/JAN UPC-A Enable/Disable To set UPC-A to its default settings, scan Default; to enable or disable UPC-A, scan On or Off. Default (Default) UPC-A Check Characters Scan a barcode below to set the UPC-A check character preferences. (Default) Advanced 2D Imager...

  • Page 53: Upc-A Number System

    ROGRAMMING UIDE UPC-A Number System Scan a barcode below to set the UPC-A Number System preferences. (Default) UPC-A 2 Digit Scan a barcode below to set the UPC-A 2 Digit preferences. (Default) Advanced 2D Imager...

  • Page 54: Upc-A 5 Digit

    UPC-A 5 Digit Scan a barcode below to set the UPC-A 5 Digit preferences. (Default) UPC-A Addenda Required Scan a barcode below to set the UPC-A Addenda Required preferences. (Default) Advanced 2D Imager...

  • Page 55: Upc-A Addenda Separator

    ROGRAMMING UIDE UPC-A Addenda Separator Scan a barcode below to set the UPC-A Addenda Separator preferences. (Default) UPC-E0 To set UPC-E0 to its default settings, scan Default; to enable or disable UPC-E0, scan On or Off. Default (Default) Advanced 2D Imager...

  • Page 56: Upc-E1

    UPC-E1 Scan a barcode below to set the UPC-E1 preferences. (Default) UPC-E0 Expand Scan a barcode below to set the UPC-E0 Expand preferences. (Default) Advanced 2D Imager...

  • Page 57: Upc-E0 Check Digit

    ROGRAMMING UIDE UPC-E0 Check Digit Scan a barcode below to set the UPC-E0 Check Digit preferences. (Default) UPC-E0 Number System Scan a barcode below to set the UPC-E0 Number System preferences. (Default) Advanced 2D Imager...

  • Page 58: Upc-E0 Addenda 2 Digit

    UPC-E0 Addenda 2 Digit Scan a barcode below to set the UPC-E0 Addenda 2 Digit preferences. (Default) UPC-E0 Addenda 5 Digit Scan a barcode below to set the UPC-E0 Addenda 5 Digit preferences. (Default) Advanced 2D Imager...

  • Page 59: Upc-E0 Addenda Required

    ROGRAMMING UIDE UPC-E0 Addenda Required Scan a barcode below to set the UPC-A Addenda Required preferences. Not Required (Default) Required UPC-E0 Addenda Separator Scan a barcode below to set the UPC-A Addenda Separator preferences. (Default) Advanced 2D Imager...

  • Page 60: Ean/Jan-13

    EAN/JAN-13 To set EAN/JAN-13 to its default settings, scan Default; to enable or disable EAN/JAN-13, scan On or Off. Default (Default) EAN/JAN-13 Check Digit Scan a barcode below to set the EAN/JAN-13 Check Digit preferences. (Default) Advanced 2D Imager...

  • Page 61: Ean/Jan-13 2 Check Digit Addenda

    ROGRAMMING UIDE EAN/JAN-13 2 Check Digit Addenda Scan a barcode below to set the EAN/JAN-13 2 Check Digit Addenda preferences. (Default) EAN/JAN-13 5 Check Digit Addenda Scan a barcode below to set the EAN/JAN-13 5 Check Digit Addenda preferences. (Default) Advanced 2D Imager...

  • Page 62: Ean/Jan-13 Addenda Required

    EAN/JAN-13 Addenda Required Scan a barcode below to set the UPC-A Addenda Required preferences. Not Required (Default) Required EAN/JAN-13 Addenda Separator Scan a barcode below to set the UPC-A Addenda Separator preferences. (Default) Advanced 2D Imager...

  • Page 63: Ibsn Translate

    ROGRAMMING UIDE IBSN Translate Scan a barcode below to set the IBSN Translate preferences. (Default) EAN-8 To set EAN -8 to its default settings, scan Default; to enable or disable EAN-8, scan On or Off. Default (Default) Advanced 2D Imager...

  • Page 64: Ean-8 Check Digit

    EAN-8 Check Digit Scan a barcode below to set the EAN-8 Check Digit preferences. (Default) EAN-8 Check Digit Addenda Scan a barcode below to set the EAN-8 Check Digit Addenda preferences. (Default) Advanced 2D Imager...

  • Page 65: Check Digit Addenda

    ROGRAMMING UIDE EAN-8 2 Check Digit Addenda Scan a barcode below to set the EAN-8 2Check Digit Addenda pref erences. (Def lt) EAN-8 5 Check Digit Addenda can a barcode below to set the EAN-8 5 Check Digit Addenda preferences. (Def lt) Advanced 2D Imager...

  • Page 66: Ean-8 Addenda Required

    EAN-8 Addenda Required Scan a barcode below to set the EAN-8 Addenda Required preferences. Not R ired (Def lt) Required EAN-8 Addenda Separator Scan a barcode below to set the EAN-8 Addenda Separator preferences. (Def lt) Advanced 2D Imager...

  • Page 67: Upc-A/Ean-13 Extend Coupon Code

    ROGRAMMING UIDE UPC-A/EAN-13 Extend Coupon Code Scan a barcode below to set the UPC-A/EAN-13 Extend Coupon Code preferences. (Default) EAN.UCC Emulation Scan a barcode below to set the EAN.UCC Emulation preferences. (Default) EAN.UCC- 128 E m ation RSS. Emulation Advanced 2D Imager...

  • Page 68: Postal Code

    Postal Code Note: For best performance when reading a postal code, please enable only one postal symbology and disable the rest. To enable or disable a postal code, please scan the following barcode first to enter programming mode, then scan the On or Off barcode for your postal code. Postal Code China Post al Code...

  • Page 69: China Postal Code Message Length

    ROGRAMMING UIDE China Postal Code Message Length Please see Message Length on setting the message length. Minimum (Default: 4) Maximum (Default: 80) Han Xin Code To set Han Xi n Code to its default setting , scan Default; to enable or disable Han Xin Code, scan On or Off.

  • Page 70: Han Xin Code Message Length

    Han Xin Code Message Length Please see Message Length on setting the message length. Minimum (Default: 1) Maximum efault: 7873) Korean Postal Code To set Korean Postal Code to its default settings, scan Default; to enable or disable orean Postal Code, scan On or Off. Default (Default) Advanced 2D Imager...

  • Page 71: Korean Postal Code Message Length

    ROGRAMMING UIDE Korean Postal Code Message Length Please see Message Length on setting the message length. Minimum (Default: 4) Maximum (Defau : 48) PostNet Scan a barcode below to enable or di sable PostNet. (Default) Advanced 2D Imager...

  • Page 72: Postnet Check Digit

    PostNet Check Digit Scan a barcode below to set the PostNet Check Digit preferences. Not Transmit (Default) Transmit lanet Code Scan a barcod e below to enable or disable Planet Code. (Default) Advanced 2D Imager...

  • Page 73: Planet Code Check Digit

    ROGRAMMING UIDE Planet Code Check Digit Scan a barcode below to set the Planet Code Check Digit preference Don’t Transmit (Default) Transmit British Post Scan a barcode below to enable or disable British Post code. (Default) Advanced 2D Imager...

  • Page 74: Japanese Post

    Japanese Post Scan a barcode below to enable or disable Japanese Post code. (Default) Canadian Post can a barcode below to enable or disable Canadian Post code. (Def lt) Advanced 2D Imager...

  • Page 75: Kix Post

    ROGRAMMING UIDE Kix Post Scan a barcode below to enable or disable Kix Post code. fault ustralian Post Scan a barcode below to enable or disable Australian Post code. (Default) Advanced 2D Imager...

  • Page 76: Rss (Reduced Space Symbology)

    RSS (Reduced Space Symbology) The variants of RSS are RSS 14, RSS Expanded, and RSS Limited. The limited and expanded versions have stacked variants. S an the appropriate barcode below to enable or disable each variant of RSS. RSS-14 To set RSS-14 to it s def ault settings, scan Default;...

  • Page 77: Rss-Limited Code

    ROGRAMMING UIDE RSS-Limited Code To set RSS-Limited Code to its default settings, scan Default; to enable or disable RSS- Limited, scan On or Off. Default (Default) Advanced 2D Imager...

  • Page 78: Rss-Expanded Code

    RSS-Expanded Code To set RSS-Expanded Code to its default settings, scan Default; to enable or disable R Expanded, scan On or Of Default (Default) RSS-Expanded Code Message Length Please see Message Length on setting the message length. Maximum Minimum Advanced 2D Imager...

  • Page 79: 2D Symbologies

    ROGRAMMING UIDE 2D Symbologies PDF417 To set PDF417 to its default settings, scan efault; to enable or disable PDF417, scan On or Off. Default (Def lt) PDF417 Message Length P lease see Message Length on setting the message length. Maximum (Defau lt: 27 Minimum...

  • Page 80: Micro Pdf417

    Micro PDF417 To set Micro PDF417 to its default settings, scan Default; to enable or disable Micro PDF417, sca n On or Off. Default (Default) Micro PDF417 Message Le ngth P lease see Message Length on setting the message length. Maximum (Default: 366) Minimum...

  • Page 81: Tlc39

    ROGRAMMING UIDE TLC39 Scan a barcode below to enable or disable TLC39. (Default) Advanced 2D Imager...

  • Page 82: Codablock F

    Codablock F To set Codablock F to its default settings, scan Default; to enable or disable Codablock F, scan On or Off. Default (Default) Codablock F Message Length Please see Message Length on setting the me ssage length. Maximum (Default: 2048) Minimum (Default: 1) Advanced 2D Imager...

  • Page 83: Aztec

    ROGRAMMING UIDE Aztec To set Aztec to its default settings, scan Default; to enable or disable Aztec, scan On or Default fault Aztec Message Length Please see Message Length on setting the message length. Maximum (Default: 3832) Minimum (Default: 1) Advanced 2D Imager...

  • Page 84: Maxicode

    Maxicode To set Maxicode to its default settings, scan Default; to enable or disable Maxicode, scan On or Off. Default Maxicode Message Length Please see Message Length on setting the message length. Maximum efault: 150 Minimum (Default: 1) Advanced 2D Imager...

  • Page 85: Data Matrix

    ROGRAMMING UIDE Data Matrix To set Data Matrix to its default settings, scan Default; to enable or disable Data Matrix, scan On or Off. Default (Default) Data Matrix Message Length P lease see Message Length on setting the message length. Maximum efault: 3116 Minimum...

  • Page 86: Qr Code

    QR Code To set QR Code to its default settings, scan Default; to enable or disable QR Code, scan On or Off. Default (Def lt) QR Code Message Length Please see Message Length on setting the message length. Maximum (Default: 7089) Minimum (Default: 1) Advanced 2D Imager...

  • Page 87: Maintenance

    Power On, No No power, (hold the trigger, re-plug RS-232 decode, User can trigger , re-plug USB cable, cable, power on to scan Z-6172 directly scan RS232 power on to scan mode USB mode barcode mode to switch switch barcode commands...

  • Page 88: Standard Default Parameters

    Appendix A Standard Default Parameters Symbology Default Codabar Enable Code 39 Enable Code 39 Full ASCII Disable Code 39 Append Disable Code 39 Check Char No check char Code 39 start/stop char Don’t transmit Code 32 Pharmaceutical Disable Code 39 Message Length 0~48 Interleaved 2 of 5 Enable...
  • Page 89 ROGRAMMING UIDE Code 128 Message Length 0~80 Code 93 Enable Code 93 Message Length 0~80 Disable MSI Message Length 4~48 Validate Type 10, MSI Check Char Don’t Transmit Telepen Disable Telepen Output AIM output Telepen Message Length 1~60 UPC-A Enable UPC-A Che ck char UPC-A Num...
  • Page 90 EAN/JAN-13 2 Check D igit Disable Addenda EAN/JAN-13 5 Check Digit Disable Addenda EAN/JAN-13 Addenda Not requ ired Required EAN/JAN-13 Addenda Enable Separator IBSN Translate Disable EAN-8 Enable EAN-8 Check Digit Enable EAN-8 2 Check Digit Addenda Disable EAN-8 5 Check Digit Addenda Disable EAN-8 Addenda Required Not required EAN-8 Addenda Separator...
  • Page 91 ROGRAMMING UIDE Codablock F Disable Codablock F Message Length 1~2048 Aztec Enable Aztec Message Length 1~3832 Maxicode Enable Maxicode Message Length 1~150 Data Matrix Enable Data Matrix Message Length 1~3116 Enable QR Message Length 1~7089 Han Xin Code Disable Han Xin CodeMessage Length 1~7873 Korean Postal Code Disable Korean Postal Code Message...

  • Page 92: Code Id Table

    Appendix B Code ID Table Code ID in HEX Symbology Code ID Code 128 GS1-128(UCC/EAN-128) AIM-128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Matrix 2 of 5 Industrial 2 of 5 Standard 2 of 5 Code 39 Codabar Code 93...

  • Page 93: Sample Barcodes

    ROGRAMMING UIDE Appendix C Sample Barcodes Canada Post 4-State 01,K1A0B1,7010, Japan Post 4-State 80342716666 US POSTNET 8034271888 Australian Post 8034271999 Dutch P ost - Ro yal TPG Post KIX 4-State 1231FZ13XHS USPS PLANET Barcode 4012345235636 British Royal Mail 4-State BPO 1234567895 Advanced 2D Imager...
  • Page 94 Infomail Mail 4-State Sweden Post 4-State China Post Advanced 2D Imager...
  • Page 95 ROGRAMMING UIDE USPS 4-state (Intelligent Mail) Barcode ID..82 Service Type ID..152 Mailer ID..568794 Serial Number..748970563 ZIP Code...12789600178 Barcode ID..00 Service Type ID..311 Mailer ID..000479 Serial Number..612518080 ZIP Code...20724170703 Barcode ID..20 Service Type ID..301 Mailer ID..901212001 Serial Number..311323 ZIP Code...20724170703 Advanced 2D Imager...

  • Page 96: Numeric Barcodes

    Appendix D Numeric Barcodes For parameters requiring specific numeric values, scan the appropriately numbered barcode(s). Advanced 2D Imager...
  • Page 97 ROGRAMMING UIDE Advanced 2D Imager...
  • Page 98 Advanced 2D Imager...

  • Page 99: Save

    ROGRAMMING UIDE Save To save the setting, scan the barcode below. Save Discard o correct an error or change a selection, scan the barcode below. Discard Advanced 2D Imager...

  • Page 100: Full Ascii Table

    Appendix E Full ASCII Table ASCII Hexacode ASCII Hexacode Full ASCII ---SI Full ASCII ---NUL Function key-----“Shift” Full ASCII ---SOH Full ASCII ---DLE Function key-----“Ins” Function key-----“5(num)” Full ASCII ---STX Full ASCII ---DC1 Function key-----“Del” Function key-----“F1” Full ASCII ---ETX Full ASCII ---DC2 unction key-----“Home”...
  • Page 101 ROGRAMMING UIDE Full ASC II ---RS Full ASCII ---- Functio n key-----“CTL(L)” Full ASCII ---US Full A SCII ---. Function key-----“ALT(L)” Full ASCII ---SP Full ASCII ---/ Full ASCII ---! Full ASCII ---0 Full ASCII ---“ Full A SCII ---1 Full ASCII ---# Full ASCII ---2 Full ASCII ---$...
  • Page 102 Full ASCII ---@ Full ASCII ---O Full ASCII ---A Full ASCII ---P Full ASCII ---B Full ASCII ---Q Full ASCII ---C Full ASCII ---R Full ASCII ---D Full ASCII ---S Full ASCII ---E Full ASCII ---T Full ASCII ---F Full ASCII ---U Full ASCII ---G Full ASCII ---V Full ASCII ---H...
  • Page 103 ROGRAMMING UIDE Full ASCII ---b Full ASCII ---q Full ASCII ---c Full ASCII ---r Full ASCII ---d Full ASCII ---s Full ASCII ---e Full ASCII ---t Full ASCII ---f Full ASCII ---u Full ASCII ---g Full ASCII ---v Full ASCII ---h Full ASCII ---w Full ASCII ---x Full ASCII ---|...
