Nemschoff Palisade 2.0
Privacy Screen Installation Instructions
How to assemble your privacy screen.
Tools Required
Power Drive
Utility Knife
867M-** Multiple and Tandem Seating Unit
Step 1
1.1 Remove back upholstered panel on 867M-** by removing 2 fasteners,
bottom, back side of unit. Slide panel down and set aside.
Washer
Fastener
Nemschoff for Palisade 2.0

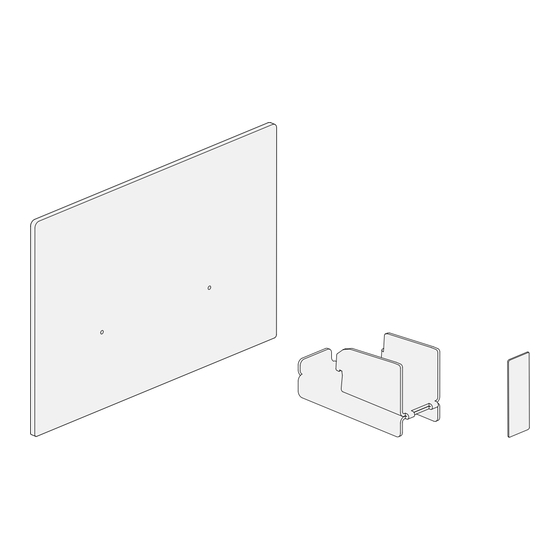

Parts Included
Rear Upholstered Panel
Privacy Screen
Top Mounting Bracket
Welment Screen Bracket
Upper Screen Bracket
Washer
Step 2
2.1 Add 2 top brackets, using hardware kit screws into existing top link
holes.
1
1BMFBF rev A
Lower Screen Bracket
Screen Connector
(867H Only)
Bottom Screen Bracket
Machine Screw
Flat Head Cap Screw
Top Mounting
Bracket
Machine
Screw
Assembly Instructions
Advertisement
Table of Contents
Related Manuals for Nemschoff Palisade 2.0
Summary of Contents for Nemschoff Palisade 2.0
- Page 1 1.1 Remove back upholstered panel on 867M-** by removing 2 fasteners, bottom, back side of unit. Slide panel down and set aside. Washer Fastener Top Mounting Bracket Machine Screw Rear Upholstered Panel Nemschoff for Palisade 2.0 1BMFBF rev A Assembly Instructions...
- Page 2 6.1 Insert flat head cap screw, 2 places, securing screen to top brackets, position. Line up holes in privacy screen with top bracket holes. 2 places. Privacy Screen Flat Head Cap screw Nemschoff for Palisade 2.0 1BMFBF rev A Assembly Instructions...
- Page 3 Take care not to extend fabric cuts more than Flat Head ¼ inch from hole center. Repeat same for other hole mounting locations. Cap screw Utility Knife 9-5/8” 1/2” Approx. 9-5/8” up from bottom Nemschoff for Palisade 2.0 1BMFBF rev A Assembly Instructions...
- Page 4 Line up holes in privacy screen with top bracket holes. 4 places. Slide in screen connector, half in each screen approx. 4” in from top and bottom edge. Flat Head Cap screw Privacy Screen Nemschoff for Palisade 2.0 1BMFBF rev A Assembly Instructions...
