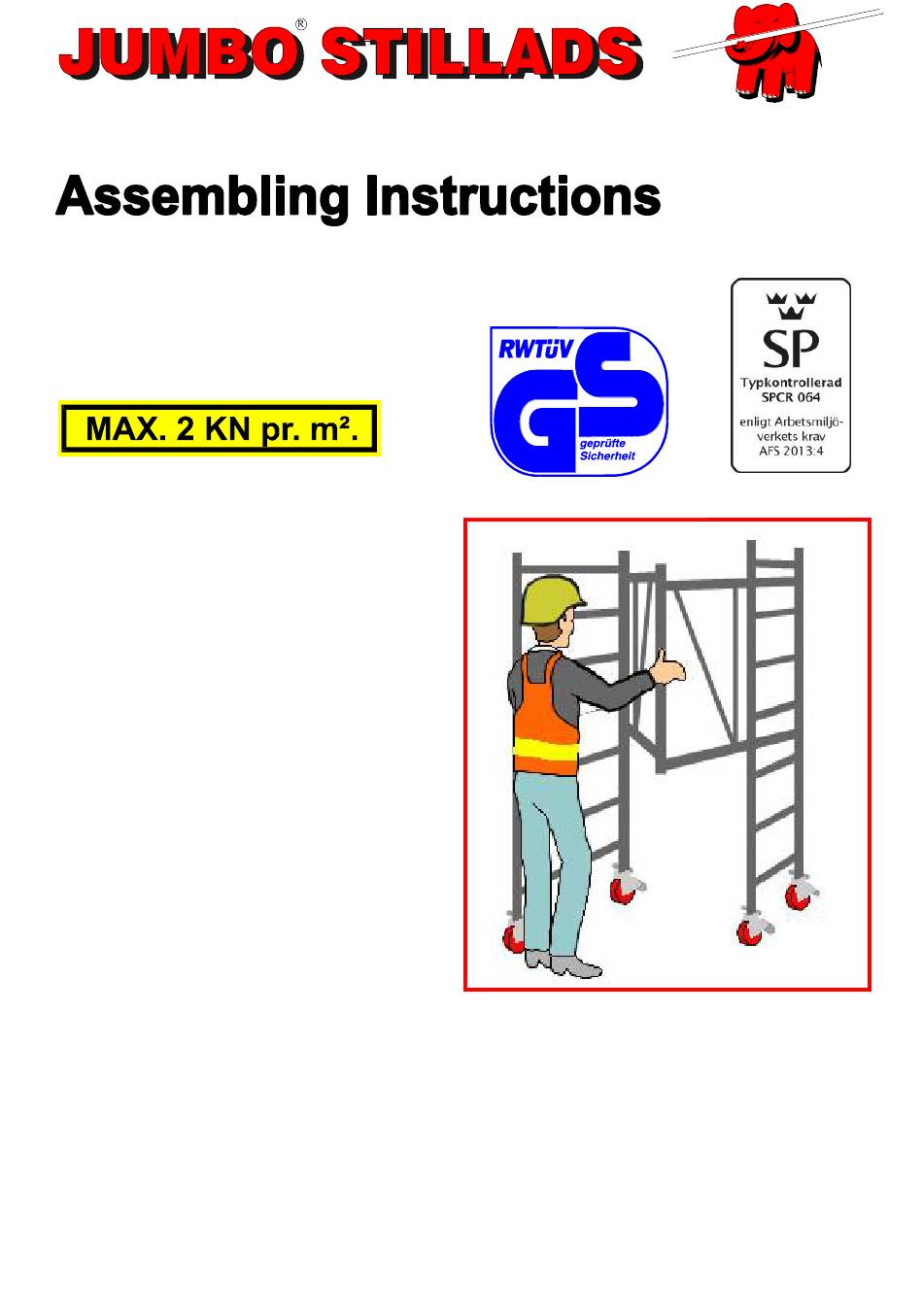

Instructions and Maintenance
JUMBO Folding Scaffold
Revised January 2020
1. Conditions
2. Guarantee
3. Use and Function
4. Components
5. General Rules and
Instructions for use
6. Assembly
6.1. Unfolding the Scaffold
6.2. Railway
6.3. Fitting of large Castors
6.4. Disassembly
7. Maintenance
8. Ballast
9. Spare parts
10. Warnings and Misuse
11. Distributor
Thank you for choosing a JUMBO product. We are confident that the scaffold will be of good use
to you in future, and we look forward to advising you on other scaffold solutions.
Before using the folding scaffold, it is very important that these instructions be read carefully.
It is our aim to secure the highest possible safety in assembling and using the scaffold.
Cert. No. 44 326 13156305
Cert. No. 353701
Advertisement
Related Manuals for Jumbo 128skl
Summary of Contents for Jumbo 128skl
- Page 1 10. Warnings and Misuse 11. Distributor Thank you for choosing a JUMBO product. We are confident that the scaffold will be of good use to you in future, and we look forward to advising you on other scaffold solutions. Before using the folding scaffold, it is very important that these instructions be read carefully.
-
Page 2: Use And Function
1. Conditions/Disclaimer JUMBO Stillads A/S does not assume or undertake any responsibility for the content of this booklet or for the application of the booklet’s content in any way not described in this booklet. JUMBO Stillads A/S cannot be held responsible for errors in the assembly instructions or for direct or indirect losses caused by delivery, presentation or the use of the contents of this booklet. - Page 3 The JUMBO Folding Scaffold can easily be extended in height when needed. Mounting extensions from our tower scaffolds can extend the height. Before you add any extension: Ask for and carefully follow the instruction for JUMBO Tower Scaffolds. Please send for our special brochure or contact one of our distributors.
- Page 4 Connecting pieces must be used between the folding scaffold and extensions. The JUMBO folding scaffold must always be erected on a secure and firm base that is able to sustain the weight of the scaffold and the load applied during work. When moving the scaffold push in the longitudinal direction only –...
- Page 5 5.15. Two folding scaffolds shall only be joined using a platform as a bridge if in full agreement with JUMBO Stillads A/S guidelines and by following the exact guidelines given for this operation. 5.16.
- Page 6 Damaged castors must be replaced. 6.4. Disassembly The JUMBO folding scaffold is to be disassembled in reverse order of the assembling. Do not throw any scaffold parts onto the ground. Pressing the inner pedal releases the castors.During transport, avoid excess jolts that could cause deformation of the pipe profile...
-
Page 7: Maintenance
7. Maintenance The JUMBO folding scaffold needs no maintenance apart from cleaning. Please use no hammer or the like to free the scaffold from mortar etc. Hinges, hinge link locks, platform locks and castors must not be greased or oiled! - Page 8 JUMBO Stillads A/S. Carelessness and failure to observe and follow the safety instructions could result in serious injury or death. Production and Info: JUMBO Stillads A/S, Stålvej 7 - 23, DK 6000 Kolding, DENMARK, tlf. +45 7550 5075. 11. Distributor:...
