Window Covering Keypad
Operating Instructions
Please Leave for Occupant
Description
The WCK-2B-CC and WCK-4B-CC window covering
keypads are low-voltage contact closure devices that
interface with various shade controllers through their A/V
terminals. The WCK-2B-CC and WCK-4B-CC keypads
offer Raise and Lower functions of shades that are
controlled by the corresponding shade controllers. These
keypads are low-voltage devices that are designed to fit
into a standard wallbox. The keypads are gangable with
Lutron
Claro
or Nova T
®
®
low-voltage and line voltage devices is required. Keypads
must be connected to shade controller using Class 2/
PELV wiring methods per the National Electrical Code.
Check with your local inspector for the code requirements
and wiring practices in your area. Lutron offers precision
product color matching.
Important Notes
1. Install in accordance with all applicable regulations.
2. Do not connect high voltage power to device.
Improper wiring can result in personal injury or damage
to the device or to other equipment.
Cleaning Instructions
To clean keypad wipe with a clean damp cloth. DO NOT
use any chemical cleaning solutions.
Installation
1. Turn OFF power feeding shade controller.
2. Run the control wire (3 conductor, 22-24 AWG) from
the shade controller to the wallbox for the keypad. See
Figure A.
3. Strip the insulation 1/2" from the wires.
4. Using the supplied wire connectors:
For a WCK-2B-CC or the lower section of a
WCK-4B-CC only:
• Connect the YELLOW wire to the wire going to the
Common terminal on the shade controller.
• Connect the GRAY wire to the wire going to the
Down terminal on the shade controller.
• Connect the VIOLET wire to the wire going to the Up
terminal on the shade controller.
For a WCK-4B-CC upper section only:
• Connect the YELLOW/WHITE wire to the wire going
to the Common terminal on the shade controller.
• Connect the GRAY/WHITE wire to the wire going to
the Down terminal on the shade controller.
• Connect the VIOLET/WHITE wire to the wire going to
the Up terminal on the shade controller.
5. Using two screws, securely mount the keypad to the
wallbox. See Figure C.
6. Install wallplate.
7. Restore power feeding the shade controller(s).
devices. Proper separation of
®
WCK-2B-CC
WCK-4B-CC
Maximum Ratings: 30VDC, 200mA

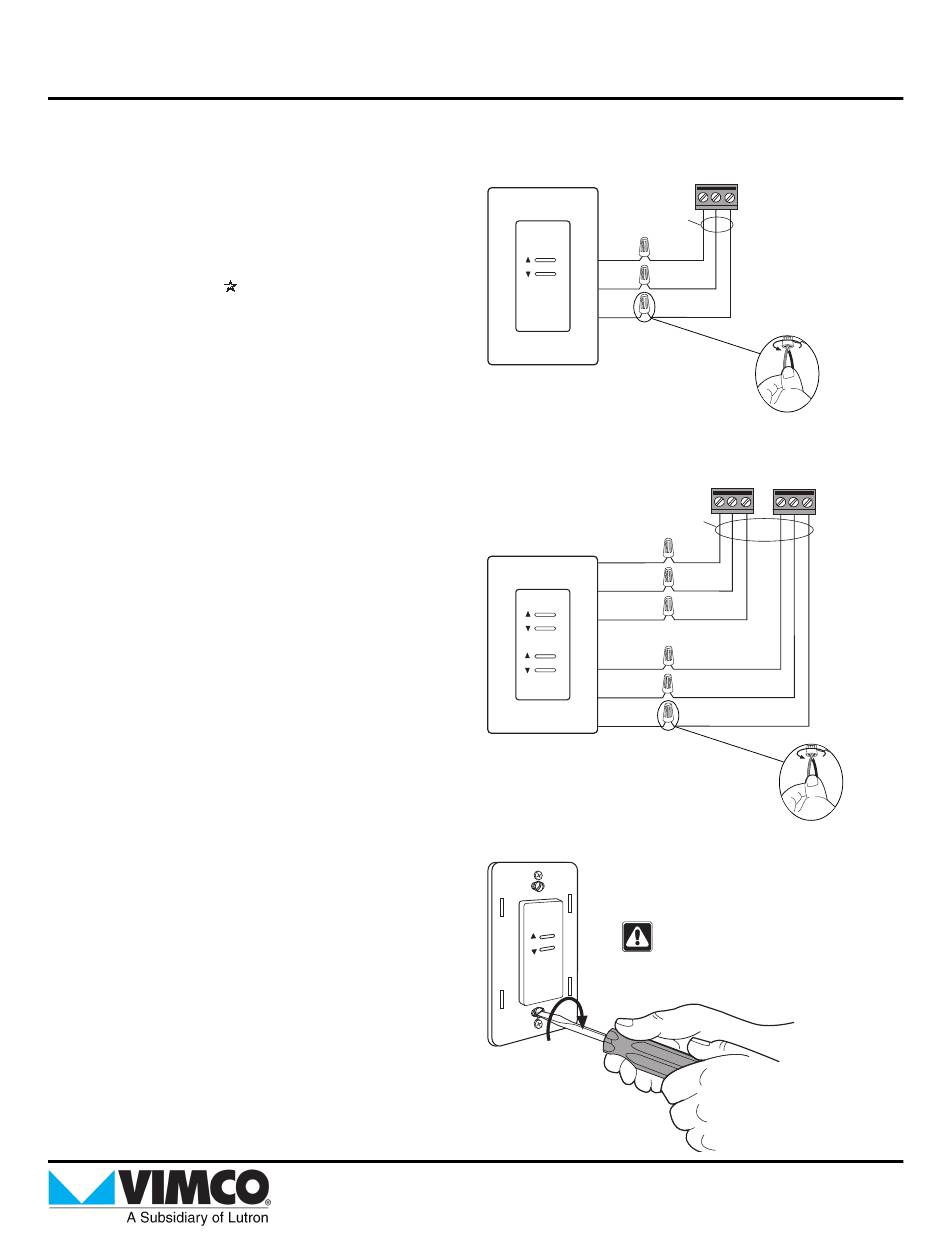

Figure A - WCK-2B-CC Keypad wiring
22-24 AWG wire
YELLOW
COMMON
GRAY
DOWN
VIOLET
UP
Figure B - WCK-4B-CC Keypad wiring
22-24 AWG wire
YELLOW/WHITE
GRAY/WHITE
VIOLET/WHITE
YELLOW
GRAY
VIOLET
Figure C - Keypad mounting
Caution - Do not over
tighten screws.
SHADE
CONTROLLER
G
D
U
N
W
P
D
N
Twist wire
connector tight.
Be sure no bare
wire is exposed.
SHADE
SHADE
CONTROLLER
CONTROLLER
G
D
U
G
D
U
N
W
P
N
W
P
D
N
D
N
COMMON
DOWN
UP
COMMON
DOWN
UP
Twist wire
connector tight.
Be sure no bare
wire is exposed.
