Summary of Contents for Cypress CVX-OPTW

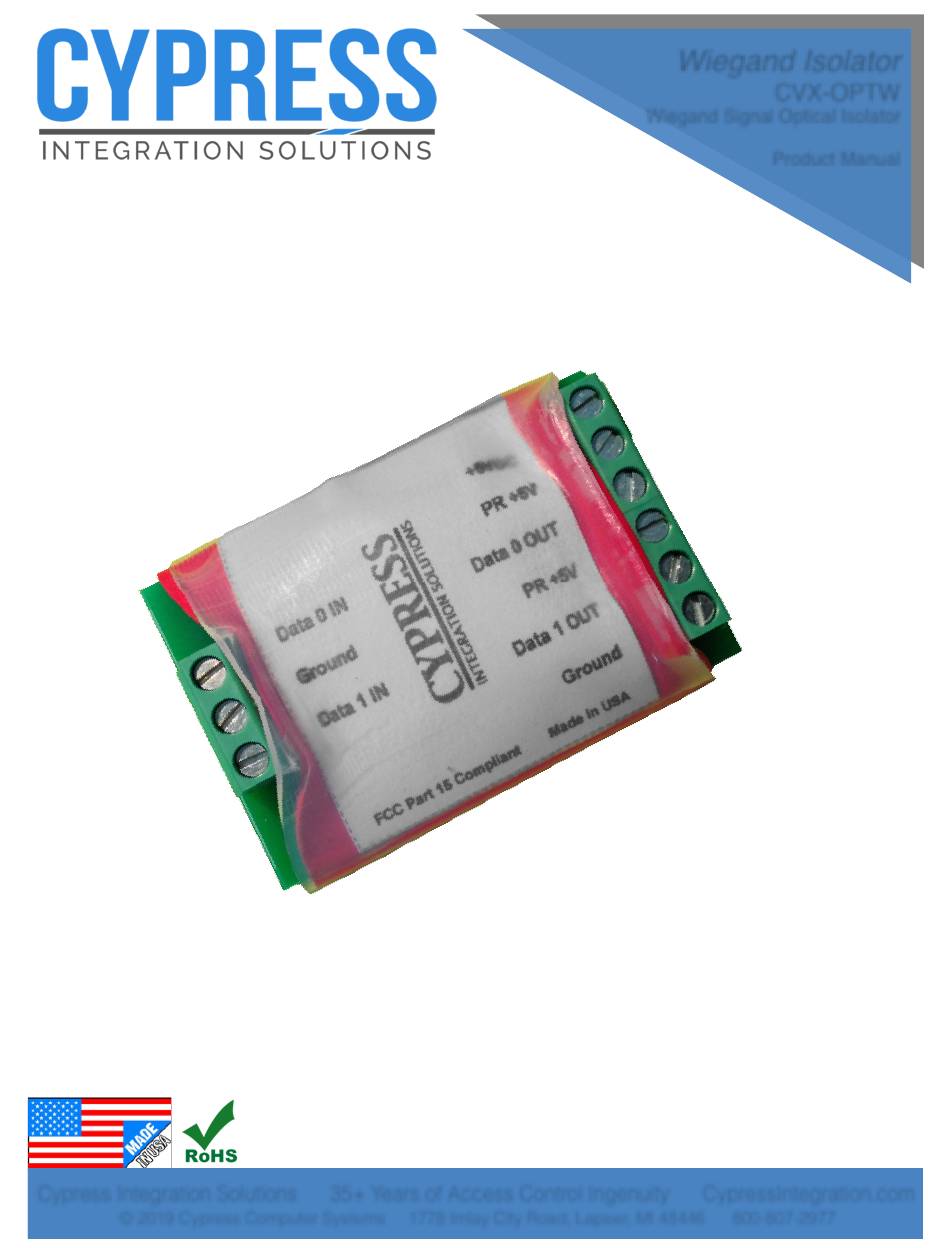

- Page 1 Wiegand Isolator CVX-OPTW Wiegand Signal Optical Isolator Product Manual CVX-OPTW_MAN_191216 Cypress Integration Solutions 35+ Years of Access Control Ingenuity CypressIntegration.com © 2019 Cypress Computer Systems 1778 Imlay City Road, Lapeer, MI 48446 800-807-2977...
-
Page 2: Table Of Contents
One CVX-OPTW Quick Start Guide is included in the box. Included in the packaging is the CVX- OPTW and the Cypress Warranty. Specifications... -
Page 3: Physical Dimensions & Pin Designations
4, 5, and 6; find the wiring diagram that matches your application and set up a bench test accordingly. In many applications, the access control equipment is already installed and a bench test is not practical. In these applications, install the CVX-OPTW with the existing access control equipment and test the system thoroughly. -
Page 4: Two Readers To One Panel Wiring Diagram
The wiring diagram below shows how to connect two Wiegand readers to one access control panel Wiegand port, using the CVX-OPTW to electrically isolate Reader 1 from Reader 2 and the access control panel while passing the Wiegand signals from both readers to the access control panel. -
Page 5: One Reader To Two Panels Wiring Diagram
The wiring diagram below shows how to connect one Wiegand reader to two access control panels, using the CVX-OPTW to electrically isolate the Wiegand reader and Access Control Panel 1 from Access Control Panel 2 while passing the Wiegand signals to both access control panels. -
Page 6: One Reader To One Panel Wiring Diagram
CVX-OPTW - One Reader to One Panel Wiring Diagram The wiring diagram below shows how to connect one reader to one access control panel, using the CVX- OPTW to electrically isolate the reader from the access control panel. 12 VDC... -
Page 7: When To Use The Output Pullup Resistors
• If the voltage levels of the Wiegand device(s) are below 4.4VDC while it is not connected to other devices, they the problem lies with that device and not the CVX-OPTW. This may be able to be recovered using external pullup resistors. Connect a 1K to 2K through-hole resistor to the low data line and a 5VDC output.
