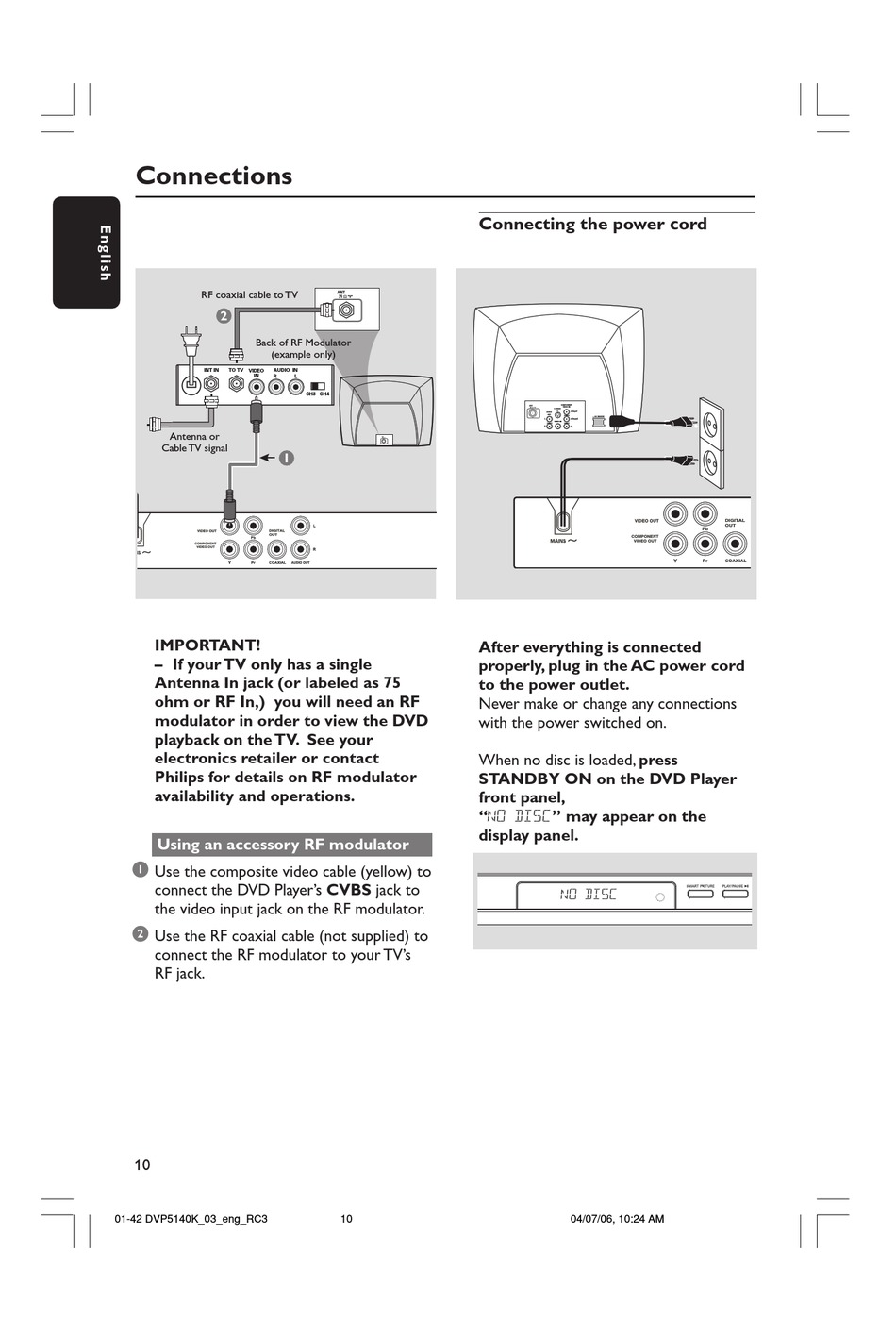

Connections
RF coaxial cable to TV
2
Back of RF Modulator
(example only)
INT IN
TO TV
AUDIO IN
VIDEO
IN
R
Antenna or
Cable TV signal
1
IMPORTANT!
– If your TV only has a single
Antenna In jack (or labeled as 75
ohm or RF In,) you will need an RF
modulator in order to view the DVD
playback on the TV. See your
electronics retailer or contact
Philips for details on RF modulator
availability and operations.

Using an accessory RF modulator

1
Use the composite video cable (yellow) to
connect the DVD Player's CVBS jack to
the video input jack on the RF modulator.
2
Use the RF coaxial cable (not supplied) to
connect the RF modulator to your TV's
RF jack.
10
01-42 DVP5140K_03_eng_RC3
L
CH3 CH4
10

Connecting the power cord

COMPONENT
VIDEO IN
S-VIDEO
IN
V (Pr/Cr)
AUDIO
OUT
~ AC MAINS
U (Pb/Cb)
VIDEO IN
Y
After everything is connected
properly, plug in the AC power cord
to the power outlet.
Never make or change any connections
with the power switched on.
When no disc is loaded, press
STANDBY ON on the DVD Player
front panel,
"NO DISC" may appear on the
display panel.
NO DISC
04/07/06, 10:24 AM
