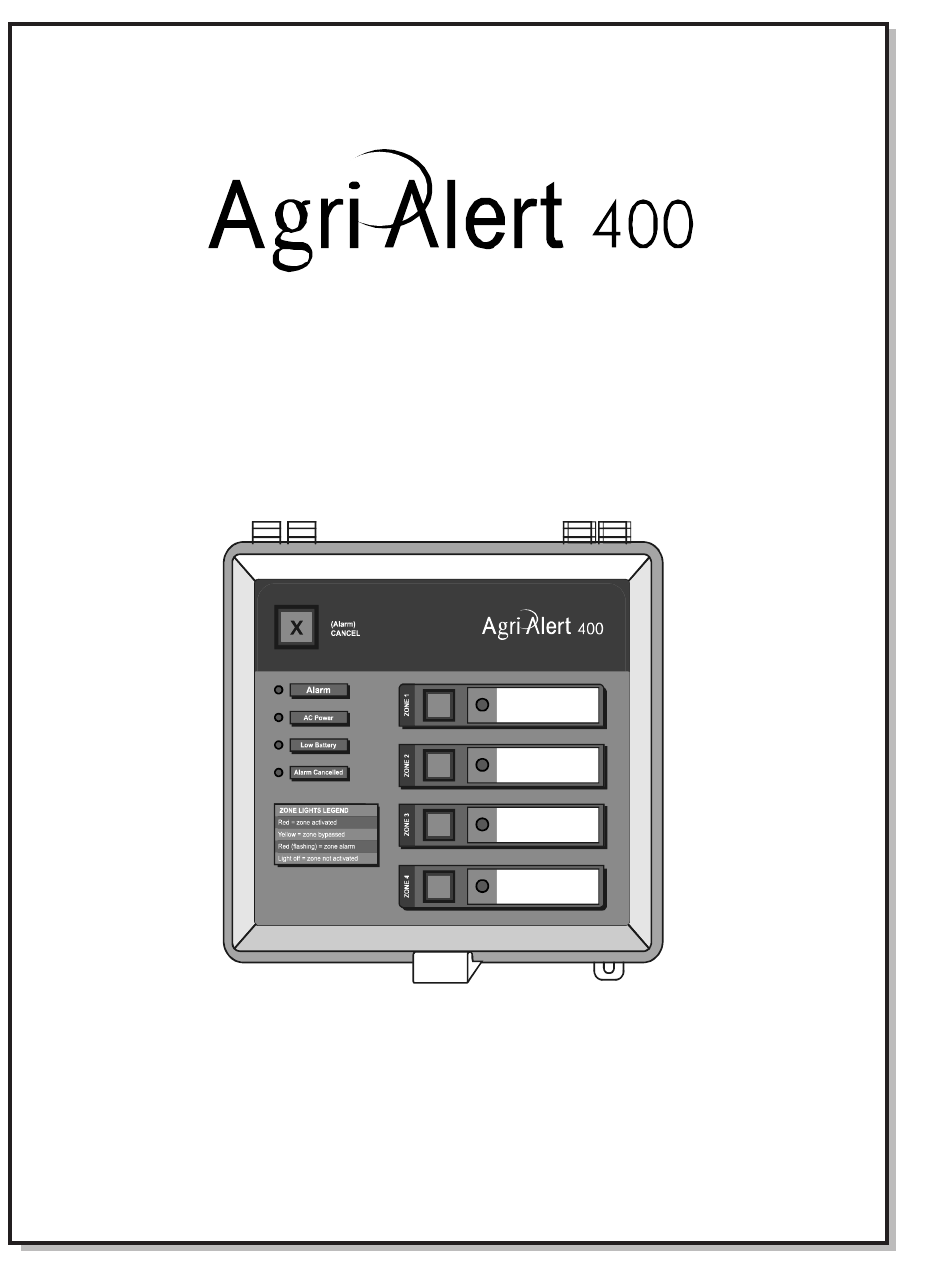

  • Page 1 Alarm System User’s Manual...
  • Page 2 Manufacturer: Viatron Electronics 5200, Armand-Frappier St-Hubert (Quebec) Canada J3Z 1G5 WARNINGS The warranty can be void if this product is used in a manner not specified by the manufacturer. Every effort has been made to ensure that this manual is complete, accurate and up-to-date. The information contained in it is however subject to change without notice due to further developments.

  • Page 3: Table Of Contents

    Table of Contents INSTALLATION ............4 Precautions ................. 4 Installation Procedure ..............4 Mounting the Equipment ..............5 Connecting the Equipment .............. 6 1.4.1 Sensors ................... 6 1.4.2 Supply Inputs ................6 1.4.2.1 AC Power Connection ............6 1.4.2.2 Backup Battery Connection ..........6 1.4.3 Connecting the Earth Ground ............

  • Page 4: Installation

    INSTALLATION Precautions Read the following instructions com- For Customer Use pletely before connecting or operat- Enter below the serial number located on the ing the unit. Failure to comply with side of the controller and retain this informa- the instructions in this booklet may tion for future reference.

  • Page 5: Mounting The Equipment

    Mounting the Equipment The AA-400 alarm system and the battery box Mount the battery enclosure 4 1/2” (115 mm) should be mounted on a wall as shown in the from the AA-400 enclosure. Use the plastic figure below. Pull the latch located at the tubing provided to run the wires from the bottom of the boxes to open the enclosures.

  • Page 6: Connecting The Equipment

    Connecting the Equipment 1.4.2 Supply Inputs When connecting the equipment to the termi- 1.4.2.1 AC Power Connection nals provided on the main board and the exten- The terminals marked 16 VAC on the main sion cards, strip the wires as little as possible board are used for connecting the transformer.

  • Page 7: Connecting The Earth Ground

    1.4.3 Connecting the Earth Ground The earth ground terminal of the AA-400 must It is extremely important that the be connected to the earth ground as follows. earth ground terminal be con- nected to a proper ground to pro- Use a rod at least 5/8 in (16 mm) in diameter tect the electronic components at least 10 ft (3 m) long.

  • Page 8: User-Interface

    USER-INTERFACE Faceplate Cancel button Cancel Button When an alarm is active, press CANCEL to disable the siren for 15 minutes. Then, take proper actions to correct the alarm situation. Bypass/Activate Buttons To stop monitoring a zone, press the bypass button until the zone light turns off ;...

  • Page 9: Internal Switches

    Internal Switches Internal switches are used to configure your AA-400 controller. These switches are lo- cated on the main board of the AA-400, inside the enclosure. Refer to the table below to set internal switches 1-12 to the appropriate position (please refer to the "Configuring the zones"...

  • Page 10: Configuring The Zones

    CONFIGURING THE ZONES Setting the Recognition Time The recognition time is the time an alarm input A zone is an input configured to respond to the must be active before it constitutes a valid type of sensor connected to it. Sensors are alarm condition.

  • Page 11: Controller's Operation

    CONTROLLER'S OPERATION Activate/Bypass a Zone The AA-400 can activate or bypass individual The AA-400 is a monitoring device used to zones. When a zone is bypassed, the pilot light detect alarm conditions. It sets off an alarm associated with it turns yellow and no alarm when the normally open (NO) contact of a detection is performed on the zone input;...

  • Page 12: Appendix

    APPENDIX Appendix A: Fuse Types FUSE NUMBER FUSE TYPE FONCTION 5A fast blow, 5 x 20 mm AC Power Connection 1A fast blow 5 x 20 mm 12 VDC Output 2A slow blow, 5 x 20 mm Siren Output Appendix B: Maximum wire lengths Input Wire Type Max.

  • Page 13: Technical Specifications

    TECHNICAL SPECIFICATIONS Type: ......AA-400 Supply: Transformer ..... 16.5 VAC, 40 VA, fuse F2-5A fast blow Battery ......Rechargeable, sealed, lead-acid, 12V / 7.5 AH Outputs: Siren ......12VDC, 1.5A max. Fuse F5-2A slow blow 12VDC......750mA DC max. Fuse F4-1A fast blow Operating temperature ..

  • Page 14: Wiring Diagram

    WIRING DIAGRAM ZONE I NPUTS SI REN 12VDC 16VAC BATT EARTH GND Z1 COM Z3 COM Battery Box 7,5 AH Alarm Supply max 1,5 A Optional Wireless Alarm Receiver 10 ft ( (WM3000 Rx) metal rod max 750mA 12VDC 16Vac, 40VA Transformer AA-400 rev.02...
  • Page 15 AA-400 rev.02...
  • Page 16 M 890-00458 rev. 02 REV. 02...
