About this manual
■ Description of technical terms
The terms in this manual are defined as follows:
Servodrive is used to drive and control servo motor.
Servo System means a servo control system that includes the combination of a servodrive, servo motor with a host
computer and peripheral devices.
Parameters include monitoring parameter and setting parameters. Monitoring parameters can only be checked,
but not be modified, and setting parameters can be checked and modified, which includes function parameters and
data parameters.
■ Common symbol
The following symbols are used for convenience.
1. Instruction
P: position mode
S: speed mode
T: torque mode
2. Usage of backslash (/)
Backslash is used in the wiring diagram. It describes the default logic of I/O interface.
For input signal (DI terminal), balckslash means, when input circuit is ON status, the input signal is valid, i.e. the
default logic is positive logic. Without blackslash means, when input side is OFF status, the input signal is valid,
i.e. the default logic is negative logic.
For output signal (DO terminal), backslash means output side circuit is common-opened, and when the signal is
output, the output side circuit is closed. Without backslash means output side circuit is common-closed, and when
the signal is output, the output side circuit is opened.
3. Others
NC: no connection
N/A: no unit
Pt:position pulse mode
Pr:internal register position mode
Sr:internal register speed mode
Sz:analog speed mode
Tr:internal register torque mode
Tz:analog torque mode
ALL: all modes

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD20-G Series and is the answer not in the manual?

Questions and answers

Imal
March 17, 2025

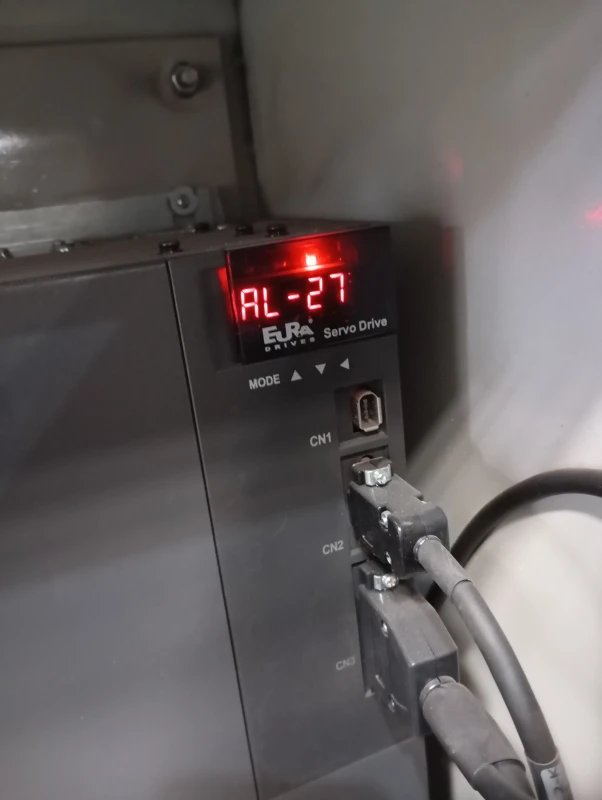

Al 27 display the driver

User image 67d7ea7ca9973
2 comments:
Gourav
April 4, 2025

gouravpandey1027@gmail.com

User image 67f00c25a404c
Mr. Anderson
May 14, 2025

The driver for the EURA SD20-G Series AL-27 display is an overtravel condition.

This answer is automatically generated

Murali
January 28, 2025

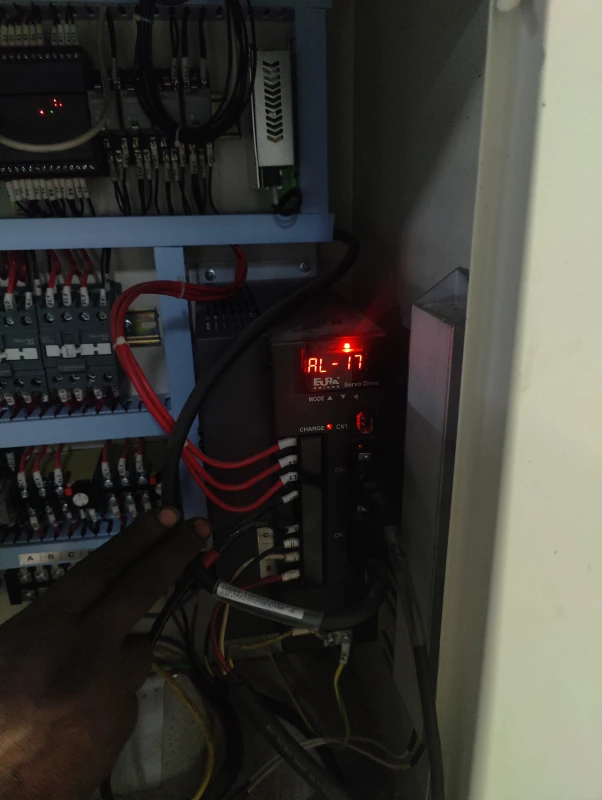

Al17 alam showing on eura servo drive

User image 6798f17f1e4b7
1 comments:
Mr. Anderson
February 10, 2025

The AL-17 alarm on the EURA SD20-G Series servo drive indicates a U/V/W motor cable fault. The recommended actions are:
1. Check whether the U/V/W wiring is correct.
2. If the wiring is correct, study the motor angle by referring to chapter 7.2.

This answer is automatically generated

Ravi
August 2, 2025

AL30 Error Drive

Manish
July 5, 2025

How can I resolve Al-22 alarm

Muahmmad aleem
June 22, 2025

Please sir send me Eura SD20 servo motor Incoder setting method Please help

Muahmmad aleem
June 22, 2025

Sir We Need Incoder adjustment method I want new incoder Installed in the servo motor Eura SD20 Please help me I don't no setting of incoder method Incoder Don't match signal servo motor

Gourav
April 4, 2025

Al-16 how to reset drive

Gautam
April 4, 2025

How to reset drive my drive Perma showing al-16 any parameter for reset drive

3 comments:
Mr. Anderson
April 4, 2025

To reset the EURA SD20-G Series drive when it shows AL-16, check and reconnect the reset input terminal if it is disconnected or damaged. Then, clear the alarm.

This answer is automatically generated

Gourav
April 4, 2025

@Mr. Anderson how to clear this alarm

Gourav
April 4, 2025

@ Mr. Anderson alarm couldnot reset

Summary of Contents for EURA SD20-G Series

  • Page 1 About this manual ■ Description of technical terms The terms in this manual are defined as follows: Servodrive is used to drive and control servo motor. Servo System means a servo control system that includes the combination of a servodrive, servo motor with a host computer and peripheral devices.
  • Page 2: Table Of Contents

    SD20-G Series I NOTES FOR SAFE OPERATION ....................8 II MODEL SELECTION ......................... 11 2.1 S ....................11 ERVO DRIVE INTRODUCTION 2.1.1 S ..................... 11 ERVO RIVE AMEPLATE 2.1.2 C ................. 12 ONNECTION TO ERIPHERAL EVICES 2.1.3 S ....................13 ERVO DRIVE SPECIFICATION 2.1.4 C...
  • Page 3 SD20-G Series 4.2.3 I ............58 NCREMENTAL ENCODER CONNECTOR TERMINAL LAYOUT 4.3 I/O ......................... 59 SIGNAL WIRING 4.3.1 P ............... 63 OSITION COMMAND INPUT SIGNAL AND FUNCTION 4.3.2 A ............... 68 NALOG COMMAND INPUT SIGNAL AND FUNCTIONS 4.3.3 A ................68 NALOG OUTPUT SIGNAL AND FUNCTIONS 4.3.4 D...
  • Page 4 SD20-G Series 6.1.7 S ......................110 ETTING THE BRAKING 6.2 S ........................... 114 PEED MODE 6.2.1 P ......................114 ARAMETERS SETTING 6.2.2 S .......................... 122 OFT START 6.2.3 S ..................123 CURVE SMOOTHNESS FUNCTION 6.2.4 Z ..................... 124 ERO CLAMP FUNCTION 6.2.5 S...
  • Page 5 SD20-G Series 6.5.7 T ........198 ORQUE ODE AND NTERNAL EGISTER OSITION 6.5.8 P ........199 OSITION ULSE AND NTERNAL EGISTER OSITION 6.5.9 I ............200 NTERNAL PEED AND NALOG PEED 6.5.10 S ..................200 PEED AND ORQUE 6.5.11 A ........
  • Page 6 SD20-G Series 6.8.6.1 MODBUS A ......................252 DDRESS 6.8.6.2 DEBUG PLC ................252 FUNCTION OF BUILT VII. ADJUSTMENTS ........................253 7.1 S ..........................253 UMMARY 7.2 I ......................254 NERTIA DENTIFICATION 7.2.1 O ..................254 FFLINE NERTIA DENTIFICATION 7.2.2 O ..................
  • Page 7 SD20-G Series 10.1 C ........................340 OMMUNICATION 10.1.1 MODBUS G ......................340 ENERAL 10.1.2 MODBUS P ......................340 ROTOCOL 10.1.3 P ............... 344 ARAMETER RELATED TO COMMUNICATION XI APPENDIX ..........................346 11.1 E ....................346 NCODER CABLE SELECTION 11.1.1 A ....................
  • Page 8: I Notes For Safe Operation

    SD20-G Series I Notes for safe operation Read this manual thoroughly before checking products on delivery, storage and transportation, installation, wiring, operation and inspection, and disposal of the servo drives. WARNING · Do not touch terminals for five minutes after voltage resistance test.
  • Page 9 SD20-G Series Storage and Transportation CAUTION · Do not store or install the product in the following places: Locations subject to direct sunlight. Locations subject to temperatures outside the range specified in the storage or installation temperature conditions. Locations subject to humidity outside the range specified in the storage or installation temperature conditions.
  • Page 10 SD20-G Series Wiring CAUTION · Do not connect a three-phase power supply to the U, V, or W output terminals. · Connect U, V and W of servo drive directly to U, V, and W of servo motor, avoid using contactor in between.
  • Page 11: Model Selection

    SD20-G Series II Model selection 2.1 Servo drive introduction 2.1.1 Servo Drive Nameplate - G 102 T3 M2 SD20 Product series Braking Energy consumption braking Product usage B1/ default (built-in braking resistor) Fieldbus type Dynamic braking General Energy consumption braking...
  • Page 12: Connection To Peripheral Devices

    SD20-G Series EURA DRIVES ELECTRIC CO., LTD Model Name MODEL SD20-G102T2M2 OPTION F0D20B3 Capacity INPUT 50/60Hz 220V Specification 0~220V 4.5A Output OUTPUT Specification MATCHED SMSA - 102F33ED 0~400Hz MOTOR BAR CODE Barcode SW NO. 1.04 BS NO. 2.001 Made in China Fig 2.1.2 Servo Drive nameplate...
  • Page 13: Servo Drive Specification

    SD20-G Series 2.1.3 Servo drive specification 1) Electrical specification a)220V servo drive Name Servo drive SD20-G Continuous output current Arms Max output current 12.6 16.8 22.4 33.6 47.6 Arms Power of 1-phase/3-phase AC 220V -15~+10% 50/60Hz main circuit Power of 1-phase/3-phase AC 220V -15~+10%...
  • Page 14 SD20-G Series Pt Position pulse mode Pr Internal register position mode _ Control mode Sz Analog speed mode Sr Internal register speed mode Tz Analog torque mode Tr Internal register torque mode Regenerative braking Built-in or External (External braking should be selected and purchased)
  • Page 15 SD20-G Series overheat, Input power phase loss, Regeneration error, Overposition. Applicable load inertia Lower than 5 times of servo motor inertia. B. Performance index Control Specification mode Soft start 0~30S (Acceleration time and deceleration time can be set). DC±10V/ rated speed (It is default setting, which can be...
  • Page 16: Connection To Peripheral Devices

    SD20-G Series 2.1.4 Connection to Peripheral Devices Three phase AC power (for 1 phase 220v, only L1 and L3 should be connected) Breaker Used to protect power wire EMI filter ( Optional) Contacter ( Optional) Input choke ( Optional) PC / PLC...
  • Page 17: Servo Motor

    SD20-G Series 2.2 Servo motor 2.2.1 Servo motor nameplate and model Servo motor SM series Shaft Rated speed Smooth shaft with C hole 3000 rpm 2000 rpm Keyway shaft with C hole 1500 rpm Optional 1000 rpm With brake and no fan...
  • Page 18: Servo Motor Component

    SD20-G Series 0110 Design code Servo motor Design code S .L SM series Cooling mode Rated speed Air cooling fan 1500 rpm Without cooling fan 1700 rpm Shaft 2000 rpm Smooth shaft Rated power Keyway 7.5KW 0075 0110 11 KW...
  • Page 19: Servo Motor Model

    SD20-G Series according to requirement. 2.2.2 Servo motor component Motor power line outlet Encoder outlet Flange Motor shaft Encoder Motor shell Fig 2.2.5 Name of part of servo motor 2.2.3 Servo motor model 220V motor model Rated power Rated torque...
  • Page 20 SD20-G Series SMMA-152*37*** 1500 18.2 SMMA-202*37*** 2000 24.2 SMMA-312*37*** 3100 34.9 SMMA-352**3A*** 3500 17.2 55.3 SMMA-452*3A*** 4500 21.5 74.8 SMMB-122*37*** 1200 18.2 SMMB-152*37*** 1500 24.2 SMMB-232*37*** 2300 14.6 34.9 SMMB-272*3A*** 2700 17.2 55.3 SMM series SMMB-302*3A*** 3000 66.3 1500 r/min...
  • Page 21 SD20-G Series SMMA-132*67*** 1300 SMMA-152*67*** 1500 18.2 SMMA-202*67*** 2000 24.2 SMMA-312*67*** 3100 34.9 SMMA-352*6A*** 3500 17.2 55.3 SMMA-452*6A*** 4500 21.5 74.8 SMMA-602*6A*** 6000 84.8 7500 35.8 119.5 SMMA-752*6A*** SMMA-103*6A*** 10000 SMMB-122*67*** 1200 18.2 SMMB-152*67*** 1500 24.2 SMMB-232*67*** 2300 14.6 34.9...
  • Page 22: Combination Of Servomotor And Servodrive

    SD20-G Series 1700 r/min SM17-0110*6EE*FL SM17-0140*6EE*FL 29.2 SM17-0180*6EE*FL 38.5 SM17-0210*6FE*FL SM17-0240*6EE*FL 48.5 SM17-0270*6EE*FL 57.5 SM17-0330*6FE*FL SM20-0100*6EE*FL SM20-0140*6EE*FL SM20-0180*6EE*FL SMM series SM20-0220*6EE*FL 2000 r/min SM20-0250*6EE*FL SM20-0280*6EE*FL 56.9 SM20-0300*6EE*FL SM20-0360*6FE*FL Note: ** represents shaft type and brake type, please refer to the chapter of servo motor naming rule.
  • Page 23 SD20-G Series SMMA-102*37*** 1000 SD20-G122S2M2 SD20-G122T2M2 SMMA-122*35*** 1200 SMMA-132*37*** 1300 SD20-G182S2M2 SD20-G182T2M2 SMMA-152*37*** 1500 — SMMA-202*37*** 2000 SD20-G302T2M3 — SMMA-312*37*** 3100 SD20-G452T2M3 — SMMA-352*3A*** 3500 — SMMA-452*3A*** 4500 SD20-G552T2M4 SMMB-122*37*** 1200 SD20-G122S2M2 SD20-G122T2M2 SMMB-152*37*** 1500 SD20-G182S2M2 SD20-G182T2M2 — SMMB-232*37*** 2300 —...
  • Page 24 SD20-G Series SMMA-122*65** 1200 SD20-G152T3M2 SMMA-132*67*** 1300 SMMA-152*67** 1500 SD20-G202T3M2 SMMA-202*67*** 2000 SMMA-312*67*** 3100 SMMA-352*6A*** 3500 SD20-G452T3M3 SMMA-452*6A*** 4500 SMMA-602*6A*** 6000 SD20-G752T3ML3 SMMA-752*6A*** 7500 SMMA-103*6A*** 10000 SD20-G153T3M4 SMMB-122*67*** 1200 SMMB-152*67*** 1500 SD20-G202T3M2 SMMB-232*67*** 2300 SMMB-272*6A*** 2700 SMM series SD20-G302T3M2 1500r/min...
  • Page 25: Input Filter Model And Dimensions

    SD20-G Series SM17-0210*6EE*FL 21000 SD20-G223T3M5 SM17-0240*6EE*FL 24000 SD20-G303T3M6 SM17-0270*6EE*FL 27000 SM17-0330*6EE*FL 33000 SD20-G373T3M6 SM20-0100*6EE*FL 10000 SD20-G113T3ML3 SM20-0140*6EE*FL 14000 SD20-G153T3M4 SM20-0180*6EE*FL 18000 SD20-G183T3M5 SMM series SM20-0220*6EE*FL 22000 SD20-G223T3M5 2000r/min SM20-0250*6EE*FL 25000 SD20-G303T3M6 SM20-0280*6EE*FL 28000 SM20-0300*6EE*FL 30000 SD20-G373T3M6 SM20-0360*6FE*FL 36000 Note: 5.5 kw and above 5.5kw servo drive doesn’t have dynamic brake. M1, MM4 structure and above servodrive doesn’t have built-in resistor, customer should purchase braking resistor separately.
  • Page 26 SD20-G Series SD20-G201T2M1 FT330-6-T3 /02.17.136 FN3258-7-44 SD20-G401T2M1 FT330-6-T3 /02.17.136 FN3258-7-44 SD20-G751T2M1 FT330-6-T3 /02.17.136 FN3258-7-44 SD20-G102T2M2 FT330-10-T3 FN3258-7-44 SD20-G122T2M2 FT330-10-T3 FN3258-16-44 SD20-G182T2M2 FT330-15-T3 FN3258-16-44 SD20-G302T2M3 FT330-20-T3 FN3258-30-33 SD20-G452T2M3 FT330-30-T3 FN3258-30-33 SD20-G102T3M2 FT330F-6-T3 FN3258-7-44 SD20-G152T3M2 FT330F-6-T3 FN3258-7-44 SD20-G202T3M3 FT330F-15-T3 FN3258-16-44 SD20-G302T3M3 FT330F-15-T3...
  • Page 27 SD20-G Series 125±1 F I L T E M C F I L T E M C F I L T E M C 147±1 150±1 Fig 2.4.1 FT130 series Model Remarks FT130-6-T2 FT130-10-T2 FT130-20-T2 180±1 F I L T E M C...
  • Page 28 SD20-G Series FT330-15-T3 FT330F-6-T3 FT330F-15-T3 FT330F-20-T3 220±1 F I L T E M C F I L T E M C F I L T E M C 251±1 260±1 Fig 2.4.3 FT330F series Model Remarks FT330F-50-T3...
  • Page 29 SD20-G Series 220±1 F I L T E M C F I L T E M C F I L T E M C 242±1 260±1 Fig 2.4.4 FT330F series Model Remarks FT330F-30-T3 (2) FN series filter dimension Fig 2.4.5...
  • Page 30 SD20-G Series 64.8 94±1 94±1 49.8 12.3 12.4 12.4 20.8 32.4 32.4 19.9 15.5 15.5 6.3X0.8 6.3X0.8 6.3X0.8...
  • Page 31 SD20-G Series Fig 2.4.6 FN2090 series FN3258-7-44 FN3258-16-44 FN3258-30-33 FN3258-42-33 22.5 29.5 29.5 39.5 37.5...
  • Page 32: Installation

    SD20-G Series III Installation 3.1 Servo drives installation 3.1.1 Installation conditions Equipment location In an indoor location, Prevent exposure from direct sunlight, Free from dust, tangy caustic gases, flammable gases, steam or the salt-contented, etc. Altitude 1000m or below Atmospheric...
  • Page 33: Installation Procedure And Minimum Clearances

    SD20-G Series 3.1.2 Installation procedure and minimum clearances In order to ensure the drive is well ventilated, ensure that the all ventilation holes are not obstructed and sufficient free space is given to the servo drive. >50mm Servo Drive >20mm >20mm...
  • Page 34: Servo Drive Dimension

    SD20-G Series 3.1.3 Servo drive dimension M1 structure: (unit is mm) Fig 3.1.3 Servo drive structure 1 M2 structure: (unit is mm) Fig 3.1.4 Servo drive structure 2...
  • Page 35 SD20-G Series M3 structure: Fig 3.1.5 Servo drive structure 3...
  • Page 36 SD20-G Series ML3 structure: 93±0.5 12.5 4-M4 297.8...
  • Page 37 SD20-G Series MM4 structure: ( 28. 3) 100± 0. 5 ( 75) Appr ox . m ass : 7. 5kg Fig 3.1.6 Servo drive structure 4...
  • Page 38 SD20-G Series M4 structure: Approx mass : 10 . Fig 3.1.7 Servo drive structure 5...
  • Page 39 SD20-G Series M5 structure: Approx msaa : 11.1Kg Fig 3.1.8 Servo drive structure 6...
  • Page 40 SD20-G Series M6 structure: Approx mass : 17.4 Kg Fig 3.1.9 Servo drive structure 7...
  • Page 41: Servo Motor Installation

    SD20-G Series 3.2 Servo motor installation 3.2.1 Installation location 1. Install the servo motor in an environment free from corrosive or inflammable gases or combustibles, such as hydrogen sulfide, chlorine, anmonia, sulphur gas, chloridize gas, acid, soda and salt. 2. Select and use the servo motor with oil seal in a place with grinding fluid, oil spray, iron powder or cuttings.
  • Page 42: Precautions On Servo Motor Installation

    SD20-G Series 3.2.3 Precautions on servo motor installation Item Description Before starting installation, thoroughly remove the anticorrosive paint that coats the end of Anticorrosive motor shaft. Align the shaft of the servo motor with the shaft of the equipment, and then couple the shafts.
  • Page 43: Servo Motor Dimension

    SD20-G Series 3.2.4 Servo motor dimension 15 core DB plug Four-core plug -0.1 20.5 M4X16 Tolerance standard 3.2.1 Servo motor structure 1 L(mm) Weight(Kg) Remarks Model L (mm) With brake SMSA-201F32*** The screw hole size is:M4 X 12 SMSA-401F32***...
  • Page 44 SD20-G Series 600mm 600mm Tolerance standard:GB/1804-2000-M 4 core plug 15 core plug 7 core plug of suppler of incremental of absolute power encoder encoder 3.2.2 Servo motor structure 2 L(mm) Weight(Kg Remarks Model L (mm) ) With brake SMSA-751**3*** The screw hole size...
  • Page 45 SD20-G Series Tolerance standard 3.2.3 Servo motor structure 3 L(mm) Weight(Kg) Remarks Model L (mm) With brake SMSA-122**5*** SMMA-801**5*** The screw hole size is M6 X 25 SMSA-182**5*** SMMA-122**5***...
  • Page 46 SD20-G Series Tolerance standard:GB/1804-2000-M 3.2.4 Servo motor structure 4 L(mm) Weight Remarks Model L (mm) (Kg) With brake SMMA-851**7*** SMSA-152**7*** SMMA-102**7*** The screw hole SMMA-132**7*** size is M6 X 25 SMSA-232**7*** SMMA-152**7*** SMMB-122**7*** SMSA-302**7*** SMMA-202**7*** SMMB-152**7*** SMLA-102**7*** SMMA-312**7*** SMLA-152*37*** SMMB-232**7***...
  • Page 47 SD20-G Series Tolerance standard:GB/1804-2000-M 3.2.5 Servo motor structure 5 L without brake L with brake Remarks Model Weight (Kg) (mm) (mm) SMMA-352**A*** SMMB-272**A*** SMMA-452**A*** SMMB-302**A*** SMMA-602*6A*** The screw hole size is SMMB-432**A*** M10 X 30 SMLA-292**A*** SMMA-752*6A*** SMMB-552**A*** SMLA-372**A*** SMMA-103*6A*** SMMB-752**A*** [Note]: 180 servo motor includes general motor and fan motor.Fan servomotor can obviously reduce temperature...
  • Page 48 SD20-G Series SM15, SM17, SM20 series, Air-cooling E base is 45, F base is 51.5 Fig 3.2.6 Servo motor structure 6 Stand spigot L9 L10 H1 H5 M1 M2 14 215 14.5 77 39 12 56 185 75. 5 147 124 200 224 12 200 254 278 48 18 300 17 .
  • Page 49: Wiring

    SD20-G Series IV Wiring This chapter provides servo system block diagram. 220V CN 3 input and output signal terminal CN2 encoder input signal terminal Fig 4.1.1 220V servo drive schematic diagram...
  • Page 50 SD20-G Series 380V CN3 input and output signal terminal CN 2 encoder input signal terminal Fig 4.1.2 380V servo drive schematic diagram...
  • Page 51: Main Circuit Wiring

    SD20-G Series 4.1 Main circuit wiring 4.1.1 Main circuit terminals (1) Main circuit terminals of 220V servo drive Terminal Terminal Functions identification description Used to connect three-phase AC 220V power. L1/R,L2/S,L3/T Main circuit terminal L1 and L3 are used to connect to single-phase 220V power.
  • Page 52: Main Circuit Terminal Wiring

    SD20-G Series 4.1.2 Main circuit terminal wiring (1) Wiring size The following are applicable wire sizes: Single wire: Ø 0.5~ Ø 1.6mm;Braided wire: 0.8 mm ~3.5mm (American standard AWG28~AWG12) (2) Connection procedure 1 Strip the end of the wire about 5~6mm.
  • Page 53 Table 4.1.1 SD20 series servo screw terminals dimension table Main circuit terminals Structure X(mm) Y(mm) Screw Locked Torque(Nm) 13.0 1.24(Max) 10.2 12.7 1.46 11.7 20.3 23.5 EURA recommends below tube cable lug for wiring: Table 4.1.2 Tube cable lug dimension and appearance...
  • Page 54 SD20-G Series D(mm) d2 (mm) B (mm) Tube cable lug Appearance 1.25-3 1.25-4 2-3M series 5.5-3 5.5-4 1.25-3 1.25-4 series 2-3W 5.5-3 5.5-4...
  • Page 55: Typical Main Circuit Wiring Examples

    SD20-G Series 4.1.3 Typical main circuit wiring examples For 220V servo drive Three-phase AC 220V power supply QF circuit breaker FIL filter Contactor KM1 Normally-open contact Manual power on Manual power off Alarm relay Alarm relay Contactor +24V RLY normally-...
  • Page 56 SD20-G Series For 380V servo drive Three- phase AC 380 V power supply QF circuit breaker FIL filter Contactor KM1 Normally open contact R/L1 S/L2 T/L3 Manual power on Manual power off Alarm relay Alarm relay Contactor + 24V RLY normally...
  • Page 57: Precaution For Main Circuit Wiring

    SD20-G Series 4.1.4 Precaution for main circuit wiring 1. Don’t connect input cable to U/V/W, or else, servo drive will be damaged. 2. When user conects external resistor, please remove the wire between B2 and B3 and connect external resistor between B1 and B2.
  • Page 58: Encoder Wiring

    SD20-G Series 4.2 Encoder wiring Precaution for encoder wire: 1. Make sure servo drive and motor are grounded reliably, otherwise servo drive may have wrong action. 2. Don’t connect encoder cable to NC terminal. 3. User must consider of cable resistance and distributed capacitance to select cable length.Cable resistance may cause voltage drop, distributed capacitance will lead to signal attenuation, 4.
  • Page 59: Resolver Encoder Connector Terminal Layout

    SD20-G Series 4.2.2 Resolver encoder connector terminal layout CN2 Encoder Connector Terminal Layout is as shown in figure 4-2-2. Fig 4.2.2 Resolver encoder connector terminal layout Table 4.2.2 Encoder connector terminal Terminal Terminal Signal name Function code abbreviation CN2- 1 Resolver signal stimulus Connect to servo motor signal stimulus.
  • Page 60 SD20-G Series 4.2.3 Incremental encoder connector terminal layout CN2 Encoder Connector Terminal Layout is as shown in figure 4-2-3. Fig 4.2.3 Incremental encoder connector terminal layout Table 4.2.3 Encoder connector terminal Terminal Terminal Signal name Function code abbreviation CN2- 1...
  • Page 61 SD20-G Series 4.3 I/O signal wiring Analog speed mode, torque mode Lowpass filter Analog speed -10 to +10V A / D convert AS2 25 Lowpass filter External torque limit GND 24 Servo drive Position pulse mode HPULS 4 HPULS +...
  • Page 62 SD20-G Series pieces. Fig 4.3.2 I/O signal connector terminal layout PZO+ DO4- PZO- DO4+ PBO- HPULS- PBO+ HPULS+ PAO- HSIGN+ HSIGN- PAO+ ALM+ ALM- DO1+ DO1- AGND DO2- DO2+ DO3+ SIGN /SIGN DO3- +24V PULS /PULS...
  • Page 63: Position Command Input Signal And Function

    SD20-G Series 4.3.1 Position command input signal and function Table 4.3.1 Position command signal Signal name Pin No. Function PULS CN3-44 Input pulse types: Low-speed pulse Direction+pulse /PULS CN3-15 command input modes: A+B phase differential drive input and SIGN CN3-12 orthogonalpulse open-collector.
  • Page 64 SD20-G Series 24V differential drive signal can be inputted by pulse input terminals of PL1, /SIGN and PL2, /PULS. Take the example of terminals PL2 and /PULS. Servo drive Command controller 2.2K 4.7k 15 / PULS 330Ω Fig 4.3.4 24V differential pulse input interface circuit...
  • Page 65 SD20-G Series Command controller Servo drive +24V 2.2K 15 /PULS 330 Ω Fig 4.3.6 24V open-collector pulse input interface circuit Wrong example: Error 1: current-limiting resistor is not connected, which leads to port damaged. Two errors are as below: 1. If 24V internal servo drive is not used, please connect it to external resistor.
  • Page 66 SD20-G Series +24V dc Servo drive 43 PL2 150R PULS 15 /PULS SIGN signal is not connected, direction can not be converted 28 PL1 150R SIGN 27 /SIGN Error 3: there is no loop when 24V internal servo drive is used.
  • Page 67 SD20-G Series Servo drive 29 +24V 43 PL2 PULS 150R 15 /PULS 28 PL1 150R SIGN 27 /SIGN 30 CM Connect this terminal to No. 30 pin. High-speed pulse command input High-speed command pulse can be output to servo drive by differential drive.
  • Page 68: Analog Command Input Signal And Functions

    SD20-G Series happen: Some input pulse could be missed.; There will be large interference when servo drive receives pulse. 4.3.2 Analog command input signal and functions Signal name Pin No. Function AS1+ CN3-23 Resolution of analog input signal is 12 bits, input...
  • Page 69: Digital Input Signal And Functions

    SD20-G Series 4.3.4 Digital input signal and functions Signal name Pin No. Function CN3-18 CN3-19 CN3-20 DI1-DI8 are digital input terminals, input mode is CN3-21 ON/OFF signal. Please refer to 8.1.7 DI/DO for the Program detailed function. CN3-22 mable DI input pulse frequency range is 0~3KHz...
  • Page 70 SD20-G Series Passive contacts include relay contactor, limit switch, general key, button and so on. The common contact circuit is as following figure: Servo drive Servo Drive 3.3 K 3.3 K 24 VDC 24 VDC 3.3 K 3.3 K Fig 4-3-13 passive-contact interface circuit (2) Active contactor Active contactors include photoelectrical sensor, Hall sensor, transistor type PLC.
  • Page 71 SD20-G Series Command controller DC24V Servo drive Fig 4-3-15 Relay output interface circuit External 5V- 24 V dc Servo drive Relay is not connected. Servo drive External 5V- 24 V dc 9 DO1 + Wrong direction of 9 DO1+ flyback diode...
  • Page 72: Encoder Frequency-Division Output Signal And Function

    SD20-G Series 1. Match usage of power supply and current-limiting resistor make external photocoupler on state. 2.Max allowable voltage and max current capacity of internal photocoupler output circuit is as below: Voltage: DC 30V (Max) Current: DC 50mA (Max) 4.3.5 Encoder frequency-division output signal and function Signal name Pin No.
  • Page 73 SD20-G Series Servo drive controller Bus drives PAO 36 /PAO Fig 4-3-19 Differential chip interface circuit Note: AM26LS32 is recommended as receiving chip, and 200Ω/1/4W match resistor is recommended. DC: 5V- 24V Servo drive Optocoupler Fig 4-3-20 OZ signal interface circuit...
  • Page 74: Communication Wiring

    SD20-G Series 4.3.6 Communication wiring (1) Interface instruction The RS485 communication interface is in the connector CN1. Fig 4-3-2 CN1 connector terminals...
  • Page 75: Wiring When Using More Than One Servos

    SD20-G Series 4.3.7 Wiring when using more than one servos Connect the alarm output (ALM) terminals for the three Servodrives in series to enable alarm detection relay RLY to operate. When the alarm occurs, the ALM output signal transistor is turned OFF.
  • Page 76 SD20-G Series AC three-phase 380 V power supply QF breaker Contactor KM1 Filter Common-open contact Manual power OFF Contact Alarm relay KM1 coil Manual power ON RLY Common - open contact +24V Alarm relay R/L1 Servo S/L2 ALM+ drive T/L3...
  • Page 77: Absolute Value Encoder

    SD20-G Series 4.3.8 Absolute value encoder Resolution Multi-turn data Encoder type Action when out of allowed range ratio output range · Multi-turn data will turn to 0 when data exceeds 16-bit 17 bit upper limit (+65535) of forward direction. multi-turn absolute 0~+65535...
  • Page 78 SD20-G Series (2)Battery replacement When battery voltage drops to about 1.3V, servo drive will trip into “AL-19 (battery voltage is lower)”. Although multiturn data exists, user should change battery Immediate, otherwise multiturn data will be lost when battery voltage keeps dropping. Please change battery according to below steps: Please change battery when servo drive is POWER ON.
  • Page 79: Servo Drive And Servo Motor Wiring

    SD20-G Series 4.4 Servo drive and servo motor wiring 4.4.1 Encoder wiring 1) Absolute encoder layout Table 4.4.1 Absolute encoder pulg layout Name Function Grounding Encoder power Encoder power grounding BAT(+) Battery cathode BAT(-) Battery anode Absolute encoder serial signal...
  • Page 80 SD20-G Series Encoder A phase Encoder /A phase Encoder B phase Encoder /B phase Encoder U phase Encoder /U phase Encoder V phase Encoder /V phase Encoder W phase Encoder /W phase Encoder power Encoder grounding Encoder Z phase Encoder /Z phase...
  • Page 81 SD20-G Series No connection Encoder serial signal Encoder serial signal 3) Resolver encoder layout Table 4.4.6 15-core encoder aviation plug Name Function Grounding COS+ Resolver differential signal No connection No connection COS- Resolver differential signal No connection No connection No connection...
  • Page 82: Power Cable Of Servo Drive And Servo Motor

    SD20-G Series 4.4.2 Power cable of servo drive and servo motor a) 4-core power AMP plug Name Cable color Function Yellow Drive input Blue Drive input Drive input Yellow-green/black Grounding b) 4-core power aviation plug Name Function Grounding Drive input...
  • Page 83: Emc

    SD20-G Series Name Function DC 24V + DC 24V - Plug No. Name Function DC 24V + – DC 24V - — None 4.5 EMC 4.5.1 Definition Electromagnetic compatibility (EMC) describes the ability of electronic and electrical devices or systems to work properly in the electromagnetic environment and not to generate electromagnetic interference that influences other local devices or systems.
  • Page 84: Selection And Installation Of Peripheral Emc Devices

    SD20-G Series The system (machinery or appliance) installed with the servo drive must also have the CE mark. The system integrator is responsible for compliance of the system with the EMC directives and standard EN 61800-3: 2004 Category C2. If applied in the first environment, the servo drive may generate radio interference. Besides the CE compliance described in this chapter, users must take measures to avoid such interference, if necessary.
  • Page 85 SD20-G Series The installation precautions are as follows: Symmetrical shielded cable is recommended. The four-conductor shielded cable can also be used as an input cable. The motor cable and PE shielded conducting wire (twisted shielded) should be as short as possible to reduce electromagnetic radiation and external stray current and capacitive current of the cable.
  • Page 86: Operation And Parameters

    SD20-G Series V. Operation and parameters 5.1 Keypad description 5.1.1 Instruction of keypad LCD Display ● ● ● ● Four operating buttons ▲ ▼ Four buttons identifier MODE Fig 5-1-1 Digital keypad Identifier Name Function Charge LED Indicating that Servo is on.
  • Page 87: Keypad Operating Procedure

    SD20-G Series 5.2 Keypad operating procedure 5.2.1 Switchover between parameter section Power on Status Display Mode MODE Press MODE key Monitor Mode Press MODE key MODE Auxiliary fun ction MODE Press MODE key MODE Press MODE key Main function section...
  • Page 88: Parameters Instructions

    SD20-G Series If fault occurs, current fault code will be displayed circularly. 5.2.2 Parameters instructions The representation method in this manual is Po001. The hollow digitron represents blinking operating digits, which is the adjustable digits. ☞ In this manual, three parameters modes is adopted to introduce the parameters.
  • Page 89 SD20-G Series The display content is: The quoting mode is Po300.A=1. ■ Five parameters display □□□□□ The first digit means current page, the other digits mens current value. For example: set value of HOME, Po136=131072, the actual display content is as below:...
  • Page 90: Keypad Operating Procedure

    SD20-G Series 5.3 keypad operating procedure 5.3.1 Example of monitor function parameter Take usage of Lo-14(DI8~DI5 status display)as the example: Power on Status display MODE Press MODE key Monitor Mode Press UP key ▲ Up to Lo-14 Input terminal DI 8 ~DI5 status monitor Press SET key to 0.5s...
  • Page 91: Example Of Auxiliary Parameters Usage

    SD20-G Series 5.3.2 Example of auxiliary parameters usage Take usage of So-14(JOG run)as the example: Power on Status display MODE Press MODE key Monitor function section Press MODE key MODE Auxiliary function section Press UP key ▲ Up to So-14 JOG running Press SET key for 0.5s...
  • Page 92: Parameter Setting

    SD20-G Series 5.3.3 Parameter setting Take setting parameter Po001 as the example: When Po001.Y=0, set motor rotating clockwise to forward direction. When Po001.X=3, analog speed mode is selected. Power on Status display Press MODE key MODE Monitor mode Press MODE key...
  • Page 93 SD20-G Series If function code digits are longer than 5 digits, the setting method is as below: Take setting Po123 to 100000000 as example: Power on Status dispaly Press MODE key MODE Main function section Quickly press SET key Quickly press...
  • Page 94 SD20-G Series VI Run Servo system includes servo drive, servo motor and encoder. Servo drive Motor Command input Current loop Position loop Speed loop control control control Current Position feedback Speed feedback feedback Speed calculation Encoder Based on the command modes and running characteristics, servo drives supports three running mode, position control, speed control and torque control.
  • Page 95 SD20-G Series Start Check before running Whether servo drive match with motor? Whether motor Power on parameters are known? Parameters Motor parameters identification setting Motor angle study Servo drive parameters setting Servo on Servo off Note: Please make sure servo motor runs normally without load, then connect load to motor.
  • Page 96 SD20-G Series After a servo motor is changed, if user does not know encoder electric angle and whether motor phase sequence is correct, user can make the servo motor operate normally by using electric angle indication function. Before electric angle indication, please make sure the following steps: (1) Motor actual power.
  • Page 97: Basic Parameters Setting

    SD20-G Series 6.1 Basic parameters setting 6.1.1 Before running Make sure that all wiring has been completed. Wiring Connect L1(R) 、L2(S) 、L3(T) of servo drive to main circuit power. Connect U/V/W of servo drive to U/V/W of servo motor well.
  • Page 98 SD20-G Series 5. Three-line mode 2 6. Direction and pulse mode Internal enabled Speed Position Torque Po100 Mfr’s value Setting range Setting unit Effect Effective Immediate 0: External terminal enabled. There must be terminal being set SON-I. 1: Internal enabled, whcich is determined by Internal Po100.
  • Page 99 SD20-G Series Table 6.1.2 terminal definition (0:open 1:close) Running command Stop Stop Forward runnning Reverse running (3)Three-line mode 1 X is enable terminal, motor direction is determined by FWD and REV, Enable terminal must be disconnected when user stops drive.
  • Page 100: Parameters Setting

    SD20-G Series direction is reverse. Servo drive 6.1.3 Parameters setting 1) Motor parameters The parameters of the motor include: rated voltage, rated current, encoder lines, rated rotary speed , numbers of pole pairs ,phase resistance, inductance, Movement of inertia, back EMF, line voltage ,etc. Please confirm that the parameter’s setting value is identical to the motor’s parameter to ensure motor normal operation, in case of...
  • Page 101 SD20-G Series (1)When So-48=1,the H group parameters can be set. If photoelectric encoder is adopted, encoder line*4 is set to Ho016, if communication encoder is adopted, encoder line is set to Ho016. After electrical degree identification is finished, the installation angle of the encoder is saved in Ho011. Please refer to chapter 6 for operating method of electrical degree identification.
  • Page 102 SD20-G Series Servo drive Electromagnetic brake relay BRAKE+ BRAKE - Braker power supply Electromagnetic brake relay common-open contact Note: 1. The internal electromagnetic is only valid when servo is in the stop status. 2. The coil of electromagnetic has polarity, please distinguish them when wiring.
  • Page 103 SD20-G Series Speed threshold of electromagnetic braking Speed Position Torque Mfr’s value So-16 Setting range Setting unit When enabled 0~30000 0.1r/min 1000 Effective Immediate Note: the value of So-16 should not be set too high, please use the Mfr’s value.
  • Page 104 SD20-G Series Enable signal Servo and motor enable status 300ms Electromagnetic braking signal 100ms Braking status Delay time Delay time Fig 6-1-4 Electromagnetic brake sequence diagram Note: after servo enabled is off, T1 is the lower value of So-03 and the time taken by speed arriving to setting value of So-16.
  • Page 105: Setting The Overtravel Limit Function

    SD20-G Series 6.1.4 Setting the Overtravel Limit Function Overtravel limit function prohibit movable machine parts from exceeding the allowable range of motion. A limit switch, a photoelectric switch or encoder multi-turn number should be adopted for detection. 1. Hardware overtravel protection function As soon as the servo drive detects the on/off signal from the limit switch, it will force the speed in the present direction to turn to 0, but it does not work for the speed of opposite direction.
  • Page 106 SD20-G Series Mfr’s value Setting range Setting unit When enabled 1~300 1% of rated torque Effective Immediate When forward/reverse run prohibited signal or emergency stop signal is valid, the max value of instantaneous reverse stop torque of servo motor is limited within the range of this value, and this value is an absolute value, it works on both forward run and reverse run.
  • Page 107: Jog Operation Procedure

    SD20-G Series 6.1.5 Jog operation procedure Servo is at a special speed mode while jogging operation. Panel jog function Step Content Remarks Check wiring of main circuit, check whether power L1C and L2C should not be connected for supply of control circuit (L1C, L2C) and main circuit 380 V servo drive (R/L1, S/L2, T/L3) is powered on.
  • Page 108: Timing Sequence Control

    SD20-G Series 6.1.6 Timing sequence control (1) Timing sequence at power on Control circuit power supply More than 0s Main circuit power supply S - RDY Servo ready is output About 5s SON - I Servo enabled More than 0s...
  • Page 109 SD20-G Series (2) Timing sequence when servo drive alarms Abnormally Normally Whether work normally? About Enabled 0.2ms Disenable Dynamic brake SON-O Power off Power on Motor status S- RDY Servo is not ready. Servo is ready Servo ready No alarm signal Alarm signal is output.
  • Page 110: Setting The Braking

    SD20-G Series 6.1.7 Setting the braking The braking types of servo drive include three kinds: 1.dynamic braking 2.energy-consumption braking 3. Electromagnetic braking. ! Caution  Energy-consumption braking is valid after main circuit is powered on.  Electromagnetic braking starts after servo OFF. If it is not, overload malfunction will occur.
  • Page 111 SD20-G Series Deceleration stop can be used for any mode, acceleration and deceleration time is determined by Po109 and Po110. When So-07 vaule is 3~5, servo motor carry out deceleration stop first, then execute subsequent command. 2)Related parameter Dynamic braking delay time...
  • Page 112 SD20-G Series Remove the wire between B2 and B3, and connect resistor between B1 and B2. Dc bus Dc bus P Built-in Built-in braking resistor braking resistor Dc bus Dc bus Fig 6-1-11 Wiring of braking resistor Some servo drives have built-in braking resistor, if users need to use external braking resistor, please set the...
  • Page 113 SD20-G Series — 40Ω 40Ω/1000W MM4/M4 — 20Ω 20Ω/1000W — 20Ω 20Ω/2200W Fig 6-1-12 Wiring of braking resistor Ф Fig 6-1-13 Wiring of braking resistor External dimension (mm) Installation dimension (mm) Resistor Resistor type Aperture (Ф) power Length (A) Width (B) Height(H)
  • Page 114: Speed Mode

    SD20-G Series (3) Electromagnetic braking Electromagnetic braking is suitable for servo motor with brake, which can make sure machine not move because of self weight when servo is OFF. 6.2 Speed mode 6.2.1 Parameters setting Speed mode is mostly used in CNC industry. SD20 series servo drive has two speed modes, analog speed mode and internal register speed mode.
  • Page 115 SD20-G Series 1)Internal register speed mode Two setting types are as below: To set speed value to function code, then switch speed by SD-S1 and SD-S2 of DI terminal in CN3. To change the value of function code by communication.
  • Page 116 SD20-G Series Servo drive Filter Encoder frequency dividing pulse differential output Filter PA0+ 36 PA0- 35 Analog External PB0 + 34 torque limit PB 0 - 33 PZ0 + 16 PZ0 - 17 AGND 40 ALM+ 7 Servo alarm ALM- 8...
  • Page 117 SD20-G Series 3 DI1~DI8 are programmable input terminals, and DO1~DO4 are programmable output terminals. Users can redefine these terminals by parameters. b) Related parameters Parameters Remarks Po001 d □ 0 Control mode selection: internal register speed mode Internal speed given 1 Speed Mfr’s value...
  • Page 118 SD20-G Series 2) Analog speed mode a)Wiring diagram Filter Encoder output Analog speed pulse applicable command line receiver - 10 V ~+10V PA0+ 36 PA0 - 35 A / D PB0+ 34 Filter Analog PB0 - 33 AS 2 torque limit...
  • Page 119 SD20-G Series Zero drift: when analog input voltage is 0, zero drift is relative value between servo drive sampling voltage and reference terminal. Command source is acquired from servo drive terminal. Automatic zero set: servo drive can compensate zero drift according to sample value.
  • Page 120 SD20-G Series — 1~10000 r/min Effective Immediate Set the speed value when analog voltage is 10V. Speed r/min The slope equals to the ratio of 10V/setting value of Rated speed Po400. Please refer to the right figure about the mfr’s...
  • Page 121 SD20-G Series (4)Analog speed command of rotation upper and lower limit setting The function is to set external input analog at analog speed mode. Users can set a pair of volage in the range of -10V~+10V by parameters Po433, Po431 as upper and lower limit of the analog input voltage.After analog input is determined,analog speed can be set via parameter Po432, Po430, lower bound corresponds to the voltage on the analog control speed.
  • Page 122: Soft Start

    SD20-G Series 1~30000 0.01ms Effective Immediate This smoothens the speed command by applying a 1st-order filter to the analog speed command input. A value that is too large, however, will slow down response. (6) Analog terminal control At the mode of analog speed, and when Po427=1, speed is set by analog, motor start/stop is controlled by terminal.
  • Page 123: Scurve Smoothness Function

    SD20-G Series V ( r / min ) Rated speed Target speed T (ms ) Po110 Po109 Fig 6-2-5 Soft start function T1 and T2 are actual acceleration/deceleration time, the unit is ms. Actual acceleration time T1=Po109×target speed/rated speed Actual deceleration time T2=Po110×target speed/rated speed 6.2.3 S curve smoothness function...
  • Page 124: Zero Clamp Function

    SD20-G Series 6.2.4 Zero clamp function When the zero clamp signal (ZCLAMP) is ON, servo enters into the locking status as soon as the absolute value of command speed drops below the motor speed level in the zero clamp level. The servo motor ignores the speed command and quickly stops and locks the servo motor.
  • Page 125 SD20-G Series Signal name Default terminals Remarks V-CMP V-CMP+ V-CMP- Motor rotation speed is close to command speed. (2) Parameters setting Range of target speed Speed Po117 Mfr’s value Setting range Setting unit When enabled 0 ~ 30000 0.1r/min Effective Immediate...
  • Page 126 SD20-G Series Signal name Default terminal Remarks TGON+ When the absolute value of speed is higher than the value of Po118, TGON TGON signal is output. TGON- (2) Parameters setting Rotation detection value Speed Mfr’s value Po118 Setting range Setting unit...
  • Page 127 SD20-G Series 1~1000 0.1A Effective Immediate Servodrive max bus line voltage corresponding to 10V speed position torque So-21 Mfr’s value Setting range Setting unit When enabled 1~500 Effective Immediate Max rotation speed corresponding to 10V speed position torque Mfr’s value...
  • Page 128: Torque Mode

    SD20-G Series 6.3 Torque mode Torque mode includes analog torque mode and internal register toqrue mode, user can select it by Po001. The diagrame is as below: Torque command Torque Torque Torque input Current loop command command source and control...
  • Page 129 SD20-G Series 1)Internal register torque mode Wiring diagram Filter Analog speed Encoder output pulse applicable command line receiver - 10 V ~+10V PA0 + 36 PA0 - 35 A/ D PB0+ 34 Filter PB0 - 33 PZ0 + 16 PZ0 - 17...
  • Page 130 SD20-G Series Parameter Remarks Po001 d □ 2 Control mode selection: internal register torque mode Internal given torque Internal register torque Po204 Mfr’s value Setting range Setting unit When enabled -800~800 1% of rated torque Effective Immediate Note: once internal register torque mode is enabled, servo drive will start running Immediate. Please be careful! 2)Analog torque mode...
  • Page 131 SD20-G Series Note: represents twisted-pair wires. 2 Servo drive has internal 24 VDC power supply. But external 12~24VDC power supply is recommended. 3 DI1~DI8 are programmable input terminals, and DO1~DO4 are programmable output terminals. Users can redefine these terminals by parameter.
  • Page 132 SD20-G Series 0~±5000 Effective Immediate Y(mv) Analog torque command zero drift Sampling voltage compensation is to eliminate analog torque command zero drift. Zero-drift Input voltage of analog The setting method is as following: channel X(mv) (1)Short-connect AI2 to AGND. (2)At the mode of analog torque, adjust Po403 to make Lo-28 to 0.
  • Page 133: Soft Start

    SD20-G Series -1000~1000 0.1% 1000 Effective Immediate Upper limit voltage in torque analog mode Speed Torque Position Mfr’s value Po437 Setting range Setting unit When enabled -1000~1000 0.01V 1000 Effective Immediate Note: in analog torque mode, the formula of motor torque is: Torque corresponding to lower limit voltage=Po401 value×...
  • Page 134: Speed Limiting At Torque Mode

    SD20-G Series Actual decreasing time T2=Po213 X target torque/rated torque 6.3.3 Speed limiting at torque mode This function serves to limit the servo motor speed during torque control to protect the machine. Motor speed Overspeed may lead to equipment broken.
  • Page 135 SD20-G Series Internal max torque limit is constantly enabled, and the rest of methods are limited by some conditions. When three methods are all valid, the actual torque limit value is the smallest value of them. (1) Internal max torque limit...
  • Page 136: Related Output

    SD20-G Series 6.3.5 Related output 1) Output signal in torque limiting When torque is limited, DO terminal will output signal, and it is valid for forward/reverse running. Torque limit value Speed feedback value Torque Servo on Servo off Torque limiting...
  • Page 137: Paraemeters Setting

    SD20-G Series 6.4.1 Paraemeters setting Position pulse mode includes internal register position mode and external position mode, user can select it by Po001. Parameters Remarks d □ 1 Control mode selection: position pulse mode. Po001 d □ 5 Control mode selection: internal register position mode.
  • Page 138 SD20-G Series HPULS HPULS + High-speed HPULS- poulse position HSIGN command Encoder output HSIGN+ pulse applicable HSIGN- line receiver PA0 + 36 PA0 - 35 PB0 + 34 PULSE PB0 - 33 PULS /PULS PZ0 + 16 Position PZ0 - 17...
  • Page 139 SD20-G Series Related parameters (1) control mode selection Parameters Remarks Po001 d □ 1 Control mode selection: position pulse command mode. (2) Input pulse command source Parameters Remarks Low-speed pulse source High-speed pulse source Po374 Four-parameter Internal position pulse source Pulse source of electronic cam Note: when setting Po374, user can set 1 to needed pulse source.
  • Page 140 SD20-G Series ① Pulse command input terminal Servo drive has 2 groups of pulse command input terminals. Servo drive HPULS HPULS+ HPULS - High-speed pulse position HSIGN HSIGN+ command HSIGN - 24V Command interface PULS PULSE / PULS Low-speed pulse position...
  • Page 141 SD20-G Series Four-parameter 0000 Effective Immediate High - speed pulse type Direction+ Pulse Dipulse Orthogonal pulse High-speed pulse filtering 8MHz 4MHz 2MHz 1MHz 500KHz 200KHz 150KHz High-speed pulse direction HPULS anti-logic, HSIGN anti-logic HPULS positive logic, HSIGN positive logic HPULS anti-logic, HSIGN positive logic...
  • Page 142 SD20-G Series ③ Pulse command form Pulse command has 3 kinds of forms: direction+pulse, A phase+B phase orthogonal pulse, and forward pulse/reverse pulse. Take the example of positive logic of pulse command. Command pulse form Forward rotation Reverse rotation Parameter...
  • Page 143 SD20-G Series / PULS CN3-15 2) Internal register position pulse mode Wiring diagram Encoder output pulse applicable line receiver PA0 + 36 PA0 - 35 PB0 + 34 PB0 - 33 PZ0 + 16 PZ0 - 17 AGND 40 ALM+ 7...
  • Page 144 SD20-G Series 3. DI1~DI8 are programmable input terminals, and DO1~DO4 are programmable output terminals. Users can redefine these terminals by parameter. At internal position command mode, 8 preset position commands can be set by parameters (Po350-Po364), and can be activated by use of input contacts SD0~SD2. Multistage position means 8-stage postion commands are saved in the servo drive, displacement, max running speed and acceleration/deceleration time can be set.
  • Page 145 SD20-G Series Given postion of postion 5 Po358 Po334 Given postion of postion 6 Po360 Po335 Given postion of postion 7 Po362 Po336 Given postion of postion 8 Po364 Po337 Note: the default status of SD2, SD1 and SD0 is 000, 0 represents terminal open, 1represents terminal closed.
  • Page 146 SD20-G Series Position Position Incremental move Absolute move When So-30=1(incremental move), battery protection will be automatically blocked, internal register position absolute move does not adopt encoder feedback absolute value position. When So-30=0 (absolute move), internal register position absolute move will adopt encoder feedback absolute position.
  • Page 147 SD20-G Series Multistage position function setting Invalid Valid Stage numbers setting 2ed position 3th position … …… Circulation times of multistage internal position Internal register position Mfr’s value Po349 Setting range Setting unit When enabled 0~30000 Effective Immediate When Po348.X=0, multi-stage position function is invalid. When Po348.X=1, multi-stage position function is valid according to setting position.
  • Page 148 SD20-G Series Deceleration time of internal position 3 Internal register position Mfr’s value Po315 Setting range Setting unit When enabled 0~32000 Effective Immediate Acceleration time of internal position 4 Internal register position Mfr’s value Po316 Setting range Setting unit When enabled...
  • Page 149 SD20-G Series Position, aceleration/ deceleration time and interval time for each stage position can be set according to requirement. Given postion of postion 1 Internal register position Po350 Mfr’s value Setting range Setting unit Effect Effective Immediate -2147483647~+2147483647 Given postion of postion 2...
  • Page 150 SD20-G Series Mfr’s value Setting range Setting unit When enabled 0~32000 Effective Immediate Interval time 2 Internal register position Mfr’s value Po367 Setting range Setting unit When enabled 0~32000 Effective Immediate Interval time 3 Internal register position Mfr’s value Po368...
  • Page 151 SD20-G Series Position Absolute move P1=10 pulses P8=-10 pulses P4=20 pulses - 10 SON-I Enable signal input Internal register position selection SD0 Internal register position selection SD1 Internal register position selection SD2 Internal register position trigger CTRG The Position command can be inhibited at any time by input contact signal HOLD.
  • Page 152 SD20-G Series Immediate and the remaining positioning pulses will be cleared. Once the CTRG input contact is activated again then a new position command will be started according to the selection of input contacts SD0~SD2 Diagram below shows clear function with incremental encoder.
  • Page 153 SD20-G Series Internal register position selection 2 Position Position 1 command Position 2 S-ON enabled signal Internal register position selection 1 Internal register position selection 2 Internal register position selection 3 Internal register position trigger When termination signal is shown, the diagram is as below:...
  • Page 154: Setting Electronic Gear

    SD20-G Series Position 1 Position Position 2 command Position 1 S-ON enabled signal Internal register position selection 1 Internal register position selection 2 Internal register position selection 3 Internal register position trigger Internal register position termination signal Internal register position...
  • Page 155 SD20-G Series Step Operation Description Check the reduction ratio, ball screw lead, and pulley Check machine specifications. diameter. Check the encoder resolution of servo Check the number of encoder pulse for one revolution. motor. Determine the travel per command pulse from the...
  • Page 156 SD20-G Series Mfr’s value Setting range Setting unit When enabled 1~65535 10000 Effective Immediate group electronic gear numerator Position Mfr’s value Po344 Setting range Setting unit When enabled 0~2147483647 Effective Immediate electronic gear denominator Position Mfr’s value Po346 Setting range...
  • Page 157: Position Command Filter

    SD20-G Series The deceleration ratio is 1 Servo motor Pitch is 6mm. 17 bits encoder Fig 6-4-18 Setting electronic gear Step Operation Calculation Check machine specifications. The deceleration ratio is 1:1 and the ball screw lead is 6mm. Check the number of encoder pulses.
  • Page 158: Position Command Inhibit Function

    SD20-G Series V( r / min) Rated speed Target speed T(ms) Po343 Po343 6.4.5 Position command inhibit function This function inhibits the servodrive from counting input pulses during position control. Input position command Command pulse prohibition Actual response position command...
  • Page 159: Frequency-Division Output Function

    SD20-G Series (2) Setting parameters Parameters Remarks b □□0□ Command pulse clear function is OFF. Po308 b □□1□ Command pulse clear function is ON. 6.4.7 Frequency-division output function Encoder pulse is frequency-division processed by servo drive internal circuit, and orthogonal differential signal will output.
  • Page 160 SD20-G Series CN3 – 33 PBO+ CN3 – 16 PZO- Encoder Z phase home pulse output (no frequency-division) CN3 – 17 PZ phase PZO+ CN3-37 Z phase open collector output When output signal is frequency-division, output pulse source (Po018) and phase (Po300) should be set by actual requirement.
  • Page 161 SD20-G Series Z pulse output polarity Negative polarity output Positive polarity output Z pulse command source Motor shaft Virtual shaft Pulse frequency-division command source Motor shaft Internal position given Collector pulse input High-speed counter 1 High-speed counter 2 Position command b 0□□□...
  • Page 162 SD20-G Series Table 6.4.2 Z phase open collector output Po018.A Po017 Forward rotation Reverse rotation (output pulse phase) (Z phase expansion) Pulse output Pulse output (3) Wiring terminals Signal name Terminal code Remarks PAO- CN3-35 PA phase Encoder A phase pulse frequency-division output...
  • Page 163: Homesearchmode

    SD20-G Series 6.4.8 HomeSearchMode 1)Introduction Homesearch is the function of location and stop action (clamping) in the home pulse (Z-phase) position of encoder. In homesearch function, input contact ORGP(external detector input terminal) or Z-pulse can be used as home reference point, forward search or reversal search is adopted.
  • Page 164 SD20-G Series Home/Mechanical origin searching at first speed Position Mfr’s value Setting range Setting unit Effect Po120 0~20000 0.1r /min Immediate effect Home/Mechanical origin searching at second speed Position Mfr’s value Po121 Setting range Setting unit Effect 0~10000 0.1r /min...
  • Page 165 SD20-G Series 2.Sequence Chart when inputting entry point (Po125=2) Power on S-RADY Servo ready signal is output SON-1 enabled signal is input Home searching SHOM trigger Home searching Home search mode Home completed output HOME Fig 6.4.24Sequence Chart when inputting entry point 4)Home Search Mode speed/position Sequence Chart...
  • Page 166 SD20-G Series 2. Po119.A= b□□□0 (Reversal searching home reference at first speed after starting home search) Po119.C= b□1□□(Return back to search the nearest Z-phase pulse as Mechanical originat the second speed with opposite direction after searching home reference) Po125.A= b□□□2(Input I/O port to trigger home search) Po119.D= b1□□□(Return back to Mechanical origin)
  • Page 167 SD20-G Series 4. Po119.A= b□□□0 (Reversal searching home reference at first speed after starting home search) Po119.C= b□2□□(Return back to search the nearest Z-phase pulse as Mechanical origin at second speed with same direction after searching home reference) Po125.A= b□□□2(Input I/O port to trigger home search) Po119.D= b1□□□(Return back toMechanical origin)
  • Page 168 SD20-G Series 6. Po119.A= b□□□0(Reversal searching home reference at first speed after starting home search) Po119.B= b□□2□(Search Z-phase pulse asMechanical origin) Po125.A= b□□□2(Input I/O port to trigger home search mode) Po119.D= b1□□□(Return back toMechanical origin) (Second speed) Po121 Speed Po119.D=1...
  • Page 169: Echanical Origin Search Function

    SD20-G Series (Second speed) Po121 Speed Po119.D=1 Position (First speed) Po120 Po119.C=3 Input signal ORGP Input signal SHOM Po125.A=2 Fig 6.4.32Forward home searching at first speed 6.4.9Mechanical Origin Search Function 1)Introduction Mechanical origin search is the function of location and stop action (clamping)through the absolute position memorized by absolute encoder.
  • Page 170 SD20-G Series (2) Parameters Setting mechanical origin Speed Position Torque Mfr’s Value Setting Range Setting Unit Effect So-41 Immediate effect 0:Not set mechanical origin; 1:Set current position as mechanical origin; Mechanical origin single-turn value Speed Position Torque Mfr’s Value Setting Range...
  • Page 171: Fixed Length Interrupt Function

    SD20-G Series Power on 电源开启 S-RDY S-RDY Servo ready 伺服准备好输出 signal output Mechanical 机械原点设定 origin setting SON-I SON-1 enabled 使能信号输入 signal input Mechanical 机械原点检索 origin search 触发SHOM trigger SHOM 进入机械原点检 Mechanical origin Mechanical 机械原点检索 索模式 search mode origin search Mechanical origin 机械原点找到...
  • Page 172 SD20-G Series Fixed length In internal position Rotary speed External mode, fixed length position pulse mode Trigger edge Register position trigger Interrupt start Interrupt release Po388.Y=0 Interrupt indicate Fig 6.4.35 Running mode of fixed length interrupts Fixed length External position...
  • Page 173: Do Output Related To Position Pulse

    SD20-G Series (1) Related parameter Fixed length interrupt Position Mfr’s Value Setting Range Setting Unit Effect Two parameters Immediate Effect Po388 Interrupt fixed length function Invalid Valid Interrupt fixed length release terminal Invalid Valid 6.4.11 DO output related to position pulse Setting position reach pulse range: In the mode of position pulse, this parameter provides the basis that drive can complete positioning or not.
  • Page 174: Full Closed Loop Function

    SD20-G Series 6.4.12 Full closed loop function Full closed loop control: Install position detection device (grating scale, encoder etc.) on moving part, and real-time feedback to the position of moving part, without the influence of environmental factors such as mechanical error, shape change caused by temperature, make final working parts reach integral excellent high-accuracy positioning system.
  • Page 175 SD20-G Series CAUTION Note: The servo only supports the encoder of differential type or open collector type for feedback of moving parts. One of the feedback encoder or pulse input signal must be differential signal. Setting procedure of full closed loop shows as below: 开始...
  • Page 176 SD20-G Series (1) Parameter setting 1) Set position feedback source Position feedback source Position Mfr’s Value Po376 Setting Range Setting Unit Effect Immediate effect Name Purport Remark Po376=0 Position feedback root in motor motor shaft Position feedback root in high-speed counter 1...
  • Page 177: Gantry Sychron Function

    SD20-G Series Servo drive 伺服驱动器 HPULS Encoder HPULS+ frequency-dividing HPULS- High-speed 高速脉冲位 pulse pulse position HSIGN 编码器分频脉 置指令 HSIGN+ command differencial output 冲差分输出 HSIGN - PA 0 + 36 PA0- PB0 + PL 2 PB0- PULSE PULS PZ0+ / PULS...
  • Page 178 SD20-G Series PC/PLC DI/DO DI/DO Commands Commands Position Position Command Command Shaft A Shaft B Servo Servo Drive Drive Fig 6.4.40 Gantry Synchron typical application wiring diagram Caution  Connect power supply of servo main circuit and control circuit correctly, and also motor power line and encoder line;...
  • Page 179 SD20-G Series Position Position Loop Speed-current Synchro Kp Synchro Kp Position Loop Speed-current Fig 6.4.41Gantry Synchro typical application wiring diagram The setting value of gantry synchro gain(Po381) must not exceed position-loop gain(Po301); The setting procedure of gantry synchron is: Start...
  • Page 180 SD20-G Series 1) Position feedback source setting Gantry position feedback source Position Mfr’s value Setting Range Setting Unit Effect Po382 Immediate effect 0:high-speed counter 1; 1:high-speed counter 2; 2) Feedback ratio setting Gantry synchron feedback proportion numerator Position Mfr’s value...
  • Page 181: Electronic Cam (E-Cam) Function

    SD20-G Series Shaft B servo drive B轴伺服驱动器 Shaft A servo drive A轴伺服驱动器 PULS 4 HPULS + /PULS Connected Pulse frequency HPULS- 接B轴伺服驱动器的 接上位机指令 to PC/PLC dividing port which 脉冲分频接口 PZ0 + 16 command HSIGN+ connected to shaft B SD PZ0 -...
  • Page 182 SD20-G Series Fig 6.4.44SD20E-Cam internal frameworkdiagram...
  • Page 183 SD20-G Series START Conrfirm command source Po374.D Confirm cam condition PL000.B & PL000.C 1. PL016 input page no. Cam point setting 2. PL200 area input data Use PC/PLC to input points? Cam points setting PL015 Refresh cam point PL017=1 Cam initial position...
  • Page 184 SD20-G Series Electronic cam which is provided by SD20 series servo drive, main feature of E-Cam is as the followings: Features of E-CAM Operation Operate the E-cam in P mode only. Active PL000.A=0:disable E-cam function; E-CamFunction PL000.A=1:enable E-cam function and starts to judge the engaged condition;...
  • Page 185 SD20-G Series PL007 Master axis numerator setting PL009 Master axis denominator setting Master Axis Gearbox#1 Clutch PL000.A E-Cam PL000.B E-Cam enabled axis Pulse command Setting Value PL000.C Slave axis E-Cam engaged condition PL000.D Position Gearbox#2 E-Cam disengaged condition Slave controller...
  • Page 186 SD20-G Series Engaged Stop Pre-engaged Statements: ●Stop: Initial status of the cam.The cam will not run with master axis pulse. When PL000.A=0, cam will return to this state; ●Pre-engaged: when engagedcondition (path 1) is satisfied, it enters this status.The cam still will not run with master axis pulse, but it will execute the pulse value of PL003, then out of the state when executed.
  • Page 187 SD20-G Series 2.DI setting: FunIN.32When CAM-AC is off, the engaged status disabled; 3. Out of range: If master axis exceeds the setting moving distance PL005, the engaged status disabled; ● Gear #1 Description:  Gear #1: the module which is used to set the relation of master axis and E-cam axis;...
  • Page 188 SD20-G Series 0º and 360º is the same The data of 0°and 360°is different; 0º and 360º is different ● Gear #2 Description:  Gear #2:the module which is used to set the relation of slave axis and pulse command;...
  • Page 189 SD20-G Series 【Note】 For the drives with different encoder, the value of electronic gear ratio is different, please pay attentions when using; 1、 The value of incremental encoder is 10000; The value of rotation transformer type encoder is 4096; ● Digital Output of E-cam DO Name FunOUT.14CAM_AREA...
  • Page 190 SD20-G Series Electronic cam Close electronic cam Open electronic cam Command resource High counter 1 High counter 2 Internal position Time Trigger resource Trigger immediately DI2 trigger CAP0 Trigger CAP1 Trigger Detachment condition No detachment DI control Out of range...
  • Page 191 SD20-G Series E-cam Table Status Position Mfr’s Value Setting Range Setting Unit Effect Check PL018 0:Ready to start; 1:Waiting for engaged trigger; 2:Pre-engaged Status; 3:Running Status; E-cam disengaged is captured again or not Position Mfr’s Value PL021 Setting Range Setting Unit...
  • Page 192: Dual Mode

    SD20-G Series Master Axis Position Position Mfr’s Value Setting Range Setting Unit Effect PL019 0~2147483647 Check 4) Digital output setting DO valid initial position Position Mfr’s Value PL011 Setting Range Setting Unit Effect 0~2147483647 Immediate effect DO valid ending position Position Mfr’s Value...
  • Page 193: Internal Speed And Position Pulse Dual Mode

    SD20-G Series 6.5.2 Internal Speed And Position Pulse Dual Mode Internal register speed and position pulse command switching mode shows as fig 6.5.1, after servo is enabled, servo runs as speed mode when internal speed selectionsignal is enabled; Servo runs as position mode when internal speed selection signal is disabled.
  • Page 194: Analog Speed And Position Pulse Dual Mode

    SD20-G Series 6.5.3 Analog Speed and Position Pulse Dual Mode External analog speed and position pulse command switching mode shows the figue 6.5.2, after servo is enabled, servo runs as position pulse mode when mode switching signal is enabled; Servo runs as analog speed when mode switching signal is disabled.
  • Page 195: Analog Speed And Internal Register Position Dual Mode

    SD20-G Series 6.5.4 Analog speed and internal register position dual mode External analog speed and internal register position switching mode shows as figure 6.5.3, after servo is enabled,servo runs as internal register position mode when mode switching signal is enabled; servo runs as analog speed when mode switching signal is disabled.
  • Page 196: Internal Speed And Internal Register Position Dual Mode

    SD20-G Series Fig 6.5.3 Analog speed and internal postion pulse mode sequence diagram 6.5.5 Internal speed and internal register position dual mode Internal register speed and position switching mode shows as figure 6.5.4, after servo is enabled, servo runs asspeed mode when internal speed selection signal is enabled; Servo runs as internal register position mode when internal speed selection signal is disabled.
  • Page 197: Toreque Mode And Position Pulse Dual Mode

    SD20-G Series 6.5.6 Toreque Mode and Position Pulse Dual Mode Internal register torque and position pulse command switching mode , external analog torque and position pulsecommand switching mode shows as figure 6.5.5, after servo is enabled, servo runs as position mode when mode switching signal is enabled; Servo runs as torque mode when mode switching signal is disabled.
  • Page 198: Torque Mode And Internal Register Position Dual Mode

    SD20-G Series 6.5.7 Torque Mode and Internal Register Position Dual Mode Internal register torque and position switching mode, external analog torque and internal register position switching mode show as figure 6.56, after servo is enabled, servo runs as internal register position mode when mode switching signal is enabled;...
  • Page 199: Position Pulse And Internal Register Position Dual Mode

    SD20-G Series Fig 6.5.6 Torque mode and internal register position mode sequence diagram 6.5.8 Position Pulse and Internal Register Position Dual Mode Position pulse command and internal register position switching mode shows as figure 6.5.7, after servo is enabled, servo runs as internal register mode when mode switching signal is enabled; Servo runs as position pulse mode when mode switching signal is disabled.
  • Page 200: Internal Speed And Analog Speed Dual Mode

    SD20-G Series 6.5.9 Internal Speed and Analog Speed Dual Mode Internal register speed and external analog speed switching mode shows as figure 6.5.8, after servo is enabled,servo runs as internal speed mode when internal speed selection signal is enabled; Servo runs as analog speed mode when internal speed selection signal is disabled.
  • Page 201 SD20-G Series disabled. In the running process of speed mode, servo swithes to torque mode when speed selection signal is diabled, andrun to setting torque according to decelereation time. In the running process of torque mode, servo switches to speed mode when speed selection signal is enabled, and run to target speed according to acceleration/deceleration time.
  • Page 202 SD20-G Series In the running process of speed mode, servo switches to torque mode when mode selection signal is enabled, and run to setting torque according to deceleration time. In the running process of torque mode, servo switches to speed mode when mode selection signal is disabled, and run to target speed according to acceleration/deceleration time.
  • Page 203: Auxiliary Function

    SD20-G Series enabled, servo runs as internal register torque mode when mode switching signal is enabled; Servo runs as analog torque mode when mode switching signal is disabled. In the running process of analog torque mode, servo switches to internal register torque mode when mode switching signal is enabled and run to internal setting torque according to acceleration/deceleration time.
  • Page 204: Setting Password

    SD20-G Series — — FPGA software version Speed Position Torque Mfr’s value So-46 Setting range Setting unit Effect — — Effective Immediate 6.6.2 Setting password Setting password speed position torque (Avoid modifying parameters by mistake) So-01 Setting range Setting unit Mfr’s value...
  • Page 205: Control Mode Of Fan

    SD20-G Series Given command pulse numbers AI1 voltage display low 5 digits. Given command pulse error AI2 voltage numbers Given speed Combined deviation Given torque Close-loop feedback Analog speed command display Gantry synchronous deviation Analog torque command display Reserved D18~D15 status display...
  • Page 206: Reverting To Mfr's Value

    SD20-G Series Mfr’s value Setting range Setting unit When enabled Effective Four-parameter 0000 Immediately Copy function Invalid Valid Copy motor parameters Invalid Valid Copy gain parameters Invalid Valid Copy notch filter parameters Invalid Valid 6.6.6 Reverting to Mfr’s Value When there is disorder with parameters and mfr’s value need to restored, set So-49=1.
  • Page 207 SD20-G Series Motor overload coefficient setting speed position torque Mfr’s Value So-37 Setting Range Setting Unit Effect 0~500 Immediate effect So-37=100 So-37>100 alarm time unit (S) Overload times Fig 6.6.1Motor overload curve and alarm time curve graph (2) Motor lock-rotor protection...
  • Page 208: Torque Unreached Protection Control

    SD20-G Series Effective Immediately 0: Invalid 1: Valid Temperature detection disconnection protection speed position torque Mfr’s value Setting range Setting unit When enabled So-51 Effective Immediately 0: Invalid 1: Valid 6.6.8 Torque unreached protection control When output torque can not reach given torque, keypad may display protection code ‘AL-23’ by setting following parameters.
  • Page 209 SD20-G Series Po438-Po445 Rising edge Valid High Po438-Po445 Falling edge Valid Normal DI terminal filter setting If there is interference in terminal signal, users can carry on filter processing by setting Po438~Po444. DI1 filter time speed position torque Mfr’s Value...
  • Page 210: Other Output Signals

    SD20-G Series 6.6.10 Cogging torque compensation Cogging torque is generated between permanent magnet and stator core when servo motor is not power ed on. Cogging torque will make motor have vibration and noise. SD20 series drive reduce the influence of cogging torque through software and improve torque performance of servo motor.
  • Page 211: Gravity Torque Compensation

    SD20-G Series Electric angle identification Speed Position Torque Mfr’s value Setting range Setting unit Effect 0~10 Effective Immediate So-25 When So-25=10, friction torque compemsation is enabled, servo motor shaft must be in no-load status. Note:In friction torque study process, servo drive will display TEST. Motor will run forward and reversely for 3 times, the three speed is from Po290, Po292 and Po294.
  • Page 212: Encoder Disconnection Protecion

    SD20-G Series falling. In actual use, please set Po239 according to field conditions or set it through the following scheme: (1) Check output torque by PC/PLC to set Po239. (2) Check output torque by monitor parameter to set Po239. 6.6.13 Input power phase-loss protection Servo drive will display AL-06 when there is power phase-loss, user can select the function by So-06.
  • Page 213 SD20-G Series SRDY+ SRDY SRDY Servo ready output SRDY- Output ON means that the servo drive is ready to receive signal, control circuit and main circuit power supply are normal, there is no servo alarms. Output OFF means that servo drive is not ready.
  • Page 214: High-Speed Counter Function

    SD20-G Series Speed Feedback Speed Limit Velocity V Time t Servo Run Servo Stop Speed limiting Fig 6.6.3 Output in speed limit under torque mode sketch map 6.7 High-Speed Counter Function 6.7.1 Overview High-speed counter is the specific function of SD20 series. It is convenient for user to set external command processing mode and control servo system.
  • Page 215 SD20-G Series 高速计数区域 PL100.D High-speed counting area PL101.B CNT value latched on the 上升沿锁存 CNT的数值 rising edge PL100.C 0 反向计数 Reverse counting 1 正向计数 Forward counting 0 计数器停止计数 Stop counting PL100.B 1 计数器开始计数 Start counting 上升沿CNT计数值清零 RESET Reset CNT count value PL100.A...
  • Page 216 SD20-G Series START High-speed Counter Function? Command Source Set PL121 Setting High-speed counter Set PL120 configuration Two Groups need? Set one group Set two groups based on demands Cycle correction & CAP function? Configuration Finish Fig 6.7.2 High-speed counter setting flow chart...
  • Page 217 SD20-G Series (1) User Parameter 1) Set command source of high-speed counting command source Internal command source speed position torque Mfr’s Value Setting Range Setting Unti Effect PL121 Immediate effect 0:Internal parameter PL100 1:Internal PLC 2) Configuration of high-speed counter...
  • Page 218 SD20-G Series High-speed counter Reset No Reset Reset High-speed counter enabled Disabled Enabled High-speed counter direction Reverse Forward CAP enabled Close CAP function Open CAP function High-speed counter 1 command source speed position torque Mfr’s Value Setting Range Setting Unit...
  • Page 219 SD20-G Series High-speed counter1 CAP value speed position torque Mfr’s Value PL108 Setting Range Setting Unit Effect -2147483647~+2147483647 Check High-speed counter 2 control command speed position torque Mfr’s Value Setting Range Setting Unit Effect Four- parameter 0000 Immediate effect High-speed counter Reset...
  • Page 220: Built-In Plc Function

    SD20-G Series High-speed counter 2 periodic value speed position torque Mfr’s Value PL114 Setting Range Setting Unit Effect -2147483647~+2147483647 Immediate effect High-speed counter 2 count value speed position torque Mfr’s Value PL116 Setting Range Setting Unit Effect -2147483647~+2147483647 Check High-speed counter2 CAP value...
  • Page 221: Servo Built-In Plc Software Access Area

    SD20-G Series 6.8.2 Servo built-in PLC Software Access Area SD20 built-in PLC can access So area, Po area, PL area and internal special area. Internal special area starts from P0 , end to R255, 256 words in total, bit addressing space is B0-B4095, the address of So area, Po area and PL area can be checked in servo user manual.
  • Page 222 SD20-G Series Addr Content New command can be received or 1:YES; not, before accomplishing 0:NO; command position mode on the previous position. Command position mode 1:relative position; operating mode 0:absolute position; Previous unfinished command 1:Remainder and new remainder process command together;...
  • Page 223 SD20-G Series Addr Content Addr Content Enabled Internal position 1 Alarm Reset Internal position 2 Fwd Torque Limit Internal position 3 Internal position Rev Torque Limit pause Internal position B100 Speed selection terminal 1 trigger Speed selection terminal 2 B101...
  • Page 224 SD20-G Series Command position acceleration time( enable when Po001=d □ 22) B192-B207 Command position deceleration time(enable when Po001=d □ 22) B208-B223 Command position accel/decel source(enable when Po001=d □ 22) B224-B239 Command speed setting(enable when Po001=d □ 22 B240-B271 Command torque setting(enable when Po001=d □ 22)
  • Page 225 SD20-G Series Addr. Content Addr. Content Low-speed timing Low-speed timing B416 B417 counter 1 output counter 2 output Low-speed timing Low-speed timing B418 B419 counter 3 output counter 4 output High-speed timing counter configuration The configuration signal refreshes one time every 0.1ms, the count increments corresponding to high-speed counter in this timingcycle will be latchedeverytime when timer OUT signal rising edge.
  • Page 226: Built - In Plc Program Design

    SD20-G Series Addr. Content Addr. Content B464 High-speed timer 1out B465 High-speed timer 2out B466 High-speed counter 1out B467 High-speed counter 2out High-speed timer 1 reset High-speed timer 2 reset B468 B469 confirmation confirmation High-speed counter 1 High-speed counter 2 reset...
  • Page 227: Arithmetic Instruction

    SD20-G Series register in R area; MOVWDP D-3 P101 Po101=-3 Immediate operand transfers to no.101 register in P area; No.10 register of R area transfers to no.101 register of MOVWRP R10 P101 Po101=R10 Parea; MOVWPP P1 Po002=Po001 Data transfer in P area;...
  • Page 228 SD20-G Series Immediate operand added to the value of R register, the result ADDWDR D1 R2 R3 R3=R2+D1 sends to no.3 registerin R area; The value of register in P area added to the value of register in ADDWPR P1 R2 R3 R3=R2+P1 R area, the result sends to no.3 register in R area;...
  • Page 229 SD20-G Series Instruction Format:[SUBW□□ Instruction Description: □□ SUBW is subtraction instruction, isinstruction execution register area; X is subtrahend; Y is minuend, Z is store result area; The result of instruction execution is Z=X-Y, which means that the value of register address in X area is subtracted to the value of register address in Y area, the result sends to Z register address;...
  • Page 230 SD20-G Series register in R area, the result sends to no.3 register in R area; Immediate operand subtracted to the value of P register, the SUBDDP D1 P2 R3 R3=D1-P2 result sends to no.3 register in R area; The value of R register subtracted to the value of P register, the...
  • Page 231 SD20-G Series Multiplying the values of R register and P register, get the 32-bit result, storing to no.3 and no.4 registers in R area MULWRP R1 P2 R3 R4 R3=R1*Po002 respectively, of which no.4 stores high 16-bit, no.3 stores low 16-bit.
  • Page 232 SD20-G Series Po001 get the 32-bit result, storing to no.3 and no.4 registers in R area respectively, of which no.6 and no.5 store to high 32-bit, no.4 and no.3 store to low 32-bit; Multiplying the value of 2 registers in P area, get R6 R5 R4 R3=Po002 32-bit result, storing to no.3 and no.4 registers in R...
  • Page 233 SD20-G Series 32-bit Division Instruction format:[DIVD□□ Instruction Description:DIVD is division instruction, □□is instruction execution register area, X is divisor, Y is dividend, Z is store result area; The result of instruction execution is Z=X/Y, which means that the value of register address in X area divided by the value of register address in Y area, the result sends to Z register address, of which integer of divisor stores to low-bit register address, remainder stores to high-bit register address;...
  • Page 234 SD20-G Series See details as table below: Syntax Expression Annotations The value saved in R2/R1 divided by the value of R4/R3, get Q7 scaling QDIVRR D7 R1 R3 R5 result, and save the result into R6/R5; Immediate operand divided by the value of R4/R3, get Q7 scaling result, and QDIVDR D7 L1 R3 R5 save the result into R6/R5;...
  • Page 235: Logic Instruction

    SD20-G Series address of R6/R5. Multiplying Q10 scaling value saved in P2/P1 and Q2 scaling value QMULPP D14 P1 D10 P3 saved in P4/P3, get Q14 scaling value, and save the result into the D2 R5 address of R6/R5. Integer Convert Scaling Value Instruction Format: [ITOQ□...
  • Page 236 SD20-G Series Similar as normally-open contact in PLC, if variable is TRUE, IF(B1) then contact is closed, and start to execute next instruction; Similar as normally-closed contact in PLC, if variable is TRUE, LDI B2 IF(!B2) then contact is open;...
  • Page 237 SD20-G Series B0 register address executes “xor” instruction with last XOR B0 ^(B0) instruction; Reversing the content of B1 register address, then executes“xor” XORI B1 ^(!B1) instruction with last instruction; (5) Logical Inversion Instruction Instruction Format: [INV X] Instruction Description: INV is logic instruction;X means register address;...
  • Page 238 SD20-G Series The content of P1 register shift right one bit, of SHRDP P1 D1 Po002 Po001= Po002 Po001>>1 which high-bit stores to P2 register, low-bit stores to P1 register; Table 8.1.19 16-bit Signed Left Shift Syntax Expression Running Result...
  • Page 239: Program Control Instruction

    SD20-G Series Syntax Expression Running Result Annotations RORWR R1 D1 R1=R1>>1 The content of R1 register shift right 1 bit; RORWP P1 D1 Po001=Po001>>1 The content of P1 register shift right 1 bit; Table 8.1.26 32-bit Rotate Rghit Shift Syntax Expression...
  • Page 240 SD20-G Series (2) Falling Edge Instruction Instruction Format: [PLF X Y] Instruction Description: PLF is instruction code, X stores the register address of last cyclic state, detect the falling edge of Y register address; When detecting the falling edge of Y register address, Y register=1 in this cycle, and X register saves last cyclic state.
  • Page 241 SD20-G Series Instruction Format: [ABSW□ X Y] Instruction Description: ABSW is instruction code, □ is instruction execution register area,X is target register address, Y is the register address that stores results, take the content of X register address as absolute value, and store the results into Y register;...
  • Page 242 SD20-G Series (11) Idle Instruction Instruction Format: [IDLE] Instruction Description: IDLE is instruction code, the program executes a dummy instruction; (12) Comparison Instruction The instruction is divided into 16-bit and 32-bit, can also be divided into signed number and unsigned...
  • Page 243 SD20-G Series Syntax Expression Annotations CMPWSRR R1 R2 B0 Compare R1 register value with R2 register value, send result into B0-B3 register. CMPWSDR D1 R2 B0 Compare immediate operand 1 with R2 register value, send result into B0-B3 register. CMPWSPR P1 R2 B0 Compare P1 register value with R2 register value, send result into B0-B3 register.
  • Page 244: Built-In Plc Parameters

    SD20-G Series Syntax Expression Annotations CMPDSRR R1 R2 B0 Compare R1 register value with R2 register value, send result into B0-B3 register. CMPDSDR D1 R2 B0 Compare immediate operand 1 with R2 register value, send result into B0-B3 register. CMPDSPR P1 R2 B0 Compare P1 register value with R2 register value, send result into B0-B3 register.
  • Page 245 SD20-G Series Timer Mode Reach set value and maintain Reach set value and continue to count Count Source 10ms 100ms PLC stores B449 Low-speed timer 3 Configuration Mfr’s Value Setting Range Setting Unit Effect Two-parameter Immediate Effect PL132 Timer Mode...
  • Page 246 SD20-G Series Low-speed timer 4 set value Mfr’s Value PL146 Setting Range Setting Unit Effect -2147483647~+2147483647 Immediate Effect Low-speed timer 1 current value Mfr’s Value PL150 Setting Range Setting Unit Effect — -2147483647~+2147483647 Immediate Effect Low-speed timer 2 current value Mfr’s Value...
  • Page 247: Built-In Pc/Plc Use And Application Example

    SD20-G Series Timer Mode Reach set value and maintain Reach set value and continue to count Count Source 0.1ms PLC stores B436 High-speed counter 2 set value Mfr’s Value PL166 Setting Range Setting Unit Effect -2147483647~+2147483647 Immediate Effect High-speed counter 2 current value Mfr’s Value...
  • Page 248 SD20-G Series Communication Setting window, as following: Fig 6.8.2 Communication setting window After finishing programing, user can complie program. If program is correct, below window will pop Fig 6.8.3 Program is correct If program is not correct, following window will pop up.
  • Page 249 SD20-G Series Fig 6.8.4 Program is not correct Press 【OK】, user can revise the error line. Fig 6.8.5 Compiling interface 【download】or After finishing programing, user can download program to servo drive by【File】 shortcut key F5. Download window will pop up, user can press 【download】key.
  • Page 250 SD20-G Series MOVWRP R29 P114 ##Send the result of R29 into Po114, it is convenient to check; JUMP R100 ##Echoing first sentence, maintain the program in running status; Case 2: 16-bit Subtraction Instruction MOVWDR D3 R100 ##Set the starting point of a program;...
  • Page 251 SD20-G Series AND B49 ## “AND” instruction for DI1 and DI2; OUT B64 ##Send the result into DO1; JUMP R100 ##Echoing with first sentence, maintain the program in running status; Case 7: Logical block and Instruction MOVWDR D3 R100 ##Set the starting point of a program;...
  • Page 252: Built-In Plc Communication Operation

    SD20-G Series 6.8.6 Built-in PLC Communication Operation 6.8.6.1 MODBUS Address MODBUS address of PL area start from 1000, see details for built-in PLC address as table below: Table 1: MODBUS address of built-in PLC area Address Content Range Remarks 1170 PLC start 0~1...
  • Page 253: Adjustments

    SD20-G Series VII. Adjustments 7.1 Summary Servo drive needs rapid, accurate drive motor to track PC/PLC or its internal setting instructions. To achieve the requirements, reasonable adjustments for servo gain must be made. The general process of gain adjustment shows as below:...
  • Page 254: Inertia Identification

    SD20-G Series 7.2 Inertia Identification After motor is connected to mechanical equipment or motor is installed in load simulator, servo drive needs to “study” the rotational inertia of current equipment before test running for normal production. It is convenient for user to adjust related parameters, and make the servo system run in proper rotational inertia.
  • Page 255 SD20-G Series current motor is larger than the setting value of Po015, if not, the distance can be increased properly. Estimate load inertia ratio(Po013) Preset Po013 as a bigger initial value; 400 of initial value is recommended as preset value, gradually increase till the displayed value in keypad can be updated with the actual value in the process of identification.
  • Page 256: Online Inertia Identification

    SD20-G Series 0:No start function 1:Offline fwd/rev direction identification. Immediate effect Lost if power’s off 2:Offline single direction identification. 3:Online auto inertia identification Illustration: (1) Po008=0:Not start rotational inertia identification function. (2) Po008=1:Offline fwd/rev direction identification, suit for the equipment with limit motion range.
  • Page 257 SD20-G Series ● Max rotary speed is higher than 200rpm in the motion process of servomotor. ● The acceleration/deceleration of servomotor is higher than 3000rpm/s. ● The machinery that rigid load is not easy to generate small vibration. ● Slow changing of load inertia ●...
  • Page 258: Gain Adjustment

    SD20-G Series 7.3 Gain Adjustment 7.3.1 Summary To optimize the responsiveness of servo drive, the setting servo gain needs to adjust. Servo gain needs to set for the combination of multi-parameter, they influence with each other, and therefore, the adjustment of servo gain must consider the relationship of each parameter.
  • Page 259: Automatic Gain Adjustment

    SD20-G Series 7.3.2 Automatic Gain Adjustment When automatic gain adjustment, use rigidity selection function (Po010), servo drive will generate one group of matching gain parameter to satisfy the requirements of rapidity and stability. Make sure obtain load inertia ratio correctly before using the parameter of auto gain adjustment.
  • Page 260 SD20-G Series 7193 1870 1000 7693 2000 1000 8193 2130 1000 8655 2250 1000 9617 2500 1000 10578 2750 1000 11540 3000 1000 12502 3250 1000 13463 3500 1000 14425 3750 1000 15387 4000 1000 16349 4250 1000 17310 4500...
  • Page 261: Manual Gain Adjustment

    SD20-G Series 7.3.3 Manual Gain Adjustment User can make fine adjustment manually when the automatic gain adjustment cannot reach the expected effect. Table 7.3.2Manual Gain Adjustment Parameter Table Parameter Name Parameter Name Po101 Speed loop proportional gain Po135 Gain 2 switch to gain 1 delay time...
  • Page 262 SD20-G Series Position loop feedforward gain Position Mfr’s Value Po303 Setting Range Setting Unit Effect 0~1000 Immediate effect Position filter time constant Position Mfr’s Value Po306 Setting Range Setting Unit Effect 1~10000 Immediate effect Position loop gain decides the responsiveness of position control.The bigger setting value is, the higher gain is, and rigidity is larger.
  • Page 263: Gain Switch

    SD20-G Series control is 4~6 times higher than that in position mode control, when position response frequency is higher than speed response frequency, the machinery could shake or position overshoot. When inertia ratio becomes larger, the speed response of control system goes down and becomes unstable. Generally increase the speed loop gain, but when the speed loop gain is overlarge, vibration occurs in running or stop status (abnormal sound), therefore, set the speed loop gain to 50%~80% of gain when vibration.
  • Page 264 SD20-G Series Gain switching setting Position Speed Mfr’s Value Po130 Setting Range Setting Unit Effect Immediate effect The setting of Po130 can realize the switchover between gain 1 and gain 2 according to different conditions. Gain 1 includes speed loop proportional gain 1(Po101), speed loop integral time 1(Po102) and position loop proportional gain 1(Po301), first speed loop filter time constant (Po105), torque filter time constant (Po214).
  • Page 265 SD20-G Series Position Speed Mfr’s Value Po131 Setting Range Setting Unit Effect 1~32000 0.1r/min Immediate effect Gain switching pulse Position Speed Mfr’s Value Po132 Setting Range Setting Unit Effect 1~32000 Immediate effect Positon loop gain switching time Position Speed Mfr’s Value...
  • Page 266: Vibration Inhibition

    SD20-G Series 7.4 Vibration Inhibition 7.4.1 Vibration Inhibition Function Mechanical system has certain resonant frequency, when improving servo gain, resonance may generate, which could notmake the gain improving continuously. There are 2 main schemes for vibration inhibition: Torque Instruction Filter(Po214 and Po215) Torque instruction decays in high frequency by setting filter time constant to realize vibrationinhibition.
  • Page 267: Low-Frequency Vibration Inhibition Function

    SD20-G Series Depth level Po219 Po222 Po225 Po228 7.4.2 Low-frequency Vibration Inhibition Function If the mechanical load end is long and heavy, end is likely to vibrate when emergency stop to influence positioning. The frequency of this kind of vibration is within 100Hz generally, which is lower than the mechanical resonance frequency introduced in chapter 7.4.1, so is called low-frequency resonance.
  • Page 268: List Of Parameters

    SD20-G Series VIII List of parameters Group Function code Group name shorten Descriptions range name Monitor function group L group Lo-00~Lo-35 Monitor servo present status. Utility function group S group So-00~So-62 Set the utility function. Po000~Po049 Parameters related to system.
  • Page 269 SD20-G Series Lo-05 Servo motor feedback rotation displays high 5 digits 10000 Lo-06 Servo motor feedback rotation displays low 5 digits Command unit Lo-07 Given command pulse numbers display high 5 digits Command unit Valid in position pulse mode. Lo-08...
  • Page 270 SD20-G Series Lo-16 The other output interface status display. None Open Closed ALO1 Open Closed ALO2 Open Closed ALO3 Open Closed Lo-17 DO4~DO1 status display None Open Closed Open Closed Open Closed Open Closed ℃ Lo-18 Current temperature display of servo drive...
  • Page 271: Utility Function Group (So-□□)

    SD20-G Series Multi-loop pulse low 5 digits of motor absolute Lo-26 Command unit position Lo-27 AI1 voltage 10mv Lo-28 AI2 voltage 10mv Lo-29 Mix error Command unit Lo-30 Full closed-loop feedback pulse numbers Lo-31 Gantry sync error pulse nmbers Lo-32...
  • Page 272 SD20-G Series details. Braking resistor value Speed Position Torque Mfr’s value So-04 Setting range Setting unit Effect Ω — 8~1000 Immediate effect So-04 is used to set external braking resistor value. External braking resistor can not be used with internal braking resistor at the same time.
  • Page 273 SD20-G Series Setting value Definition Setting value Definition Servo drive output current Rotating inertia display Servo drive bus voltage Output torque display Servo motor rotating speed Current gain group Servo motor feedback pulse Discharge time displays high 5 digits. Servo motor feedback pulse Encoder absolute position high displays low 5 digits.
  • Page 274 SD20-G Series Record of malfunction type for two but one Speed Position Torque Mfr’s value So-12 Setting range Setting unit Effect — — JOG speed Speed Position Torque Mfr’s value So-13 Setting range Setting unit Effect 0~30000 0.1r/min 1000 Immediate effect...
  • Page 275 SD20-G Series Please refer to 6.2.5 for details. Parameter setting Output analog contents Remarks Servodrive output current corresponding to So-19=0 Servo drive output current 10V is controlled by So-20. Servodrive max bus line voltage corresponding So-19=1 Servo drive bus voltage to 10V is controlled by So-21.
  • Page 276 SD20-G Series Fan temperature setting Speed Position Torque Mfr’s value So-27 Setting range Setting unit Effect 10~100 °C Effective Immediate Power-off brake Speed Position Torque Mfr’s value So-28 Setting range Setting unit Effect 0~1 Effective Immediate 0:invalid 1:valid Power-off brake time Speed Position Torque Mfr’s value...
  • Page 277 SD20-G Series Motor overload coefficient setting Speed Position Torque Mfr’s value So-37 Setting range Setting unit Effect 1~500 Effective Immediate Please refer to 6.6.2 for details. Under voltage protection of LI battery Speed Position Torque Mfr’s value So-38 Setting range...
  • Page 278 SD20-G Series Copy function Invalid Valid Copy motor parameter Invalid Valid Copy gain parameter Invalid Valid Copy notch filter parameter Invalid Valid FPGA software version Speed Position Torque Mfr’s value So-46 Setting range Setting unit Effect — — Effective Immediate Display 100 means version 1.00...
  • Page 279: Main Function Group (Po

    SD20-G Series 0: invalid 1:valid Encoder pulse filtering coefficient speed position torque So-52 Mfr’s value Setting range Setting unit Effect Effective Immediate 0~1000 When So-52≠0, the signal level which duration time is lower than (So-52/30MHz)s will be filtered. Torque unreached protection setting...
  • Page 280 SD20-G Series Setting of Control mode and rotary direction Speed Position Torque Po001 Mfr’s value Setting range Setting unit Effect Repower on Two-parameter Control mode setting Internal register speed mode Position pulse mode Internal register torque mode Analog speed mode...
  • Page 281 SD20-G Series Mfr’s value Setting range Setting unit Effect — Effective Immediate 1~65535 Encoder frequency-division number for each phase is set by Po003. Servo-on mode Speed Position Torque Mfr’s value Po004 Setting range Setting unit Effect Repower on 0~1 0: External terminal enabled, there must be input terminal, which is set SON-I function.
  • Page 282 SD20-G Series Rigidit speed loop speed Correspondi corresponding y rank positio proportion loop speed current torque ng servo mechanical Po010 n loop al gain 1 integr loop loop filter response connection gain Po101 filter bandwid time speed Po301 time1 time...
  • Page 283 SD20-G Series Rotary inertia ratio Speed Position Torque Po013 Mfr’s value Setting range Setting unit Effect Effective Immediate 1~30000 0.01 Please refer to 7.3 Motion trail accel/decel time Speed Position Torque Po014 Mfr’s value Setting range Setting unit Effect 1000...
  • Page 284 SD20-G Series Virtual Z output period Speed Position Torque Po019 Mfr’s value Setting range Setting unit Effect 10000 Effective Immediate 1~2147483647 One Z pulse is output per number of Po019 pusles, frequency-division source is determined by Po018. Internal enabled Speed Position Torque Po100 Mfr’s value...
  • Page 285 SD20-G Series Torque feedforward gain Speed Position Po107 Mfr’s value Setting range Setting unit Effect Effective Immediate 0~1000 In speed and position mode, torque feedforward signal multiplied by Po107 equals torque feedback gain. Increasing Po107 can improve response of dynamic speed command and response of position command and reduce position error at constant speed.
  • Page 286 SD20-G Series Internal speed given 3 Internal register speed Po115 Mfr’s value Setting range Setting unit Effect 3000 Effective Immediate 0~±32000 0.1r/min Range of target speed Speed Po117 Mfr’s value Setting range Setting unit Effect 0.1r/min Effective Immediate 0~30000 Rotation detection value...
  • Page 287 SD20-G Series 0.1r/min Effective Immediate 0~20000 Home/Mechanical origin searching at second speed Speed Position Torque Mfr’s value Po121 Setting range Setting unit Effect 0.1r/min Effective Immediate 0~10000 Home/Mechanical origin searching Speed Position Torque acceleration/deceleration time Po122 Mfr’s value Setting range...
  • Page 288 SD20-G Series Effective Immediate Parameter Content Po130=0 No switch, default to use gain 1 Po130=1 No switch, default to use gain 2 Po130=2 Switch to gain 2 Immediate when speed is higher than the setting value of Po131, if speed is lower than Po131, after delay the setting time of Po135(0.1ms), switch to gain 1.
  • Page 289 SD20-G Series of Po133. Mechanical origin single-turn value Speed Position Torque Po136 Mfr’s value Setting range Setting unit Effect Effective Immediate 0~2147483647 Mechanical origin multi-turn value Speed Position Torque Po138 Mfr’s value Setting range Setting unit Effect Effective Immediate 0~2147483647...
  • Page 290 SD20-G Series torque Note: 1. When Po202 is larger than servo Max toruqe, torque limit value is Max servo motor toruqe. 2. Too small a torque limit setting will result in insufficient torque. Torque limiting by analog Speed Position Torque Po203 Mfr’s value...
  • Page 291 SD20-G Series Po210=0, Use the value set in Po211 as the speed limit.. Po210=1, Inputs an analog voltage command as the servo motor speed limit value, this is valid for forward/reverse rotation. Po210=2, Use the lower value between max rotation speed Po002 and actual motor max rotation speed as the speed limit.
  • Page 292 SD20-G Series Forward/reverse run prohibited torque setting Torque Po216 Mfr’s value Setting range Setting unit Effect Effective Immediate 0: Actual limit torque is Po207 1:Torque limit is 0 Notch filter center frequency Speed Position Torque Po217 Mfr’s value Setting range...
  • Page 293 SD20-G Series Effective Immediate 0~30000 Notch filter depth Speed Position Torque Po225 Mfr’s value Setting range Setting unit Effect Effective Immediate 0~100 Notch filter center frequency Speed Position Torque Po226 Mfr’s value Setting range Setting unit Effect 2000 Effective Immediate...
  • Page 294 SD20-G Series Load torque compensation may raise rigidity to some degree. But if it is set too large, there will be noise. Filter time of load observer Speed Position Torque Po235 Mfr’s value Setting range Setting unit Effect 0.01ms 1000...
  • Page 295 SD20-G Series Pulse mode Direction+pulse Pulse+pulse Orthogonal pulse (quadruplicated frequency) Pulse input filter frequency 4MHz 2MHz 1MHz 500KHz 200KHz 150KHz 80KHz Pulse logic PULS negative logic SIGN negative logic PULS positive logic SIGN positive logic PULS negative logic SIGN positive logic...
  • Page 296 SD20-G Series Position loop filter time constant Position Po306 Mfr’s value Setting range Setting unit Effect Effective Immediate 1~10000 Position reach pulses range Position Po307 Mfr’s value Setting range Setting unit Effect — Effective Immediate 1~32000 Position pulse clear Position Po308 Mfr’s value...
  • Page 297 SD20-G Series Acceleration time of internal position 2 Internal register position Po312 Mfr’s value Setting range Setting unit Effect Effective Immediate 0~32000 Deceleration time of internal position 2 Internal register position Po313 Mfr’s value Setting range Setting unit Effect Effective Immediate...
  • Page 298 SD20-G Series Deceleration time of internal position 6 Internal register position Mfr’s value Po321 Setting range Setting unit Effect Effective Immediate 0~32000 Acceleration time of internal position 7 Internal register position Po322 Mfr’s value Setting range Setting unit Effect Effective Immediate...
  • Page 299 SD20-G Series 0.1r/min 1000 Effective Immediate 1~65535 Given speed of postion 4 Internal register position Po333 Mfr’s value Setting range Setting unit Effect 0.1r/min 1000 Effective Immediate 1~65535 Given speed of postion 5 Internal register position Po334 Mfr’s value Setting range...
  • Page 300 SD20-G Series The large the value, the smoother servo drive running, however, response may become slow. Internal position mode selection Internal register position Po341 Mfr’s value Setting range Setting unit Effect Effective Immediate 0:Incremental mode 1: Absolute mode Internal position trigger...
  • Page 301 SD20-G Series Circulation times of multistage internal position Position Po349 Mfr’s value Setting range Setting unit Effect Effective Immediate 0~30000 Please refer to 6.4. Given postion of postion 1 Internal register position Po350 Mfr’s value Setting range Setting unit Effect...
  • Page 302 SD20-G Series Interval time 1 Internal register position Po366 Mfr’s value Setting range Setting unit Effect Effective Immediate 0~32000 Interval time 2 Internal register position Po367 Mfr’s value Setting range Setting unit Effect Effective Immediate 0~32000 Interval time 3 Internal register position Po368 Mfr’s value...
  • Page 303 SD20-G Series Pulse from Low-speed pulse Pulse from high-speed counter1 Pulse from internal position Pulse from electronic cam Command source in internal register position mode Internal register position Po375 Mfr’s value Setting range Setting unit Effect 0100 Effective Immediate Four-parameter...
  • Page 304 SD20-G Series Effective Immediate 1~65535 Please refer to 6.4.12 Mixed error remove turns Position Po379 Mfr’s value Setting range Setting unit Effect Effective Immediate 0~32000 Please refer to 6.4.12 Mixed error alarm pulses Position Po380 Mfr’s value Setting range Setting unit...
  • Page 305 SD20-G Series Interrupt fixed length function Invalid Valid Interrupt fixed length release terminal Invalid Valid Max speed corresponding to analog voltage Speed Po400 Mfr’s value Setting range Setting unit Effect — r/min Effective Immediate 1~10000 Max torque corresponding to Analog torque Torque Mfr’s value...
  • Page 306 SD20-G Series DI2 terminal function Speed Position Torque Po408 Mfr’s value Setting range Setting unit Effect — Repower on Two-parameter DI3 terminal function Speed Position Torque Po409 Mfr’s value Setting range Setting unit Effect — Repower on Two-parameter DI4 terminal function...
  • Page 307 SD20-G Series DO3 terminal function Speed Position Torque Po423 Mfr’s value Setting range Setting unit Effect — Repower on Two-parameter DO4 terminal function Speed Position Torque Po424 Mfr’s value Setting range Setting unit Effect — Repower on Two-parameter ALM terminal function...
  • Page 308 SD20-G Series Corresponding speed of lower limit voltage Speed Position Torque Po431 Mfr’s value Setting range Setting unit Effect 0.01V -1000 Effective Immediate -1000~1000 Please refer to 6.2 Corresponding speed of upper limit voltage Speed Position Torque Po432 Mfr’s value...
  • Page 309 SD20-G Series DI1 filter time Speed Position Torque Po438 Mfr’s value Setting range Setting unit Effect Effective Immediate 0~30000 DI2 filter time Speed Position Torque Po439 Mfr’s value Setting range Setting unit Effect Effective Immediate 0~30000 DI3 filter time Speed Position Torque Po440 Mfr’s value...
  • Page 310: Motor Function Group(Ho

    SD20-G Series Communication mode Speed Position Torque Po501 Mfr’s value Setting range Setting unit Effect Effective Immediate Please refer to chapter 10 Stop bit Speed Position Torque Po502 Mfr’s value Setting range Setting unit Effect Effective Immediate 0: 1bit 1: 2 bits...
  • Page 311 SD20-G Series — 0.1A Effective Immediate 1~30000 Please set Ho001 according to servo motor nameplate. Max speed of servo motor Speed Position Torque Ho002 Mfr’s value Setting range Setting unit Effect — r/min Effective Immediate 0~32000 Please set Ho002 according to servo motor nameplate.
  • Page 312: A R (H 2□□~H 3

    SD20-G Series Motor rotary inertia Speed Position Torque Ho012 Mfr’s value Setting range Setting unit Effect Kg•m2 — 0~2147483647 Effective Immediate Encoder resolution Speed Position Torque Ho016 Mfr’s value Setting range Setting unit Effect — 0~2147483647 Effective Immediate Encoder installation angle Speed Position Torque Mfr’s value...
  • Page 313 SD20-G Series Current at second last time alarm Speed Position Torque Ho304 Mfr’s value Setting range Setting unit Effect — — — — Motor speed at second last time alarm Speed Position Torque Ho305 Mfr’s value Setting range Setting unit Effect —...
  • Page 314 SD20-G Series — — — — Alarm code at sixth last time Speed Position Torque Ho315 Mfr’s value Setting range Setting unit Effect — — — — Alarm code at seventh last time Speed Position Torque Ho316 Mfr’s value Setting range...
  • Page 315: High-Speed Counter Parameters(Pl

    SD20-G Series Mfr’s value Setting range Setting unit Effect — — — — Alarm time at sixth last time Speed Position Torque Ho325 Mfr’s value Setting range Setting unit Effect — — — — Alarm time at seventh last time...
  • Page 316 SD20-G Series Electronic cam Close electronic cam Open electronic cam Command resource High counter 1 High counter 2 Internal position Time Trigger resource Trigger immediately DI2 trigger CAP0 Trigger CAP1 Trigger Detachment condition No detachment DI control Out of range...
  • Page 317 SD20-G Series 0~2147483647 Immediate effect E-cam Points Speed Position Torque Mfr’s Value Setting Range Setting Unit Effect PL015 5~720 Immediate effect E-cam Pages Speed Position Torque Mfr’s Value PL016 Setting Range Setting Unit Effect 0~14 Immediate effect E-cam Table Refresh Speed Position Torque Mfr’s Value...
  • Page 318 SD20-G Series Slave axis variation Speed Position Torque Mfr’s Value Setting Range Setting Unit Effect PL025 -2147483647~+2147483647 Immediate effect High-speed counter 1 control command Speed Position Torque Mfr’s Value Setting Range Setting Unit Effect Four-parameter 0010 Immediate effect High-speed counter Reset...
  • Page 319 SD20-G Series High-speed counter 1 periodic value speed position torque Mfr’s Value PL104 Setting Range Setting Unit Effect -2147483647~+2147483647 Immediate effect High-speed counter 1 count value speed position torque Mfr’s Value PL106 Setting Range Setting Unit Effect -2147483647~+2147483647 Check High-speed counter1 CAP value...
  • Page 320 SD20-G Series Reset source setting Software CAP command source setting Software Command source setting Low-speed pulse High-speed pulse Duty-cycle correction mode Close Start High-speed counter 2 compare register speed position torque Mfr’s Value PL112 Setting Range Setting Unit Effect -2147483647~+2147483647...
  • Page 321 SD20-G Series High - speed pulse type Direction+ Pulse Dipulse Orthogonal pulse High-speed pulse filtering 8MHz 4MHz 2MHz 1MHz 500KHz 200KHz 150KHz High-speed pulse direction HPULS anti-logic, HSIGN anti-logic HPULS positive logic, HSIGN positive logic HPULS anti-logic, HSIGN positive logic...
  • Page 322 SD20-G Series Mfr’s Value Setting Range Setting Unti Effect — — Low-speed Timer 1 Configuration Mfr’s Value Setting Range Setting Unit Effect Two-parameter Immediate Effect Timer Mode 定时器模式 PL130 Reach set value and maintain Reach set value and continue to count...
  • Page 323 SD20-G Series Timer Mode Reach set value and maintain Reach set value and continue to count Count Source 10ms 100ms PLC stores B 451 Low-speed timer 1 set value Mfr’s Value Setting Range Setting Unit Effect PL140 -2147483647~+2147483647 Immediate Effect Low-speed timer 2 set value Mfr’s Value...
  • Page 324 SD20-G Series Timer Mode Reach set value and maintain Reach set value and continue to count Count Source 0.1ms PLC stores B432 High-speed counter 1 set value Mfr’s Value Setting Range Setting Unit Effect PL161 -2147483647~+2147483647 Immediate Effect High-speed counter 1 current value Mfr’s Value...
  • Page 325 SD20-G Series PLC Reset Mfr’s Value Setting Range Setting Unit Effect PL174 Immediate Effect 0: Not reset PLC function; 1: Reset PLC function; Download of E-cam and PLC data Mfr’s Value Setting Range Setting Unit Effect Immediate Effect PL199 When user refreshes cam table with PLC, if communication mode is adopted, user must set 1 to address 1199, input cam table data, set cam table points (more than 5) to address 1015and set 1 to address 1017.
  • Page 326 SD20-G Series 8.1.7 Function setting of DI and DO Programmable terminals include DI1~DI8. (The related parameters are from Po407 to Po414). Input contactor type is used to select common-open or common-close interface type. For example, when some malfunction occurs, servo drive must stop safely, which needs the common-close switch.
  • Page 327 SD20 series Setting Signal Function Name Instruction value type Level Servo on. Switch servo to “servo ready” Servo on SON-I trigger A number of faults (Alarms) can be Edge Alarm reset AL-RST cleared by activating AL-RST. trigger Servo drive output torque when motor is Level Forward torque limit F-CL...
  • Page 328 SD20 series The present position command is hold Internal register position when internal register position hold is Edge HOLD hold valid. If this command is invalid, keep trigger executing the present position command. Internal register position Edge CTRG Internal register position triggered mode triggered trigger Edge...
  • Page 329 SD20 series Function Name S- RDY Servo ready Servo on SON-O Rotation Detection TGON At speed reached V- CMP At position reached P- CMP At torque limit T-LT Servo alarm activated Electromagnetic brake control BRAKE Overload prealarm OL-W At speed limit S-LT Reserved PER- W...
  • Page 330: Ⅸmaintenance And Inspection

    SD20 series Internal position CTRGING is activated when internal position trigger is CTRGING triggered applied. Position deviation too PER-W PER-W is activated when position deviation is too large. large HOME is activated when the servo drive has detected that Homing completed HOME the HOME sensor has been detected.
  • Page 331 SD20 series to chapter 4. No position command is input 1. Whether DI function 2 ( forward torque limit) or DI function 3 (reverse torque limit) is used. 2. Whether DI function 11 (common pulse prohibited) is used. 3. Check whether Po374 is set correctly. Encoder cable fault Check whether Lo-04 value is correct when motor rotates 1...
  • Page 332: Speed Control Mode

    SD20-G Series 9.1.2 Speed control mode Start-up process Description Cause Countermeasures Rewire 1. Control terminal is Connect L1C/L2C power cable to disconnected socket separately. Connect control Check the voltage between L1C and Digital tube is not on powe(L1C,L2C) 2.Control power...
  • Page 333: Torque Control Mode

    SD20-G Series speed. If servo drive runs safely, please Rotation inertia ratio Motor shaft vibrates recognize inertia again according to of load (Po013) is side to side. chapter 7.3. too high. Adjust gain according chapter 7. 9.1.3 Torque control mode...
  • Page 334: Alarm Code And Possible Cause

    SD20-G Series 1. Check whether U/V/W wiring is correct. 2. If wiring is correct, study motor angle, referring to chapter 7.2. Rotation is not Gain is set Adjust gain according to chapter 7. steady at low speed. improperly. Rotation is not...
  • Page 335: Alarm Display Table And Trouble Shooting

    SD20-G Series times continuously. —— —— AL-23 AL-24 Battery undervoltage Encoder battery undervoltage AL-25 Motor overheat Motor temperature is too high. Disconnected AL-26 temperature detection Temperature detection circuit is disconnected circuit AL-27 Overtravel Overtravel alarm AL-28 E2ROM error E2ROM error...
  • Page 336 SD20-G Series Input voltage is too high Check input voltage. Prolong deceleration time AL-02 Overvoltage Add external braking resistor Load rotary inertia too large Reduce load. Increase drive capacity. Check input voltage. AL-03 Undervoltage Input voltage is low Check whether main circuit is powered on.
  • Page 337 SD20-G Series Improper installation of drive, such as poor ventilation or wrong install Install as required. direction. Too heavy load Discharge energy is too large Phase loss with input phase Check input power supply. AL-13 Input phase loss Use single-phase power supply.
  • Page 338 SD20-G Series Temperature Temperature detection circuit is AL-26 detection circuit is Check the cable. disconnected disconnected Setting range of FWD/FEV for AL-27 Overtravel Overtravel alarm overtravel protection again. AL-28 ROM error E2ROM error Contact with Parker. Electric leakage of drive power...
  • Page 339: Other Malfunctions

    SD20-G Series 9.3.1 Other malfunctions Malfunction Cause Measure Main circuit power supply is Check the wiring. disconnected. Control circuit power supply is Check the wiring. disconnected. The wiring of I/O terminal is wrong. Check the wiring. The wiring of servo motor or encoder Check the wiring.
  • Page 340: Communication

    SD20-G Series X Communication 10.1 Communication Servo drive provides RS485 communication. The description below shows the communication wiring and communication protocol. 10.1.1 MODBUS General Modbus is a serial and asynchronous communication protocol. Modbus protocol is a general language applied to PLC and other controlling units. This protocol has defined an information structure which can be identified and used by a controlling unit regardless of whatever network they are transmitted.
  • Page 341 SD20-G Series The LRC is calculated by adding together successive 8–bit bytes of the message, discarding any carries, and then two’s complementing the result. A procedure for generating an LRC is: 1. Add all bytes in the message, excluding the starting ‘colon’ and ending CRLF. Add them into an 8–bit field, so that carries will be discarded.
  • Page 342 SD20-G Series The address of S group parameters equals to parameter numbers +800 Ex3:communication address of So-02: The parameter numbers of So-02 is 02, so the address of So-02 is 802, the hex format is 0x0322. The address of high bit is 0x03 and the address of low bit is 0x22.
  • Page 343 SD20-G Series Ex4:The address of servo motor feedback pulse numbers From the above table, the address of servo motor feedback pulse includes high 16 bits (Communication address is 906, the hex form is 0x038A) and low 16 bits(Communication address is 907, the hex form is 0x038B). Read the data from the address and process them.
  • Page 344: Parameter Related To Communication

    SD20-G Series Servo1 write register Po109 5(Unit: ms) CRC check Slave response: Register Register Address Function Write status Hi Write status Lo CRC Lo CRC Hi Address Hi Address Lo Servo 1 write register Po109 5(Unit: ms) CRC check (2) In RTU mode, read acc time (Po109) of No. 01 servo drive.
  • Page 345 SD20-G Series PC/PLC Servo drive Servo drive Servo drive Servo drive Fig 10-1-1 Connecting diagram of field bus RS485 Half-duplex communication mode is adopted for servodrive. Daisy chain structure is adopted by 485 Bus-line. Do not use 'spur' lines or a star configuration. Reflect signals which are produced by spur lines or star configuration will interfere in 485 communications.
  • Page 346: Appendix

    SD20-G Series XI Appendix 11.1 Encoder cable selection 11.1.1 Absolute encoder cable Encoder cable with round plug(applicable for 80 flange and below 80 flange servo motor) Name Model Length Cable appearance DB9-4BS02-3M-0.2 Battery Encoder DB9-4BS02-5M-0.2 cable (for DB9-4BS02-10M-0.2 function DB9-4GS02-3M-0.2...
  • Page 347: Incremental Encoder Cable

    SD20-G Series 11.1.2 Incremental encoder cable Encoder cable with DB plug(applicable for 80 flange and below 80 flange servo motor ) Name Model Length Cable appearance Encoder 15-core Servo drive DB15-15GP02-3M-0.2 side side encoder DB15-15GP02-5M-0.2 cable (for DB15-15GP02-10M-0.2 8-core DB15-8GP02-3M-0.2 encoder DB15-8GP02-5M-0.2...
  • Page 348: Resolver Encoder Cable

    SD20-G Series 11.1.3 Resolver encoder cable Encoder cable with Laviationplug (applicable for 180 flange and below 180 flange motor) Name Model Length Cable appearance DB9-8GR01-3M-0.2 Encoder cable (for DB9-8GR01-5M-0.2 DB9-8GR01-10M-0.2 Encoder cable with I aviationplug (applicable for servo motor with base No. E, F)
  • Page 349: Power Cable

    SD20-G Series 11.3 Power cable Applicable for 80 flange and below 80 flange servo motor Name Model Length Appearance Power DB4-4PO-*M- *M means cable diameter length Applicable for 110, 130 and 180 flange servo motor HK4A-4PO-*M – diameter Power HK4B-4PO-*M –...
  • Page 350: Other Cable

    SD20-G Series 11.4 Other cable Communication cable Name Model Length Appearance Communication 1394-2TR-*M *M means None cable -0.3 length L±20mm Industry Ethernet SC-ECT-**M- Actual 标签 shield cable lenght Motor brake cable Name Model Length Appearance Brake HK3-2BR-*M-0.75 Actual length cable Brake DB2-2BR-*M-0.75...
  • Page 351 SD20-G Series ============ ============ SMS series SMSB-102*33*** SD20-G102S2M2 SD20-G102T2M2 DB4-4PO-*M-1.0 2500r/min SMMA-801*35** HK4A-4PO-*M-0.75-B SD20-G102S2M2 SD20-G102T2M2 SMMA-851*37** HK4A-4PO-*M-1.0-B SMMA-102*37** SD20-G122S2M2 SD20-G122T2M2 HK4A-4PO-*M-1.0-B SMMA-122*35** SMM series SMMA-132*37** 2000r/min SD20-G182S2M2 SD20-G182T2M2 HK4A-4PO-*M-1.5-B SMMA-152*37** — SMMA-202*37** SD20-G302T2M3 HK4A-4PO-*M-2.5 — SMMA-352*3A** SD20-G452T2M3 HK4B-4PO-*M-4.0 — SMMA-452*3A** SD20-G552T2M4 HK4B-4PO-*M-4.0...
  • Page 352 SD20-G Series SMSA-182*65*** HK4A-4PO-*M-1.5 SMSA-232*67*** SD20-G302T3M3 HK4A-4PO-*M-1.5 SMSA-302*67*** SD20-G452T3M3 HK4A-4PO-*M-2.5 ============ ============ SMMA-801*65** SMMA-851*67** SD20-G102T3M2 SMMA-102*67** HK4A-4PO-*M-0.75-H SMMA-122*65** SD20-G152T3M2 SMMA-132*67** SMMA-152*67** HK4A-4PO-*M-1.0 SD20-G202T3M3 MM series SMMA-202*67** HK4A-4PO-*M-1.5 2000r/min SMMA-312*67** HK4A-4PO-*M-2.5 SMMA-352*6A** SD20-G452T3M3 HK4B-4PO-*M-2.5 SMMA-452*6A** HK4B-4PO-*M-2.5 SMMA-602*6A** SD20-G752T3MM4 HK4B-4PO-*M-4.0 SMMA-752*6A** SMMA-103*6A** SD20-G153T3M4 HK4B-4PO-*M-6.0...
  • Page 353 SD20-G Series SM15-0290*6FE*FL SD20-G303T3M6 ZL4-4PO-*M-16.0 SM15-0350*6FE*FL SD20-G373T3M6 ZL4-4PO-*M-25.0 ============ ============ SMLA-372*6A*** SD20-G452T3M3 HK4B-4PO-*M-2.5 SML series SMLA-102*67*** SD20-G152T3M2 HK4B-4PO-*M-0.75-B 1000r/min SMLA-292*6A*** SD20-G302T3M3 HK4B-4PO-*M-1.5 ============ ============ SM17-0092*6EE*FL SD20-G113T3MM4 ZL4-4PO-*M-6.0 SM17-0110*6EE*FL SD20-G113T3MM4 ZL4-4PO-*M-6.0 SM17-0140*6EE*FL SD20-G153T3M4 ZL4-4PO-*M-6.0 SM17-0180*6EE*FL SD20-G183T3M5 ZL4-4PO-*M-10.0 SMM series SM17-0210*6FE*FL SD20-G223T3M5 ZL4-4PO-*M-10.0...

Table of Contents

Save PDF
