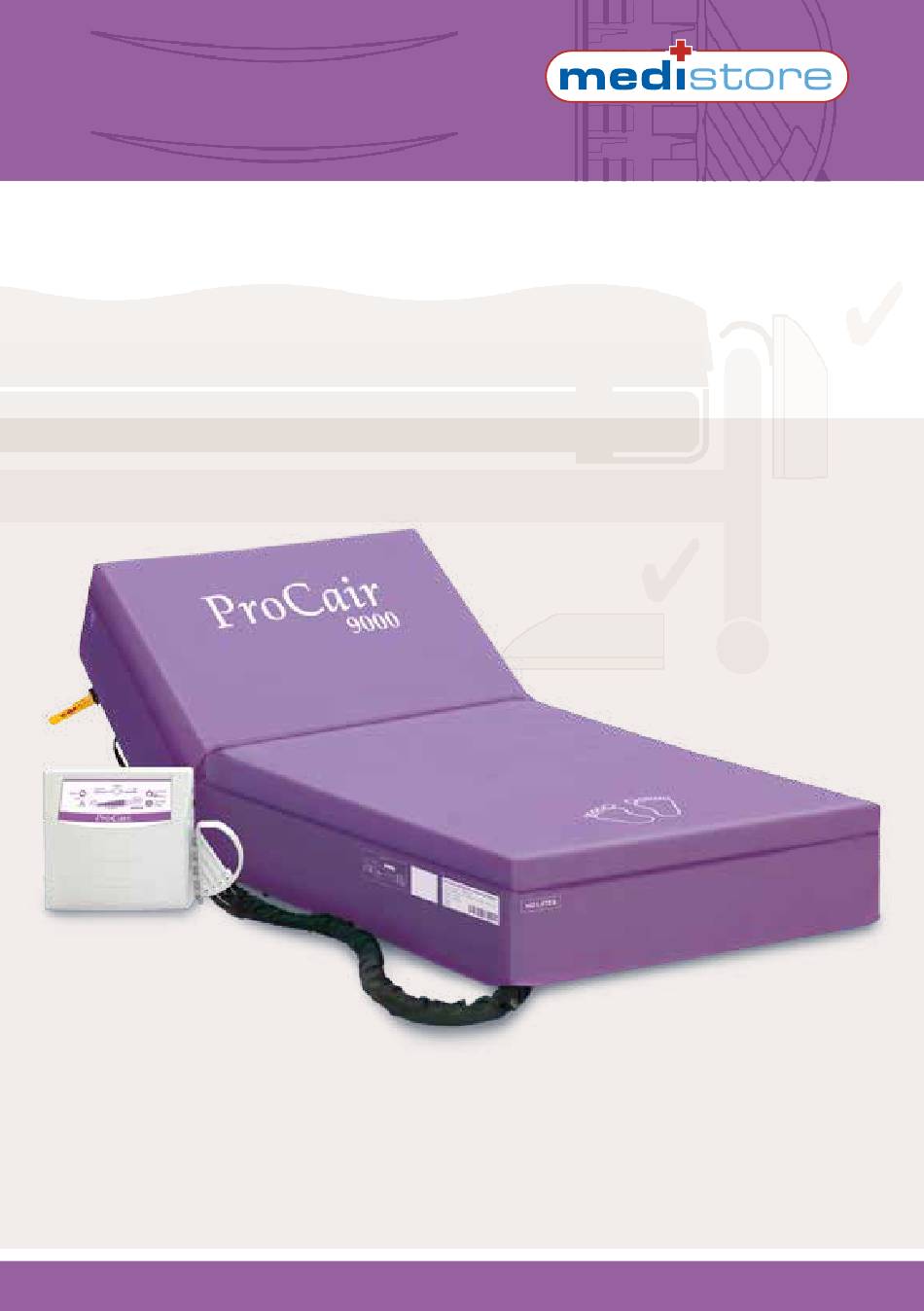

- Page 1 User Guide ProCair 9000...
- Page 2 Important Notice Before operating this medical equipment, it is important to read this User Guide and understand the operating instructions and safety precautions. Failure to do so could result in patient injury and/or damage to the product.
-
Page 3: Table Of Contents
Page Safety Precautions Product Overview Installation Unpacking & Inspection System Installation Control Unit Installation Operation Control Unit Panel Mattress Function Alarm Functions Removal & Transport Function Troubleshooting 13-14 Cleaning 15-16 Maintenance Technical Specifications Warranty Information... -
Page 4: Safety Precautions
180kg. are isolated from the internal metal motor components with protecting insulation. Only the control unit and mattress combination as recommended by Medistore should be used, otherwise the correct function of this product cannot be guaranteed. - Page 5 Control Unit. If parts need to be between the system and other devices repaired, circuit diagrams and parts may occur. If interference is suspected, lists can be provided by Medistore to move equipment from sensitive devices or suitably qualified service personnel. contact Medistore.
-
Page 6: Product Overview
Product Overview ProCair 9000 Alternating Mattress System The ProCair 9000 is an Alternating Mattress The mattress comprises 19 high density System providing pressure application and cells including 3 static head cells to provide static ‘pillow’ support for optimum relief for patients with, or vulnerable to, pressure ulcers. -
Page 7: Installation
Inspect all items for any damage that may have occurred during shipping. Any damage or missing components should be reported to a Medistore Service Centre as soon as possible. The box should contain the following items: •... -
Page 8: System Installation
Installation System Installation Control Unit Installation a) Position Control Unit by its hanging The following describes the procedures to hooks over foot board of the bed or on follow upon setting up the system for the the floor under the bed. first time. -
Page 9: Operation
Operation Control Unit Panel Power Button Pressure Arrow Buttons Press arrows to increase or decrease Turns system power on and off. pressure setting. Eight pressure settings Alarm LED from soft to hard are available (18mmHg This red light flashes, and an audible alarm to 60mmHg;... -
Page 10: Mattress Function
Mattress Function Control Unit Panel Establishing Pressure (supine patient) Establishing Pressure (inclined patient) With the patient lying supine (on their When moving the patient to a sitting or back, face upwards), use the Pressure more upright position, pressure may need arrows to cycle through the eight available to be increased (by approximately 20%) pressure settings. -
Page 11: Alarm Functions
Operation Alarm Function The red Alarm LED flashes, and an audible alert sounds, to indicate the Control Unit or mattress pressure has failed. The LED will remain illuminated until appropriate pressure is restored. The audible alarm can be silenced by pressing the Alarm Mute button. -
Page 12: Removal & Transport Function
Operation Transport Function Dismantle System 1. Before patient transport, press the Static 1. Press the power button for at least Mode button to switch modes and wait three seconds to switch off the Control at least five minutes for cells to inflate Unit. -
Page 13: Troubleshooting
Troubleshooting Alarm/Fault Display Solution Control Unit does not The Control 1. Check the Control Unit is connected operate; no display Unit may not be to mains power outlet with the lights illuminate attached to a correct voltage. power source or 2. - Page 14 2. To check effective system performance, on the Mattress patient’s weight conduct a “bottoming out” test as described on page 10. NOTE: If the problem is not resolved, please contact an authorised Medistore Service Centre.
-
Page 15: Cleaning
Cleaning Mattress Base Infection Control and routine cleaning must be carried out in accordance with Once deflated, disconnect air cells from the your local Infection Control Policy. base by unfastening the press studs at each It is suggested that all disinfection be end. - Page 16 Cleaning Top Cover Control Unit NOTE: Refer to the top cover wash tag for WARNING: Ensure the Control Unit cleaning instructions. is disconnected from the mains electricity supply before cleaning. If there are visible signs of body fluids or other substances, the top cover should be WARNING: Do not spray disinfectant washed.
-
Page 17: Maintenance
Failure to keep the filters clean will result in system downtime and increase repair costs. It is recommended that the air filter be replaced annually. Air filters are available from a Medistore Service Centre. Preventative inspection and calibration is not required. -
Page 18: Technical Specifications
Technical Specifications Control System Digital micro controller Cycle Time 12 minutes (fixed) Supply Voltage 220-240V AC 50/60Hz 0.2A for Control Unit Fuse Rating Mains Plug – 3AMP, Control Unit – 1AMP (x2) Power Rating 12VA Standards CE, UL No of Cells 19 cell in cells (including 3 static head cells and 5 narrow heel cells) Cell Height 280mm... -
Page 19: Warranty Information
Medistore Service Centre by prepaid You are also entitled to have the goods transportation. Medistore will return the repaired or replaced if the goods fail to be repaired/replaced product at no charge. - Page 20 Medistore has a policy of continuous product improvement and reserves the right to amend specifications presented in this brochure. This product carries the CE mark in accordance with EC Directive on Medical Devices (93142lE EC) . Control Number 95CG. Classified by Underwriter’s Laboratory Inc.
