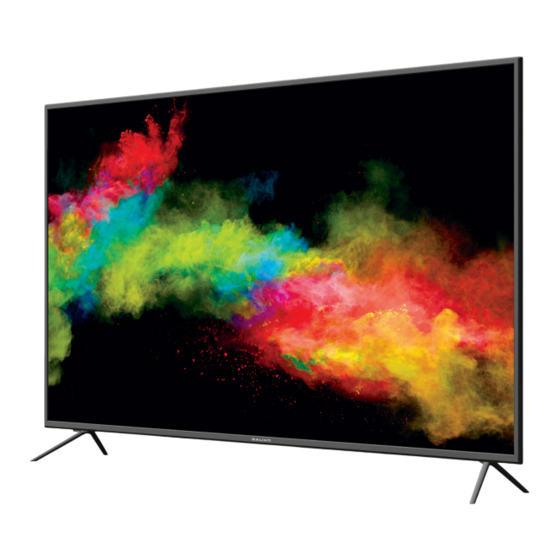

- Page 1 65" MODEL: ATV65UHDS-0120 User Manual...
-
Page 2: Welcome
Welcome Congratulations on your purchase! This manual tells you all you need to know about using your new Bauhn product. ® Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN are manufactured to the highest standards of performance and safety and, ®... -
Page 3: Table Of Contents
Contents Welcome On-Screen Set Up TV Guide Unpack and Prepare Networking Recording What's in the box Connecting to a Wireless Network Recording Live TV Connecting to a Wired Network Scheduled recording Important Tips TV Setting Menus Playback Attaching the stand Wall-mounting the TV Pause Live TV (Time-shift) Picture... -
Page 4: Unpack And Prepare
Unpack and Prepare What's in the box Before installing your new TV, check you have everything needed. See the inside flap of the box for how to handle the TV without damaging it! In the box you will find: A. 65" 4K Ultra HD Smart TV B. -
Page 5: Important Tips
Important Tips • Place the TV on a level surface. • Place the TV away from any source that may generate heat or vibrations. • Make sure there is enough space around vents for airflow. • The remote control works up to 5 metres away from the TV. •... -
Page 6: Attaching The Stand
Attaching the stand • This TV is heavy! We recommend asking someone to help you lift it. • Unplug the TV from the power outlet before installing or removing the stand. • Only touch the frame, not the screen. • It is highly recommended to use safety straps for securing the TV. -
Page 7: Wall-Mounting The Tv
Wall-mounting the TV • Unplug the TV from the power outlet before wall-mounting. • Contact a professional for assistance with wall-mounting the TV. Required 400mm • VESA Mounting Bracket • 4 x M6*10mm screws (or longer as required) The TV comes with holes on the back panel for use with wall-mounting brackets (bracket not included). -
Page 8: Connect To Power
Connect to power Don't forget to plug in the TV to the power outlet. Leave the power switched off until installation is finished. Make sure the TV is switched off at the power outlet until you have finished connecting your cables. Connect your antenna Free-to-air TV in HD (High Definition) High Definition (HD) channels... -
Page 9: Controls And Connections
Controls and Connections Get to know your TV On/Standby light and Remote sensor Buttons on the TV 1. SOURCE : Change the input source. 2. MENU : Enter the settings menu. 3. VOL + : Increase the volume level. 4. VOL - : Decrease the volume level. 5. -
Page 10: Ports On The Tv
Ports on the TV Headphone Connect to your headphones, amplifier or audio device, using an Jack AUX cable (not included). HDMI Use a high-speed All-digital connection between the TV and any HDMI device. HDMI cable for Supports Ultra HD. Requires a HDMI cable (not included). best picture and sound quality. - Page 11 AUDIO OUT • PVR record and pause live TV • Play your stored media files (supported file codecs and extensions may vary) • Software updates Optical Connect an external digital audio device. Use an Optical cable (not included) to connect the unit with an amplifier, soundbar or Audio Out other audio decoding device for digital audio signal output.
- Page 12 PC Audio Connect audio from your PC via a 3.5mm connector Antenna Connect your antenna for live TV. (Antenna cable not included.) 12 | CONTROLS AND CONNECTIONS...
-
Page 13: Remote Control
Remote Control Setup Insert two AAA size batteries according to the polarity markings (+/-) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into AAA size place. batteries included Precautions When Using Batteries • Do not use old and new batteries together. •... -
Page 14: Using The Remote Control
Using the Remote Control To use the remote, point it towards the remote sensor at the front of the TV. The remote will not operate if its path is blocked. The remote has a range of up to about 5 metres from Remote Hints and Tips the TV at an angle of up to 30 degrees to either side of the sensor, as illustrated below. -
Page 15: Standard Remote
Standard Remote MENU SOURCE RETURN EXIT GUIDE TIMESHIFT / FAV /RECORD INDEX PIC SIZE P. MODE SUBTITLE S.MODE (MUTE): Mute or restore sound. (ON): Switch the TV to On or Standby. : Return to the previous viewing NUMBER BUTTONS: Key in a TV channel. - Page 16 MENU SOURCE INFO: Display program information. RETURN EXIT RETURN EXIT GUIDE TIMESHIFT / FAV /RECORD INDEX PIC SIZE P. MODE SUBTITLE S.MODE : Turn the volume up or down. : Go to the next or previous channel. GUIDE GUIDE: Launch the TV Guide (DTV) . : Skip backwards.
-
Page 17: Easy Remote
Easy Remote POWER: Switch the TV to On or SOURCE: Switch the input Standby. source. : Press the UP/ OK: Confirm your selection. DOWN/LEFT/RIGHT buttons to navigate. EXIT: Exit/Quit the current BACK: Return to previous screen. screen/menu. MENU MENU: Access streaming apps, TV settings. -
Page 18: On-Screen Set Up
On-Screen Set Up Make sure equipment is properly connected (as shown on pages 10-12) before connecting the TV to power. Make sure the TV is plugged in at the power socket and switched on. Press the (ON) button to turn on the TV. On/Standby light is WHITE in standby mode. -
Page 19: Networking
Networking You can set up your TV so that it can access the Internet through your home network using a wired or wireless connection. Connecting to a Wireless Network • Press the MENU button on the remote to select TV Settings >... -
Page 20: Connecting To A Wired Network
Connecting to a Wired Network • Connect an ethernet cable to the LAN port on the back of the TV. • Press the MENU button on your remote to select TV Settings > Network. • Change the Network Type setting to 'Wired'. The TV will automatically pick up the network setting from the modem and connect to the network. -
Page 21: Tv Setting Menus
TV Setting Menus MENU MENU SOURCE RETURN EXIT Menu Navigation Buttons GUIDE Once you have programmed TIMESHIFT / FAV any settings, the unit will /RECORD INDEX PIC SIZE P. MODE SUBTITLE S.MODE Press the MENU button and select TV Settings. See the retain them in its memory until you change then, even guide below for all the other buttons you'll need to use... - Page 22 General Time Channel • OSD Language • Sleep Timer • Auto Scan • Subtitle Language • Auto Standby • DTV Manual Tuning • Audio Language • OSD Active Time • Program Edit • Hearing Impaired • Time Zone • Channel List •...
-
Page 23: Picture
Picture Picture Mode Dynamic : Enhanced brightness with lower contrast, colour depth and edges. Dynamic Standard : Default picture settings suitable for a dark room. Dynamic Movie : Settings are optimised for viewing movies. Dynamic : Adjust settings to best suit your viewing environment and contentent. User User Mode settings Option... - Page 24 Colour Temp Adjust the on-screen colour temperature. Cool Normal Warm Advanced Options Option Description Backlight Adjust the screen brightness by adjusting the backlight. The closer to 100, the brighter the screen. Noise Reduces screen noise/static. Reduction Open HDR Select high-dynamic range setting (TV must be receiving an HDR signal for this setting to be active.) 24 | TV SETTING MENUS...
-
Page 25: Audio
Audio Option Description Sound Mode Movie Adjust the bass and treble. When changed, the sound mode will turn to Bass/Treble 'User' Automatically. Balance Adjust the audio output between the left and right speakers. Want to set up your TV Auto Volume Set auto volume to on or off. -
Page 26: General
General Option Description OSD Language Select the system language Subtitle Language Select your preferred subtitle language. (Available for digital channels, depending on the program). Audio Language Select your preferred audio language. (Available for digital channels, depending on the program.) Hearing Impaired Turn on/off hearing impaired function Transparency Turn on/off transparency effect of OSD menu... - Page 27 Option Description PVR Option See page 28 for more information. Restore the system settings to the factory default. When the restore is complete, the TV will enter Restore Default standby mode. Software Update (USB) Update the TV software via USB. View End User License View the usage license.
-
Page 28: Pvr Option
PVR Option To make changes to PVR (Personal Video Recording), ensure your USB drive is inserted into the TV. Check the troubleshooting section if you're having problems setting up your USB device. Option Description Recorded list Display and play recorded programs. Record Schedule a recording. - Page 29 INLINK (HDMI CEC) Setup This feature allows for your TV and your connected HDMI device to be controlled by one remote control. It also means you can turn them both on or off simultaneously. Press the SOURCE button on the unit or remote control to select the HDMI input source. Option Description HMDI CEC...
-
Page 30: Time
Time Option Description Select the desired Auto Sleep (Standby) duration. Sleep Timer Options: 5 min 10 min 15 min 30 min 45 min 60 min 90 min 120min 180min 240min Turn On/Off to set the TV to sleep after selected time of no user operation. Auto Standby Options: Select desired OSD menu active time. -
Page 31: Network
Network Option Description Select the network type (Wired/Wireless). • Wired: • Auto connect - select to connect directly • Manual connect - select to connect manually by entering the network address manually Network Type • Disable connect - disable current network connection. •... -
Page 32: Lock
Lock 0000 Factory Password: Enter the factory password '0000' using the number buttons on the remote and select 'OK' on-screen. If you changed your 8899 Master Password: password but forgot it, you can still use the master password. Option Description Change Input a new password using the number buttons on the remote and confirm to set the new Password... -
Page 33: Channel
Channel Option Description Automatically tunes all available free-to-air TV channels. Adjust settings (default settings are set for Auto Scan Australia), select 'Auto scan' and press OK. DTV Manual Tuning Manually select the broadcast channel frequency and tune digital TV channels. Program Edit See the next page for more information. - Page 34 Program Edit Press MENU then select Channel > Program Edit then use the buttons to highlight a channel. Option Description Delete Press RED to delete the highlighted channel. Skip BLUE to skip the highlighted channel. Press Favourite / FAV to add the channel to the Favourites list. Press Menu Press MENU to go back.
-
Page 35: App Settings
App Settings Under this setting, you can configure the settings of the Netflix app. Option Description Deactivate App Select to deactivate the Netflix app. Terminate App Select to Terminate Netflix app. Netflix Version Current version of Netflix app. TV SETTING MENUS | 35... -
Page 36: High Dynamic Range (Hdr)
High Dynamic Range (HDR) About the HDR feature High Dynamic Range (HDR) is a picture feature on your TV that attempts to mimic the way visuals are perceived in real life by the human eye. By using this feature, the TV can reproduce greater dynamic range of luminosity by capturing and then combining several different exposures. -
Page 37: Smart Tv
Smart TV Smart TV Applications • Netflix • Zeasn app store Before you start using apps, your TV must be • YouTube • NetRange app portal connected to the internet. • Twitter • Foxxum app portal The speed of your internet connection determines •... -
Page 38: Screencast
Screencast App Portals The Screencast feature enables you to echo the display NetRange, Foxxum and Zeasn app portals gives from a compatible Android device like a smartphone you access to number of other content and service or tablet on the TV screen by connecting your mobile providers. -
Page 39: Tv Guide
TV Guide (Free to air TV) TV Guide Functions Function Remote Button MENU SOURCE Select a channel or program RETURN EXIT GUIDE GUIDE Schedule selected program for recording TIMESHIFT / FAV INDEX /RECORD PIC SIZE P. MODE SUBTITLE S.MODE Display program guide of previous day GREEN To access the TV guide, press Display program guide for next day. -
Page 40: Recording
Recording Important Tips: • Back-up your personal data before plugging in your USB to the TV. We do not assume liability for any loss of data due to misuse or malfunction. • You cannot change channels while in recording mode. •... -
Page 41: Recording Live Tv
Recording, scheduled recording and pause Before you can record with this TV live TV functions only work in DTV mode (including time-shift recording), you must (free-to-air). insert your USB storage device into the USB port. Recording Live TV Start Recording SOURCE MENU SOURCE... -
Page 42: Pause Live Tv (Time-Shift)
Pause Live TV (Time-shift) Recording, scheduled recording and pause live TV functions only work in DTV mode Temporarily pause the live TV signal, then resume (free-to-air). playback at your convenience. Before you can record with this TV (including time-shift recording), you must SOURCE insert your USB storage device into the USB port. -
Page 43: Usb Mode
USB Mode Set up Insert your USB into a USB port on the TV. Press the SOURCE button to select 'Media' mode. Function Remote Button Navigate media categories and file system Start playing your media You can only play Photos in the Photo category, Music in the Music category and so on. - Page 44 Playback Functions Playback of different media types have different controls. Photo Music Function Remote Button Function Remote Button Navigate to a folder or file Navigate to a folder or file Select files Select tracks / TIMESHIFT / TIMESHIFT Display a photo Play a track Fast forward or rewind the track Return to file list...
- Page 45 Video Function Remote Button Navigate to a folder or file Select files Play a video Pause the video Resume playback / FAV Stop playback Only supported file types will be displayed. See the specifications Fast forward or rewind the track table for supported file types.
-
Page 46: Troubleshooting
Troubleshooting If you experience problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution Check the power outlet is turned on. If using a multi-outlet, check if it is working properly. To check whether a power strip is working properly, plug the No power TV’s power plug directly to a wall outlet and observe its operation. - Page 47 Problem Solution Ensure that the equipment is connected properly. Ensure that the input setting for the TV is correct. Ensure audio settings on the external device are set correctly. Ensure the volume is not muted. If it is, press the MUTE button to restore the sound. Sound issues If earphones are connected, unplug them.
- Page 48 Problems relating to your USB media storage device Problem Solution First, refer to the instructions describing how to use USB devices with this TV. If the problem still occurs, your USB device may not be compatible. My TV does not This TV has been tested with the majority of Flash memory-based devices and hard disks (media players with recognise my HDD) on the market;...
-
Page 49: Specifications
Specifications Active screen size With stand: 1460.4 x 163.9cm (diagonal) 249.6 x 916.2 mm Dimensions (W x D x H) Resolution 3840 x 2160 Without stand: 1460.4 x 95.5 x 840.8 mm Aspect ratio 16:9 18.2kg Refresh rate 60Hz Weight Gross 22.5kg HDMI version... -
Page 50: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can National Television and Computer Recycling be a suffocation hazard for babies and young children, please ensure all packaging materials are out of Scheme reach and are safely disposed of. -
Page 51: Warranty Information
Warranty Information Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 52: Repair And Refurbished Goods Or Parts Notice
Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. - Page 53 Notes...
- Page 54 Notes...
- Page 55 Notes...
- Page 56 Online support Visit www.bauhn.com.au for software updates to keep your TV up-to-date, as well as the latest User Manual for information on the updated features. Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.
