Gtech SW02 Operating Manual

Gtech SW02 Operating Manual

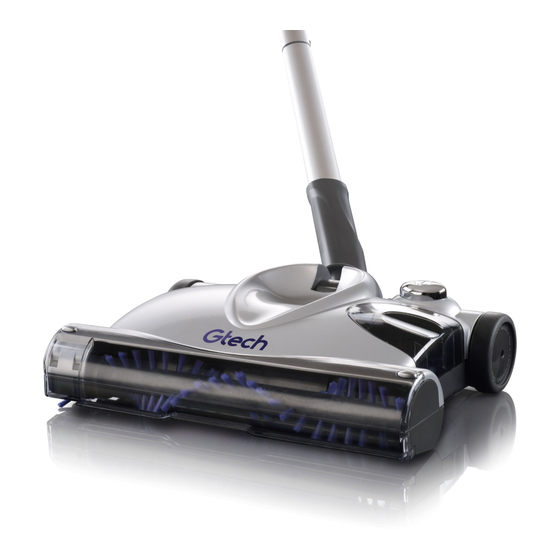

Advanced power sweeper
Hide thumbs Also See for SW02:
Table of Contents

Advertisement

Quick Links

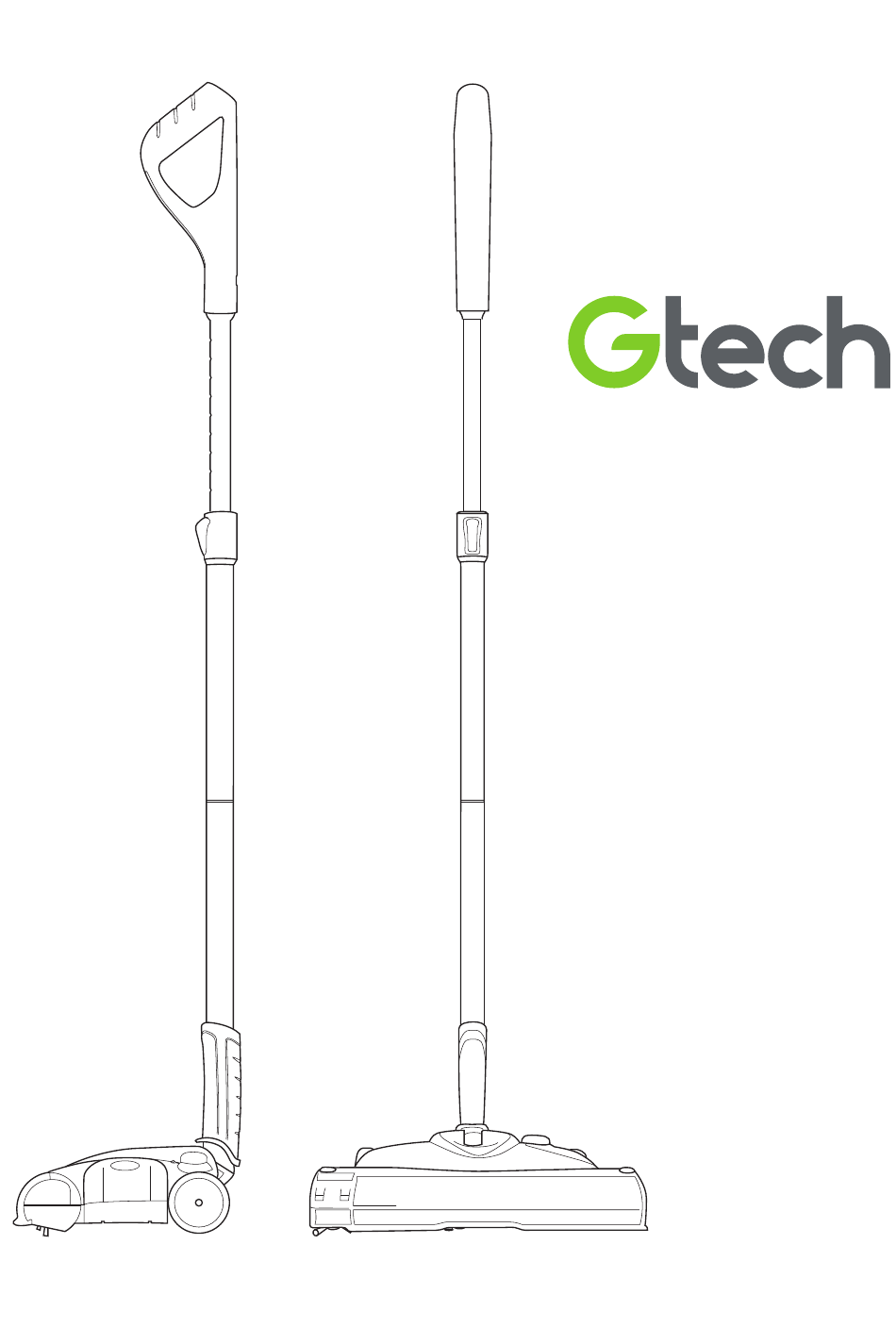

Advanced Power Sweeper
Model number:
SW02
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gtech SW02

Summary of Contents for Gtech SW02

  • Page 1 Advanced Power Sweeper Model number: SW02 OPERATING MANUAL...

  • Page 2: Important Safeguards

    • Store indoors in a dry place out of the • Only use batteries and chargers reach of children. supplied by Gtech. • Always use responsibly. This • Never modify the charger in any way. appliance can be used by children •...

  • Page 3: Battery Safety

    • Only use replacement parts • Leaks from the battery cells can or accessories provided or occur under extreme conditions. Do recommended by Gtech. not touch any liquid that leaks from the battery. If the liquid gets on your Intended use: skin wash immediately with soap and water.

  • Page 4: What's In The Box

    Thank you for choosing a Gtech Power Sweeper “I started Gtech to create sensible, easy to use products, which do a great job. Your opinion is important to us and we will use your feedback to improve our products and services and let other people know what it’s like to be part of the Gtech family.”...
  • Page 5 Assembly To assemble the lower handle Pull out the locking clip. Place the lower handle into the socket. Push the locking clip back into place. Push handle forward. The three parts of the telescopic handle also click into place. The duster can be clipped onto the back of the handle.

  • Page 6: Operation

    Operation Normal operation Push flat over the floor. Deeper cleaning Lift the handle to lower the brush bar into the carpet. Pull back the handle and press the “on” button with your foot. Emptying the bin Remove the dust tray by pinching the Tip the dirt into the bin.
  • Page 7 Removing telescopic handle and using duster Remove the telescopic handle by pressing The telescopic handle can now be the button at the front of the lower handle attached to the duster. and pulling the tube out. Handheld use and stair cleaning Remove the visor by unclipping the bottom Use on stairs, starting at the top and outer edges at the same time then lifting off.
  • Page 8 Recharging Plug in the charger and connect the jack to The light will show red while the sweeper is the socket at the rear of the sweeper. A full charging and green while it is running. recharge will take 16 hours. Do not charge for longer than 24 hours.

  • Page 9: Changing The Battery

    Changing the battery Locate the battery cover. Lift off the battery cover. Lift out the battery pack. Straighten up the Slide plastic cover off the BLACK cable cable connectors so you can handle them connector ONLY. Leave cover on the red more easily.
  • Page 10 Gently press down fixing latch on cable Repeat the previous two steps for the connector. RED wire. Re-attach the wires to the new battery, Put the battery back into the compartment attaching the BLACK wire first. Fold the and replace the cover. terminals back along the battery.

  • Page 11: Product Care

    Product Care Your Gtech sweeper doesn’t need much maintenance: empty the dust tray, remove hair and fibre from the brush bar and edge wheel and charge the battery. Wipe it with a dry cloth if it gets dirty, including in and around the bin. Never wash it with liquid or run it under a tap.
  • Page 12 XXXXX~ WWYY~ 00~0000000 If you purchased directly from Gtech your details are already registered and your 1 year warranty will start automatically. If you purchased from an authorised Gtech retailer, please register your warranty within 3 months and you will need to provide proof of purchase to support any claim against your warranty.
  • Page 13 SW02 TECHNICAL SPECIFICATION Unit operating cycle up to 60 mins with full battery (dependent on floor surface) Battery type NiMH Battery voltage 7.2V Charging period for fully 16 hours discharged battery Battery charger output 12V DC, 150mA Battery charger model...
  • Page 14 Notes...
  • Page 15 Notes...
  • Page 16 Grey Technology Limited Brindley Road, Warndon, Worcester WR4 9FB email: support@gtech.co.uk telephone: 01905 345891 www.gtech.co.uk...
