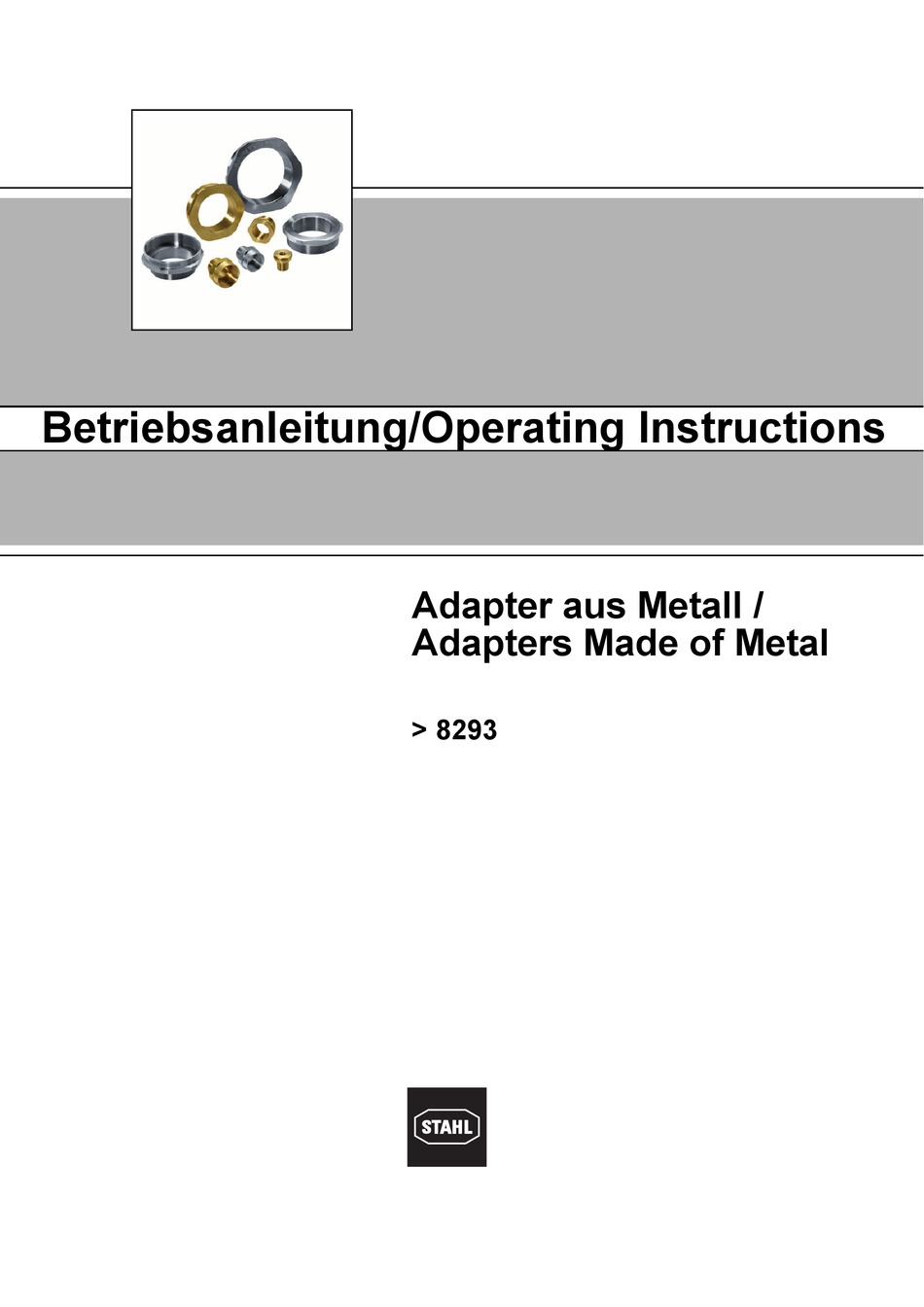

  • Page 1 Betriebsanleitung/Operating Instructions Adapter aus Metall / Adapters Made of Metal > 8293...
  • Page 3 Betriebsanleitung Adapter aus Metall > 8293...
  • Page 4: Table Of Contents

    Transport und Lagerung ..................3 Technische Daten ....................4 Maßangaben ......................4 Installation ......................8 Instandhaltung, Wartung und Störbeseitigung ............9 Entsorgung ......................9 EG-Konformitätserklärung ...................10 Allgemeine Angaben 2.1 Hersteller R. STAHL Schaltgeräte GmbH Am Bahnhof 30 74638 Waldenburg Germany Tel: +49 7942 943-0 Fax: +49 7942 943-4333 Internet: www.stahl-ex.com...
  • Page 5: Allgemeine Sicherheitshinweise

    Falls Dichtungen verwendet werden, dürfen diese nicht beschädigt sein Normenkonformität Die relevanten Normen sind in der EG-Konformitätserklärung bzw. IECEx Certificate of Conformity aufgelistet. Diese Dokumente können auf unserer Homepage  www.stahl-ex.com im Download-Bereich abgerufen werden. Transport und Lagerung  Transport und Lagerung sind nur in Originalverpackung gestattet.
  • Page 6: Technische Daten

    Abmessungen [mm] Bestellnummer Gewicht gewinde  gewinde Bau- form Erweiterung  M16 x 1,5 M20 x 1,5 Form B 8293/11-BS- 0,050 metrisch / metrisch OM16x1,5-IM20x1,5 Messing M20 x 1,5 M25 x 1,5 Form B 8293/11-BS- 0,075 OM20x1,5-IM25x1,5 M25 x 1,5 M32 x 1,5 Form B 8293/11-BS-...
  • Page 7 Abmessungen [mm] Bestellnummer Gewicht gewinde  gewinde Bau- form Erweiterung  M16 x 1,5 M20 x 1,5 Form B 8293/11-SS- 0,050 metrisch / metrisch OM16x1,5-IM20x1,5 Edelstahl M20 x 1,5 M25 x 1,5 Form B 8293/11-SS- 0,075 OM20x1,5-IM25x1,5 M25 x 1,5 M32 x 1,5 Form B 8293/11-SS-...
  • Page 8 Abmessungen [mm] Bestellnummer Gewicht gewinde  gewinde Bau- form Reduzierung  M20 x 1,5 M16 x 1,5 Form A 8293/11-SS- 0,075 metrisch / metrisch OM20x1,5-IM16x1,5 Edelstahl M25 x 1,5 M20 x 1,5 Form A 8293/11-SS- 0,075 OM25x1,5-IM20x1,5 M32 x 1,5 M25 x 1,5 Form A 8293/11-SS-...
  • Page 9 Abmessungen [mm] Bestellnummer Gewicht gewinde  gewinde Bau- form Adapter  M20 x 1,5 3/8" NPT Form A 8293/11-BN- 0,075 metrisch / NPT  OM20x1,5-I3/8"NPT Messing vernickelt M25 x 1,5 1/2" NPT Form A 8293/11-BN- 0,075 OM25x1,5-I1/2"NPT M25 x 1,5 3/4"...
  • Page 10: Installation

    Innen- Abmessungen [mm] Bestellnummer Gewicht gewinde  gewinde Bau- form Adapter  3/8" NPT M10 x 1,5 Form A 8293/11-BN- 0,150 NPT / metrisch  OM3/8"NPTxM10x1,5 Messing vernickelt 1/2" NPT M10 x 1,5 Form A 8293/11-BN- 0,100 OM1/2"NPTxM10x1,5 3/4" NPT M16 x 1,5 Form A 8293/11-BN-...
  • Page 11: Instandhaltung, Wartung Und Störbeseitigung

    Bei der Wartung sind folgende Punkte zu überprüfen Fester Sitz der Komponenten Einhaltung der zulässigen Temperaturen Beschädigungen am Gewinde und ggf. an der Dichtung 11 Entsorgung Die nationalen Vorschriften zur Abfallbeseitigung sind zu beachten. 211324 / 829360300010 Adapter aus Metall 2013-11-19·BA00·III·de·02 8293...
  • Page 12 Operating Instructions Adapters Made of Metal > 8293...
  • Page 13: R. Stahl Schaltgeräte Gmbh Am Bahnhof

    Technical Data ......................4 Dimensions ......................4 Installation ......................8 Maintenance, Overhaul and Repair ...............9 Disposal .........................9 EC Declaration Of Conformity ................10 General Information 2.1 Manufacturer R. STAHL Schaltgeräte GmbH Am Bahnhof 30 74638 Waldenburg Germany Tel: +49 7942 943-0 Fax: +49 7942 943-4333 Internet: www.stahl-ex.com...
  • Page 14: General Safety Instructions

    Conformity to Standards The relevant standards are listed in the EC Declaration of Conformity or IECEx Certificate of Conformity. These documents are available for download in the download area on the internet page www.stahl-ex.com. Transport and Storage  Transport and storage are only permitted in the original packing.
  • Page 15: Technical Data

    Female Dimensions [mm] Order number Weight thread O thread I Type Extension  M16 x 1.5 M20 x 1.5 Form B 8293/11-BS-OM16x1,5- 0.050 metric / metric  IM20x1,5 brass M20 x 1.5 M25 x 1.5 Form B 8293/11-BS-OM20x1,5- 0.075 IM25x1,5 M25 x 1.5...
  • Page 16 Dimensions [mm] Order number Weight thread O thread I Type Extension  M16 x 1.5 M20 x 1.5 Form B 8293/11-SS-OM16x1,5- 0.050 metric / metric  IM20x1,5 stainless steel M20 x 1.5 M25 x 1.5 Form B 8293/11-SS-OM20x1,5- 0.075 IM25x1,5 M25 x 1.5...
  • Page 17 Dimensions [mm] Order number Weight thread O thread I Type Reduction  M20 x 1.5 M16 x 1.5 Form A 8293/11-SS-OM20x1,5- 0.075 metric / metric  IM16x1,5 stainless steel M25 x 1.5 M20 x 1.5 Form A 8293/11-SS-OM25x1,5- 0.075 IM20x1,5 M32 x 1.5...
  • Page 18 Female Dimensions [mm] Order number Weight thread O thread I Type Adapter  M20 x 1.5 3/8" NPT Form A 8293/11-BN-OM20x1,5- 0.075 metric / NPT I3/8"NPT nickel-plated brass M25 x 1.5 1/2" NPT Form A 8293/11-BN-OM25x1,5- 0.075 I1/2"NPT M25 x 1.5 3/4"...
  • Page 19: Installation

    Female Dimensions [mm] Order number Weight thread O thread I Type Adapter  3/8" NPT M10 x 1.5 Form A 8293/11-BN- 0.150 NPT / metric  OM3/8"NPTxM10x1,5 nickel-plated brass 1/2" NPT M10 x 1.5 Form A 8293/11-BN- 0.100 OM1/2"NPTxM10x1,5 3/4" NPT M16 x 1.5...
  • Page 20: Maintenance, Overhaul And Repair

    Components are held securely in place Compliance with the permissible temperatures Damage to the thread and to the seal, if seals are used 11 Disposal The national waste disposal regulations have to be observed. 211324 / 829360300010 Adapters Made of Metal 2013-11-19·BA00·III·en·02 8293...
