Miele professional G 7881 Installation And In-Service Manual

Dental washer-disinfector
Hide thumbs Also See for G 7881:

Advertisement

Quick Links

Download this manual
G 7881 Dental Washer-Disinfector
Installation and In-Service Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the G 7881 and is the answer not in the manual?

Questions and answers

Related Manuals for Miele professional G 7881

Summary of Contents for Miele professional G 7881

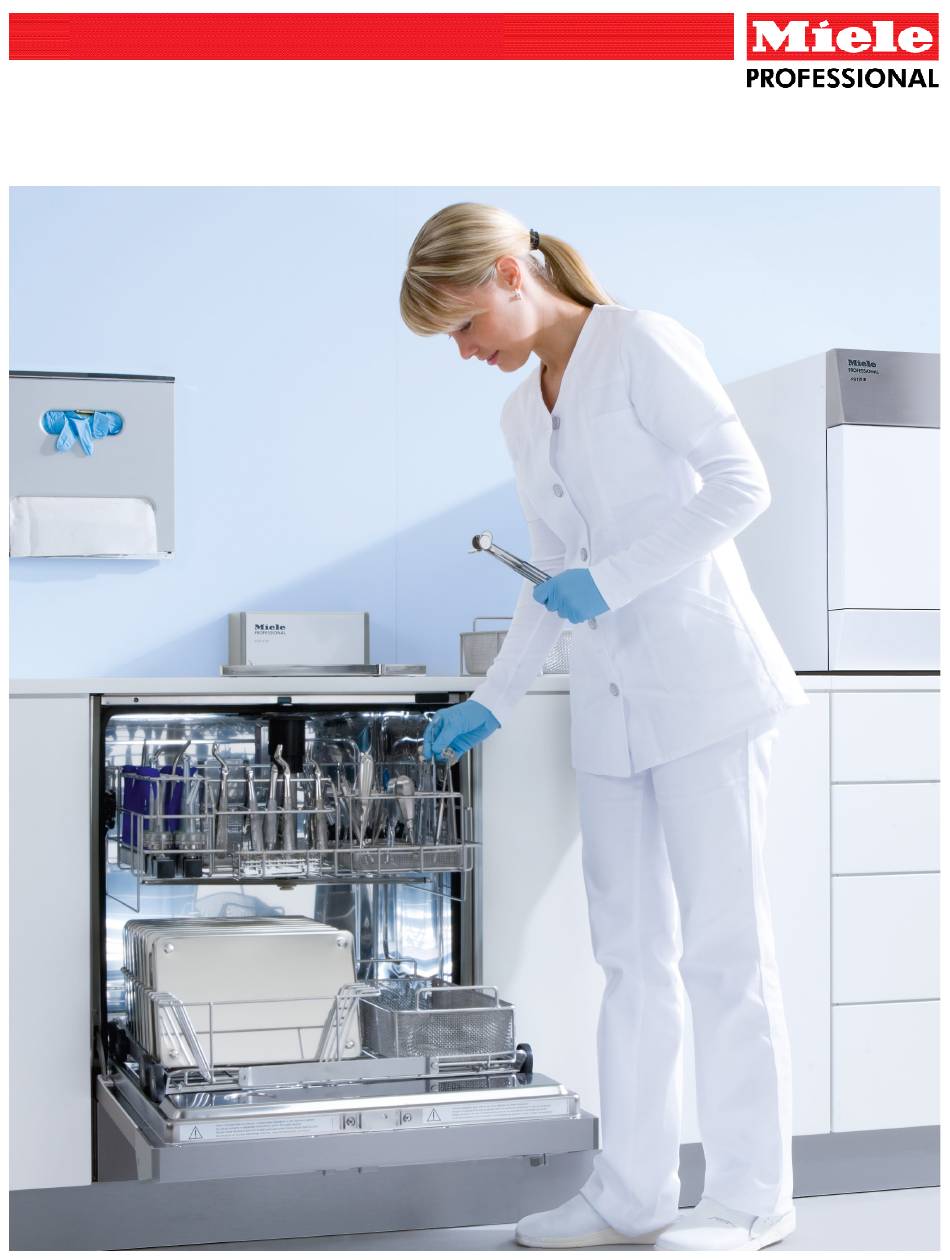

  • Page 1 G 7881 Dental Washer-Disinfector Installation and In-Service Manual...
  • Page 2 Basic Commissioning Checklist for the Miele G 7881 Dental-Disinfector The purpose of this checklist is to verify the critical systems of the Miele G 7881 dental disinfector meet the factory specifications. Contact Miele Professional Technical Support with any questions: ProService@mieleusa.com or 1-800-991-9380.
  • Page 3 • The drainage system is fitted with a non-return valve which prevents dirty water from flowing back into the machine via the drain hose. • G 7881 has 1 drain hose. • The drainage system must be able to take a minimum drainage flow of 4 gal/min.
  • Page 4 All plumbing work must be performed by licensed professionals and adhere to all applicable local, state, and federal codes. The Miele G 7881 Washer-Disinfector is equipped with a DI Water intake (marked “H O PUR”) hose and a cold tap water intake (marked with a blue sticker) hose.
  • Page 5 • Secure machine to counter-top, making certain to not pinch hoses. • Freestanding use mounting kit if local codes dictate securing the G 7881 washer (Item #00253531) 12. The door should be adjusted so that it does not fall open or swing shut.
  • Page 6 You can determine water hardness with a simple test kit or by contacting your local water author-ity. Note: the G 7881 is factory-set at a water hardness level of 19 gr/gal (340 pp). If your water hardness level is not the default, the G 7881 must be reprogrammed to the proper setting.
  • Page 7 14. Programming the water hardness and activate softener if necessary (continued) Filling the salt reservoir • Remove the bottom basket from the machine. • Unscrew the salt reservoir cap. Before filling the salt reservoir with reactivation salt for the first time, fill it with water till water spills out. •...
  • Page 8 7. Press the “Display” button as many times as necessary until the display shows the number “110. ” Once the number “110” has been reached the G 7881 will activate the DI Intake Valve for the final rinse. 8. Press the “Start”...
  • Page 9 Setting & priming the optional DOS K 60/1 detergent dispensing system As a separate option, the G 7881 can be fitted with the DOS K 60/1 liquid detergent dispenser. The DOS unit is supplied with its own installation instruction manual. Follow the installation instructions for connecting the dispensing option.
  • Page 10 The setting will now be stored in memory. The display will go out. • After priming, run the “Rinse” program to remove detergent residues from the wash chamber. Note: If detergent is run empty, reference page 38 of the G 7881 operating instructions for priming the DOS 1 detergent system.
  • Page 11 18. Add the Rinse Aid (ProCare Dent 40) Rinse aid is necessary to ensure water does not cling to and leave marks on items during the drying phase. It also enables items to dry faster after they have been washed. Rinse aid is poured into the storage reservoir and a pre- set amount is dispensed automatically during the final rinse.
  • Page 12 19. Load baskets and inserts into the machine The G 7881 dental disinfector normally requires a top and bottom basket. Various inserts and special baskets are also available for a wide variety of instruments. Preparation • Ensure that no acid or solvent residue, especially hydrochloric acid or chlorides, gets into the wash cabinet.
  • Page 13 Hours *User Profiles: O - Operator; S - Supervisor; M - Manager; A - Administrator Miele recommends refresher training every 12 months. Call Miele Professional Service for scheduling at 1-800-991-9380. This washer-disinfector is only certified for use in the areas of application specified by the manufacturer.
