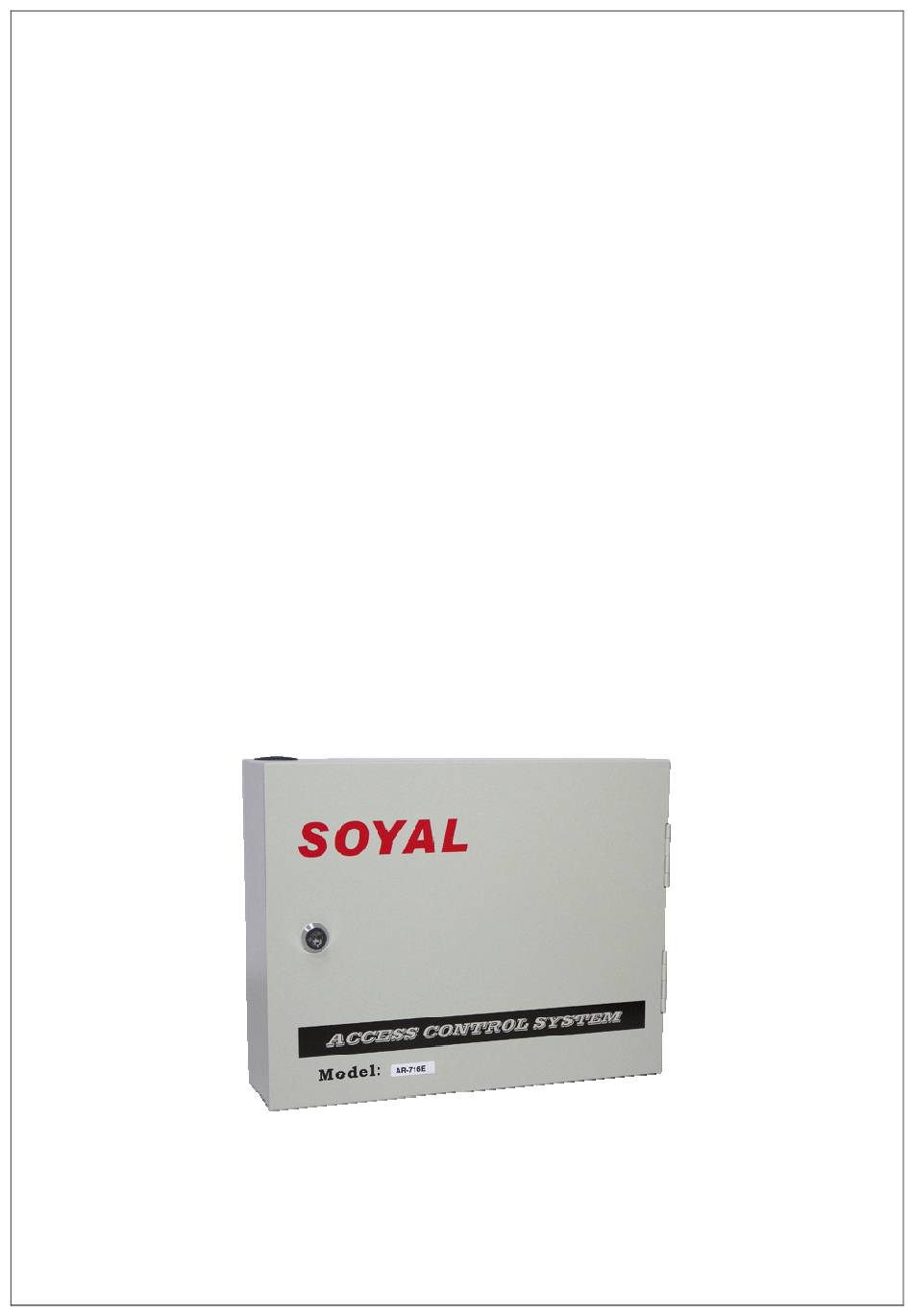

- Page 1 SOYAL Access Control System Soyal AR716EV2/Ei hardware operation manual Revision: V1 Date released: 1 Nov 2006 UM_SoyalAR716EV1...
-
Page 2: Table Of Contents
Table of Contents Introduction ---------------------------------------------------------------------------------- 2 Installation ----------------------------------------------------------------------------------- 3 Software Setting --------------------------------------------------------------------------- 4 701 Server software setting of external weigand reader -------------- Door number setting of 701E Parameter --------------------------------- 4 DI Input V.S. Relay Output Connection Setting of 701E Parameter---- 5 Weigand reader LED and Buzzer indicators ---------------------------- 5 AR-716E-IO Software Setting --------------------------------------------------------- 6... -
Page 3: Introduction
1. Introduction Card capacity is 15,000 Users. 11,000-Event history transaction. Built-in watchdog to prevent the system from halting. Support scheduled door release time zone. Support scheduled arming time zone. Built-in power and RS-485 transmission LED indicator for signal state. It is a 16-doors networking controller and can be linked up to 254 units. Support alarm status output when reader off-line. -
Page 4: Installation
2. Installation 1. Select a location for the AR-716Ei unit that is secure and sheltered from weather and extreme humidity. Choose a location that facilitates access to power and is reasonably close to the doors that are to be controlled. 2. -
Page 5: Software Setting
3. Software Setting 3.1 701 Server software setting of external weigand reader How to enter? Step1: Click the 701 Server Icon twice to access the Server on the down right corner of the windows. Step2: Click Tool Bar Icon (701E parameter) for the windows. Step3: Enter networking controller node ID, then click “Read”. -
Page 6: Di Input V.s. Relay Output Connection Setting Of 701E Parameter
Step5: Click the page of DI Input V.S. Relay Output Connection. RELAY RELAY RELAY RELAY DI.4 DI.3 DI.2 DI.1 3.3 DI Input V.S. Relay Output Connection setting of 701E Parameter 1. The DI.1 is exit button input of WG port 1 and the K1 is open door relay. (1) Choose “DI 1”... -
Page 7: Ar-716E-Io Software Setting
4. AR-716E-IO Software Setting (Optional) 4.1 Set relay time Step1: Click the page of Reader Relay V.S. 701E Relays Step2: Enter relay time in the blank column. Range from 0 to 60,000. (Default 7 sec.) Step3: Press [ Write ]. 4.2 AR-716E-IO hardware installation Step1: Take away each screw on the top left and on the down left of AR-716EV2 \ 716Ei PCB board. -
Page 8: Push Button & Lock Installation
4.3 Push Button & Lock installation I O - E X P E N D CN 1 R E L A Y R E L A Y C O M R E L A Y R E L A Y CN 2 C O M R E L A Y... -
Page 9: Ar-727I Configuration
5. AR-727i Configuration 5.1 Reset to Factory Default of the AR-727i Press RESET button more than 5 seconds, then AR-727i will restore to Factory Default value. IP Address : 192.168.001.127 Gateway IP : 192.168.001.254 Subnet Mask : 255.255.255.000 Serail Port : 9600,N,8,1 TCP Port : 1621... -
Page 10: How To Set Ip Address On The Ar-716Ei
5.4 How to set IP address on the AR-716Ei 5.4.1 Get IP address by using Net727i software Usually, the network of some company don’t built-in the DHCP Server. Therefore, we can use the following method to get default IP address and modify it. The steps as follows: Step 1: Press RESET button more than 5 seconds, The BUSY LED will flash 5 times, then AR-727i... - Page 11 Step 4: Click ”Use the following IP address” and enter IP address 192.168.001.64, Subnet mask 255.255.255.0 Step 5: Click “ok” to exit. Step 6: Install Net727i.exe into your PC and run Net727i.exe (Start → Programs → soyal software → Net727i...
- Page 12 Step 7: Click “Get” to get default Local IP Address, Gateway, Netmask and TCP Port. Step 8: Change new address and parameters then click “write”. Step 9: switch DIP SW-1 and SW-2 to “OFF” position. Remark: (1) How to know PC’s IP Address? (Win98) Start →...
- Page 13 Setting Value Notes Necessity Local IP Address 192.168.001.127 Defines own IP Address of the Required AR-727CM Local Gateway IP 192.168.001.254 Defines the IP Address of the Required Address default gateway Local Subnet Mask 255.255.255.000 Defines the IP Address range for Required the local network segment TCP Port...
-
Page 14: Get Ip Address By Dhcp Server
5.5.2 Get IP address by DHCP Server: AR-727i support Auto Configuration of the IP and gateway addresses and subnet mask function, but must make sure the DHCP Server is active. The steps as follows: Step 1: Power off. Step 2: PCB diagram as follows by using DHCP Function. Switch DIP SW-1 to “ON”... - Page 15 Step 10: Click “Hyper-Terminal”. Step 11: key-in any temporary name. Shown as follows: It is not important matter. Step 12: Choose which COM port that AR-701CM connect and click OK to exit. Step 13: Set Port Settings to 9600, 8,None, 1, and click “OK” to save.
- Page 16 Step 14: AR-727i already gets IP address now shown as follows: Note that save it after set all parameters. Step 15: Power off. Then switch DIP SW-2 to “OFF” position, take away communication IC Chip on the U3 position of the PCB and AR-801CM.
-
Page 17: Get Ip Address By Ar-801Cm (Com Port) Connects To
5.5.3 Get IP address by AR-801CM (COM Port) connects to PC At first, PCB diagram as follows and Connect AR-801CM to the HOST of the PCB: Switch DIP SW-1 to “OFF” position. Switch DIP SW-2 to “ON” position. (Serial Setup Mode) Switch Jumper J3, J4 and J5 to RS-485 position. - Page 18 Step 1: To modify parameter on the AR-727i through the Hyper-Terminal function of the Window. (Start → Programs → Accessories → Communication → Hyper Terminal) Step 2: Click “Hyper-Terminal”. Step 3: key-in any temporary name. Shown as follows: It is not important matter. Step 4: Choose which COM port that Step 5: Set Port Settings to 9600, 8, None, 1, AR-801CM connect and click OK to exit.
- Page 19 Step 6: AR-727i already gets IP address now shown as follows: Step 7: Please refer above item and enter item on the so that set all parameters. Step 8: Note that enter item 6 on the to save parameter after finishing to set parameter.
-
Page 20: Installation Diagram
Power Must higher than 13.8VDC Ethernet Power Reset DC15V Channel 2 RX Battery Channel 2 TX AR-727i Channel 1 RX Node: 009 Node: 016 AR-721H4 Channel 1 TX AR-721H4 Node: 001 Host RX Node: 008 HOST Battery Host TX RELAY RELAY AR-801CM Node... -
Page 21: Ar-716Ev2 And Ar-721H Networking Installation
Power Must higher than 13.8VDC Ethernet Power Reset DC15V Channel 2 RX Battery Channel 2 TX 727i Node: 009 Channel 1 RX Node: 016 AR-721H4 Channel 1 TX AR-721H4 Node: 001 Host RX Node: 008 HOST Battery Host TX RELAY RELAY AR-801CM Node... -
Page 22: Points For Attation
6.3 Points for attention 1. Please use the following installation method, it is correct. 801CM Controller Controller Reader 2. Don’t use the following installation method, it will cause communication error. 801CM Controller Controller Reader 3. We suggest using the following cable in RS-485 communication Please screw snake net on the controller. - Page 23 Specification User Capacity 15,000 Event Log 11,000 Power Requirement 15-24VDC Power Consumption < 2.5W Communication Interface Reader Channel：RS485*2 Host Channel：RS485 / Ethernet Baud Rate RS-485 9600 bps (N, 8, 1) Ethernet Environment -20 to +75 DI Input 4+8 (AR-716E-IO) Relay Output 4+8 (AR-716E-IO) Max.
