- Page 1 Diamond Shield Crystal Wellness Device Micro Currents - EMS Instruction Manual Diamond Shield Crystal Page 1 Instruction Manual...
- Page 2 Diamond Shield Crystal Page 2 Instruction Manual...
-
Page 3: Table Of Contents
Menu „Settings“ ..............17 Working with the chip cards ............19 Playing frequency programs from a chip card ......19 Technical Data ................20 Declaration of Conformity .............. 21 For disposal ................... 22 Diamond Shield Crystal Page 3 Instruction Manual... -
Page 4: Introduction
Introduction The Diamond Shield Crystal is a very effective Zapper: Very wide frequency range of 0.5 Hz to 2.5 MHz. Possibility of very small voltages (0.1 V) to high voltages (16 V) Impulse discharge Wobble functionality ... -
Page 5: Important Notices
Under any circumstances never insert an electrode plug into an electrical outlet. Always insert the grounding cable to the Diamond Shield Crystal and then connect it to the power outlet. Never use this device to anyone who has a pacemaker. -
Page 6: Unpacking
The equipment shall be always stored in dry, closed rooms. If the device is transported or stored in extreme temperatures, a period of at least 2 hours should be observed for acclimatization before handling. Diamond Shield Crystal Page 6 Instruction Manual... -
Page 7: Intended Usage
23 °C. A value without tolerances is a guiding value for the device. Maintenance The outside of the device should be cleaned regularly with a soft, non-linting cloth. The Diamond Shield Crystal should never be cleaned with alcohol or other solvents. Diamond Shield Crystal Page 7... -
Page 8: Feature Identification

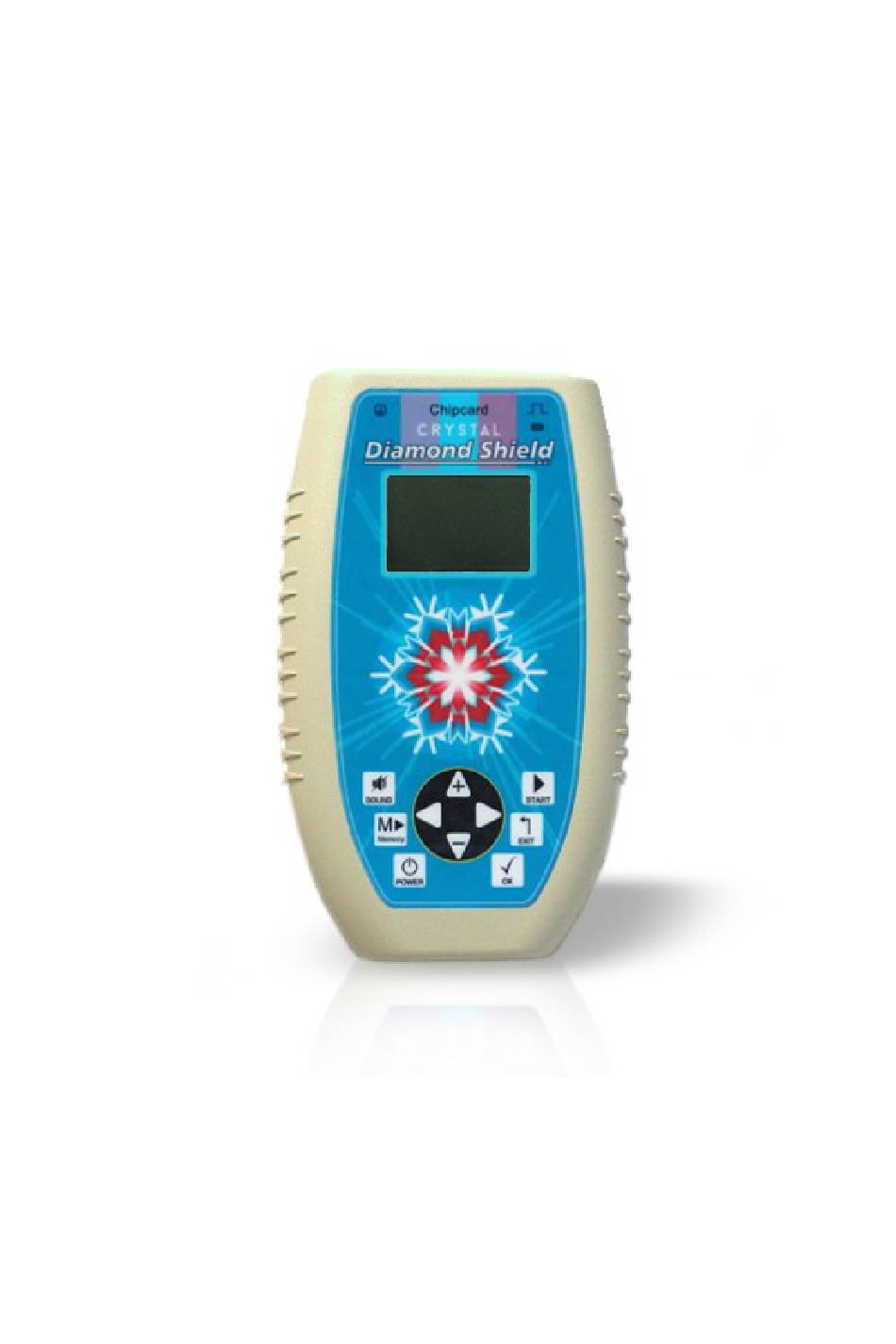

Feature Identification Front Side 1. LED 4. Mute Switch 7. Start-button 2. LCD-Display 5. Memory key 8. EXIT-button 3. Arrow keys 6. On-Off switch 9. OK-button Diamond Shield Crystal Page 8 Instruction Manual... -
Page 9: Connection Side
Connection Side 1. Grounding connection 2. Chip card slot 3. Connection for hand-, bracelet-, belt-electrodes Diamond Shield Crystal Page 9 Instruction Manual... -
Page 10: Back Side
Back side 1. Battery compartment Diamond Shield Crystal Page 10 Instruction Manual... -
Page 11: Bringing Into Service
(above LED) 2. Connect the bracelets or the belt. 3. If you want to work with grounding: Connect the grounding cable to the left socket. Then connect the ground wire to the outlet. Diamond Shield Crystal Page 11 Instruction Manual... -
Page 12: Operation
The device has a keypad lock to prevent accidental operation of buttons. To activate or deactivate the keypad lock briefly press the "Power" button and then press "Ok". The device will display the status of the keypad lock then. Diamond Shield Crystal Page 12 Instruction Manual... -
Page 13: Menu Navigation
Menu Navigation Navigation through the menu structure of the Diamond Shield Crystal is simple and identical for all functional areas: The currently selected item is marked with a small black rectangle. Use the up arrow key ("+") to select the next higher element and down ("-") arrow key to select the... -
Page 14: Main Menu
Running a single program from a sequence Select the desired sequence with the + and - button. Press the OK button. The individual programs of this sequence are displayed. Then select the desired single program. Diamond Shield Crystal Page 14 Instruction Manual... -
Page 15: Display
On the right side the selected intensity is displayed in milliamps (1/1000 amps). ◦ For frequency programs without current control the actual voltage in volts is displayed. Diamond Shield Crystal Page 15 Instruction Manual... - Page 16 "Memory" button. This applies even if the sequence was interrupted because the battery has become empty during program execution. Obviously, the correct chip card must be inserted, if the interrupted sequence was stored on a chip card. Diamond Shield Crystal Page 16 Instruction Manual...
-
Page 17: Menu „Settings
Speaker: the tone pitch of the internal speaker. Use the arrow keys left and right to choose 4 or 5 kHz. HW Rev.: Displays the hardware version of the device. Diamond Shield Crystal Page 17 Instruction Manual... - Page 18 Sequence: The desired sequence can be selected. The input is done with the arrow keys left and right. Wobble (maximum up to twice the base frequency, at very high frequencies possibly a little less) Diamond Shield Crystal Page 18 Instruction Manual...
-
Page 19: Working With The Chip Cards
5. If you want to play a single frequency program, you first select the corresponding sequence. Then press the OK button to enter the submenu. Then select the desired frequency program and press the START button. Diamond Shield Crystal Page 19 Instruction Manual... -
Page 20: Technical Data
Wobble (maximum up to twice the fundamental frequency) Voltage control to keep the output current constant (only at frequencies above 20 Hz) Internal resistance: 1 kOhm Diamond Shield Crystal Page 20 Instruction Manual... -
Page 21: Declaration Of Conformity
Hersteller / Manufacturer: Dermavit GmbH + Co KG, Unterer Anger 15/Rgb., 80331 München, Germany Die Dermavit GmbH & Co KG bescheinigt die Konformität des Produkts / Dermavit GmbH + Co KG herewith declares conformity of the product Bezeichnung / Productname:... -
Page 22: For Disposal
For disposal The Diamond Shield Crystal device must – as well as other electronic devices – not be disposed with normal household waste. You can submit to the local separate collection system for electrical appliances or return it to the address below (unfree postage will not be accepted). - Page 23 © May 2015 DermaVit GmbH & Co. KG All rights reserved Any kind of reproduction only with approval of DermaVit GmbH & Co. KG DermaVit GmbH & Co. KG Unterer Anger 15/Rgb. 80331 Munich Germany Tel: +49 (0) 89-18 90 84 6-0...
- Page 24 Diamond Shield Crystal Page 24 Instruction Manual...
