Data Connect DSP19.2FP Installation Instructions

Fast poll modem

Modem Accessory

Wall-Mount Bracket (EN3-KIT-WMB)

The EN3-KIT-WMB is used to mount the DSP19.2FP standalone modem onto a panel or wall of an utility

cabinet. The kit comes with a pair of custom made front & rear panels and four (4) #8 Philips screws.

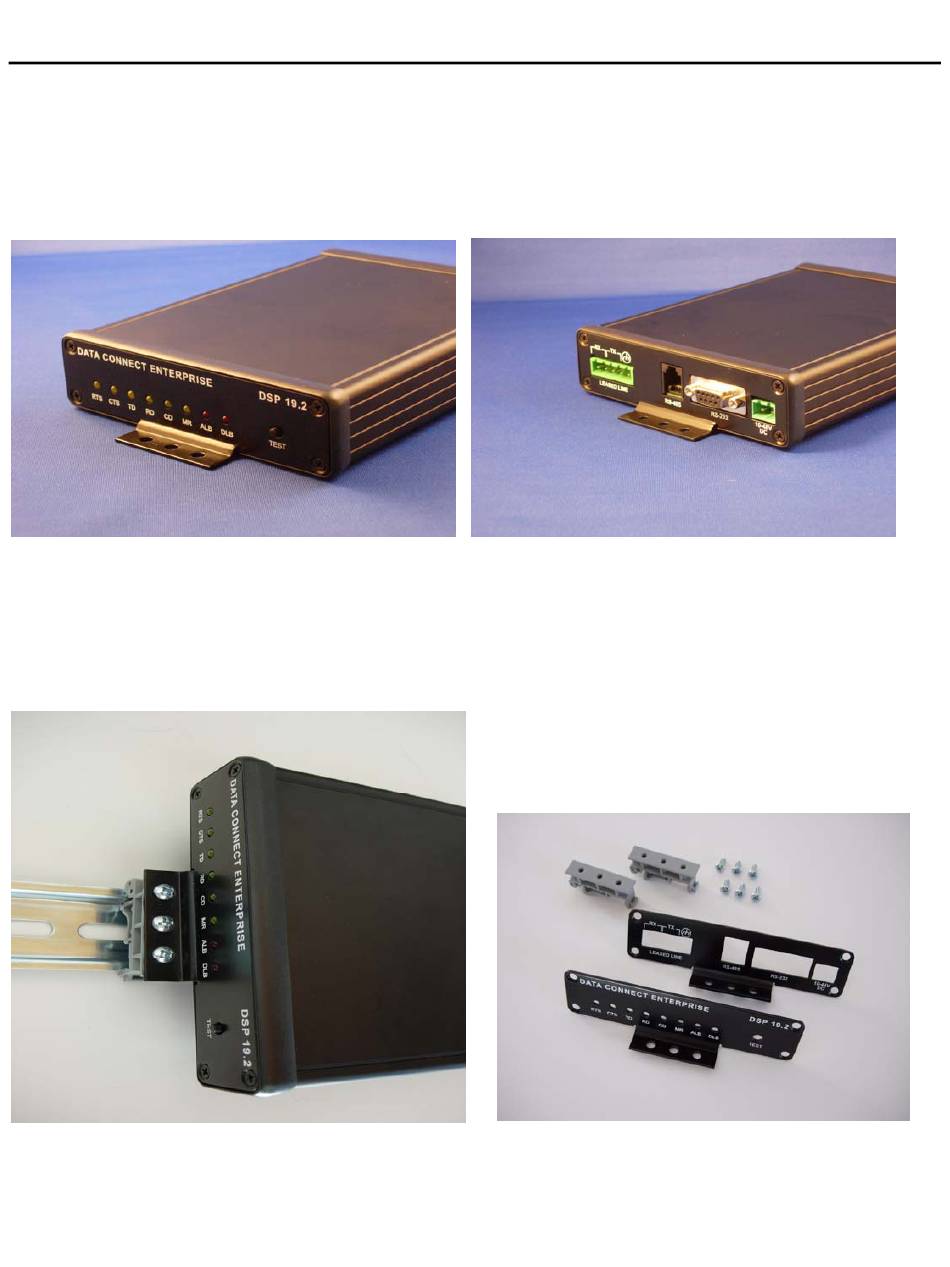

DSP19.2FP with wall-mount front panel

The EN3-KIT-DIN is used to mount the DSP19.2FP standalone modem on a 35x7.5 mm DIN Rail system.

DSP19.2FP modem with DIN-mount options

DSP19.2 Fast Poll Modem

DSP19.2FP with wall-mount rear panel

DIN Mount Kit

DIN-mount Hardware Kit (EN3-KIT-DIN)

Table of Contents

Do you have a question about the DSP19.2FP and is the answer not in the manual?

Page 1 Wall-Mount Bracket (EN3-KIT-WMB) The EN3-KIT-WMB is used to mount the DSP19.2FP standalone modem onto a panel or wall of an utility cabinet. The kit comes with a pair of custom made front & rear panels and four (4) #8 Philips screws.
Page 2 DIN rails. Installing the wall-mount kit: Place the DSP19.2FP modem on a desk or table top with the bottom faced upward. Remove the rear panel by removing the 4 screws and replace it with the “L-Shape” rear panel mounting bracket onto the end of the modem by aligning with the connectors of the modem board.
Page 3 DIN rails Installing the DIN Rail Mounting kit: Place the DSP19.2FP modem on a desk or table top with the bottom faced upward. Remove the rear panel by removing the 4 screws and replace it with the “L-Shape” rear panel mounting bracket onto the end of the modem by aligning with the connectors of the modem board Remove the front panel by removing the 4 screws and replace it with the “L-Shape”...
