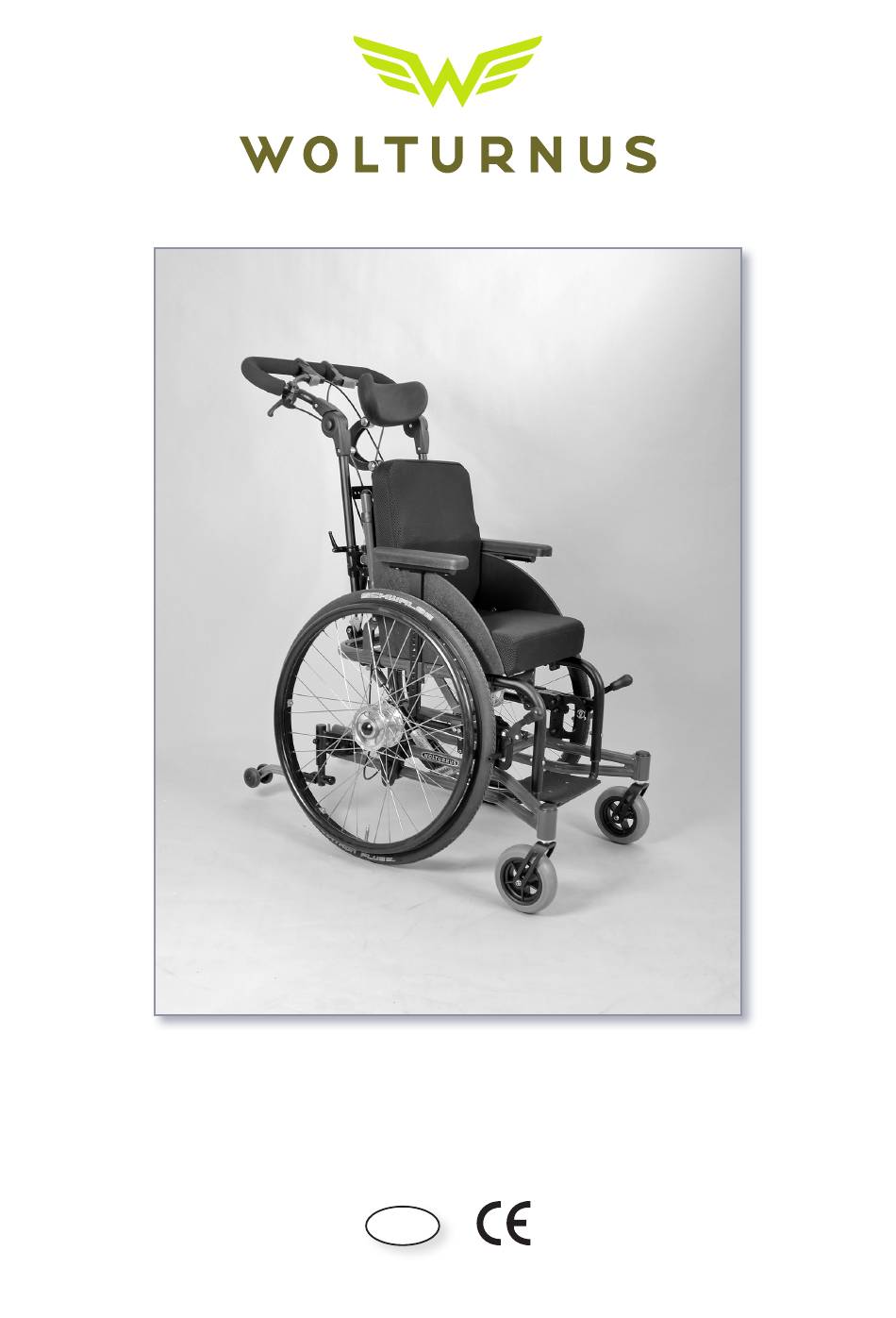

User's Manual
for A-Run wheelchair for kids and adults
GB
Wolturnus A/S recommends that you read this manual before using the wheelchair.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dalton and is the answer not in the manual?

Questions and answers

Related Manuals for WOLTURNUS Dalton

Summary of Contents for WOLTURNUS Dalton

  • Page 1 User’s Manual for A-Run wheelchair for kids and adults Wolturnus A/S recommends that you read this manual before using the wheelchair.

  • Page 3: Table Of Contents

    4 Delivery and preparation for use 5 Transport and storage 6 Adjustment and set-up 7 Accessories and equipment 8 Cleaning and maintenance 9 Troubleshooting 10 Technical data 11 Instructions for reuse 12 Environment 13 Supplier and service locations A-Run Wolturnus Active Wheelchair Manual 2019...

  • Page 4: Introduction

    The wheelchair may only be combined with the equipment mentioned in this manual and vice versa. Wolturnus A/S does not guarantee this product if it is used with accessories or products from manufacturers other than those specified as part of the modular system.
  • Page 5 1.4 Service In the event of questions or problems that cannot be solved using this user´s manual, please contact Wolturnus A/S customer service at (+45) 9671 7170. Wolturnus A/S strives to provide full assistance to its customers in every respect. For Wolturnus A/S contact information and a list of service locations - go to section 13 in this manual.
  • Page 6 1.7 Returns In the event that the wheelchair has to be returned to the supplier or to Wolturnus A/S, e.g. for repairs, it must be transported in its original packaging for optimum protection. It follows that Wolturnus A/S recommends that the original packaging is retained throughout the lifetime of the wheelchair.

  • Page 7: Safety

    • For safety reasons, it is recommended that the user alway wears a tighted hip belt, which may be supplied by Wolturnus A/S as an accessory. • All safety instructions contained in this manual and all additional relevant documents must be kept throug- hout the lifetime of the chair and complied with.
  • Page 8 Attachment must only be done with the attached fixing eyes (see section 5). Only in special cases and only when using safety and fastening systems provided by Wolturnus, may the A-Run comfort wheelchair be used as a seat in motor vehicles meant for the disabled.
  • Page 9 • The wheelchair must only be used by trained users. To ensure this, the user and any helpers has to receive instruction in use of the chair from Wolturnus-authorised specialists. 2.7 Type Labels A type label is attached to the wheelchair. The type label includes the following information:...

  • Page 10: Product Description

    A-Run comfort wheelchair is approved for fastening in vehicles and is easy to transport. Read more about fa- stening in vehicles and transporting A-Run comfort wheelchair in section 5. It is possible to retrofit the auxiliary engine on the A-Run comfort wheelchair. For more information, contact Wolturnus A/S Customer Service on phone (+45) 9671 7170.

  • Page 11: Delivery And Preparation For Use

    A-Run comfort wheelchair is ready for use when supplied by Wolturnus A/S. All settings refer to the submitted order or will be adjusted at the location of the dealer. A-Run comfort wheelchair is tailored to the user’s personal wishes and needs.

  • Page 12: Transport And Storage

    Only in special cases and only when using safety and fastening systems provided by Wolturnus A/S, may the A-Run comfort wheelchair be used as a seat in a motorvehicle for the disabled. Headrest approved by Wolturnus A/S must be used safely by the user when the clamping system is used in conjunction with passenger transport.
  • Page 13 The following description is based on transfer without third-party help and from one wheelchair to another. Forward transfer is best suited if double-folding footrest is mounted on the chair (Dalton footrest). Pulling up the footrests allows the user to step in or out.

  • Page 14: Adjustment And Set-Up

    The A-Run wheelchair can be adjusted in various ways. When delivered, the height, width and angle of the seat and the back have been positioned in accordance with the customer’s order as received by Wolturnus A/S. The Following is Adjustable By the User: •...
  • Page 15 Adjustment and set-up Fig. 6 Tools NOTICE Damaged tools or incorrect use of tools can result in injury or in damage to the chair. A-Run Wolturnus Active Wheelchair Manual 2019...
  • Page 16 Adjustment of the shape and depth of the backrest is of major importance to the users, to get the optimal benefits from the wheelchair. Wolturnus A/S recommends that this option be initially performed with the assistance of a Wolturnus A/S consultant or the user’s therapist.
  • Page 17 3 mm Allen key (Fig. 11). Then turn the neck pillow to the desired position. Tighten the screws again when the setting is as desired. Fig. 10 Adjust of neck position Fig. 11 Adjustment of headrest A-Run Wolturnus Active Wheelchair Manual 2019...
  • Page 18 • Adjust the push handles to the desired angle (Fig. 15). • While holding the push handles in position, tighten the handle to both sides. Fig. 14 Loosen handle on both sides Fig. 15 Adjust the angle Wolturnus Active Wheelchair Manual 2019...
  • Page 19 • Adjust the seat by lifting the push handle until the seat is horizontal or in the desired posi- tion. • While holding the seat in the desired position, tighten the postfix to lock seat position. A-Run Wolturnus Active Wheelchair Manual 2019...
  • Page 20 • Release the velcro straps (Fig. 22) and tighten or loosen them before reattaching (Fig. 23). • Fit the front seat cover and seat cover. Fig. 20 Remove front cover Fig. 21 Pool the cover backwards Wolturnus Active Wheelchair Manual 2019...
  • Page 21 This relieves the backrest’s forward pressure on the lower body and provides a better positioning of the hip. Wolturnus A/S recommends that this option be performed with the help of a Wolturnus A/S consultant or the user’s therapist.
  • Page 22 (see section 6.12). WARNING! Risk of crushing hazard. Avoid holding the gas damper while adjusting the seat angle. This may cause your fingers to clamp. Wolturnus Active Wheelchair Manual 2019...
  • Page 23 To prevent the wheelchair from accidentally tipping backwards, it is recommended that the user always have another person to stand behind the wheelchair when a new setting of the balance point is being tested. A-Run Wolturnus Active Wheelchair Manual 2019...
  • Page 24 Quick Release is locked correctly. Quick release will give a ’click’ when it is locked correctly. Fig. 28 Remove the rear wheels Fig. 29 Loosen the screws on the console Fig. 30 Check the distance on both sides Fig. 31 Mount the rear wheels Wolturnus Active Wheelchair Manual 2019...
  • Page 25 6.13 Adjusting the footrest A-Run comfort wheelchair can be provided with either foot support (model Tukan) or double- folding footrest (model Dalton). Both models can be angularly adjusted and height adjustable in jumps of 15 mm. Height adjustment of footrest and Angle adjustment of footrest Model Tukan: •...
  • Page 26 • Loosen unbracobolten on the round part on the back of the footrest with a 5 mm Allen key (Fig. 35). • Turn the footrest to the desired angle. • Tighten the bolts Fig. 33 Loosen the screw on the back Fig. 35 Loosen the bolts Wolturnus Active Wheelchair Manual 2019...
  • Page 27 • Select one of the two length positions (Fig. 38). • Place two drops of Loctite on the bolt thread. • Insert the bolt and tighten it. Fig. 37 Remove bolts Fig. 38 Choose position A-Run Wolturnus Active Wheelchair Manual 2019...
  • Page 28 When the wheelchair is equipped with two anti-tip wheels, it is important that they have the same length and angle. Unless both anti-tip wheels are the same, the wheelchair will come out of balance with any backwards directed tipping. Wolturnus Active Wheelchair Manual 2019...
  • Page 29 It is important that the right and left brake are the same. Make sure the brakes apply the same amount of force, to ensure an equal and safe braking system. Fig. 42 Loosen bolts Fig. 43 Activate brakes A-Run Wolturnus Active Wheelchair Manual 2019...
  • Page 30 With a 10 mm wrench the brake can be loosened or strained as needed. • Loosen the nut by the brake on the drive wheel and adjust in or out. • Tighten the nut again after adjustment. Fig. 44 Adjustment of brakes Wolturnus Active Wheelchair Manual 2019...

  • Page 31: Accessories And Equipment

    Accessories and equipment 7 Accessories and equipment A wide range of accessories and equipment is available for Wolturnus active wheelchairs. The most popular accessories are described in this section. 7.1 Plated back As an alternative, A-Run comfort wheelchair can be obtained with metal plates instead of standard strap hook back with Velcro straps.
  • Page 32 Accessories and equipment 7.3 ILSA variable body support ILSA is developed by Wolturnus A/S and is a combined ergonomically optimized back and body support. It can be used to solve a wide range of individual positioning needs. ILSA is distinguished by the fact that the upper part of the back can be adjusted in depth, width and height, and at the same time acts as side / body support.
  • Page 33 Sideguards are available in several varieties, including ABS, Dibond and Aluminum, and can be fastened in different ways as needed. Wolturnus A/S archives a template for specially crafted page pieces, which can sub- sequently be ordered.
  • Page 34 The choice of body supports is of great importance to the user’s comfort and ergonomics. Wolturnus A/S recommends that the choice of body support be performed with the help of a Wolturnus A/S consultant or the user’s therapist.
  • Page 35 7.15 Special back covers Backpacks can be ordered in various special versions, including leather reinforcements on the corners, for better resistance to wear and tear. For more information, contact Wolturnus A/S Customer Service on phone (+45) 9671 7170. 7.16 Single-handed operation Single-handed operation makes it possible to operate the rear wheels with only one hand.
  • Page 36 The Quick Release mechanism with tetra-grip makes it easier for, for example, tetraplegics to release the Quick Release and remove the rear wheels. 7.21 Quick Release axle for castors If quick castor changes are required, a Quick Release axle can be mounted in the front fork. Wolturnus Active Wheelchair Manual 2019...
  • Page 37 • Tighten the nut. Do not tighten the nut to much, so that the fork can still rotate easily in the caster housing. • Reattach the platic plug. Fig. 51 Remove plastic plug Fig. 52 Unscrew the nut Fig. 53 Pull out the front wheel A-Run Wolturnus Active Wheelchair Manual 2019...
  • Page 38 7.25 Velcro strap for double folding footrests (Dalton) The heel strap supports the foot so that it does’t slip while on the footrest. For Dalton foot- rests are there special heel straps. For more information, see to Wolturnus A/S webpage www.

  • Page 39: Cleaning And Maintenance

    Check the brake function Check pushbrake pressure on tires (5 mm in) Sideguards and Check the armrest cushion (may not move) armrests Check bolts and nuts for armrests Screws All nuts and screws are tightened A-Run Wolturnus Active Wheelchair Manual 2019...
  • Page 40 If this happens, the bearings should be replaced. INFORMATION Wolturnus A / S recommends either 22 ”tires (489 mm) or 24” tires (540 mm) to the A-Run comfort wheelchair. 8.2 Cleaning and disinfection The wheelchair should be cleaned regularly according to how often it is used and how dirty it Clean the frame, plastic parts and wheels with a mild cleaning agent.
  • Page 41 Like push wheel locks, knee-lever wheel locks are only effective when air pressure is sufficiently high and when they are correctly positioned. (When locked, the brake pad should push the tyre in 5mm (allowing for technical alterations)). A-Run Wolturnus Active Wheelchair Manual 2019...
  • Page 42 NB: Pneumatic tyres are good for handling and manoeuvring. Solid tyres are good for work situations in which there might be a risk of debris or other items that could puncture a pneu- matic tyre. Wolturnus Active Wheelchair Manual 2019...

  • Page 43: Troubleshooting

    • Inspect the rear wheel tyres for wear and tear Section 8.3 and for incorrect tyre pressure. If the problem can not be solved using this troubleshooting guide, contact supplier or Woltur- nus A/S. See contact information under section 13. A-Run Wolturnus Active Wheelchair Manual 2019...

  • Page 44: Technical Data

    Rear wheel camber Auxiliary engine as retrofit Suitable for securing in car Suitable for kids Seat tilt - 30 - 30 - 30 - 30 Back tilt max. Neck support Option for foldable footrest Adjustable balancepoint Wolturnus Active Wheelchair Manual 2019...
  • Page 45 Technical data 300-500mm (BH) 240-36mm (SD) 430-480mm (SH) Back tilt 30 A-Run Wolturnus Active Wheelchair Manual 2019...

  • Page 46: Instructions For Reuse

    Based on market studies and on its knowledge of contemporary technology, Wolturnus A/S has calculated that the A-Run wheelchair, when used, serviced and maintained in accordance with the original instructions, has a five-year lifetime (excluding time kept in storage by an aut- horised dealership or the user).

  • Page 47: Environment

    Generally, all work at Wolturnus A/S is carried out with respect for the environment. Alumi- nium residue after the production process is collected in containers and delivered for recycling.

  • Page 48: Supplier And Service Locations

    Tel: +45 9671 7170 Fax: +45 9671 7180 Email: info@wolturnus.dk Website: http://www.wolturnus.dk Wolturnus A/S active wheelchairs are CE and TÜV approved in accordance with the require- ments of Directive 93/42/EEC for medical devices (Class 1) and DS/EN 12183. Wolturnus Active Wheelchair Manual 2019...
  • Page 49 A-Run Wolturnus Active Wheelchair Manual 2019...
  • Page 50 Kundeservice/Customer Service Wolturnus A/S Skalhuse 31 9240 Nibe Telefon: +45 96 71 71 70 www.wolturnus.com Mail: info@wolturnus.dk Produktion/Production Wolturnus A/S Halkjærvej 24B 9240 Nibe...
