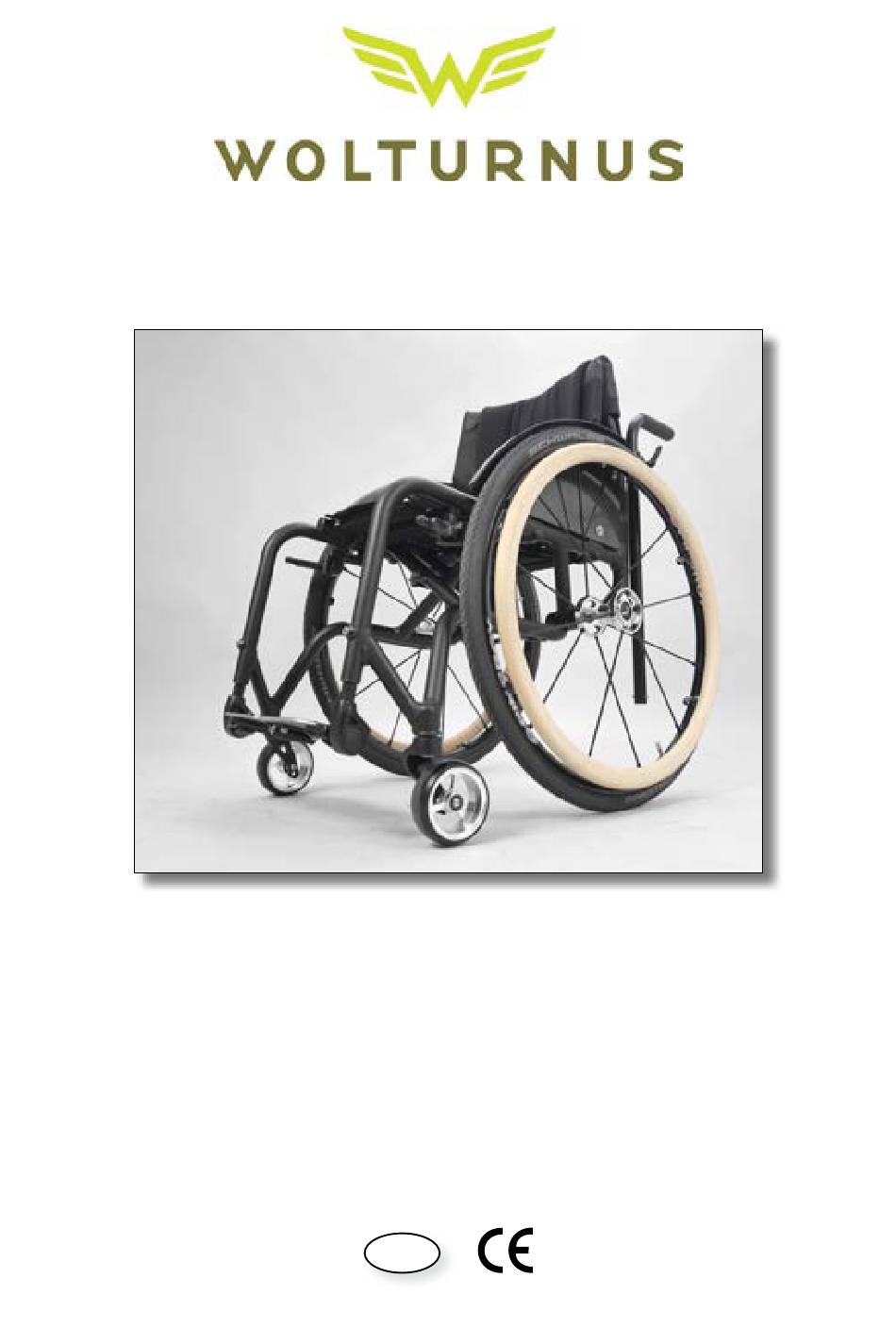

- Page 1 User’s Manual for Merlin Wolturnus A/S recommends that you read this manual before using the wheelchair.
-
Page 3: Table Of Contents
Adjusting armrest height Adjusting footrest height Adjusting footrest angle Adjusting anti-tip device 6.10 Adjusting wheel locks 6.11 Adjusting seat height 6.12 Changing caster with front fork 7. Accessories and Equipment Push handles Merlin Wheelchair Wolturnus Merlin Wheelchair User Manual 2018... -
Page 4: Introduction
This user manual provides users and helpers with essential information about the design, functions, use and maintenance of the Wolturnus Merlin wheelchair, throughout the rest of this manual these models will be de- scribed by the wheelchair. The manual contains the information necessary to ensure safe use of the wheelchair. -
Page 5: Usage
A/S customer service at (+45) 9671 7170. Wolturnus A/S strives to provide full assistance to its customers in every respect and thus to ensure total satis- faction with the wheelchair. Wolturnus A/S contact information and a list of service locations can be found in section 13. -
Page 6: Returns
- or by contacting Wolturnus A/S customer service at (+45) 9671 7170. 1.7 Returns In the event that the wheelchair has to be returned to the supplier or to Wolturnus A/S, e.g. for repairs, it should be transported in its original packaging for optimum protection. Wolturnus A/S therefore recommends that the original packaging is retained throughout the lifetime of the wheelchair. -
Page 7: Safety
Do not force the wheelchair along on hills or slopes of greater than 7°. • Do not park on hills or slopes of greater than 7°, not even with the wheel lock activated. Merlin Wheelchair Wolturnus Merlin Wheelchair User Manual 2018... -
Page 8: Safety Requirements For Transport, Assembly And Storage
The user and helpers must always ensure that the chair and its safety features are in proper and safe con- dition before using the chair. • The wheelchair must be inspected by a Wolturnus-authorised specialist at least once every year in order to ensure that the chair is in proper working order and safe to use. •... -
Page 9: Type Labels
Read the user´s manual before using the wheelchair The type label is placed on the cross tube under the seat facing forward as shown on image 1. Warning Type Label Image 1 Location of type labels and anti-tip warnings Merlin Wheelchair Wolturnus Merlin Wheelchair User Manual 2018... -
Page 10: Product Description
A range of accessories is described in section 7. The entire range of ac- cessories, spare parts and additional equipment can be seen at the Wolturnus A/S web shop www.wshoppen.dk. Wolturnus Merlin Wheelchair User Manual 2018... - Page 11 Product description Image 2 The Merlin wheelchair Merlin Wheelchair Wolturnus Merlin Wheelchair User Manual 2018...
-
Page 12: Delivery & Preparation
Wolturnus A/S delivers the wheelchair ready for use. All configurations that are part of the order have been made or will be made upon delivery by the supplier or a consultant. The Merlin wheelchair is adapted to meet the user’s personal wishes and requirements. -
Page 13: Transport And Storage
Move from the chair to the other seat. The method of actual transfer will vary from user to user. Use the method that works best. Image 8 Image 9 Image 10 Apply the wheel locks Place feet on the floor Place feet on the floor Merlin Wheelchair Wolturnus Merlin Wheelchair User Manual 2018... - Page 14 Danger when pushing passing obstacles Always pass obstacles with a direct forward mo- without assitance. tion (at an angle of 90 degrees). Lift wheels over Always have assistants when passing obstacles. steps and curbs. Wolturnus Merlin Wheelchair User Manual 2018 Merlin Wheelchair...
-
Page 15: Adjustment & Set-Up
The wheelchair can be adjusted in various ways. When delivered, the height, width and angle of the seat and the back have been positioned in accordance with the customer’s order as received by Wolturnus A/S. The following can be adjusted by the user: •... -
Page 16: Adjusting Back Depth And Form
Fold down the back upholstery and secure it to the straps. Adjustment of the back form and depth greatly affects the benefit the user gets from the chair. Wolturnus A/S recommends that form and depth are initially adjusted with assistance from a Wolturnus A/S consultant or from the user’s therapist. -
Page 17: Adjusting Seat Length, Depth And Form
Notice; tightening the straps towards the front seat edge, not the back edge, will benefit some users. This creates a counterpoint for the back support’s forward pressure on the lower body and a better hip position. Wolturnus A/S recommends that this is done with assistance from a Wolturnus A/S consultant or the user’s therapist. -
Page 18: Adjusting Armrest Height
Mount the clamps and nuts and tighten them (Tension 4 Nm/3,0 ft.lbf/35 in.lbf). If tightened too much, the frame could bend (image 34). Image 30 Image 31 Remove the nuts and bolts Adjust and remount bolts and nuts CAUTION! Never place full body weight on the footrest Wolturnus Merlin Wheelchair User Manual 2018 Merlin Wheelchair... -
Page 19: Adjusting Footrest Angle
Never use the anti-tip device as a tipping pedal. If used as a tipping pedal, the anti-tip device’s spring function could be damaged. This would make the anti-tip device defective and put the user at risk. Merlin Wheelchair Wolturnus Merlin Wheelchair User Manual 2018... -
Page 20: Adjusting Wheel Locks
(When locked, the brake pad should push the tyre in 5mm (allowing for technical alterations)). Image 37 Image 38 Image 39 Image 40 Push-action wheel lock, locking Push-action wheel lock, opening Scissor wheel lock, locking Scissor wheel lock, opening Wolturnus Merlin Wheelchair User Manual 2018 Merlin Wheelchair... -
Page 21: Adjusting Seat Height
Seat height can be adjusted by changing to a larger or smaller rear wheel or front caster. Both must be changed. If only one is changed, the original seat angle will be altered. For advice on seat height adjustment, contact your nearest Wolturnus A/S sales consultant or distributor. Con- tact information: see section 13. -
Page 22: Accessories And Equipment
Accessories and equipment 7 Accessories and equipment A wide range of accessories and equipment is available for Wolturnus Active wheelchairs. The most popular ac- cessories are described in this section. The full range of accessories and order information are available at the Wolturnus A/S website www.wolturnus.dk/en/products/. -
Page 23: Wheel Locks
7.7 Upgrading casters Aluminium casters are available. Depending on the wheelchair’s current wheel type, it may be necessary to replace both the caster and front fork. The full range of casters can be seen at the Wolturnus A/S website www. wolturnus.dk/en/products/. -
Page 24: Quick-Release Axle With Tetra Grip
Neoprene can either be glued on or secured with Velcro. Templates for custom-made sideguards are retained at Wolturnus A/S so that the right neoprene cover can be recreated in the future. -
Page 25: Calf-Support Straps For Footrest
To adjust depth, loosen or tighten the Velcro on the calf-support strap. 7.16 Seat cushions Seat cushions are available in various models and in the required size and thickness. The seat cushion range is available at the Wolturnus A/S website www.wolturnus.dk/en/products/. Image 52 Image 53 Calf-support strap Straps and belts 7.17 Straps, belts and restraints... -
Page 26: Cleaning And Maintenance
All nuts and screws are tightened In the event of faults or missing parts, contact the supplier or Wolturnus A/S. Contact information: see section Wolturnus A/S recommends that the the wheelchair is serviced at least once a year by the supplier or Wolturnus A/S. -
Page 27: Cleaning And Disinfection
Check that there are no twists at all in the tube, otherwise air can get out. • Work the whole way around until the last section of the tyre edge is taut and can be edged into place with one or two levers. Merlin Wheelchair Wolturnus Merlin Wheelchair User Manual 2018... - Page 28 NB: Pneumatic tyres are good for handling and manoeuvring. Solid tyres are good for work situations in which there might be a risk of debris or other items that could puncture a pneumatic tyre. Wolturnus Merlin Wheelchair User Manual 2018 Merlin Wheelchair...
-
Page 29: Troubleshooting
Inspect the rear wheel tyres for wear and tear and for work properly Section 8.3 incorrect tyre pressure. If the problem cannot be solved with the aid of the troubleshooting section, contact the supplier or Wolturnus A/S. Contact information: section 13. Merlin Wheelchair Wolturnus Merlin Wheelchair User Manual 2018... -
Page 30: Technical Data
NB: A user weight of max. 120 kg. will not usually be relevant if the seat width is narrow. NB: Some of data may change depending on model and specific requirements. Some of the data may be speci- fied with the personal orderform. Wolturnus Merlin Wheelchair User Manual 2018 Merlin Wheelchair... - Page 31 Front of Back to front Footrest SH-r Seat Height rear Inner Front Frame SH-f Seat Height front Center Caster bearings Back Height Total Width Height Armrest to Seat Tube Total Length Seat Surface to Rear Footrest Merlin Wheelchair Wolturnus Merlin Wheelchair User Manual 2018...
-
Page 32: Instructions For Reuse
Based on market studies and on its knowledge of contemporary technology, Wolturnus A/S has calculated that the Active wheelchair, when used, serviced and maintained in accordance with the original instructions, has a five-year lifetime (excluding time kept in storage by an authorised dealership or the user). -
Page 33: Environment
Wolturnus A/S has a unique approach to individual user measurement and to subsequent tailoring of the chair to meet the user’s needs. Combined with the wheelchair’s high mechanical quality, this ensures that the user can use the wheelchair for many years. -
Page 34: Manufacturer And Service
Webide: http://www.wolturnus.dk Webshop for purchasing equipment and spare parts: http://www.wolturnus.dk/en/products/ Wolturnus A/S Merlin wheelchairs are CE and TÜV approved in accordance with the requirements of Directive 93/42/EEC for medical devices (Class 1) and DS/EN 12183. Wolturnus Merlin Wheelchair User Manual 2018... - Page 35 Manufacturer and service locations Merlin Wheelchair Wolturnus Merlin Wheelchair User Manual 2018...
- Page 36 © Wolturnus A/S User‘s Manual for Merlin 2018 Kundeservice/Customer Service Wolturnus A/S Skalhuse 31 9240 Nibe Telefon: +45 96 71 71 70 www.wolturnus.dk Mail: info@wolturnus.dk Produktion/Production Wolturnus A/S Halkjærvej 24B 9240 Nibe Wolturnus A/S Skalhuse 31 DK-9240 Nibe T. +45 96 71 71 70 E.
