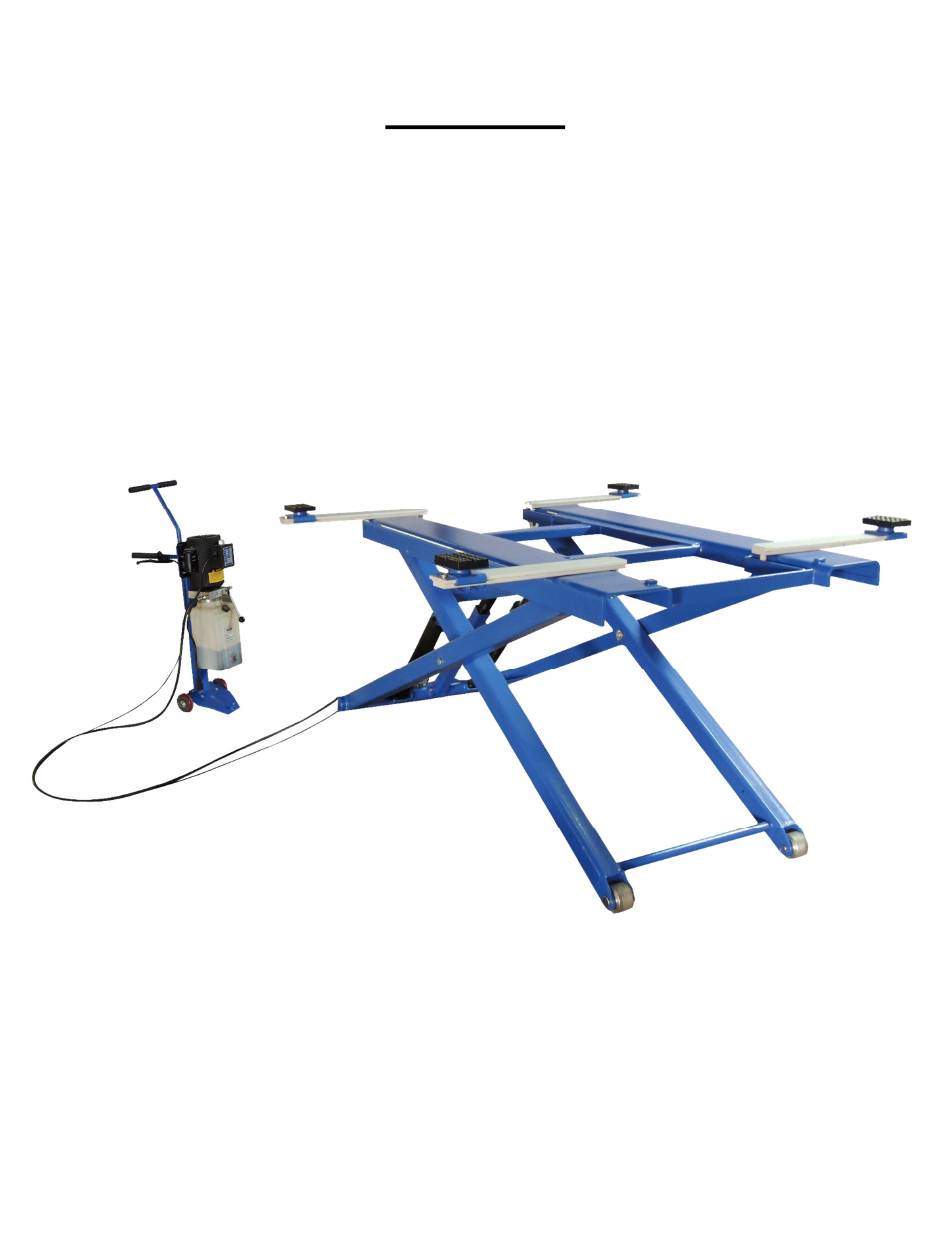

- Page 1 MR6K-48X Mid-Rise Scissor Lift 6,000 lbs. Capacity (1,500 lbs. Max per Arm) INSTALLATION & OPERATION MANUAL Dec 2017...
-
Page 2: Table Of Contents
• Un-banding Lift • Lift Assembly • Starting Up / Testing OPERATION INSTRUCTIONS • Vehicle Positioning, Lifting & Lowering • Inspection, Maintenance & Cleaning • Trouble-Shooting Guide • Power Unit Priming Procedure EXPLODED VIEWS & PARTS LIST LIMITED WARRANTY MR6K-48X Dec 2017... -
Page 3: Safety Information
5. Failure by the owner to provide the recommended shelter, mounting surface, electrical supply, and ceiling height could result in unsatisfactory lift performance, property damage or personal injury. 6. The operation of the lift is permitted by authorized persons only. MR6K-48X Dec 2017... -
Page 4: Safety Instructions
19. Anyone who will be in the vicinity of the lift when it is in use should familiarize themselves with any Caution, Warning, and Safety related decals supplied with this lift, and replace them if they are illegible or missing. MR6K-48X Dec 2017... -
Page 5: Technical Information
TECHNICAL INFORMATION Product Description The MR6K-48X is a portable 6,000 lb. hydraulic mid-rise scissor frame contact lift, equipped with twin hydraulic cylinders & extended radius arms and contact pads for maximum strength and stability. The lift raises straight up without forward or aft movement and comes standard with portable dolly / power cart for wheel service, brake work, inspections &... -
Page 6: Before Using
Failure to accomplish the foundation requirement may cause lift instability, which could result in personal injury. Operating Condition Lift is not intended for outdoor use and has an operating ambient temperature range of 41º - 104ºF (5º - 40ºC). MR6K-48X Dec 2017... -
Page 7: Installation Instructions
A. Remove dolly components from the carton and assemble together (Fig. 1). B. Mount the Lock Release Hand Lever to the dolly ‘side’ handle (Fig. 2). Lock Release Dolly Handle Hand Lever Assy. Dolly Pedestal Dolly Base Fig. 1 Fig. 2 MR6K-48X Dec 2017... - Page 8 A. Connect the 115VAC electrical power to the Power Unit’s three prong electrical plug. Ensure to use proper size extension cord and plug type for 20 Amps (Fig 5.) B. Ensure power supply incorporates 20 Amp breaker service for safety. Power Unit Electrical Cord Fig. 5 MR6K-48X Dec 2017...
-
Page 9: Starting Up / Testing
If the latch engages the lock ladder while rising or does not disengage the lock ladder after handle is held tight, adjustment is required for the position of the safety latch via the threaded cable adjustment nut (Fig. 7). Safety Latch Cable Adjustment Fig. 7 MR6K-48X Dec 2017... -
Page 10: Operation Instructions
3. Turn off vehicle's engine and engage the parking brake. 4. Read the vehicle owner's manual to identify the recommended vehicle lifting points. MR6K-48X Dec 2017... - Page 11 Max Fill Line. If not, remove the Fill Cap and add premium quality hydraulic oil until the level of oil is even with the Max Fill Line. After filling, place the Fill Cap to Reservoir Tank. Never Add Hydraulic Fluid while Lift is in raised position!! MR6K-48X Dec 2017...
-
Page 12: Trouble-Shooting Guide
C. Seals are dry in hydraulic cylinder(s).....Cycle lift as noted in #6. 9. Lift Will Not Lower: A. Lock Release Cable not properly adjusted..Inspect and adjust. B. Defective Release Valve....... Inspect and replace. C. Defective safety latch mechanism....Inspect and replace. MR6K-48X Dec 2017... -
Page 13: Power Unit Priming Procedure
Step 3 – Push the START button for one second, then release for three seconds. Repeat these steps until unit starts pumping fluid. Step 4 – Tighten the check valve plug. YOUR POWER UNIT SHOULD NOW BE PRIMED MR6K-48X Dec 2017... - Page 14 EXPLODED DRAWING MR6K-48X Dec 2017...
- Page 15 PARTS LIST ITEM Tux P/N M REF P/N DESCRIPTION MR6K-48X-001-BX XF01-04000-000 Top Platform MR6K-48X-002B Pin 3mm x 40mm MR6K-48X-003B Pin 3mm x 40mm MR6K-48X-004B Hose fitting from T - HYD MR6K-48X-005B QJYJ3-7 Cylinder Hose MR6K-48X-006B Hose Fitting to Cylinder PU-110V-S-K...
- Page 16 36B-1C MR6K-48X-036B-1C Lock Pin 36B-2C MR6K-48X-036B-2C QJYJ3-02-14/6 Lock Spring 36B-3C MR6K-48X-036B-3C QJYJ3-02-14/3 Lock Latch 36B-4C MR6K-48X-036B-4C QJYJ3-02-14/1 Lock Bar 36B-5C MR6K-48X-036B-5C QJYJ3-02-14/5 Lock Cam 36B-9C MR6K-48X-036B-9C QJYJ3-02-14 Lock Tube 36B-10C MR6K-48X-036B-10C Washer D8 36B-11C MR6K-48X-036B-11C Bolt M8 x 16 36B-12C...
-
Page 17: Limited Warranty
There is no other express warranty on the Tuxedo lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
