QUICK START GUIDE

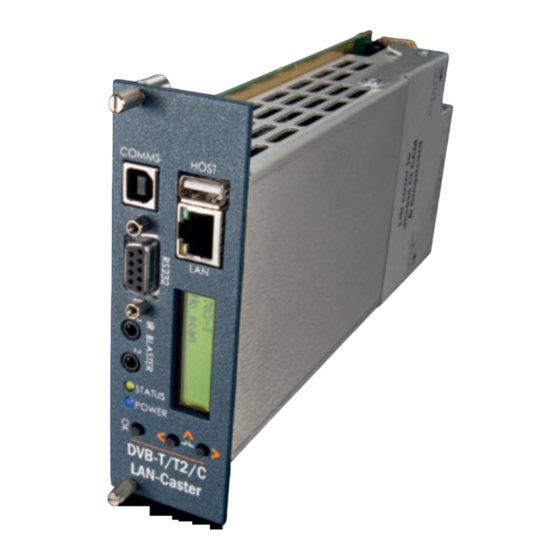

MediaStar 783 DVB Lan-Caster Unit
The MediaStar range of DVB LAN-Caster
Gateways are a powerful and ultra reliable,
solid state 'out of the box' solution for Digital
Terrestrial and CATV reception. When used
with Mediastar DVB-S satellite LAN-Casters and
MPEG encoders, this solution will meet your
entire IP Television Headend and Digital Media
encoding and distribution requirements.
The MediaStar Evolution 783 LAN-Caster allows
DVB-T/C TV and Radio channels to be streamed onto
an IP network. Connect a DVB-T/T2 aerial signal into
the LAN-Caster and use the simple browser based
control interface to stream up to 15 channels from
a single RF multiplex onto the network.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus (including amplifiers)
that produce heat.
9. This unit must be installed using a mains (AC supply) plug and
socket that contains a protective earth (ground).
The mains socket must be located near the equipment,
remain operable and be easily accessible to disconnect the
unit in the case of an emergency.
10. Do not defeat the safety purpose of the polarised or
grounding-type plug. A polarised plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong.
200-2342_v2
What's in the box:
• 783 DVB-T/T2/C blade
• CAT5 patch cable
• F male to F male loop-through cable
A networked MediaStar Digital Media Decoder display
unit can then decode these streams and output the
video and audio to an LCD or OLED display.
The MediaStar 'Viewer' software application can decode
the streams and provide live TV pictures and sound on
a PC.
The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
11. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
12. Only use attachments/accessories specified by the manufacturer.
13. Use only with the cart, stand tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart
is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
14. Unplug this apparatus during lightning storms or when
unused for long periods of time.
15. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
WARNING:
THERE ARE NO USER SERVICEABLE
PARTS WITHIN A MEDIASTAR 783 UNIT.
