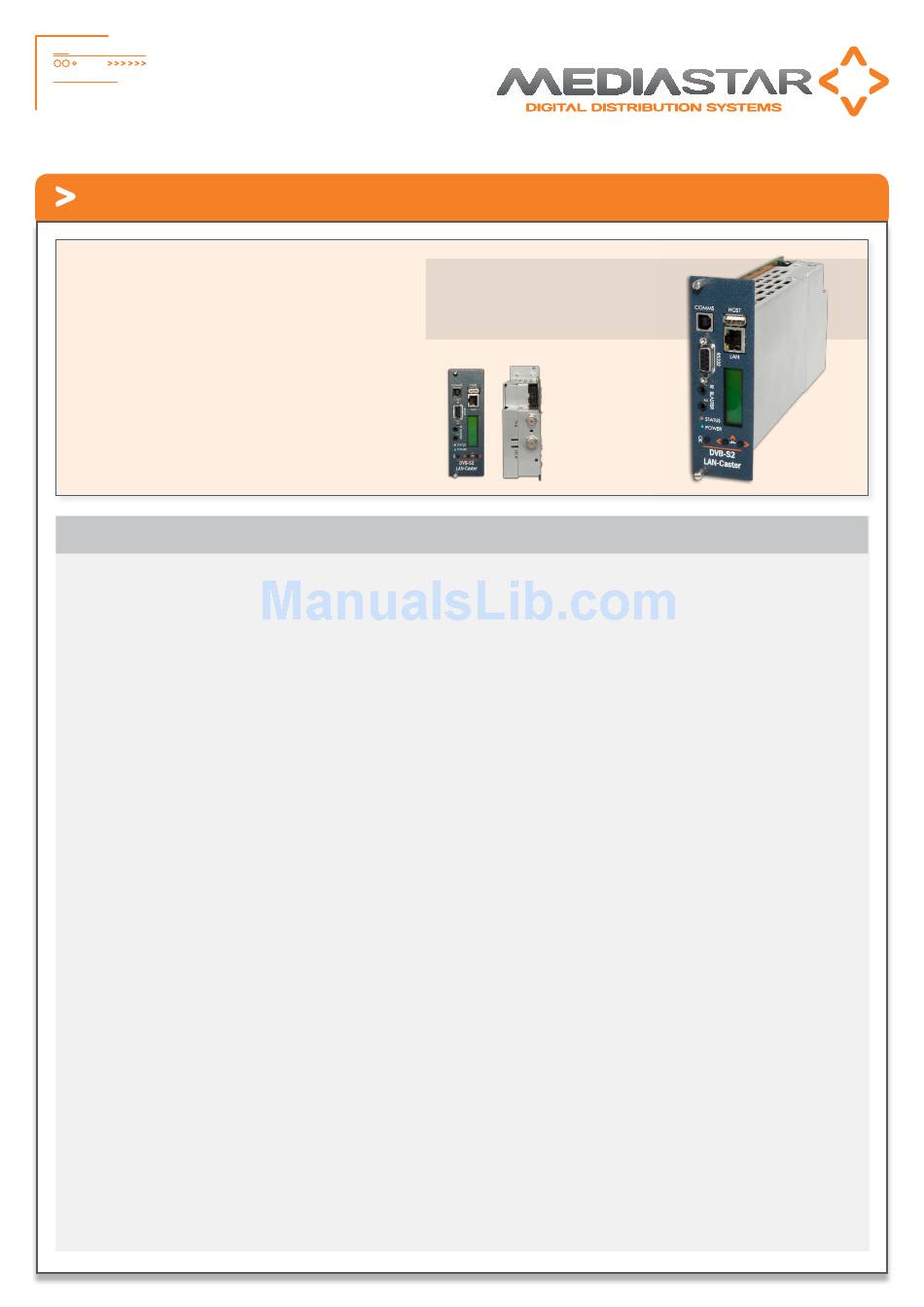

Quick Start Guide - 784 DVB-S/S2 LAN-Caster

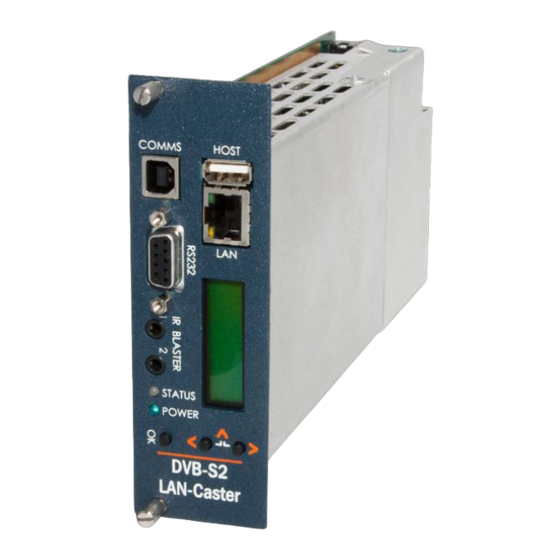

The MediaStar Evolution 784 LAN-Caster allows
DVB-S/S2 TV and Radio channels to be streamed
onto an IP network. Connect a DVB-S/S2 Satellite
dish LNB to the LAN-Caster and use the simple
browser based control interface to stream up
to 15 channels from a single RF multiplex onto
the network. A networked MediaStar Digital
Media Decoder display unit can then decode
these streams and output the video and audio to
an LCD or OLED display. The MediaStar 'Viewer'
software application can decode the streams
and provide live TV pictures and sound on a PC.
Product Specification
Physical
129 x 41 x 230 mm, occupies 1 (of 9) 770 rack slot. 405g
Ambient operating temperature range
0º - 40º C, 770 rack ambient
Power supply
7 W (from 770 rack, excluding LNB load)
LAN
RJ45 802.3 10/100 Base-T Auto MDIX
Static or DHCP IP Address
DSCP stream tagging for QoS
Network protocols
UDP, TCP, ARP, DHCP, ICMP, IGMP V2, HTTP, Telnet, SNMP,
Syslog, SAP/SDP, SMTP, DSCP
RF Input
F type female connector (75 Ohms)
RF frequency range
950 to 2150 MHz
RF input level
-65 to -25 dBm
RF loop-through
F type female connector (75 Ohms)
0 dB (+/-5 dB) gain
RF signals on currently selected H/V, High/Low band
LNB Voltage
13/18 V, 22 KHz signalling
Max current drain 400 mA (short circuit protected)
Maximum 770 Rack LNB current 2350 mA
DiSEqc
1.0, 1.1
DVB-S Demodulation
Modulation: QPSK
Coding Rate: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8
FEC: Reed Solomon/Viterbi error correction
DVB-S2 Demodulation
Modulation: QPSK, 8PSK
Coding Rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
FEC: LDCP, BCH
784_QSG_Ve
What's in the box
•
784 DVB-S/S2 blade
•
CAT5 patch cable
Output Streams
15 Multicast or Unicast streams from a single RF DVB multiplex
Maximum 85 Mbps
Individual TV/radio channels or Entire multiplex
Elementary stream data type filtering
Upgradability
Enablement code to upgrade from non CAM to CAM support
(in situ, with no hardware change required)
CAM Support
CI CAM modules supported with all common decryption standards
(Irdeto, Viaccess, Conax, Nagravision etc.)
Single and professional multi-channel CAMs supported
PCMCIA connector 5V, 3V CAMs supported
USB Comms
USB 1.1 Serial Comms device for external configuration/control
Administration Interface
Web pages served from LAN-Caster
Infa-Red Blasters
2 off outputs supporting Sky, Sky+, SkyHD IR formats with web page
RS232 Port
Rx, Tx, CTS, RTS up to 115200 Baud Configured for SIPI external
configuration/control OR
IP to RS232 bi-directional pass through for external device control
Temperature Monitoring
PCB operating temperature available remotely via web interface
External IP control interface
SCII Command/configuration via IP interface, USB comms and RS232
comms interfaces
Announcements
SAP (Session Announcement Protocol) notification of IP streams
Event Monitoring
SNMP or Syslog traps sent to third party SNMP manager
(MIB available on request).
Email Event Logs
Automatic email of Event log files via external SMTP server
Software
Fully upgradable with ONLY protected Cabletime software from
an HTTP server
Approvals
FCC, CE, CB, TUV Approved
Part No. 200-2352 - v1
