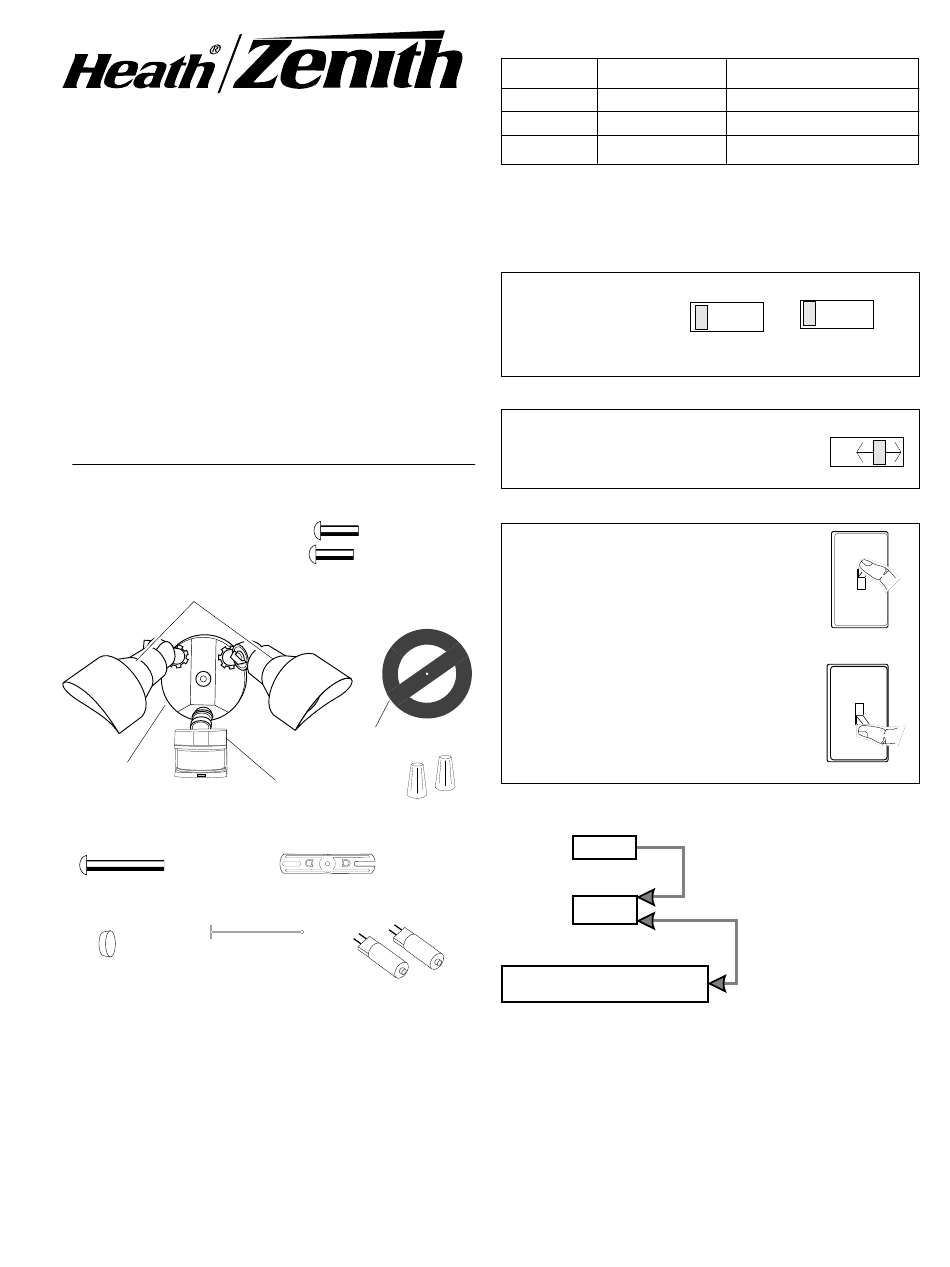

HeathZenith Dual Brite SL-5597 Quick Start Manual

Dual Brite
Motion Sensor
Light Control for
Canadian Tire
Model SL-5597
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Dual Brite™ Timer.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).
This package includes:
Lamp
Holders
Cover
Plate
Light Control
Mounting Bolt
Plastic Hanger
Rubber Plug
Requirements
• The Light Control requires 120-volts AC.
• If you want to use Manual Override, the control
must be wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with a junction box
marked for use in wet locations.
© 2001 DESA International
™
6 Screws
(3 sizes included)
Gasket
Sensor
2 Wire
Connectors
Mounting Strap
2 Lamps
(installed)
OPERATION
Mode: On-Time:
Test 5 Sec
Auto 1, 5, 20 min.
Manual Until Dawn*
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
the circuitry to calibrate.
Put ON-TIME switch
on the sensor bottom
to TEST and the Dual
Brite™ switch OFF.
Put the ON-TIME switch in the 1, 5 or
20 minute position.
MANUAL MODE
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the ON-
TIME switch in the 1, 5, or 20 position.
Mode Switching Summary
TEST
AUTO
MANUAL MODE
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the
calibration time the control will be in the AUTO mode.
Dual Brite™ TIMER
Light comes on half bright for selected time after dusk
(Off, 3 hr., 6 hr., until dawn). If motion is sensed, the light
turns on full bright for the ON-TIME (1,5 or 20 minutes)
then returns to dim mode.
Works: Day Night
x
1
/ minutes for
2
TEST
DUAL BRITE™
ON-TIME
Off 3 6 Dusk to
TEST 1 5 20
Dawn
AUTO
ON-TIME
TEST 1 5 20
1 Second OFF
then...
... back on.
Move ON-TIME Switch
to 1, 5 or 20 minutes
Flip light switch
off for one second
then back on*
598-1038-02
