WePresent SharePod Quick Start Manual

Wireless Mirroring for HDMI Sources
Connect an HDMI source to the SharePod for full
audio/video mirroring to any display or projector,
without software or other configuration required.

SPECIFICATIONS

IEEE 802.11a/b/g/n 5G/2.4GHz
Standards
IEEE 802.3(10BASE-T)/IEEE 802.3u(100BASE-TX)
Data Rate
Wireless: Up to 300Mbps
Protocol
MirrorOp, TCP/IP
IP Configuration Automatic: DHCP client
Management
USB Auto Pairing, Web-based configuration
HDMI Support
HDMI V1.4 (Does not support DHCP content)
IEEE Standard 64/128 bit WEP
Security
WPA/WPA2-PSK
Antenna
Internal PIFA Antenna
Transmission Power
2dBi
802.11b: 11M -76 dBm
Receive Sensitivity
802.11g: 54M -67dBm
Wireless Link Coverage
Up to 300 feet/100 meters, depends on environment
Supported HDMI Resolution
HDMI: 1280x720 (720P), 1920x1080 (1080i/1080p)
Power
External Power adaptor 5V DC input 1.2A
Front: HDMI Port (Input)
Interface
Rear: Micro-USB Port x 1 (USB Device), RJ-45 LAN Port, Reset Button
LED
Connection Status, Playing Status
Mechanical Dimension: 109 x 106 x 33 mm
Operation Temperature: 0~40ºC
Environmental Conditions
Storage Temperature: -10ºC~60ºC
Certificate
FCC/CE
Warranty
1 Year
The SharePod is a unique pairing solution
to wirelessly connect any HDMI source
into a wePresent environment.
Pair the SharePod with a WiPG-2000,
enabling seamless collaboration in
meetings and classrooms.
Easy Guest Connection
Simple one-touch connection for
guests in any wePresent environment.
Manual: Static IP address
802.11n: 65M HT20 -64dBm
150M HT40 -61dBm
Weight: 187 g
Operating Humidity: ≦80%
Storage Humidity: ≦90%

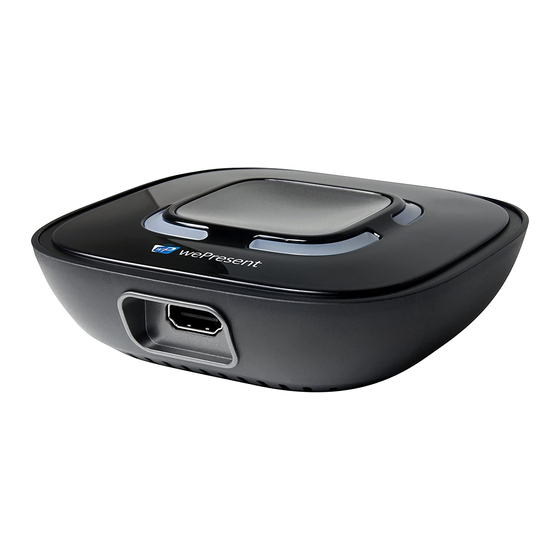

SharePod
Supports wePresent Features
Utilize the advance features on the wePresent
device such as the 4-to-1 projection, Annotation,
WebSlides and Conference Control.
P ower P ort
HDMI Input
Ethernet P ort
Micro USB P ort
(for auto pairing
wi t h weP resent)
Play /Stop Button
(for HDMI device mirroring)
