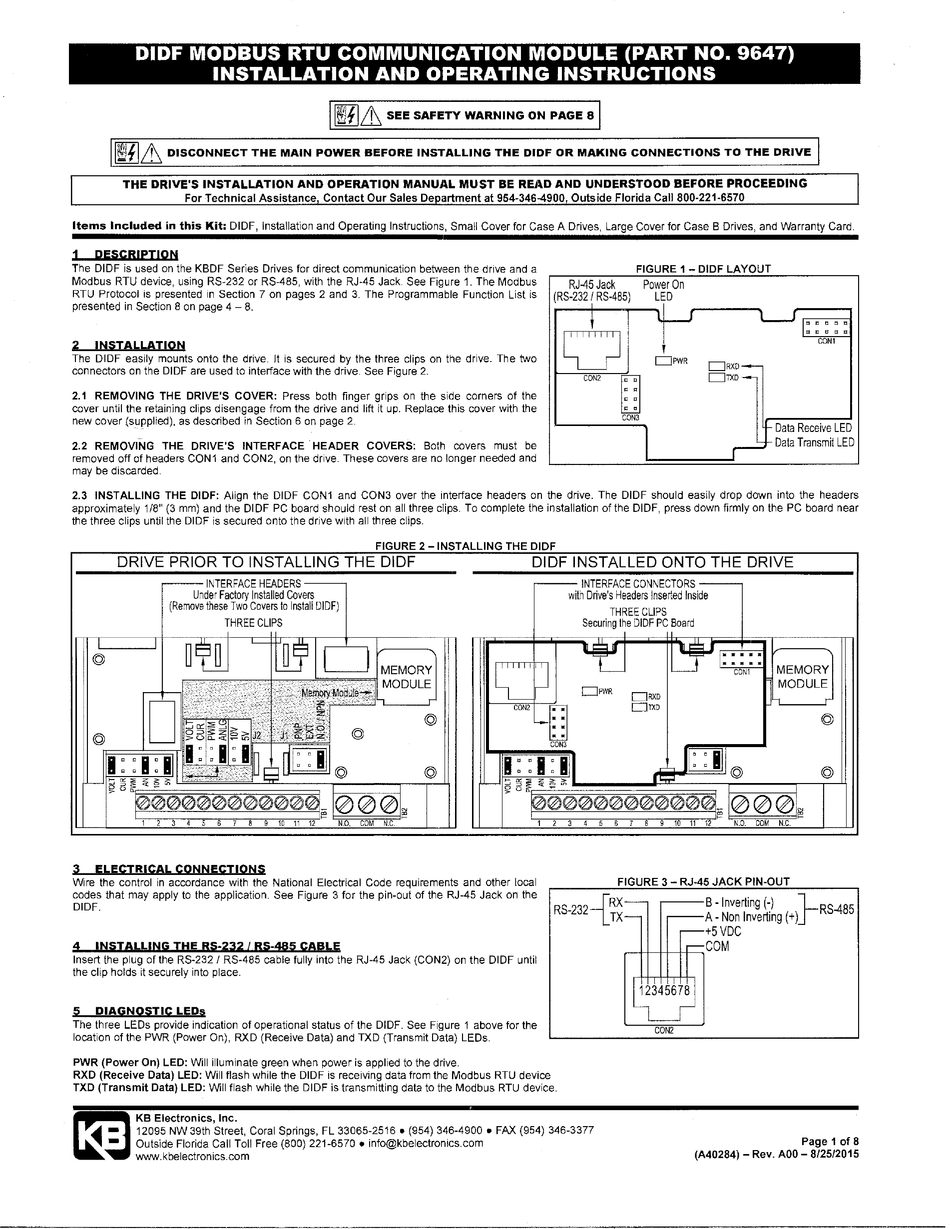

DIDF MODBUS RTU COMMUNICATION MODULE (PART NO. 9647)
INSTALLATION AND OPERATING INSTRUCTIONS
II!IJ&
SEE SAFETY WARNING oN PAGE
sj
I!II&
DISCONNECT THE MAIN POWER BEFORE INSTALLING THE DIDF OR MAKING CONNECTIONS TO THE DRIVE
THE DRIVE'S INSTALLATION AND OPERATION MANUAL MUST BE READ AND UNDERSTOOD BEFORE PROCEEDING
For Technical Assistance, Contact Our Sales De artment at 954-346-4900, Outside Florida Call 800-221-6570
Items Included in this Kit: DIDF, Installation and Operating Instructions, Small Cover for Case A Drives, Large Cover for Case B Drives, and Warranty Card.
1
DESCRIPTION
The DIDF is used on the KBDF Series Drives for direct communication between the drive and a
Mod bus RTU device, using RS-232 or RS-485, with the RJ-45 Jack. See Figure 1. The Modbus
RTU Protocol is presented in Section 7 on pages 2 and 3. The Programmable Function List is
presented in Section 8 on page 4 - 8.
2
INSTALLATION
The DIDF easily mounts onto the drive. It is secured by the three clips on the drive. The two
connectors on the DIDF are used to interface with the drive. See Figure 2.
FIGURE 1 - DIDF LAYOUT
RJ45 Jack
Power On
(RS-232/ RS-485)
LED
I
ll
tl
l:l
l:l
1:1
ll
l:l
c
!:!
1:1
CON1
0PWR
CON2
[]
CON3
2.1 REMOVING THE DRIVE'S COVER: Press both finger grips on the side corners of the
cover until the retaining clips disengage from the drive and lift it up. Replace this cover with the
new cover (supplied), as described in Section 6 on page 2.
2.2 REMOVING THE DRIVE'S INTERFACE HEADER COVERS: Both covers must be
removed
off
of headers CON 1 and CON2, on the drive. These covers are no longer needed and
may be discarded.
I
t-
Data Receive LED
:t-
Data Transmit LED
2.3 INSTALLING THE DIDF: Align the DIDF CON1 and CON3 over the interface headers on the drive. The DIDF should easily drop down into the headers
approximately 1/8" (3 mm) and the DIDF PC board should rest on all three clips. To complete the installation of the DIDF, press down firmly on the PC board near
the three clips until the DIDF is secured onto the drive with all three clips.
FIGURE 2 -INSTALLING THE DIDF
DRIVE PRIOR TO INSTALLING THE DIDF
DIDF INSTALLED ONTO THE DRIVE
r--INTERFACE HEADERS-
Under Factory Installed Covers
(Remove these Two Covers to Install DIDF)
-
INTERFACE CONNECTORS
~
with Drive's Headers Inserted Inside
THREE CLIPS
Securing the DIDF PC Board
I
THREE CLIPS
"--"!
~ ~
! i
!ll
.~JDI
©
©
>
~~~~~~~~~~~~§I~~~~~
I
3
ELECTRICAL CONNECTIONS
FIGURE 3 - RJ-45 JACK PIN-OUT
Wire the control in accordance with the National Electrical Code requirements and other local
codes that may apply to the application. See Figure 3 for the pin-out of the RJ-45 Jack on the
DIDF.
RS- 232 [RX
B
-Inverting(~)
}RS-4BS
LTX
A· Non Inverting ( +)
4
INSTALLING THE RS-232/ RS-485 CABLE
Insert the plug of the RS-232 I RS-485 cable fully into the RJ-45 Jack (CON2) on the DIDF until
the clip holds it securely into place.
5
DIAGNOSTIC LEDs
The three LEOs provide indication of operational status of the DIDF. See Figure 1 above for the
location of the PWR (Power On), RXD (Receive Data) and TXD (Transmit Data) LEOs.
PWR (Power On) LED: Will illuminate green when power is applied to the drive.
RXD (Receive Data) LED: Will flash while the DIDF is receiving data from the Mod bus RTU device
TXD (Transmit Data) LED: Will flash while the DIDF is transmitting data to the Modbus RTU device.
KB Electronics, Inc.
12095 NW 39th Street, Coral Springs, FL 33065-2516 • (954) 346-4900 • FAX (954) 346-3377
Outside Florida Call Toll Free (800) 221-6570 • info@kbelectronics.com
www.kbelectronics.com
+5VDC
..--++-++-++-----COM
Page 1 of 8
(A40284)- Rev. AOO- 8/25/2015
