Mayon MWM903 User Manual

Wireless intelligent monitoring system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

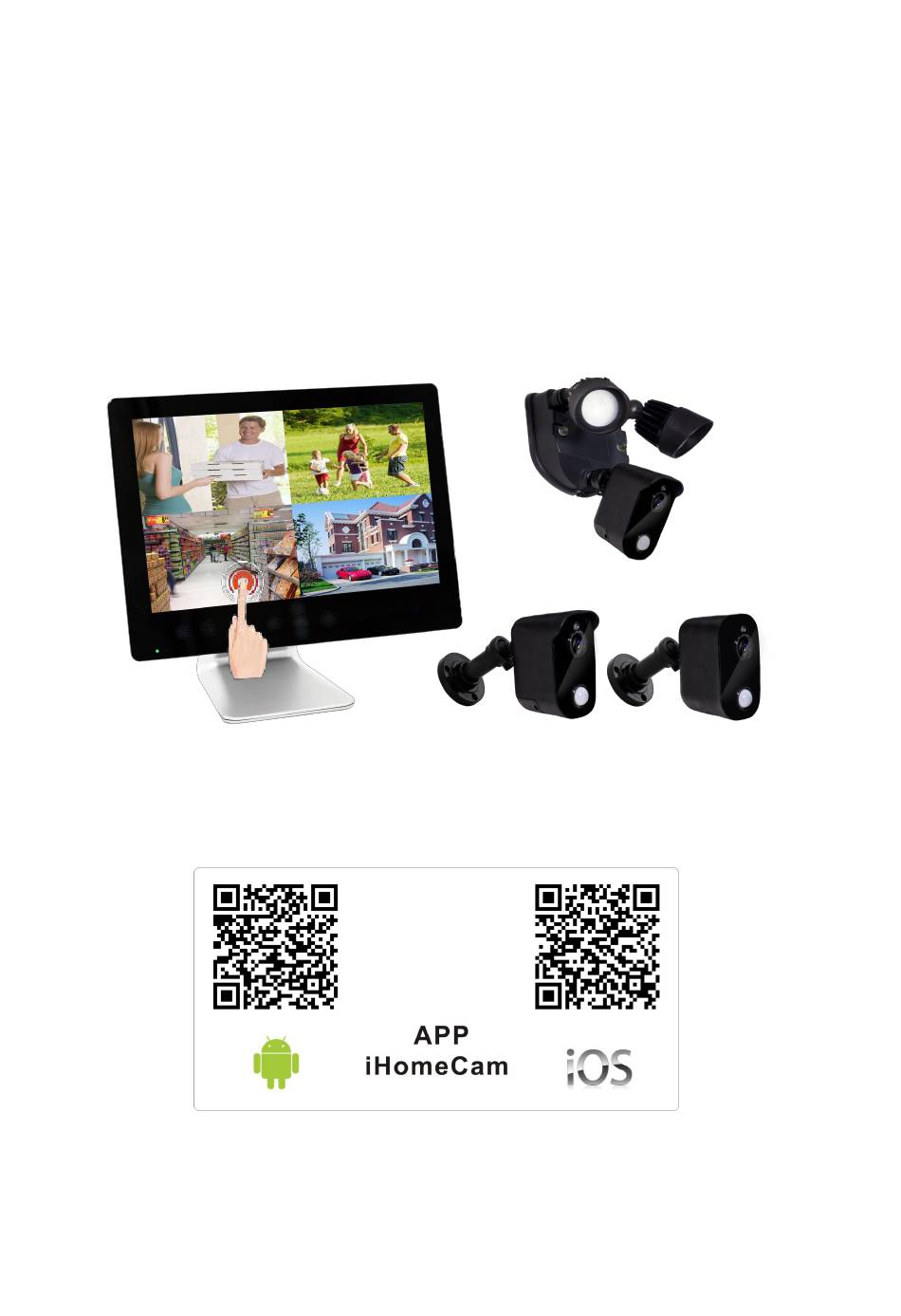

WIRELESS INTELLIGENT MONITORING SYSTEM
USER'S MANUAL
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING EQUIPMENT.
RETAIN IT FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MWM903 and is the answer not in the manual?

Questions and answers

Related Manuals for Mayon MWM903

Summary of Contents for Mayon MWM903

  • Page 1 WIRELESS INTELLIGENT MONITORING SYSTEM USER’S MANUAL PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING EQUIPMENT. RETAIN IT FOR FUTURE REFERENCE.

  • Page 3: Table Of Contents

    CONTENTS CAUTION …………………………………………………………………… WARNING …………………………………………………………………… PRODUCTS OVERVIEW 2.1 LCD DVR ………………………………………………………… 2.2 CAMERA …………………………………………………………… SPECIFICATIONS 3.1 LCD DVR …………………………………………………………… 3.2 Camera1 …………………………………………………………… 3.3 Camera2 …………………………………………………………… 3.4 Camera3 …………………………………………………………… INSTALLATION 4.1 Install the LCD DVR ………………………………………………………… 4.2 SURVEILLANCE ………………………………………………………… MENU OPERATION 5.1 Homepage ………………………………………………………………...

  • Page 4: Caution

    1.CAUTION * Please read the following manual details before using. * Keep DVR and indoor camera being used in damp-proof and water-proof environment. * Don't scratch LCD screen and clean the surface by soft cloth if the screen was dirty. * The equipment should be disassembled or repaired only by a qualified technician.

  • Page 5: Products Overview

    2. PRODUCTS OVERVIEW 2.1 INCH LCD DVR WITH TOUCH CONTROLS Icons Introduction Note: For power-saving and avoidance of accidental touch purpose, the touch icon will switch to resting status ( i.e. the lights of icon are off ) if no operation for 8 seconds. Please touch any icon for 1 second ( i.e.

  • Page 6: Specifications

    3. SPECIFICATIONS 3.1 LCD DVR ITEMS DESCRIPTION Display Screen Touch 9 inch TFT LCD (16:9) LED back-light Resolution 1024(H)×RGB×600(V) 9 inch: 198mm（H）×111.7mm（V） Display Area White Luminance 250cd/㎡ Frequency Range 2.4G FHSS Cameras Supported 4 channels Transmission distance 200～300 meters Line of sight 2-CH: 15fps@1920X1080 P Frame Rate 2-CH: 25fps@ 1280×720 HD...

  • Page 7: Camera1

    3.2 IN/OUTDOOR SMART CAMERA (battery optional ITEMS DESCRIPTION Image Sensor 1/2.7 inch color CMOS Sensor Active pixels 1920(H)×1080(V) Horizontal Resolution 2.0 Megapixel Min illumination 0.1Lux/F=1.2 (0Lux LED On) Lens 3.6 mm (6mm optional) fixed lens PIR Lens ∠110° Support audio Two-way audio Camera Alarm Sound (90db) (Do not support...

  • Page 8: Camera2

    3.3 INDOOR SMART CAMERA (battery optional ITEMS DESCRIPTION Image Sensor 1/2.7 inch color CMOS Sensor Active pixels 1920(H)×1080(V) Horizontal Resolution 2.0 Megapixel Min illumination 0.1Lux/F=1.2 (0Lux LED On) Lens 3.6 mm (6mm optional) fixed lens PIR Lens ∠110° Support audio Two-way audio Camera Alarm Sound (90db) (Do not support...

  • Page 9: Camera3

    3.4 OUTDOOR SMART FLOODLINGHT CAMERA ITEMS DESCRIPTION Image Sensor 1/2.7 inch color CMOS Sensor Active pixels 1920(H)×1080(V) Horizontal Resolution 2.0 Megapixel Min illumination 0.1Lux/F=1.2 (0Lux LED On) Lens 3.6 mm (6mm optional) fixed lens PIR Lens ∠110° Support audio Two-way audio Smart Alarm Camera Alarm Sound (90db) Smart Floodlinght...

  • Page 10: Installation

    4. INSTALLATION 4.1 INSTALL THE LCD DVR * Connect LCD DVR with Router by RJ45 cable * Adjust monitor to a appropriate viewing angle * Plug in the power adapter of the LCD DVR 4.2 INSTALL THE DVR Notes: - Before using the equipment, please confirm the Router is open DHCP service (Generally, the router is open DHCP service automatically).

  • Page 11: Surveillance

    Notes: - Camera must be installed within the valid transmission range to ensure the DVR can receive the stable and clear image from the cameras. - Camera must be securely installed at the desktop / floor / wall. START SURVEILLANCE After finishing above installation and connection, the monitor will display below interface when the power supply is turned on, then the system starts surveillance.
  • Page 12 Signal intensity 1－4 grid； means no signal or no camera connection Camera channel1－4 Recording status: the red dot flashing is being recording Network connection status: red means no network connection, green is connected, and blue means that network connection is successful. means SD Card is work normally ，...

  • Page 13: Menu Operation

    5. MENU OPERATION 5.1 Touch icon on the screen into main menu, touch icon into surveillance surface Camera Setting 5.2.1 Pairing– To pair the camera with a selected DVR channel. 5.2.1.1 Plug and turn on the power adapters of DVR and cameras. 5.2.1.2 Touch“Camera Setting”icon into camera function setting - 10 -...
  • Page 14 5.2.1.3 At the “Pairing” screen, Touch to select "Cam 1-2-3-4", then Touch “Pairing” button at the back of camera within 30 seconds to finish pairing. Note: - If no video displayed on the screen, it means the pairing is not successful, please repeat the above operation again.
  • Page 15 5.2.3 Resolution – To choose the recording resolution as 1080P or 720P 5.2.3.1 Touch into camera resolution setting ， select 720P means 1280*720 1080P means 1920*1080, touch again to save and back to previous menu 5.2.4 Brightness– To adjust the brightness of image displayed on the screen 5.2.4.1Touch to adjust brightness of camera image, touch green means...
  • Page 16 5.2.6 Camera Alarm-TO Adjust the camera to open / turn off the light and alarm 5.2.6.1 Touch to set up light and alarm function of camera 5.2.6.2 Light On/Off 5.2.6.2.1 Touch to turn on/off the light of camera, when set up “on” then can display icon on screen - 13 -...
  • Page 17 5.2.6.2.2 Light Scheduled Setting If you have set scheduled period, it will be shown in the below picture, and you can also check the time schedule from Monday to Sunday. Touch to modify or set up time schedule from Monday to Sunday time setting ，...
  • Page 18 5.2.6.2.5 Touch to delete scheduled setting, please select date, time and channel according to above control process, then touch “delete”and back to previous menu simultaneously. Timing setting for the light is only effective when the camera enters the night vision mode. In the night vision mode, the unscheduled time will trigger the light for 60 seconds by the PIR.
  • Page 19 5.2.6.2.2 Select Cam1-2-3-4 first and then turn into red , time setting ，touch“▲▼”to adjust the numbers 。 Then select the date on Mon/Tue/Wed/Thu/Fri/Sat/Sun into red touch again to save and back to previous menu. means be not selected means selected means be not selected means selected 5.2.6.2.3 Touch...

  • Page 20: Rec Setting

    5.3 REC Setting Touch“REC Setting”icon into camera recording function settings 5.3.1 REC Mode－To choose the trigger ways of video recording 5.3.1.1 Touch into Cam1-2-3-4 recording mode settings, select "Motion/Manual/Schedule, touch green means selected, touch again to save and back to previous menu.
  • Page 21 5.3.2.2 Select Cam1-2-3-4 first and then turn into red , time setting，touch“▲▼”to adjust the numbers 。 Then select the date on Mon/Tue/Wed/Thu/Fri/Sat/Sun into red ， touch again to save and back to previous menu. means be not selected means selected means be not selected means selected 5.3.2.3 Touch...
  • Page 22 5.3.3 Motion Detection 5.3.3.1 Touch into sensitivity of motion detection setting，select “Cam1-2-3-4”， then select “Low/Mid/High” touch green means selected, touch gain to save and back to previous menu. 5.3.4 PIR Scheduled 5.3.4.1 Touch into PIR Scheduled surface, If you have set scheduled period, it will be shown red color in the below picture, and you can also check the time schedule from Monday to Sunday.
  • Page 23 5.3.4.2 Select Cam1-2-3-4 first and then turn into red , time setting，touch“▲▼”to adjust the numbers 。 Then select the date on Mon/Tue/Wed/Thu/Fri/Sat/Sun into red ， touch again to save and back to previous menu. means be not selected means selected means be not selected means selected 5.3.4.3 Touch...
  • Page 24 5.4 Playback 5.4.1 Touch“Playback”icon into the interface of video playback 5.4.2 Introduction of icons in video playback interface Video query channel selection：red means selected，green means be not selected Video query date optional Back to control surface Week is arranged by American style Manual recording query, red means selected - 21 -...
  • Page 25 Scheduled recording query, red means selected Motion detection recording query, red means selected Doorbell recording query, red means selected Playing icon. That means there is a video event on the day, and the video events that match conditions will appear on the date after the end of the query, you can click into it to find the video events.

  • Page 26: Storage Setting

    Note: Folders are sorted by recording time, and daily recording files are packed in same folder. Files are named by the recording time and channel. For example: 153147-3 means channel 3 begins recording at 15:31:47 (which is little later than the starting time). 5.5 Storage Setting 5.5.1 Touch“Storage Setting”icon into SD card and HDD storage setting - 23 -...
  • Page 27 5.5.2 File Overwrite 5.5.1.1 Touch into the video file overwrite settings, select "YES" can achieve recycle recording. When the recording is full, it will automatically delete the earliest video and provide the capacity space for the new video storage. The system default is "NO". Touch red means selected, touch again to save and back to previous menu.
  • Page 28 5.5.4 Storage Space 5.5.4.1 Touch into the storage capacity status query, you can more directly understand the use of storage media, touch again to save and back to previous menu. 5.5.5 HDD Unmount 5.5.5.1 Touch into HDD unload settings, select "YES" will unload the HDD on the current system, you can pull out the HDD after unloading successfully.

  • Page 29: System Settng

    System Setting 5.6.1 Touch“System Setting”icon into system function settings 5.6.2 Date & Time 5.6.2.1 Touch into system date & time setting. Touch turn into red means NTP time open synchronously. The system is closed by default. Touch again to save and back to previous menu. - 26 -...
  • Page 30 5.5.1.2 Touch into the time zone adjustment, it can adapt to time zones of different countries in the world. 5.6.2 Firmware Update 5.6.2.1Touch into system firmware updates, it’s convenient and better to optimize system., touch red means selected,touch again to save and back to previous menu.
  • Page 31 system firmware updates, Server online system firmware update time is about 8 minutes. Note: after the updating is completed, the system will be restarted. Please do not turn off the power in the update process. 5.6.3 Language 5.6.3.1 Touch into system language selection , to facilitate users to use language at local.
  • Page 32 5.6.4.2 Touch into Static IP setting. Users need to set up it according to the current LAN environment. 5.6.5 Default Setting 5.6.5.1 Touch into Default Setting. When users need to restore the system to the factory default value then can operate it, select YES / NO, touch red means selected, touch again to save and back to previous menu.

  • Page 33: System Info

    5.6.6 Monitor Alarm into Monitor Alarm setting ， if select ”YES”, when motion 5.6.6.1 Touch detection is triggered, the monitor will make an alarm sound, the system default is "NO". Touch red means selected, touch again to save and back to previous menu. 5.7 System Info 5.7.1 Touch to view version info of camera and DVR.
  • Page 34 5.7.2 Version Info 5.7.2.1 Touch to view version info of camera and DVR. 5.7.3 Network Info 5.7.3.1 Touch to view system network information. - 31 -...
  • Page 35 5.7.4 APP 5.7.4.1 Touch to view the QR Code of APP download link. Users can scan the QR code directly to download APP. - 32 -...

  • Page 36: Usage Of Software In Ios Operating System

    6. USAGE OF SOFTWARE IN iOS OPERATING SYSTEM Apple mobile phones and iPad tablet PC hereafter refer as “Apple phone”. Before using the software, please open the phone Wi-Fi function or 3G data services, and ensure the Apple phone can connect to the internet properly. 6.1 INSTALL CLIENT-END SOFTWARE APP iHomeCam Use Apple phone to search "iHomeCam"...
  • Page 37 Equipment real-time viewing shortcut interface Equipment event lists Add camera Mobile phone Software version THREE METHODS TO ADD DVR - 34 -...

  • Page 38: User Operation

    6.2.2.1 Add DVR by searching local network DVR Click to begin searching for Local area network DVR. Select the DVR, enter the password. Click the "Save" to add DVR to the list. 6.2.2.2 Add DVR by scanning QR Code Click to scan QR code to obtain UID automatically, then enter password and click the "Save"...

  • Page 39: System Settings

    phone. 6.3.3 Full-screen display function: Start Apple phone to horizontal screen and put it horizontally to get full-screen display, then click the screen and the status bar is hidden. 6.3.4 Introduction of Icons: Doria 小鱼 Back to previous step. Snapshot image Review image Select the audio mode ／...
  • Page 40 【Name】The initial device name 【Password】Default password 000000 【Advanced Setting】Access to the system parameter modification 【Reconnect】Refresh network signal coupling 6.4.2 Security Code settings Fill the old password firstly, then fill the new password and confirm password, then click “OK”. Note: Please change the password for safety purpose. 6.4.3 Video Quality According to the customer’s internet conditions (e.g: Internet signal, speed) to adjust the parameter (Max/High/Medium/Low/Min) of the real time play back results.

  • Page 41: How To Delete Dvr

    6.4.4 About Device It shows the software version and SD/TF card information. 6.5 HOW TO DELETE DVR Click to delete the device, appears, then click appears, then click to finish. - 38 -...
  • Page 42 6.6Motion detection, Lighting, Alarm sound setting 6.7.1 Touch menu button will appear the second menu，including motion detection, lighting, alarm. 1.Touch 、 motion detection icon will appear the third menu, including sensitivity of grade 、 optional. For grade , PIR detection distance is 3m; Grade is 5m;...

  • Page 43: Usage Of Software In Android Operating System

    3.Touch switch of alarm sound icon will appear the third menu, means alarm has turn off, means alarm has turn on, Touch icon, alarm sound is turned on and the icon will turn into red, the outer ring will decrease in turn. For example A small lattice of time is 5 seconds with a total of 12 small lattices, then all decrease to total 60 seconds, the alarm will...

  • Page 44: How To Add Dvr

    APP iHomeCam Use Android phone to search "iHomeCam" APP ( as below picture ) in the Google Play Store, and install the software. 7.2 HOW TO ADD DVR 7.2.1 After software installation is completed, please search icon "iHomeCam"( as below picture ) at your Android phone desktop.

  • Page 45: Statement

    THREE METHODS TO ADD DVR 7.2.2.1 Add DVR by searching local network DVR Click to begin to search Local area network DVR. Select the DVR and enter the password, then click the "OK" to finish adding new DVR. 7.2.2.2 Add DVR by scanning QR Code Click to scan QR code to obtain UID automatically, then enter password and click the "OK"...

  • Page 46: Trouble Shooting

    updated (if any) without prior notice, unless there are special conventions. All statements, information in this manual does not constitute any warranty or guarantee. The version of the firmware and the software used for iOS and Android operating system maybe be upgraded without prior notice, some features maybe be different from this manual.
  • Page 47 - 44 -...
