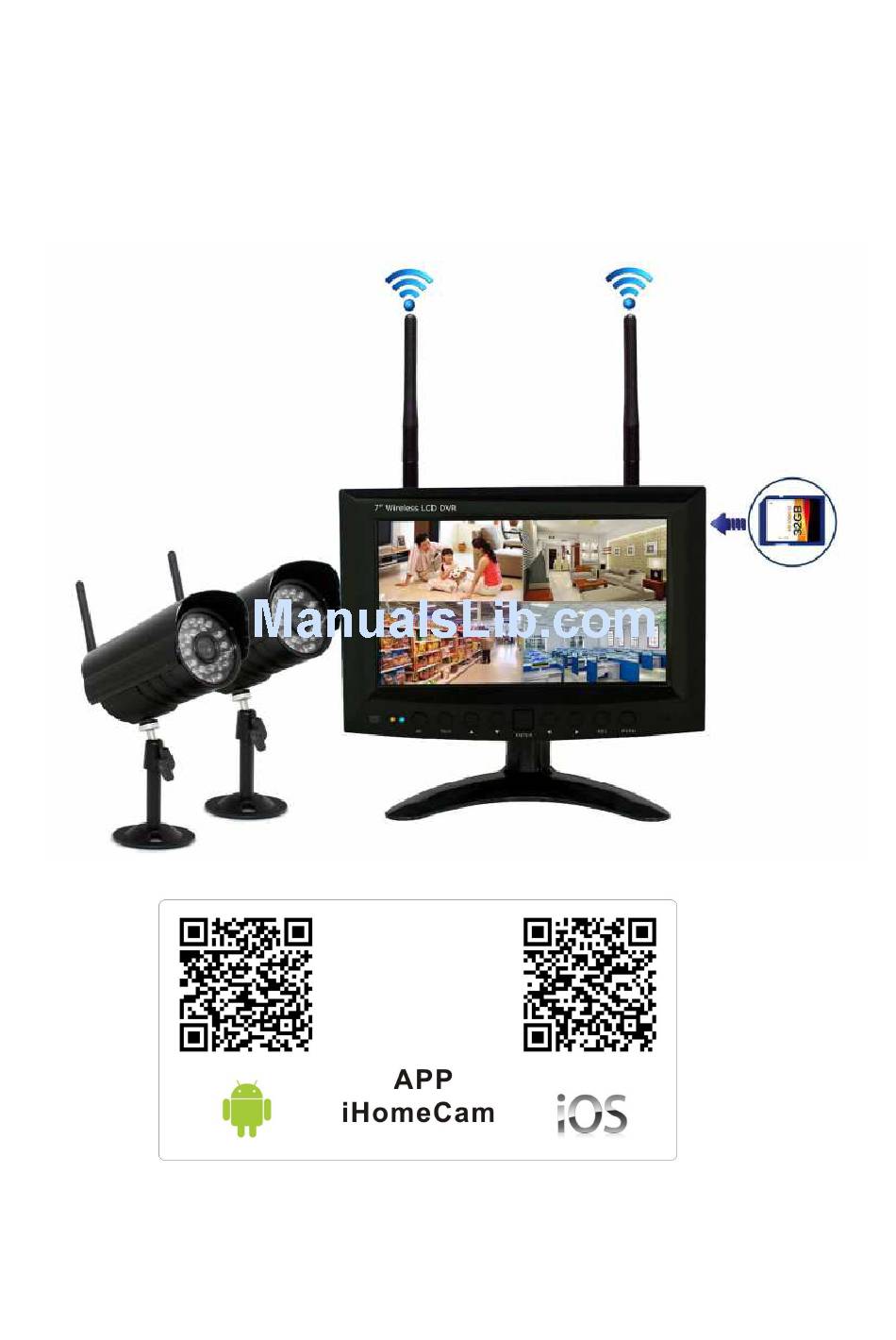

- Page 1 DIGITAL WIRELESS LCD DVR SYSTEM ( NETWORK VERSION ) USER’S MANUAL PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING EQUIPMENT. RETAIN IT FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
CONTENTS CAUTION WARNING ………………………………………………………..… WHAT IS INCLUDED PRODUCTS 2.1 LCD DVR ………………………………………………………… 2.2 Panel Button Function ………………………………………………………… 2.3 Camera ………………………………………………………… SPECIFICATIONS 3.1 LCD DVR ……………………………………………………………… 3.2 Outdoor Camera ……………………………………………………………… 3.3 Indoor Camera ……………………………………………………………… INSTALLATION 4.1 Install the LCD DVR ………………………………………………………… 4.2 Install the Camera ………………………………………………………………... -
Page 3: Caution
CAUTION * Please read the following manual details before using. * Pay attention to dampproof for the high resolution unit. * Don't scratch the LCD screen surface and clean the surface by soft cloth if the screen was dirty. * This unit should be opened and serviced only by a qualified technician. * Push the unit MIR switch if finding the picture reverse. -
Page 4: What Is Included
1. WHAT IS INCLUDED? ITEM QUANTITY LCD DVR with antenna 1 unit Camera with antenna 2 unit CD ( software / manual ) 1 unit Power Adapter (DVR) 1 unit Power Adapter (Camera) 2 unit RJ45 cable 1 unit AV cable 1 unit Camera bracket 2 unit... -
Page 5: Products
2. PRODUCTS 2.1 LCD DVR appearance 2.2 Panel Button Function : Switch to turn on/off the screen display TALK : Turn on/off the 2-way audio intercom （ only for 2-way audio model ） ▲ : Move to previous column or Adjust the digital ▼... -
Page 6: Camera
: Start / Stop manual recording MENU : Enter the main menu or Exit the menu operation 2.3 Camera appearance A. Housing for camera without speaker B. Housing for camera with speaker C. Indoor Camera 3. SPECIFICATIONS 3.1 LCD DVR ITEMS DESCRIPTION Display Screen... -
Page 7: Outdoor Camera
Display Area 154.08mm（H）×85.92mm（V） White Luminance 250cd/㎡ Frequency Range 2.4G FHSS Cameras Supported 4 channels Transmission distance 200～300 meters Line of sight 2-CH: 15fps@1280X720 HD Frame Rate 2-CH: 25fps@ 640×480 VGA Compression MPEG-4 File Type Record Mode 4-CH record separately Start recording mode Manual / Motion detect / Schedule Scheduled Recording 1 Week... -
Page 8: Indoor Camera
Dimensions 110(W)×150(H)×105mm(D)(With Stand) 3.3 Indoor Camera ITEMS DESCRIPTION Image Sensor 1/4 inch color CMOS Sensor Active pixels 1280(H)×720(V) Horizontal Resolution 1.0 Megapixel Min illumination 0.1Lux/F=1.2 (0Lux LED On) Lens 3.6mm fixed lens (6mm lens is optional) Night Vision IR LED control Automatic (CDS Sensor) Quantity of IR LED 12 pcs... -
Page 9: Install The Camera
4.2 Install the Camera Please pair the camera with the LCD DVR firstly, then install the cameras on the wall or other safe places, finally plug and turn on the power adapter of cameras. Note: The camera position must be within the valid transfer distance to ensure the LCD DVR can receive the stable and clear image from the cameras. - Page 10 5.1.1.4 If no video displayed on the screen, it means the pairing is not successful, please repeat the above operation again. 5.1.1.5 LCD DVR can support up to 4 cameras. 5.1.2 Camera On/Off At the "Camera setting" screen, press "▲ ▼" to select "Camera ON/OFF", and press "Enter"...
-
Page 11: Rec Setting
enter next step. Press "▲ ▼" to select "Cam 1-2-3-4", and press "◄ ►" to select "1-6" , then press "Enter" to confirm and press "Menu" to exit. 5.1.5 Anti-flicker At the "Camera setting" screen, press "▲ ▼" to select "Anti-flicker" and press "Enter" to enter next step. - Page 12 5.2.2 Scheduled Setting 5.2.2.1 At the "Recording" screen, press "▲▼" to select "Scheduled Setting", press "Enter" to enter next step. Press "Enter" to select "Modify" to enter next step. 5.2.2.2 At the "Scheduled Recording" screen, press "◄ ►" to select "Cam 1-2-3-4", then press " ◄...
-
Page 13: Motion Detection
5.2.3 Motion Detection At the "Recording" screen, press "▲▼" to select "Motion Detection", press "Enter" to enter next step, and press "Enter" at the Motion Detection screen to enter next step. Press "▲ ▼" to select "Cam 1-2-3-4", and press "◄ ►" to select "Low/Mid/High" , then press "Enter"... -
Page 14: System Setting
press “Menu” to exit. Remarks: this operation is to set the recording time of each video file. 5.2.5 File Overwrite At the “Recording” screen, press “▲▼” to select “File Overwrite”, press “Enter” to enter next step. Press “▲ ▼” to select “YES / NO”, then press “Enter” to confirm and press “Menu”... -
Page 15: Default Setting
5.3.2 Video Out At the “Setting” screen, press “▲ ▼” to select “Video Out”, and press “Enter” to enter next step. Press “▲ ▼” to select “NTSC / PAL/Panel “, then press “Enter” to confirm and press “Menu” to exit. 5.3.3 Format At the “Setting”... - Page 16 5.3.5 Alarm At the “Setting” screen, press “▲ ▼” to select “Alarm”, and press “Enter” to enter next step. Press “▲ ▼” to select “ON / OFF “, then press “Enter” to confirm and press “Menu” to exit. 5.3.6 Update At the “Setting”...
-
Page 17: System Info
5.3.8 Network 5.3.8.1 At the “Setting” screen, press “▲ ▼” to select “Network”, and press “Enter” to enter next step. Press “◄ ►” to select “Dynamic IP”, then press “Enter” to confirm and press “Menu” to exit. 5.3.8.2 At the “Network” screen, press “◄ ►” to select “Static IP” and press “▲ ▼” to select “Address /Mask/Gateway”... - Page 18 Remarks: this operation is to check the SD card total capacity and the percent of the used and the rest capacity, 5.4.2 Version At the “System Info” screen, press "▲ ▼" to select " Version " and press "Enter" to check the machine software version, then press "Menu"...
-
Page 19: Playback
Playback Press "Menu" to enter the main menu, and press "◄ ►" to select "Playback", then press "Enter" to enter next step. At the “Folder Name” screen, press "▲ ▼" to select the file (e.g: "00000040") and press "Enter" to enter next step. Press "▲ ▼" to select camera channel/date/time concrete file (e.g. -
Page 20: Add Network Dvr Methods
6.2 Add network DVR methods 6.2.1 After client-end software installation is completed, return to the Apple phone desktop, and search icon "iHomeCam", as below pictures. 6.2.2 Click to run the client software to display the following interface... -
Page 21: User Operation
Add DVR methods (3 methods for choice) Equipment real-time viewing shortcut interface Equipment event lists Add camera Mobile phone Software version 6.2.2.1 Add Local area network DVR Click to begin searching for Local area network DVR. Select the DVR, enter the password. - Page 22 can be viewed. 6.3.2 Click the icon CH1-CH2-CH3-CH4, 4- channel camera images can be viewed on the network DVR. 6.3.3 Full-screen display function: Start apple mobile phone to horizontal screen item and then put it horizontally to get full-screen display function, then click the screen, the status bar is hidden.
-
Page 23: System Settings
Displayed camera channel (CH1/CH2/CH3/CH4) 6.4 System settings 6.4.1Enter into system settings Press for 2 seconds, the below windows appear. 【Name】The initial device name 【Password】The initial device password 000000 【Advanced Setting】Access to the system parameter modification 【Reconnect】Refresh network signal coupling 6.4.2 Security Code settings Fill the old password firstly, then fill the new password and confirm password, then click “OK”. -
Page 24: Delete Network Dvr Methods
mean selected. Click to go back the last step． 6.4.4 About Device Check the software and SD card total capacity and rest capacity. 6.5 Delete network DVR methods Click to delete the device, appears, then click appears, then click to finish. -
Page 25: Usage Of Software In Android Client
USAGE OF SOFTWARE AT ANDROID CLIENT-END ７ ７ ７ ７ . Android mobile phones and Android tablet PC hereafter refer as “Android phone”. Before using the software, open the phone Wi-Fi function or 3G data services, and ensure the Android phone can connect to the Internet properly. - Page 26 Add DVR methods (3 methods for choice) 7.2.2.1 Add Local area network DVR Click to begin to search for Local area network DVR. Select the DVR, enter the password. Click the "OK" added to the list. 7.2.2.2 Add Local area network DVR Click to begin to scan the QR (two dimensional) code at the...
-
Page 27: Statement
【OK】click Save after finishing above. Android client-end software sequent operation settings are similar with the Apple phone operation, please reference to 6.3 --6.4 items. 8. Statement The specification and information in this manual is only for reference. Any content maybe be updated (if any) without prior notice, unless there are special conventions. - Page 28 1. Check password is correct or not. 2. Select Restore factory settings in the network DVR menu, the system will be restored to the factory default status.
